(1)Product Information
Construction: Green PVC reinforced with a rigid PVC spiral.
Key Features: Strong, flexible, crush, abrasion and weather resistant.
APPLICATIONS:
1) the products are used for conveying water, oil, gas under normal working condition.
2) Suitable for conveying powder, grain, water and oil, etc
3) construction project, industrial and mining enterprise
CHARACTERISTICS:
It is flexible, durable, non-toxic, without odor, and resistant to high pressure and erosion.
Working Temperature: -5°C-65°C
Notes for storage
- Get rid of any remaining from the hose after use.
- Store the hose indoor or in a dark, well-ventilated place.
- Enlarge the packing of the hose as much as possible.
Notes for disposal
- Hose can give out harmful gas when burned, which can affect environmental, so do not incinerate it.
- Disposition of the hose should be in according with the law of the local region.
(2)Product Specifications:
| British | Metic Measurement | Working | Bursting | Pressure | Weight | Volume | ||
| Measurement | Id | OD | Length | Pressure | At20°C | At60°C | ||
| Inch | MM±0.2 | M | (Bar) | Bar | Bar | Kg/Roll | m³/Roll | |
| 1/4 | 6 | 11 | 100 | 8 | 70 | 16 | 11 | 0.036 |
| 5/16 | 8 | 13 | 100 | 8 | 60 | 16 | 14 | 0.046 |
| 3/8 | 9 | 15 | 100 | 8 | 55 | 15 | 18 | 0.053 |
| 1/2 | 12 | 18 | 100 | 6 | 40 | 15 | 22.0 | 0.068 |
| 5/8 | 15 | 22 | 100 | 6 | 35 | 13 | 31.0 | 0.096 |
| 3/4 | 19 | 26 | 50 | 5 | 30 | 12 | 19 | 0.073 |
| 1 | 25 | 33 | 50 | 4 | 25 | 10 | 27.5 | 0.096 |
| 1-1/4 | 32 | 41 | 40 | 4 | 20 | 9 | 31.6 | 0.125 |
| 1-1/2 | 38 | 48 | 40 | 4 | 18 | 8 | 40.5 | 0.165 |
| 1-3/4 | 45 | 56 | 40 | 4 | 17 | 8 | 53.5 | 0.305 |
| 1-7/8 | 48 | 59 | 40 | 4 | 16 | 7 | 56 | 0.315 |
| 2 | 50 | 62 | 40 | 4 | 16 | 7 | 63 | 0.318 |
| 2-3/8 | 60 | 74 | 30 | 4 | 15 | 7 | 67 | 0.295 |
| 2-1/2 | 63 | 80 | 20 | 4 | 15 | 5 | 57.5 | 0.263 |
| 3 | 75 | 92 | 20 | 4 | 13 | 5 | 66.8 | 0.337 |
| 3-1/2 | 90 | 108 | 10 | 4 | 12 | 5 | 42 | 0.384 |
| 4 | 100 | 118 | 10 | 3.5 | 10 | 5 | 48 | 0.400 |
| 5 | 127 | 143 | 10 | 3.5 | 10 | 5 | 52 | 0.420 |
| 6 | 152 | 168 | 10 | 3.5 | 10 | 5 | 62 | 0.430 |

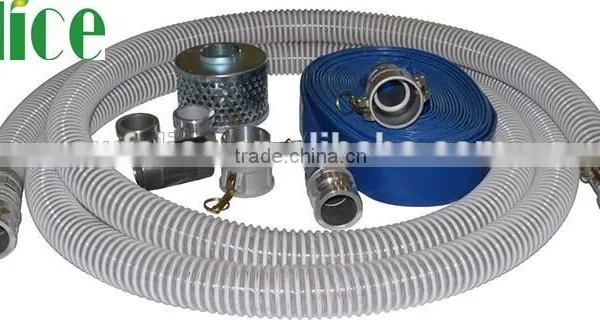

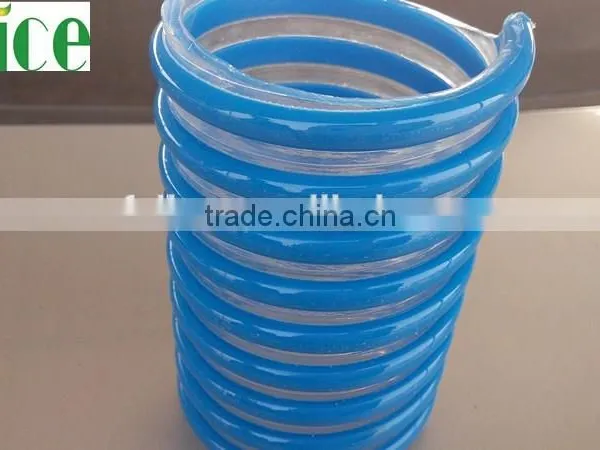

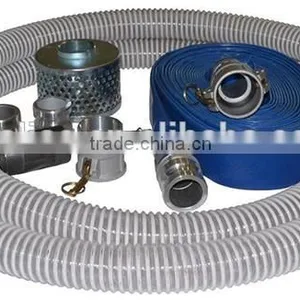

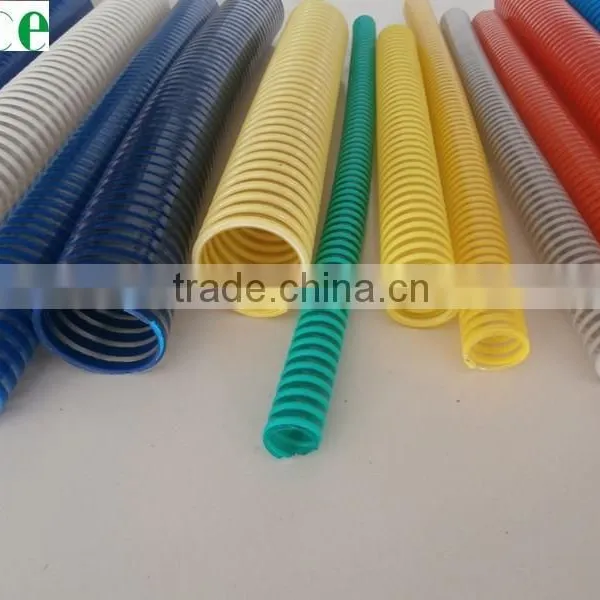

3)Product Show of Alice Polymer:

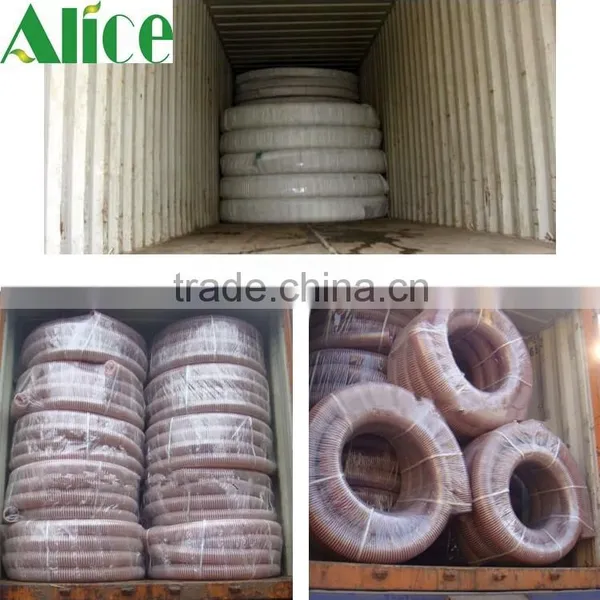

(4)Factory Show of Alice Polymer:
(5)Main products:
Our main products are all kinds of pvc hoses,including PVC steel wire hose,PVC lay flat hose,
PVC twin-welding hose,PVC fiber reinforced hose,PVC garden hose,PVC suction hose,plastic
machine and also we offer OEM services.
(6)Dear friends ,if you are interested in our products,please contact me.
Address:West of culture road,north of north outer ring road,Changle County,Shandong Province,China.
Skype:nommyteng127 WhatsApp:+86 15065631616 Viber: +86 15065631616
QQ:19548872 Wechat:+86 15065631616
Mob:+86 15065631616 Web: https://img13.fr-trading.com/
