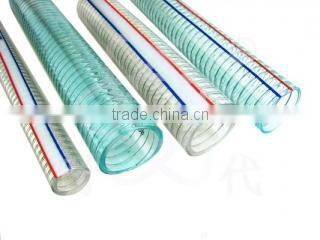

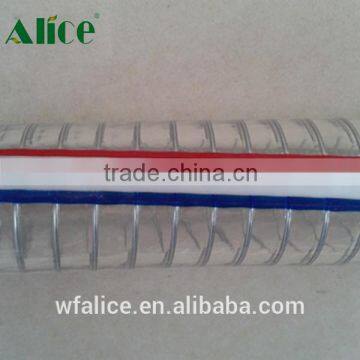

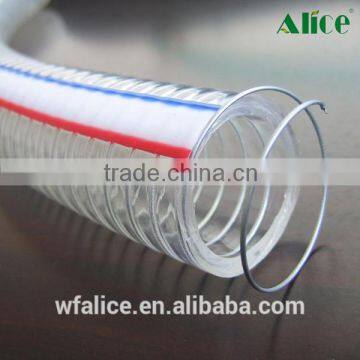

Flexible PVC Spiral Steel Wire Reinforced Hose
Application

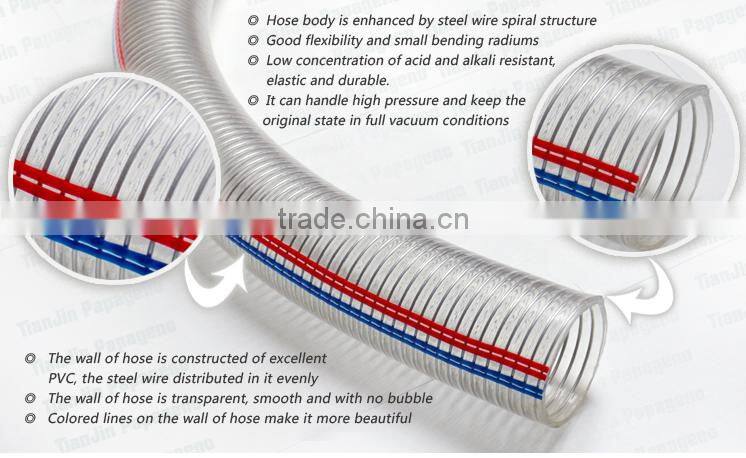

Construction:

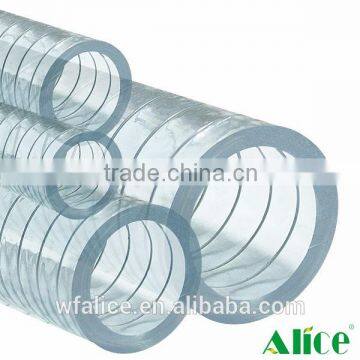

The hose wall is made of transparent PVC plastic. There are spiral steel wires in the pipes’ inner-wall. Which make the hoses has the advantage of extrusion resistance, corrosion resistance, anti-static electricity, high pressure resistance, heavy suction resistance.
Features:
1.Glass-like clarify with mirror smooth surfaces provide outstanding visual characteristic.

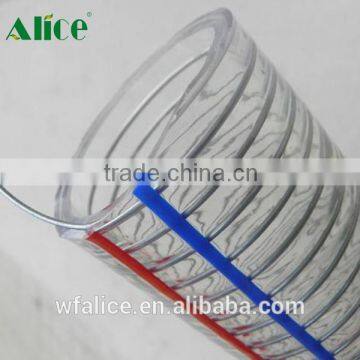

2.With colorful symbol lines on the surface of the hose, it can be more beautiful.
3.Good adaptability to hard weather condition,it won’t get softer when in summer and harder when in winter.
4.Temperature range:-5°C(23F)~65°C(149F)
Application:
The hose is widely used for drawing and conveying water, oil and powder in factory, agriculture, engineering, foodstuffs and sanition lines.
Regular Specifications
| PVC Spiral Steel Wire Reinforced Hose | |||||||
|
British inch |
Metric size |
Length |
W.P. | B.P. |
Weight |
Volume |
|
| I.D. | Thickness | ||||||
| mm | mm | m | Mpa | Mpa | kg/m | m³/reel | |
| 3/4 | 20 | 2.2-2.4 | 50 | 0.5 | 1.5 | 0.25 | 0.076 |
| 20 | 2.6-2.8 | 50 | 0.5 | 1.5 | 0.3 | 0.076 | |
| 1 | 25 | 1.9-2.1 | 50 | 0.5 | 1.5 | 0.25 | 0.085 |
| 25 | 2.1-2.3 | 50 | 0.5 | 1.5 | 0.3 | 0.085 | |
| 25 | 3.2-3.4 | 50 | 0.5 | 1.5 | 0.4 | 0.089 | |
| 25 | 3.3-3.5 | 50 | 0.5 | 1.5 | 0.5 | 0.089 | |
| 1 -1/4 | 32 | 2.2-2.4 | 50 | 0.5 | 1.5 | 0.4 | 0.129 |
| 32 | 2.4-2.6 | 50 | 0.5 | 1.5 | 0.5 | 0.129 | |
| 32 | 4.0-4.2 | 50 | 0.4 | 1.1 | 0.65 | 0.166 | |
| 1 -1/2 | 38 | 1.9-2.1 | 50 | 0.4 | 1.1 | 0.4 | 0.224 |
| 38 | 2.3-2.5 | 50 | 0.4 | 1.1 | 0.5 | 0.224 | |
| 38 | 3.2-3.5 | 50 | 0.4 | 1.1 | 0.7 | 0.224 | |
| 38 | 3.9-4.1 | 50 | 0.4 | 1.1 | 0.9 | 0.231 | |
| 42 | 3.8-4.0 | 50 | 0.4 | 1.1 | 0.9 | 0.243 | |
| 1 -3/4 | 45 | 3.8-4.0 | 50 | 0.4 | 1.1 | 0.8 | 0.243 |
| 45 | 3.9-4.1 | 50 | 0.4 | 1.1 | 1.0 | 0.271 | |
| 1 -7/8 | 48 | 4.8-5.0 | 50 | 0.4 | 1.1 | 1.1 | 0.289 |
| 2 | 50 | 2.9-3.1 | 50 | 0.4 | 1.1 | 0.7 | 0.307 |
| 50 | 3.1-3.3 | 50 | 0.4 | 1.1 | 0.8 | 0.307 | |
| 50 | 3.3-3.5 | 50 | 0.4 | 1.1 | 0.9 | 0.307 | |
| 50 | 3.4-3.6 | 50 | 0.4 | 1.1 | 1.0 | 0.307 | |
| 50 | 3.9-4.1 | 50 | 0.4 | 1.1 | 1.1 | 0.31 | |
| 50 | 4.7-4.9 | 50 | 0.4 | 1.1 | 1.2 | 0.31 | |
| 58 | 4.4-4.6 | 40 | 0.4 | 1.1 | 1.4 | 0.331 | |
| 2 -1/2 | 64 | 2.9-3.1 | 30 | 0.4 | 1.1 | 1.2 | 0.331 |
| 64 | 4.1-4.3 | 30 | 0.4 | 1.1 | 1.4 | 0.331 | |
| 64 | 4.7-4.9 | 30 | 0.4 | 1.1 | 1.6 | 0.331 | |
| 64 | 4.9-5.1 | 30 | 0.4 | 1.1 | 1.8 | 0.331 | |
| 3 | 75 | 3.3-3.5 | 30 | 0.3 | 0.8 | 1.4 | 0.375 |
| 75 | 3.6-3.8 | 30 | 0.3 | 0.8 | 1.6 | 0.375 | |
| 75 | 4.2-4.4 | 30 | 0.3 | 0.8 | 1.8 | 0.375 | |
| 75 | 4.9-5.1 | 30 | 0.3 | 0.8 | 2.0 | 0.421 | |
| 75 | 5.3-5.5 | 30 | 0.3 | 0.8 | 2.2 | 0.463 | |
| 3 -1/2 | 89 | 5.4-5.6 | 30 | 0.3 | 0.8 | 2.5 | 0.547 |
| 4 | 102 | 3.9-4.1 | 30 | 0.3 | 0.8 | 2.5 | 0.703 |
| 102 | 4.3-4.5 | 30 | 0.3 | 0.8 | 2.7 | 0.599 | |
| 102 | 4.9-5.1 | 30 | 0.3 | 0.8 | 3.0 | 0.599 | |
| 102 | 6.0-6.2 | 30 | 0.3 | 0.8 | 3.5 | 0.613 | |
| 102 | 6.2-6.4 | 30 | 0.3 | 0.8 | 4.0 | 0.627 | |
| 102 | 9.7-9.9 | 30 | 0.3 | 0.8 | 5.0 | 0.641 | |
| 108 | 4.9-5.1 | 30 | 0.3 | 0.8 | 3.2 | 0.615 | |
| 108 | 5.9-6.1 | 30 | 0.3 | 0.8 | 3.5 | 0.616 | |
| 5 | 127 | 6.9-7.1 | 20 | 0.2 | 0.6 | 5.0 | 0.892 |
| 6 | 152 | 6.9-7.1 | 20 | 0.2 | 0.6 | 6.5 | 1.243 |
Pre-sale service:
Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;
- Select fittest model,
- Manufacture products according to clients' special requirement,
Service during sale:
Respect clients; devote ourselves to improving the total value of clients.
- Pre-check every roll of hose to make sure good quality.
- Dependently arrange producing plan.
- Help clients to save money.
After-sale service:
Provide considerate services to minimize clients' worries.
- Assist clients to check the delivery,
- Provide technical exchanging,
-
Pay for delivery of broken returning.
Weifang Alice Polymer Technology Co., Ltd is a professional manufacturer of new type polymer and polymer composite material plastic products.
Our factory has become a comprehensive Hi-tech company that combines research, production, marketing , technical service and export trading.

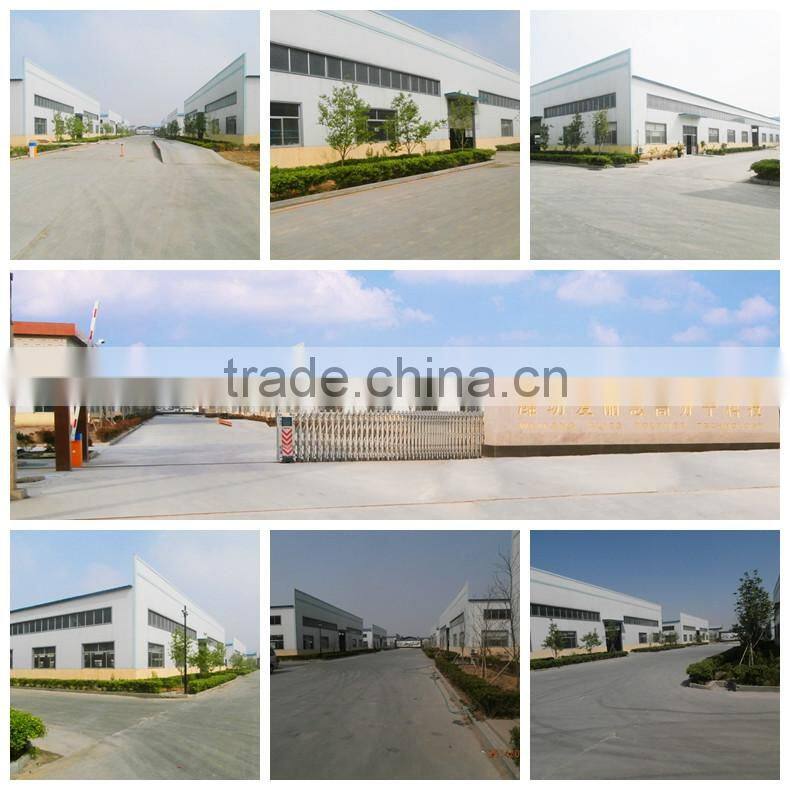

The company is located in Changle Economic Development Zone, Weifang, Shandong Province, China, about 120km west to Qingdao international seaport and airport.
Our main products are various PVC air hose, PVC high pressure spray hose, acetylene oxygen tubes, antistatic hose, antibacterial nano tubes, PVC steel wire reinforced hose and etc.
