Corrugated PVC Spiral Steel Wire Reinforced Hose

FOB Price

Negotiable / Kilogram

500 Kilograms(Min. Order)

Port Qingdao
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	Alice
Model Number	6mm-152mm	Material	PVC
Specification	1/4''-6''	Length	10m,20m,40m,50m,100m, etc
Thickness	1mm-22mm	Standard	ISO,ROHS

Product Description

(1)Product Information:

Applications:

This hose is widely use for drawing and converying water ,oil and powder in the factory,agriculture,engineeing,foodstuffs and sanitation field.Also can be used for

conveying milk,beverage,dis-stilled liquor,beer,jam and otherfoods,which used

special material,so we call PVC Food Grade Special Hose.

Characteristics:

1) with steel wire screwing inlaid in the hose,light,transparent with small bending radius

2) good adaptability to hard weather confitions and minus pressure

3) anti-aging,corrosion resistance,high pressure

4)can insert copper line to avoid static

5)can be food grade with sanitation

6) make colorful symbol lines on the surface and look more beautiful

Working Temperature:-5°C-65°C

Specifications:

British measurement	Metic Measurement			Working Pressure	Bursting Pressure		Weight	Volume
British measurement	Id	OD	Length	Working Pressure	At 20°C	At 60°C	Weight	Volume
Inch	MM±0.2		M	Bar	Bar	Bar	Kg/Roll	m³/Roll
1/4	6	11	100	8	70	16	11	0.036
5/16	8	13	100	8	60	16	14	0.046
3/8	9	15	100	8	55	15	18	0.053
1/2	12	18	100	6	40	15	22	0.068
5/8	15	22	100	6	35	13	31	0.096
3/4	19	26	50	5	30	12	19	0.073
1	25	33	50	4	25	10	27.5	0.096
1-1/4	32	41	40	4	20	9	31.6	0.125
1-1/2	38	48	40	4	18	8	40.5	0.165
1-3/4	45	56	40	4	17	8	53.5	0.305
1-7/8	48	59	40	4	16	7	56	0.315
2	50	62	40	4	16	7	63	0.318
2-3/8	60	74	30	4	15	7	67	0.295
2-1/2	63	80	20	4	15	5	57.5	0.263
3	75	92	20	4	13	5	66.8	0.337
3-1/2	90	108	10	4	12	5	42	0.384
4	100	118	10	3.5	10	5	48	0.4
5	127	143	10	3.5	10	5	52	0.42
6	152	168	10	3.5	10	5	62	0.43

(2)Shipment & Payment Terms:

MOQ	500KG
Delievery Time	Usually 10-20 days
Port	Qingdao
Paying Terms	30% payment in advance,the balance before shipment; L/C
Samples	By DHL UPS TNT

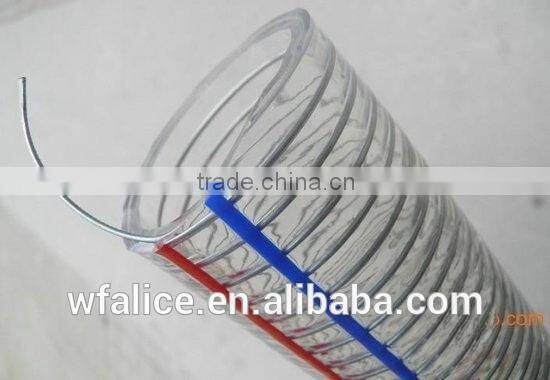

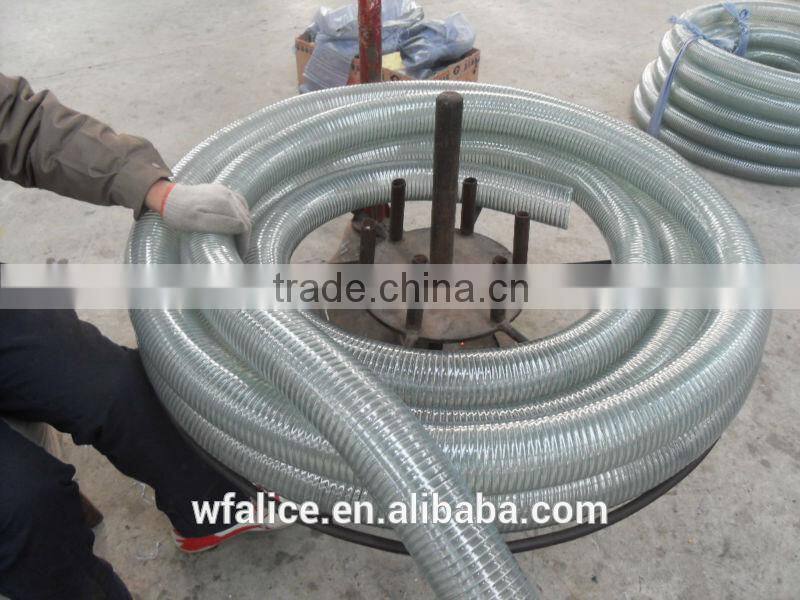

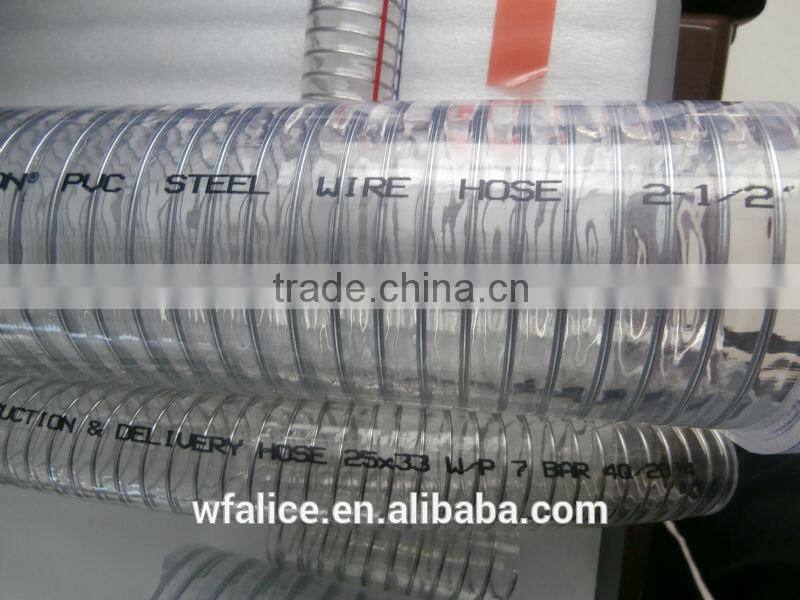

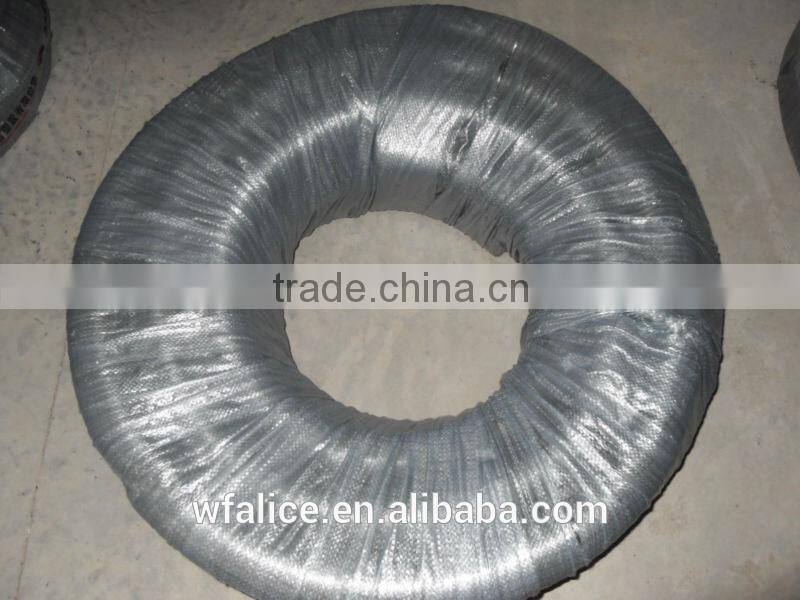

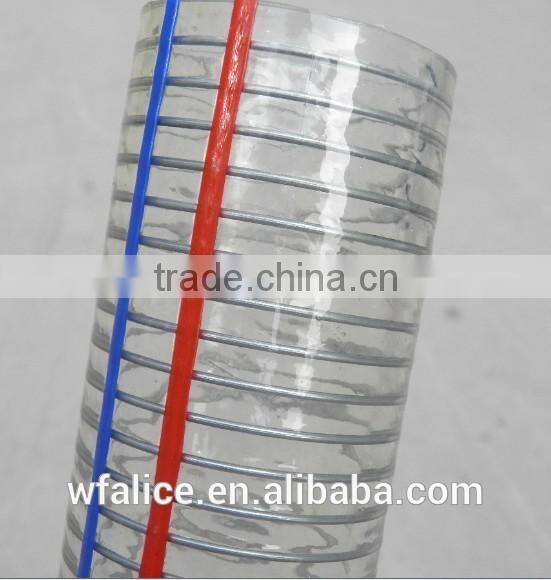

(3)Product Show of Alice Polymer:

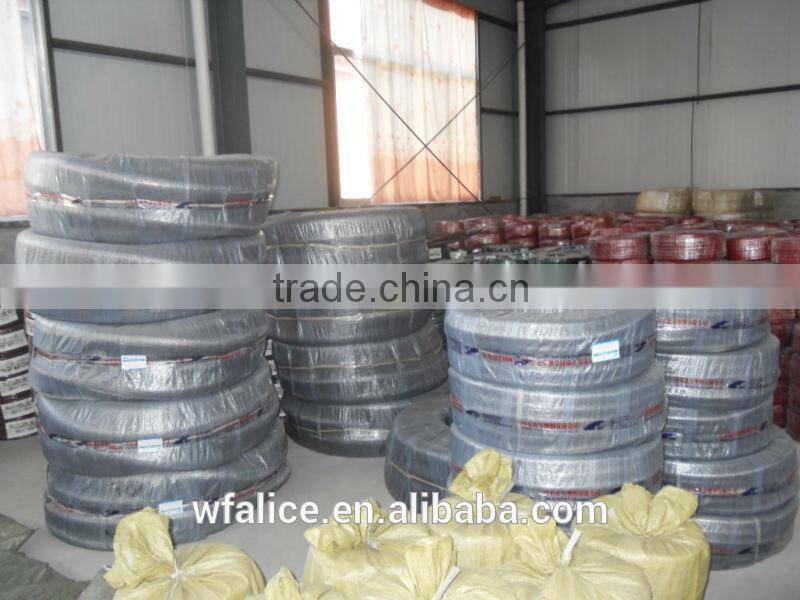

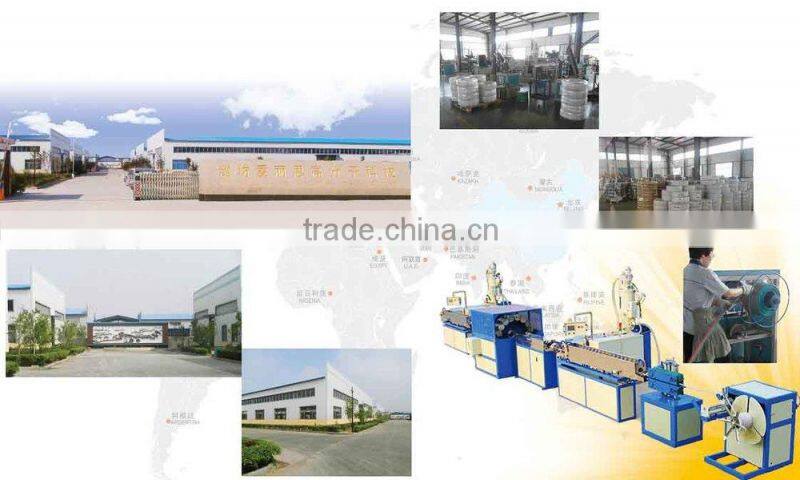

(4)Factory Show of Alice Polymer:

(5)Main products:

Our main products are all kinds of pvc hoses,including PVC steel wire hose,PVC lay flat hose,

PVC twin-welding hose,PVC fiber reinforced hose,PVC garden hose,PVC suction hose,plastic

machine and also we offer OEM services.

(6)Dear friends,if you are interested in our products,please contact me.
