Car Rearview Camera System for Bus/truck With 3 CCD Camera

Name: Car Rearview Camera System for Bus/truck With 3 CCD Camera
Brand: OEM/Greatee
SKU: 109780385
Availability: InStock

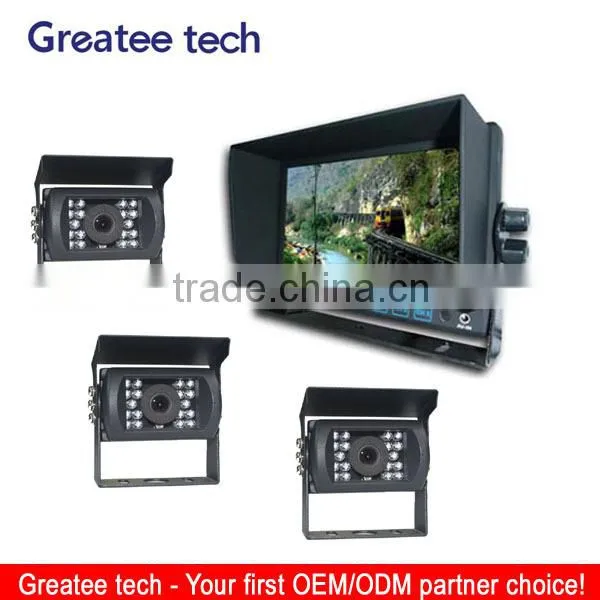

Car Rearview Camera System for Bus/truck With 3 CCD Camera thumbnail-1

Car Rearview Camera System for Bus/truck With 3 CCD Camera photo-1

US$ 0.1 - 36 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Type:

Other, car rearview system

Voltage:

DC 12V

Power:

less then 7 W

Contact Supplier Request Quote Chat Now

Shenzhen Greatee Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Other, car rearview system

Voltage DC 12V

Power less then 7 W

Car Make all cars

Place of Origin Guangdong, China

Brand Name OEM/Greatee

Model Number GR1733

Warranty 12 Months

Specifications

car rearview system
car rearivew monitor add car camera
good quality fast delivery

Products Description :

car rearview camera system for bus/truck with 3 CCD camera

Specifications

7 inch car lcd monitor

3 ways video inputs, 2 way audio inputs,

3 ways trigge Support multi languages DC12V-24V

Specifications
Screen Ratio	16:9
Back Light Luminance	200--250cd/m2
Resolution	800xRGBx480
Compatible system	NTSC & PAL (automatically)
OSD control	Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angle	Hor. L(70) R(70) Ver. UP(50) DOWN(70)
Image reversion	UP/Down and Left/Right
Power requirement	12V DC (12-24V DC optional)
Power consumption	5W
Storage temperature	-30°C to 80°C
Working temperature	-20°C to 70°C
Size	180x121x23 mm
Weight	543g
Key color	Black rubber oil, radium carving, through blue light
AV Inputs	3 way video input, 2 way audio input
Number of Trigger and display	3 triggers
Optional functions	4 PIN connector, Butterfly style bracket
Other features	Built-in speaker, with removable visor
Accessories	Remote controller, Power supply cable , User manual, Bracket, Connector conversion line, AVIN line
Package	10pcs/box net weight:11.7KGS gross weight:12.5KGS M: 62.44624cm

Car camera

sensor:Color CCD/COMS

Resolution :420 TV lines

Video format: PAL / NTSC optional

Lens: f=2.5mm

Lens Angle: 120°

Infrared LED light: 18PCS

IR Distance: 15m

Waterproof Rate:IP68

Shell material: aluminum alloy

Bracket material: iron

Dustproof, waterproof, hydrochloric acid prevention, explosion prevention

Mic: collects the environmental sound around the camera

Mirror & non-mirror images option (depending on the chips)Self heating: The cameras will entry the self-heating mode when the environmental working temperature is lower than -5°C. And it wills automatic stop heating when the temperature reaches 30°C.

Superficial colors are optional: black, white, silver
