Garage door line
- 12 Set / Sets per Month
- Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Aoli |
Product Description
Specifications
Good quality & cheap PU garage door line.Continuous production line of PU garage door panels or sectional door panels.Good quality & cheap PU garage door line -Continuous Production Line of PU-Cored Garage Door Panels

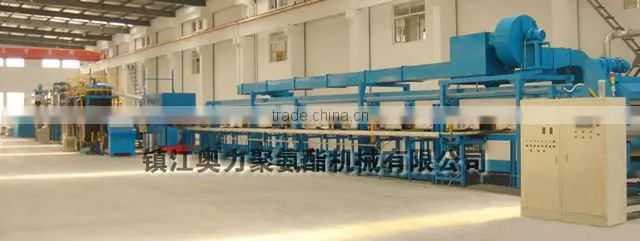

This production line is used to produce sandwich panels for making automatic doors with the middle layer of rigid polyurethane foam and with aluminum sheet or colorsteel sheet as the top and bottom face layers. The laminated panel is between 30 and 100 mm in thickness, 350~700mm in width, length determined by the customer. The operation principle of this line is as follows: PU raw materials are delivered into the mixing head through the metering pump and then evenly injected onto the bottom facing sheet going toward conveyors along with the top superficial sheet. Between the upper and lower conveyors, the liquid materials start foaming and are hardened into shape, after which the formed door panel is, by an automatic tracking cutter, cut into segments according to preset length.
1.Hydraulic decoiler 2. Clipper 3. Film coverer 4. Embosser 5. Sheet leveller 6. Sheet deliverer 7. Press 8. Hydraulic decoiler 9. Clipper 10. Embosser 11. Forming machine 12. Forming machine 13. Pre-heating oven 14. Mobile injector 15. Laminator 16.Cross-cutter 17. Roller conveyor
| Main technical parameters |
| Reciprocating times of injection head per minute more than 60 Production line speed 2~5 m/min Laminating length of the laminator 20 m Maximum temperature of hot-air circulating 70 °C Maximum rising height of the top conveyor 250 mm The total capacity for the production line 120~170 kw External dimensions 70000×5300×3800mm(length×width×height) Weight 40 tons |
