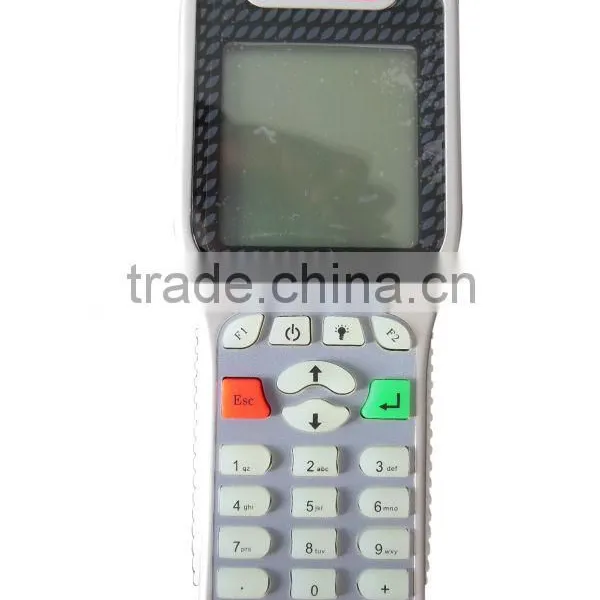

GF900 Handheld data terminal

Introduction

GF900 meter IR reading device is the company independent research and development of a new simple far infrared data acquisition terminal, the embedded design, with low power consumption, and the Chinese or English operating system, meter speed of advantages, for the power system provides a simple and reliable meter reading solutions.

Main Features

Shock: circuit board components glue reinforcement; Liquid crystal soft rubber pad around Cun protection.

Prevent slippery: sideways tooth type to the rear of the silica gel handle and the noose form double prevent slippery protection.

Resistance to cast: the use of advanced nano lens, add the stem of the thick crust, slippery lock button battery cover, machine 1.5 m fall without damage.

Anti-interference: special circuit processing can effectively resist battery interference, to ensure that the data security.

Waterproof: high precision mould making, fully enclosed shell design, effectively prevent the rain water invasion, ensure the safety of the outdoor rain weather use.

Advanced power source design: machine use rechargeable batteries, also can use alkaline batteries, battery capacity than ordinary meter reading machine high three times.

Technology Data

CPU	ARM 32 bit CPU
Data memory	Flash 64M, the system takes up 3M, user actually usable 60M. SRAM 0.5M
Deals	Meet GB2312-80 level 2 deals
Screen	160 x 160dpi LCD,3.2-inch, a screen can show 10 x 10 Chinese characters or 200 characters English.
Communication interface	A standard RS232 interface (communication 1200 BPS rate-115200 BPS), A USB interface An infrared interface
keyboard	20 key, transparent resin coating.
Add function	The clock, low voltage alarm.
Infrared	High-speed infrared communication
Working voltage	4.5 V DC (3 section 5V the battery or Lithium battery).
Working current	<16mA.
Meter reading Angle	60 degrees
Infrared communication distance	3-7m (and infrared transmission power meter relevant); Farthest 12 meters
Communication agreement	DL/T645-1997 "multi-function watt-hour meter communication rules" and added statute, DL/T645-2007 "multi-function watt-hour meter communication rules" , IEC62056 protocol and IEC1107 protocol
Dimensions (w x d x h)	160mm x 60mm x 28mm
Weight(g)	118g(no battery); 220g(include battery)
