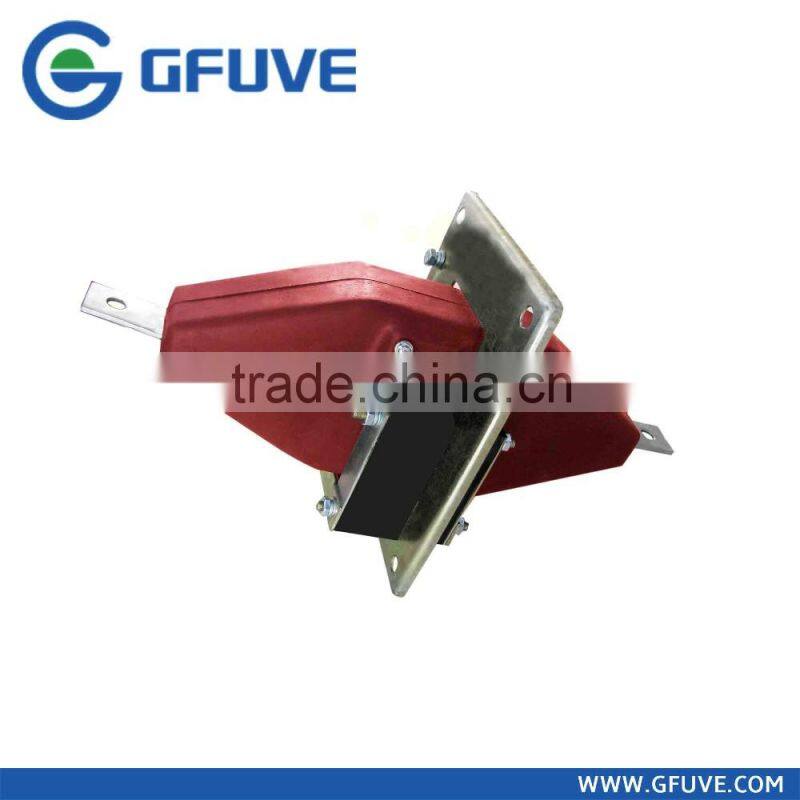

GFLAZ0197-10 MV Current Transformer
US$ 200.00 - 200.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
GFUVE
Model Number:
GFLAZ0197-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GFLAZ0486-10 MV Resin Cast Current Transformer for Switch GearUS$ 200.00 - 200.00MOQ: 1 Set -
12kV Middle Voltage Outdoor Current TransformerUS$ 200 - 300MOQ: 1 Set
-
400a/5a Cast Resin Current Transformer PriceUS$ 200 - 300MOQ: 1 Set
-
Outdoor Measurement 200/5a Current TransformerUS$ 200 - 300MOQ: 1 Set
-
Single Phase 75kV Low Voltage Current TransformerUS$ 200 - 300MOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
GFUVE
Model Number
GFLAZ0197-10
Usage
Current
Phase
Single
Coil Structure
Toroidal
Coil Number
Autotransformer

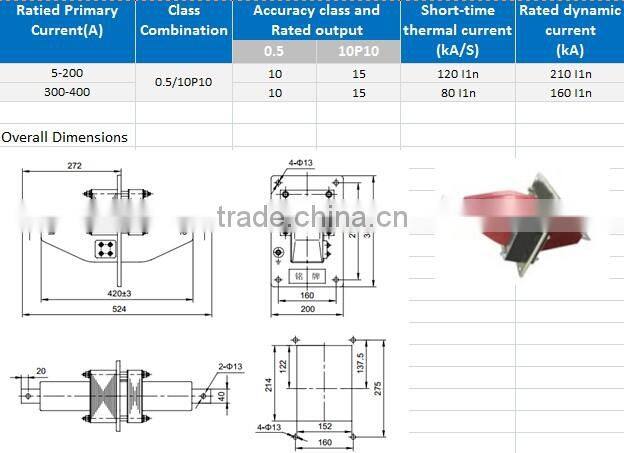

GFLAZ0197-10 MV Current transformer
Technical parameters |
|
| Standards | IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated primary current | 5-1000A |
| Rated load | ≤15VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 90kA, 1S |
| Rated dynamic current | 160kA |
| Rated insulation level | 12/42/75KV |
| FS | ≤10 |
| Mechanical parameters | |
| Material | Epoxy resin |
| Weight (kg) | 15 |
| Operating conditions | |
| Operating temperature | -25°C to +55°C |
| Daily average temp | <+40°C |
| Storage temperature | -40°C to +70°C |
| Altitude | <1000 meters |
| Condition | No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current. |
