LZCK350-10 Openable Split Core Current Transformer

Beijing GFUVE Electronics Co., Ltd.
LZCK350-10 Openable Split Core Current Transformer thumbnail-1
LZCK350-10 Openable Split Core Current Transformer thumbnail-2
LZCK350-10 Openable Split Core Current Transformer photo-1
LZCK350-10 Openable Split Core Current Transformer photo-2
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GFUVE
Model Number:
Lzck-350-10
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing Shenzhen HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name GFUVE
Model Number Lzck-350-10
Usage Current
Phase Single
Coil Structure Toroidal
Coil Number Autotransformer

Specifications

Split core current transformer
ISO and CE approved
Indoor or outdoor
OEM offered
Accuracy class 0.2, 0.2S, 0.5, 0.5S, 1

  LZCK350-10 Openable Split Core Current Transformer





Product Description

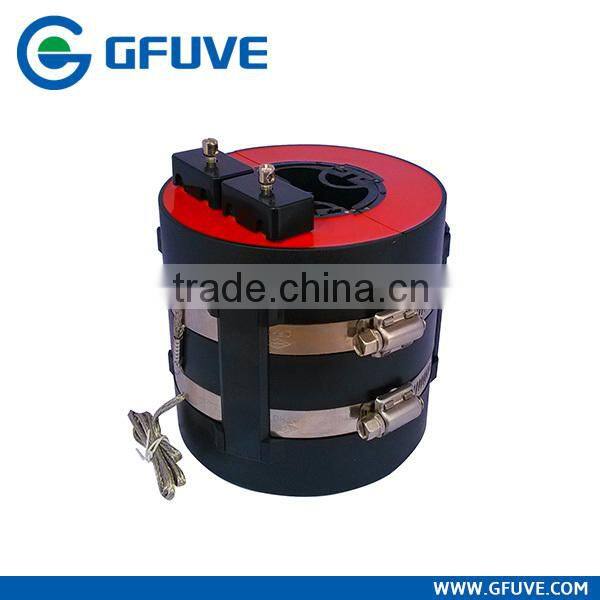

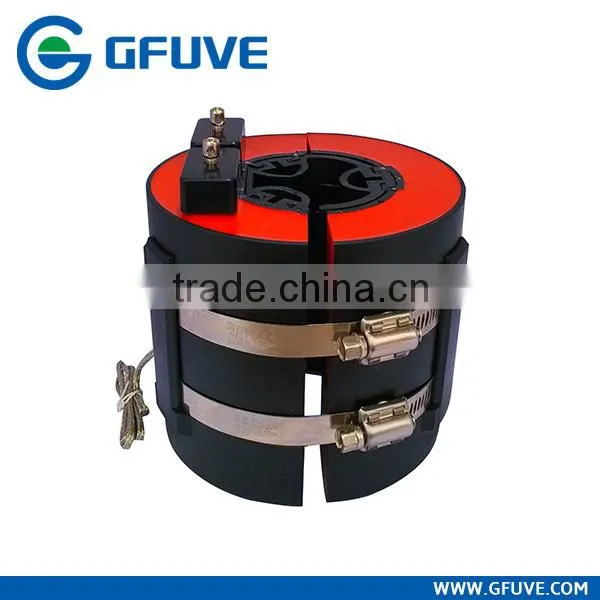

LZCK series instrument current transformers applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV,and microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, have the characteristics of Small magnetic circuit loss and can be cut, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.



Working conditions:

Ambient temperature:-35℃~+55℃,not exceeding +40℃.

The Height of above sea level:0~ 3000m.

Atmosphere conditions: No highly polluted, erosion, erosiveness, radioactivity gases.(Continuous working under the rated current is allowed)

P2 represents for primary polar end,S1,S2 represent for secondary polar end

P2 and S2 are subtractive polarity.

Technical parameters::

Rated frequency:: 60Hz

Rated secondary current:5A

Secondary winding power frequency withstand voltage:3kV,1min

Safety Factor Rating (FS) < 5

standard of Application:GB1208-2006;IEC 60044-1;NTC 2205

Accuracy Class: 1%;

Technical data

Rated ratio, Accuracy class and Rated burden following table:



Rated ratio,Accuracy class and Rated load following table:



Type

LZCK350-10

LZCK350-10

LZCK350-10

Purpose

Measuring current transformer

Protection current transformer

Double winding current transformer

Ratio

Accuracyclass and rated burden(VA)

Accuracy class and rated load (VA)

Composite accuracyclass and rated load (VA)

I1/I2

0.5

1

3

10P15

10P10

10P5

0.5

1

10P10

10P5

20/1





0.5





0.75









30/1



0.5

1.5



0.75

1.25









50/1



1

2



1.25

2









75/1

2

2.5

3.75

1.25

2

3



2

1

2

100/1

2.5

3.75

5

2

2.5

5

2

2.5

1.5

2.5

200/1

5





3

5

7.5

2.5



2



300/1

10





3

5

7.5

3.75



2.5



400/1

10





3

5

10

5



2.5



500/1

25





3.75

6.25

10

5



2.5



600/1

25





5

7.5

10

7.5



5



50/5





2.5





2









75/5





2.5





3









100/5

2.5



3.75





5



2.5



2.5

200/5

7.5











2.5

5



2.5

300/5

10











5



2

2.5

400/5

15











7.5



2.5

5

500/5

25











7.5



2.5

5

600/5

30











10



3

7.5
