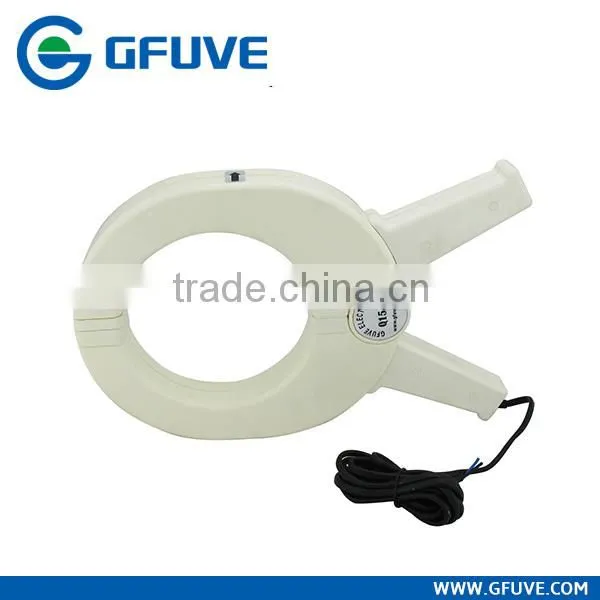

High accuracy clamp on ac current sensor
Description
The model Q150 current probe can be used in large current situation and cooperate to cable fault tester and cable identification device, used for cable test work.
Characteristic and application
Holding wire diameter:Φ150mm
Dimension:229mm×364mm×44mm
Load capacity:mA output ≤4Ω,
1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameter table
Primary current |
Secondary current |
Precision |
1000A |
200mA |
Class 0.2% |
1000A~3000A |
500mA |
Class 0.2% |
1000A~3000A |
1A |
Class 0.1%, 0.2% |
1000A~3000A |
5A |
Class 0.2%, 0.5% |
Cable fault tester special |
4000:1 |
|
Specifications
Ratio |
1000: 1 or 2000:1 , customized |
Nominal input current |
3000 A |
Max. Cont. Input current |
3600A |
Accuracy |
0.2%,0.5% |
Over voltage category |
CAT III 600 V |
Output signal |
500mA,1A,5A AC at nominal input current |
Frequency range |
40 Hz-2000 Hz |
Dielectric strength |
3KV 50Hz/60Hz at 1 minute |
Temperature range |
-20 °C to +55 °C |
Output |
2.5 meter cable with D01 connector |
Max. voltage not insulated conductors |
600 V |
Max. jaw opening |
150 mm |
Standard |
EN 61010-1 |
Dimensions |
229mm x 364mm x 44mm |
Weight |
1700 g |
Product Photos
