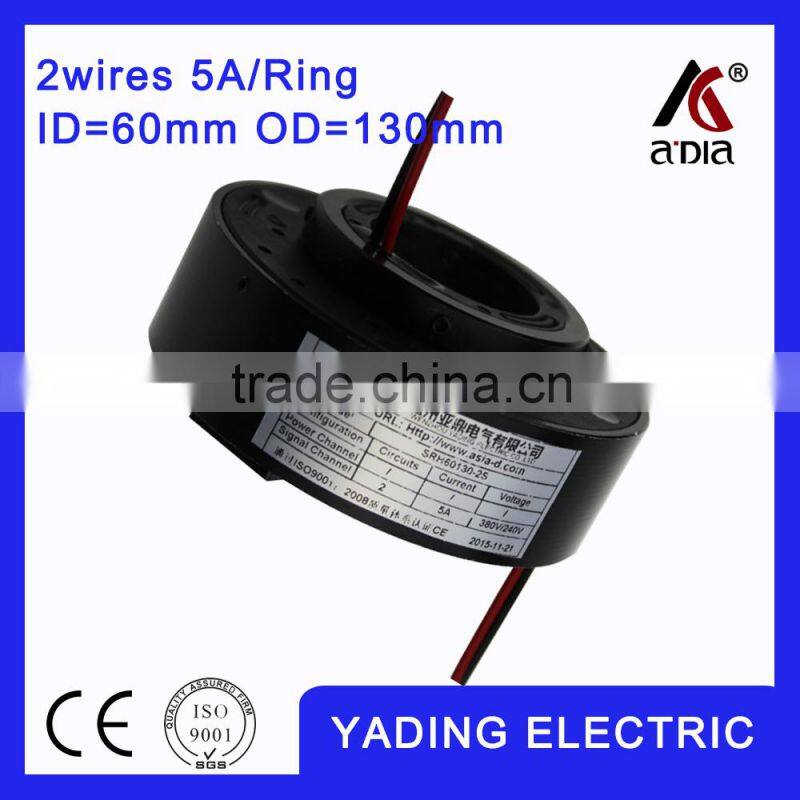

Help CenterSRH 60130-2s Crane Slip Ring ID60mm. OD130mm. 2Wires, 5A 2 Wires
Related Products
-
SRH 60130- 4p Carne Slip Ring Motor ID50mm. OD120mm. 4Wires, 10A 4 WiresUS$ 200.00 - 200.00MOQ: 10 Pieces -
SRH 60130-4s Rotating Slip Ring ID50mm. OD120mm. 4Wires, 5A 4 WiresUS$ 200.00 - 200.00MOQ: 10 Pieces
-
SRH 60130-12p Rotating Joint Slip Ring ID60mm. OD130mm. 12Wires, 10A 12 WiresUS$ 300.00 - 300.00MOQ: 10 Pieces
-
SRH 60130- 12s Rotating Slip Ring ID60mm. OD130mm. 4Wires, 5A 12 WiresUS$ 200.00 - 200.00MOQ: 10 Pieces
-
SRH70155 2P Channel Slip Ring Motor ID70 Mm. OD150mm. 2Wires, 10A 2 WiresUS$ 200.00 - 200.00MOQ: 10 Pieces
The so-called slip ring is an electrical component responsible for rotator connectivity, energy and signal’s transport. According to the transmission medium, slip ring is divided into conductive ring, fluid slip ring, and smooth ring. Also referred to as “rotation connectivity” or“spin-pass. Usually slip ring is installed in the center of rotation of equipment, mainly composed of two parts of rotating and stationary. Rotation structure of rotary part is connected with the use of the equipment and subsequent operation, it is called rotor; connecting the fixed structure of the device, it is called stator. Overall slip ring rely on stretch lap principle, the principle of rolling lap, or sealing principle, and clever movement structure and seal design, precision parts production with a reasonable selection, which form a stable and reliable connectivity rotation system. As long as the slip ring attached to the unlimited rotating equipment, we can provide the power and energy to the rotating body, while endless rotary movement, but also for other movement, or detect the working condition under the rotation state.
Specification |
Unit |
Rings |
2wires |
Current value |
2wiresX 5A. |
Voltage |
600VAC/240VDC |
Lead type |
Colour coded, silver plated, PTFE insulated lead wires |
Lead length |
300mm (other lengths on request) |
Dielectric strength |
500VAC @ 50Hz |
Insulation Resistance |
≥1000MΩ/500VDC |
Dynamic contact Resistance |
≤0.01Ω |
Specification |
Unit |
Operate Speed |
0-800rpm |
Contact material |
Gold or silver alloy |
Bearing |
Steel ball bearing |
Housing |
ABS Engineering plastics |
Temperature range |
-40 to 80 |
IP |
IP 51- IP 65 |
The life of the slip ring is decided by the rotating speed, working environment and temperature.

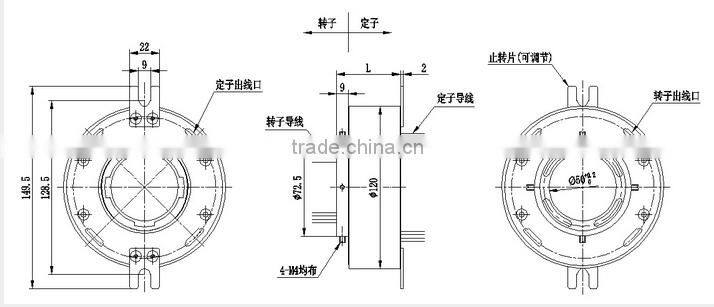

Via diameter 60mm, an outer diameter: 130mm
SRH60130 is a standard series of through-hole slip rings, through-hole diameter of 60mm (applicable to any <= 130mm), an outer diameter of 130mm overall precision conductiveplastic and aluminum structures of the slip ring. Support signal 2A,10A, 10A voltage 240VAC / VDC.
Compared to similar products with high rotational accuracy, more stable performance and longer life. The use of contact materials used precious metal plated + superhard,torque is small, stable, long life, small fluctuations in resistance, contact resistance, ensuring excellent transmission performanc
CCTV monitoring system
· Wind Turbine
· Medical equipment;
· Robotics;
· Laboratory equipment
. Crane. Machine and any place need transmisson current and signal
Out package: carton package ,inner packag: bubble pvc bag
Net wight:2kgs
express or your choose
Shipping time 7days
The so-called slip ring is an electrical component responsible for rotator connectivity, energy and signal’s transport. According to the transmission medium, slip ring is divided into conductive ring, fluid slip ring, and smooth ring. Also referred to as “rotation connectivity” or“spin-pass. Usually slip ring is installed in the center of rotation of equipment, mainly composed of two parts of rotating and stationary. Rotation structure of rotary part is connected with the use of the equipment and subsequent operation, it is called rotor; connecting the fixed structure of the device, it is called stator. Overall slip ring rely on stretch lap principle, the principle of rolling lap, or sealing principle, and clever movement structure and seal design, precision parts production with a reasonable selection, which form a stable and reliable connectivity rotation system. As long as the slip ring attached to the unlimited rotating equipment, we can provide the power and energy to the rotating body, while endless rotary movement, but also for other movement, or detect the working condition under the rotation state.
Electrical slip ring, the most widely used in all ring series, also know as brush, brushes, slip ring, collector, collector ring, spiral pass, rotating electrical joint, dedicated to the transmission power supply, signal power in the unrestricted continuous rotation.
1. Depending on the overall structure and design, slip ring can be divided into the following categories:
Through-Bore Sip Ring, Capsule Slip Ring, Separate Slip Ring, Pan-Cake Slip Ring, FIBER OPTIC ROTARY JOINT. Wind-turbine Slip Ring, Hi-frequency Slip Ring
2. The applications of slip ring is extremely broad, specific industry can be divided into:
Security Systems, Medical Systems, Aerospace, Marine Facilities, Radar Antennas, Wind Power, Robotics, Video Surveillance, Engineering Machinery, Manufacture and Process Control Equipment
3. The main advantage of slip ring:
1) Convenient to assembly,compact size, light weight
2) Integrated transport complex signal (HF/Fiber/Video/High-speed data)
3) High stability, over-long lifetime
4) Gold - Gold ensures low resistance
5) Easy installation design-harting connectors
6) Custom designs available
.4.Selection of slip ring specific parameters to be provided:
1) Circuits
2) Operating speed
