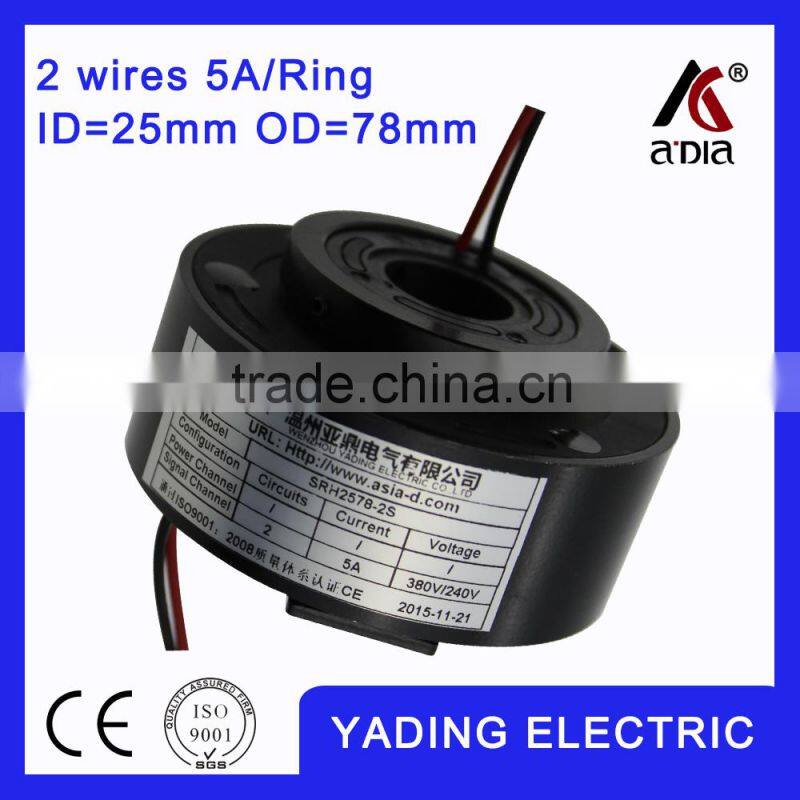

Help CenterSRH 2578-2s Electric Swivel Slip Ring ID25mm. OD78mm. 2Wires, 5A/per Wire
Related Products
-
SRH 3099- 2p Through Bore Slip Ring ID30mm. OD 99mm.2Wires, 10A X2wires 5Ax 36 WiresUS$ 140.00 - 140.00MOQ: 10 Pieces -
SRH3099-2s Ethernet Slip Ring ID38mm. OD.99mm. 12Wires, 10A 12wires Quality ChoiceUS$ 200.00 - 200.00MOQ: 10 Pieces
-
SRH3899-6P Fiber Optic Slip Ring ID 38mm. OD.99mm. 6Wires, 10A 6wiresUS$ 200.00 - 200.00MOQ: 10 Pieces
-
SRH 3899-6s Pancake Slip Ring ID 38mm. OD.99 Mm. 6Wires, 5A Through Bore Slip RingUS$ 100.00 - 100.00MOQ: 10 Pieces
-
SRH 50120- 2p Pancake Slip Ring ID50mm. OD120mm. 2Wires, 10A 2 WiresUS$ 200.00 - 200.00MOQ: 10 Pieces
The so-called slip ring is an electrical component responsible for rotator connectivity, energy and signal’s transport. According to the transmission medium, slip ring is divided into conductive ring, fluid slip ring, and smooth ring. Also referred to as “rotation connectivity” or“spin-pass. Usually slip ring is installed in the center of rotation of equipment, mainly composed of two parts of rotating and stationary. Rotation structure of rotary part is connected with the use of the equipment and subsequent operation, it is called rotor; connecting the fixed structure of the device, it is called stator. Overall slip ring rely on stretch lap principle, the principle of rolling lap, or sealing principle, and clever movement structure and seal design, precision parts production with a reasonable selection, which form a stable and reliable connectivity rotation system. As long as the slip ring attached to the unlimited rotating equipment, we can provide the power and energy to the rotating body, while endless rotary movement, but also for other movement, or detect the working condition under the rotation state.
Specification |
Unit |
Rings |
2 |
Current value |
5A/loop |
Voltage |
600VAC/240VDC |
Lead type |
Colour coded, silver plated, PTFE insulated lead wires |
Lead length |
500mm (other lengths on request) |
Dielectric strength |
500VAC @ 50Hz |
Insulation Resistance |
≥1000MΩ/500VDC |
Dynamic contact Resistance |
≤0.01Ω |
Specification |
Unit |
Operate Speed |
0-300rpm |
Contact material |
Gold or silver alloy |
Bearing |
Steel ball bearing |
Housing |
ABS Engineering plastics |
Temperature range |
-40 to 80 |
IP |
IP 51- IP 65 |
The life of the slip ring is decided by the rotating speed, working environment and temperature.
Via diameter 25mm, an outer diameter: 78mm
SRH2578 is a standard series of through-hole slip rings, through-hole diameter ofb25mm (applicable to any <= 78mm), an outer diameter of 78mm overall precision conductiveplastic and aluminum structures of the slip ring. Support signal 2A,10A, 10A voltage 240VAC / VDC.
Compared to similar products with high rotational accuracy, more stable performance and longer life. The use of contact materials used precious metal plated + superhard,torque is small, stable, long life, small fluctuations in resistance, contact resistance, ensuring excellent transmission performanc
CCTV monitoring system
· Wind Turbine
· Medical equipment;
· Robotics;
· Laboratory equipment
. Crane. Machine and any place need transmisson current and signal
Out package: carton package ,inner packag: bubble pvc bag
Net wight:0.1kgs 22lbs
Shipping way: By air by express or your choose
Shipping time :2-3days
