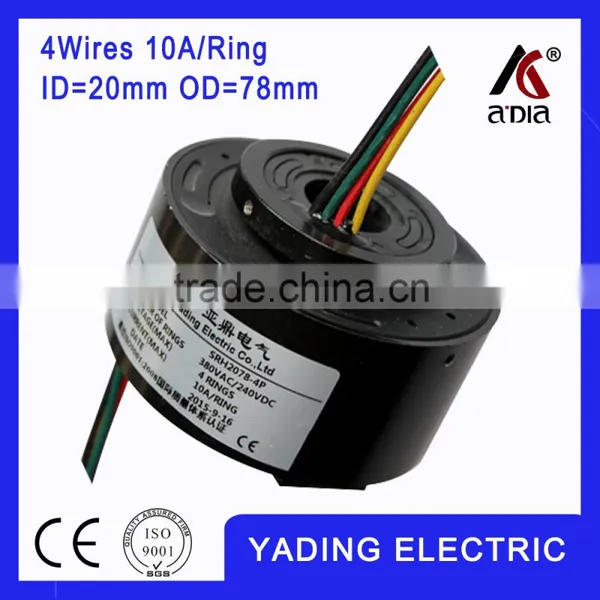

SRH 2078-4p Through Bore Slip Ring ID20mm. OD78mm. 4Wires, 10A/per Wire, Thru Bore Slip Rings

  The so-called slip ring is an electrical component responsible for rotator connectivity, energy and signal’s transport. According to the transmission medium, slip ring is divided into conductive ring, fluid slip ring, and smooth ring. Also referred to as “rotation connectivity” or“spin-pass. Usually slip ring is installed in the center of rotation of equipment, mainly composed of two parts of rotating and stationary. Rotation structure of rotary part is connected with the use of the equipment and subsequent operation, it is called rotor; connecting the fixed structure of the device, it is called stator. Overall slip ring rely on stretch lap principle, the principle of rolling lap, or sealing principle, and clever movement structure and seal design, precision parts production with a reasonable selection, which form a stable and reliable connectivity rotation system. As long as the slip ring attached to the unlimited rotating equipment, we can provide the power and energy to the rotating body, while endless rotary movement, but also for other movement, or detect the working condition under the rotation state.

The life of the slip ring is decided by the rotating speed, working environment and temperature.

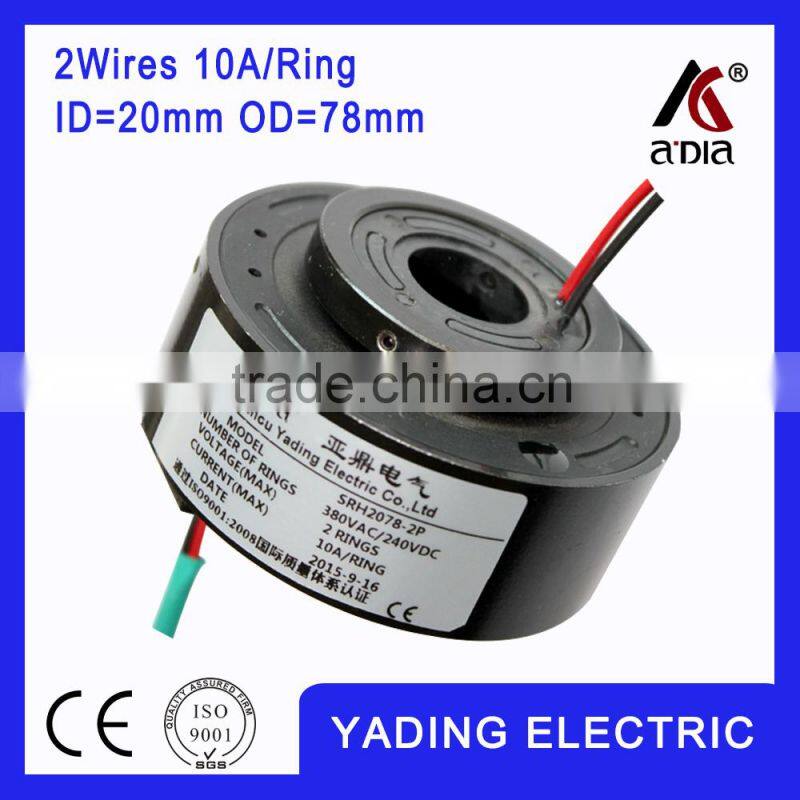

Via diameter 20mm, an outer diameter: 78mm
SRH2078  is a standard series of through-hole slip rings, through-hole diameter of 20mm (applicable to any <= 50mm), an outer diameter of 78mm overall precision conductiveplastic and aluminum structures of the slip ring. Support signal 2A,10A, 10A voltage 240VAC / VDC.
Compared to similar products with high rotational accuracy, more stable performance and longer life. The use of contact materials used precious metal plated + superhard,torque is small, stable, long life, small fluctuations in resistance, contact resistance, ensuring excellent transmission performanc

CCTV monitoring system

· Wind Turbine

· Medical equipment;

· Robotics;

· Laboratory equipment

. Crane. Machine and any place need transmisson current and signal

 Out package: carton package ,inner packag: bubble pvc bag

 Net wight:0.1kgs 22lbs

 Shipping way: By air by express or your choose

 Shipping time :2-3days
