2013year newest design sanitary napkin or disposable diaper nonwoven fabric embossing machines

Specifications

non-woven fabric equipment,
can produce various
specifications and models of the non-woven production lines

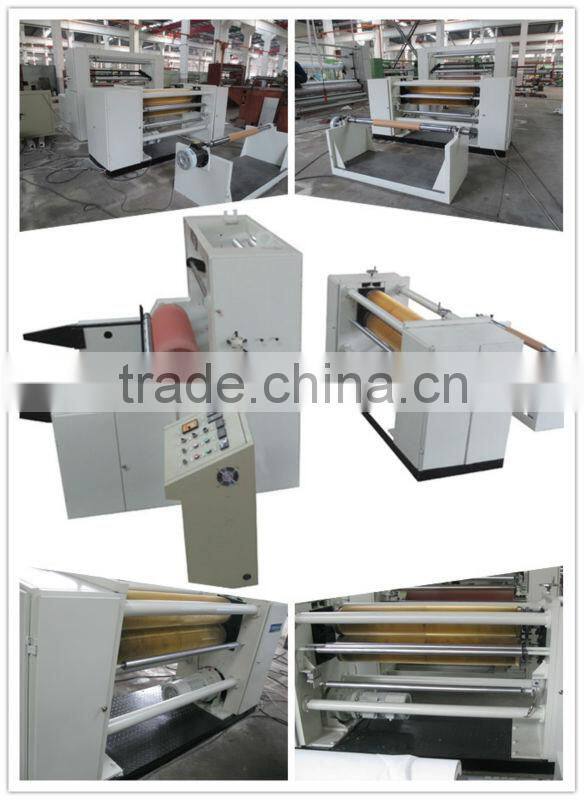

Non-woven fabric embossing composite machine





type	two rollers vertical
working  width	1100mm
mechanical speed	30m/min
heating method	treating oil circulation or electrical
rollers meterial	alloy steel or seamless pipe
color	white , blue or light grey
rollers' specification	345*1200mm
packing	professional export packing
structure size	6500*2750*1900mm



 the main technical:

 1.Production speed: : max50m/min,  original speed :30m/min

 2. maximum, roll diameter: 800mm

 3.The effective width of  work: 1100mm

 4.With one embossing machine motor power: 5.5Kw and a speed reducer,

  5.With a winding machine motor power: 2.2Kw and a speed reducer,

 6.dimensions of L × L × h, 6500 × 2750 × 1900mm



7. the composition and structure of the machine



 8.Winding frame



  9.Composition: it is composed of frame, magnetic powder brake, automatic tension control and a φ 74mm pneumatic shaft



10.50N magnetic powder brake matching corresponding automatic tension automatic control 2 sets of the embossed cloth.

 11.embossing machine

 12.Composition: it is composed of a frame, flowers and. Composed of concave roller, transmission, ultrasonic and cover.



the machine embossing the  hot air  nonwoven fabric patterns:







detail information:

1)Production speed: Max stable speed of 50m/min --30m/min



2)The roll diameter: 800 mm.



3)Effective width: 1100mm



4) Embossing machine motor power: 5.5kw



 5)Winder motor power: 2.2kw



6) 50N magnetic powder brake matching corresponding



7)automatic tension controller 2 sets



8) Flower roll specificationsΦ345*1200mm: 2



9) Ultrasonic 7 sets



10)Inflatable shaft 6



11)Heating pipe 4 220V



12)Measurement of PT100 a



 13)A set of electrical control



 14)Dimensions of 1*L*H: 6500*2750*1900mm

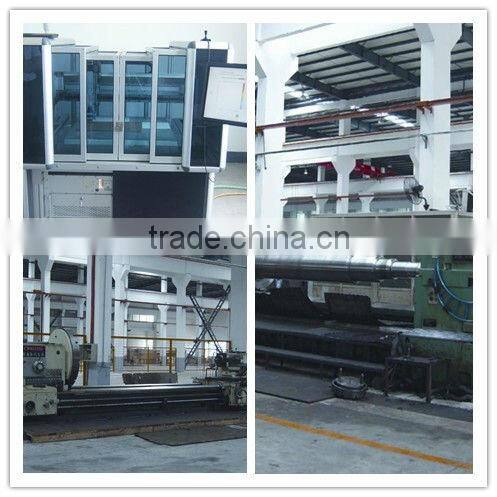

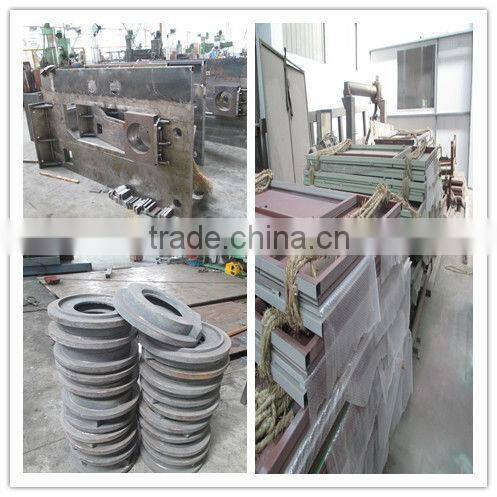

 different kinds of  processing machines and parts:







Our USP (Unique selling point)

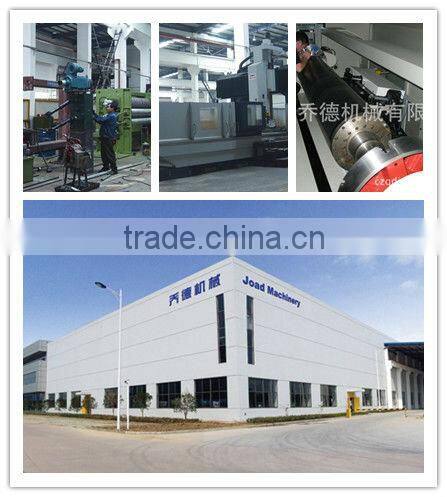

  Our factory is specializing in manufacturing and exporting  PP Spunbond Nonwoven Fabrics machines with high quality and pretty competitive price.FREE nonwoven fabric SAMPLE will be sent for your evaluation!

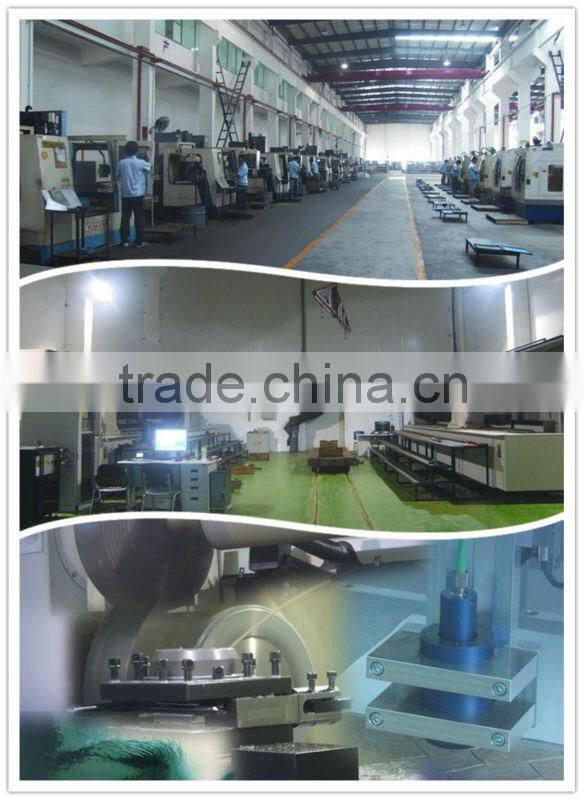

 1)    Own factory and professional manufacturer



2)    Reasonable price



3)    Implement strict quality testing and control procedure to make superior quality



4)    Years of export experience



5)    Customized color and logo are acceptable



6)    Best service and punctual delivery



contact us :





    changzhou joad machinery co.,ltd



wendy :13775229845



ADD: no. 8 fengxiang road wujin hi-tech development zone,changzhou,jiangsu ,china



TEL:0519-86321630/86223877



FAX:0519-86223877



http://www.czqdjx.en.china.cn





additional information :

loading port	shanghai
payment	40% deposit by T/T 60% in one week before loading machine
MOQ	one set or one piece
container type	40HQ OR 40 OT or others
nonwoven fabric  sample	free for clients
package	standard export packing
delivery time	less than 3 monthes after receving the  deposit

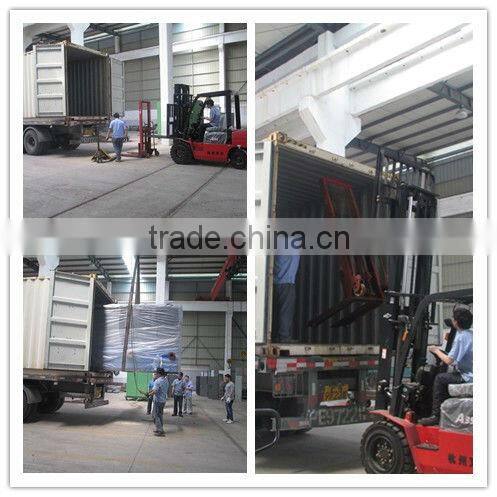

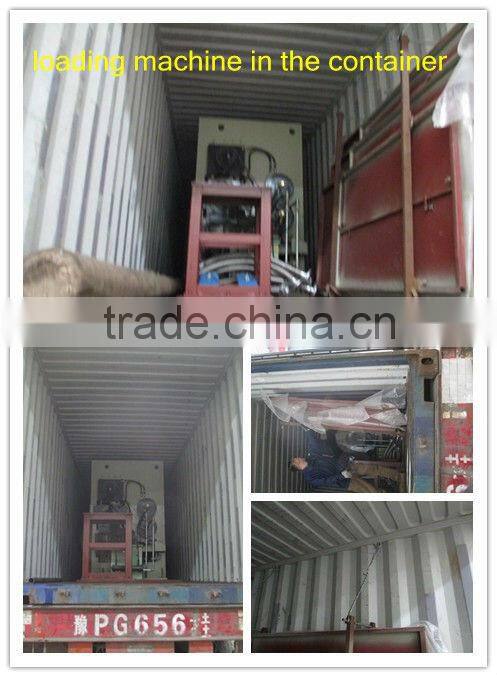

loading machine :

  Dear all ,looking forward to your early coming !!!



Our nonwoven fabric machines has been solde to many countries and regions,such as : east, southeast, Canada, Middle East, AsianKorea, Russia , etc. Market , also warmly welcome the clients from all over the world purchase the fabric products from my company.
