Specifications
non-woven fabric equipment,can produce various
specifications and models of the non-woven production lines

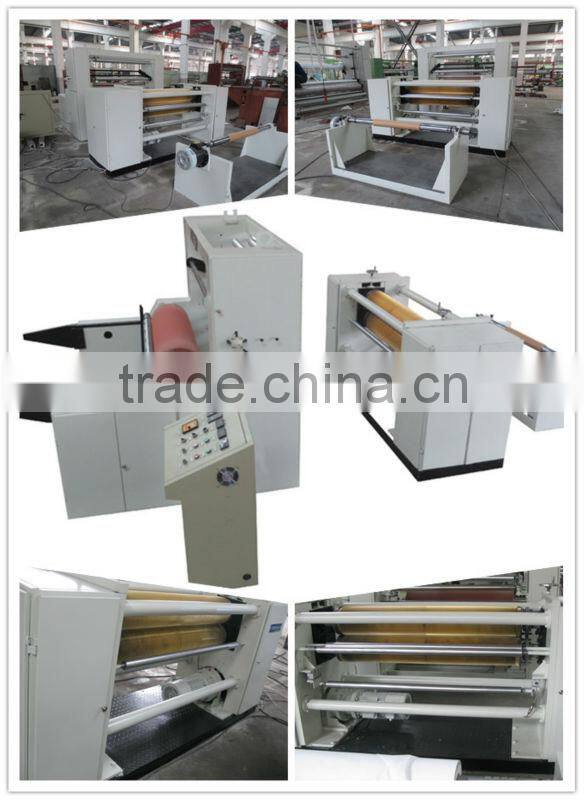

Non-woven fabric embossing composite machine
| type | two rollers vertical |
| working width | 1100mm |
| mechanical speed | 30m/min |
| heating method | treating oil circulation or electrical |
| rollers meterial | alloy steel or seamless pipe |
| color | white , blue or light grey |
| rollers' specification | 345*1200mm |
| packing | professional export packing |
| structure size | 6500*2750*1900mm |
the main technical:
1.Production speed: : max50m/min, original speed :30m/min
2. maximum, roll diameter: 800mm
3.The effective width of work: 1100mm
4.With one embossing machine motor power: 5.5Kw and a speed reducer,
5.With a winding machine motor power: 2.2Kw and a speed reducer,
6.dimensions of L × L × h, 6500 × 2750 × 1900mm
7. the composition and structure of the machine
8.Winding frame
9.Composition: it is composed of frame, magnetic powder brake, automatic tension control and a φ 74mm pneumatic shaft
10.50N magnetic powder brake matching corresponding automatic tension automatic control 2 sets of the embossed cloth.
11.embossing machine
12.Composition: it is composed of a frame, flowers and. Composed of concave roller, transmission, ultrasonic and cover.

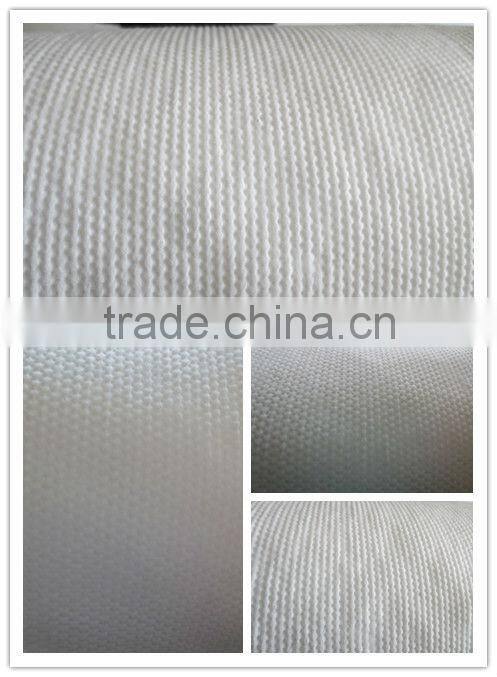

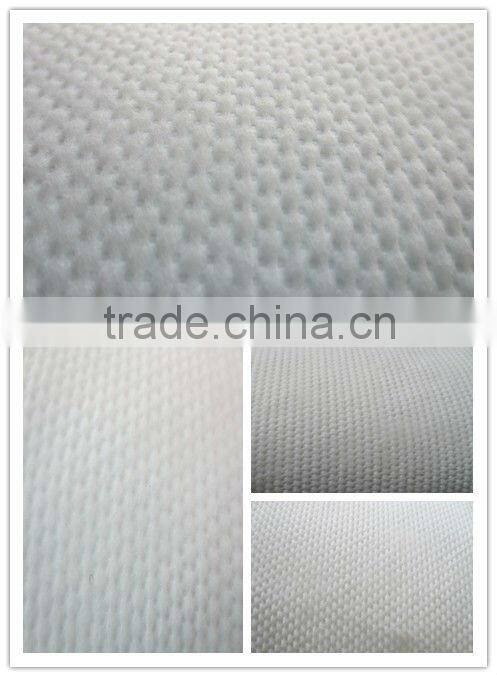

the hot air nonwoven fabric patterns:
detail information:
1)Production speed: Max stable speed of 50m/min --30m/min
2)The roll diameter: 800 mm.
3)Effective width: 1100mm
4) Embossing machine motor power: 5.5kw
5)Winder motor power: 2.2kw
6) 50N magnetic powder brake matching corresponding
7)automatic tension controller 2 sets
8) Flower roll specificationsΦ345*1200mm: 2
9) Ultrasonic 7 sets
10)Inflatable shaft 6
11)Heating pipe 4 220V
12)Measurement of PT100 a
13)A set of electrical control
14)Dimensions of 1*L*H: 6500*2750*1900mm
different kinds of processing machines and parts:
loading machine :
Our USP (Unique selling point)
Our factory is specializing in manufacturing and exporting PP Spunbond Nonwoven Fabrics machines with high quality and pretty competitive price.FREE nonwoven fabric SAMPLE will be sent for your evaluation!
1) Own factory and professional manufacturer
2) Reasonable price
3) Implement strict quality testing and control procedure to make superior quality
4) Years of export experience
5) Customized color and logo are acceptable
6) Best service and punctual delivery
contact us :
changzhou joad machinery co.,ltd
wendy :13775229845
ADD: no. 8 fengxiang road wujin hi-tech development zone,changzhou,jiangsu ,china
TEL:0519-86321630/86223877
FAX:0519-86223877
http://www.czqdjx.en.china.cn
additional information :
|
loading port
|
shanghai |
| payment | 40% deposit by T/T 60% in one week before loading machine |
|
MOQ
|
one set or one piece |
|
container type
|
40HQ OR 40 OT or others |
| nonwoven fabric sample | free for clients |
|
package
|
standard export packing |
|
delivery time
|
less than 3 monthes after receving the deposit |
Our nonwoven fabric machines has been solde to many countries and regions,such as : east, southeast, Canada, Middle East, AsianKorea, Russia , etc. Market , also warmly welcome the clients from all over the world purchase the fabric products from my company.
Dear all ,looking forward to your early coming !!!
