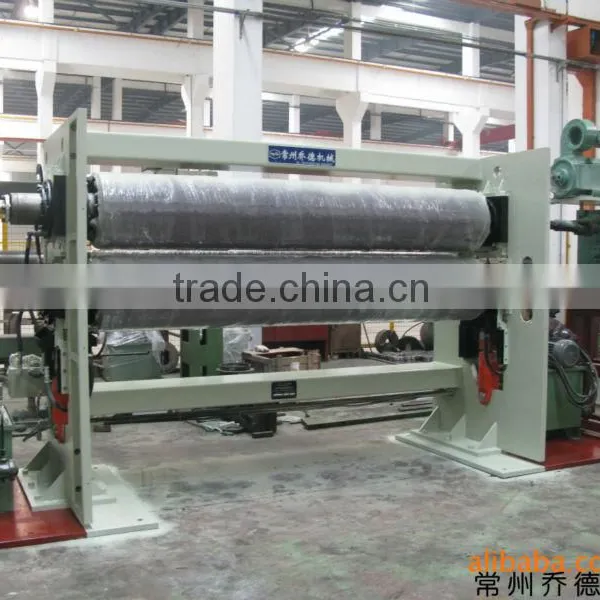

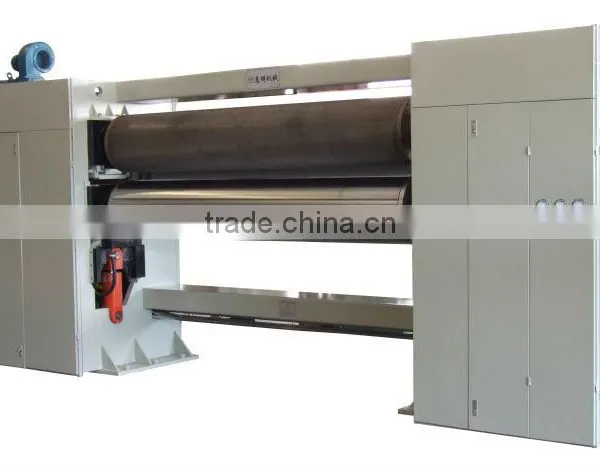

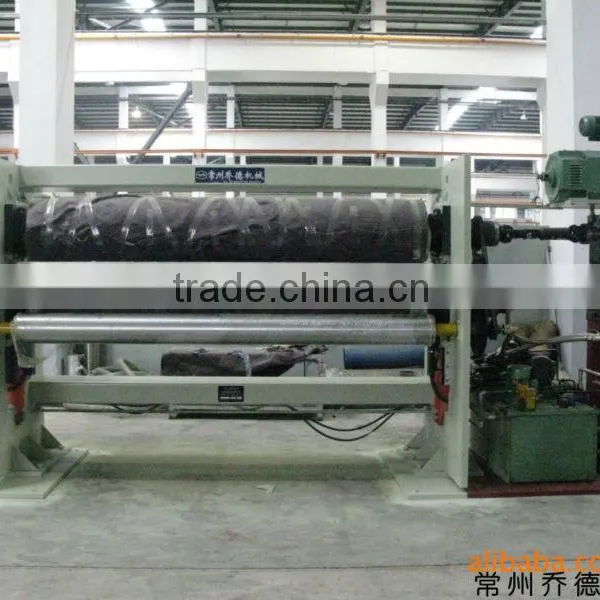

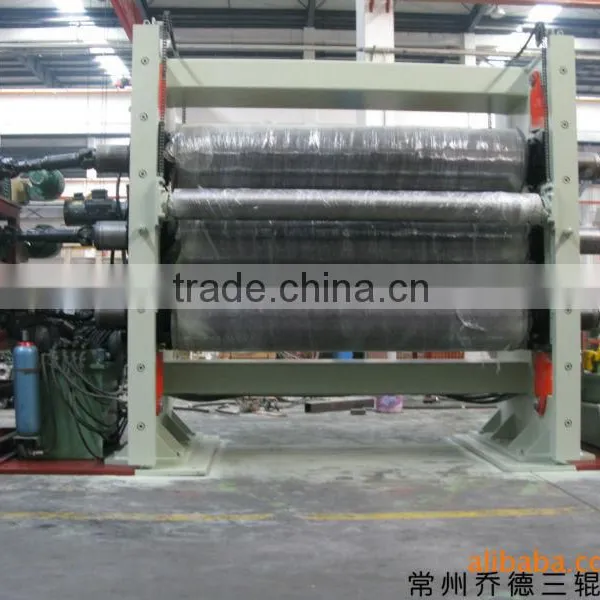

100% PP spunbond nonwoven fabric calendered machine

Detailed Product Description

  the parts of the calender

a rack, embossing roller device, smooth roller device, transmission device, shell device, lubricating and cooling device, a hydraulic device, cooling roller  device, web forming roller device and electric cross device

the most use of the machine :

 This machine is mostly used for spinning web, fusion spray cloth, staple  fiber carding, longitudinal relaxation and tension to the nonwoven fabric.

to emboss nonwoven  to make different kinds of pattern or make plain .

 information:

1) calender roller material:  alloy steel  48crmo

 2) calender roller engraved by laser;

 3) independent heating system with oil or electralic
Heating style

1):hollow liner spiral type heating-spiral liner be fixed in calender roller,heating oil runs in spiral holes to heat the roller in set direction ,temperature difference between the two ends limits in 1.5°c



2): peripheral hole type heating -drill deep holes peripherally inside calender roller , heating oil runs in holes in circle and heating ,temperature difference within 1°c,heat exchange efficiency is high.

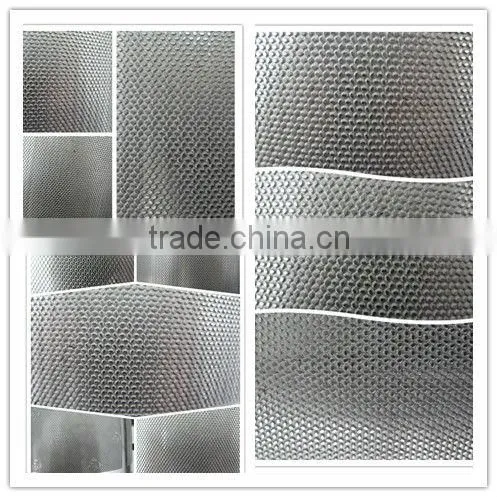

regular nonwoven fabric patterns:

   irregular nonwoven fabric patterns:

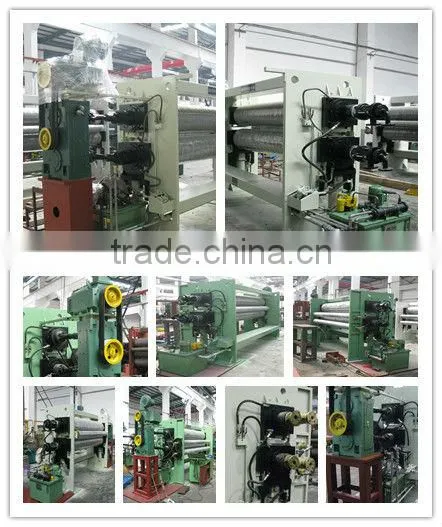

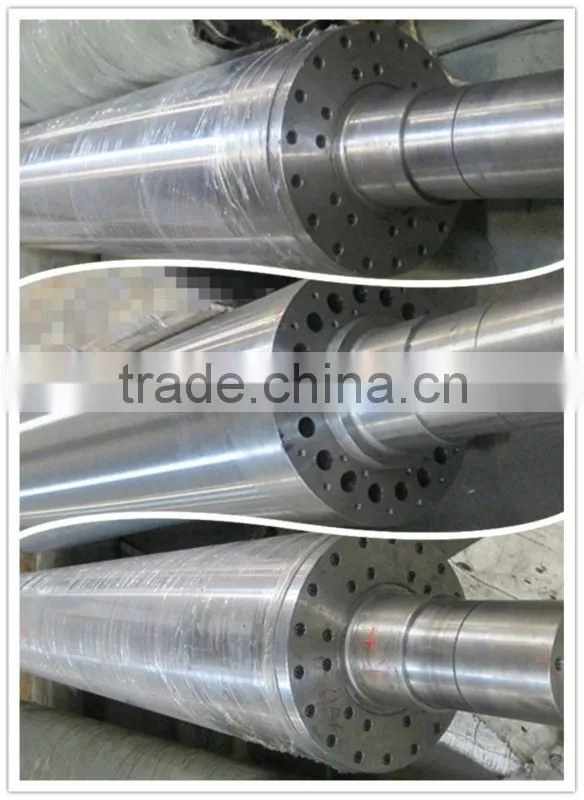

 roller: embossing roller and smooth roller:

detail information:

Roll material: high quality alloy steel 48crmo
 Roller specification: roll diameter: 380mm-850mm
Roller specification: roll diameter: 380mm-850mm

 The largest width: 6000mm

Maximum speed: 350m/min

 The mill top line pressure: 150kg/cm

 Rolling mill drive mode: a machine with a stick or a machine with two rollers

 Roll center cross adjustable, adding roll curve

 Rolling mill bearing with double row cylindrical roller bearings, with thin oil lubrication

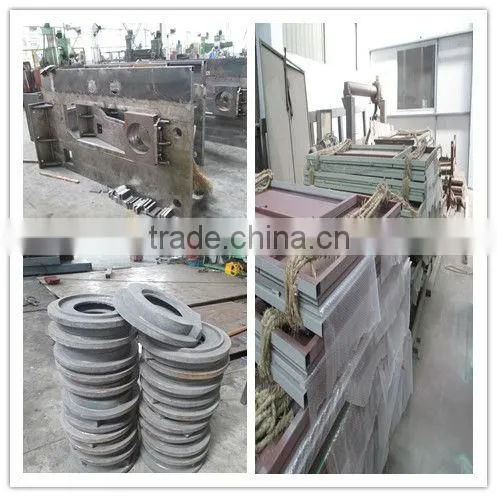

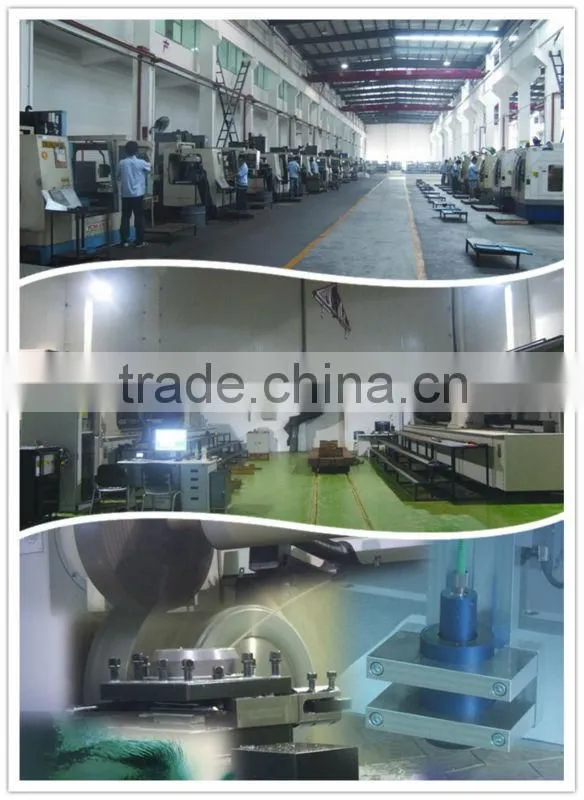

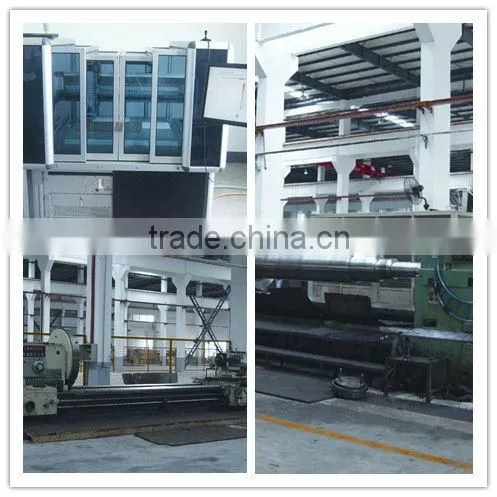

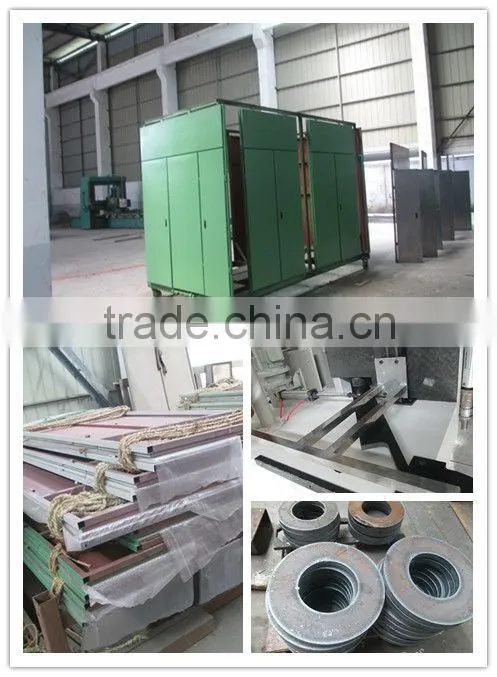

  different kinds of parts and processing machine:

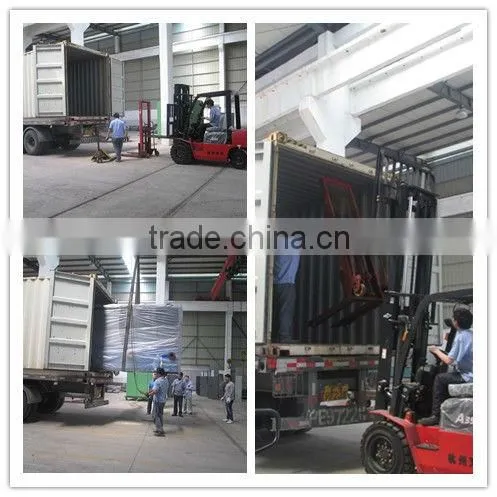

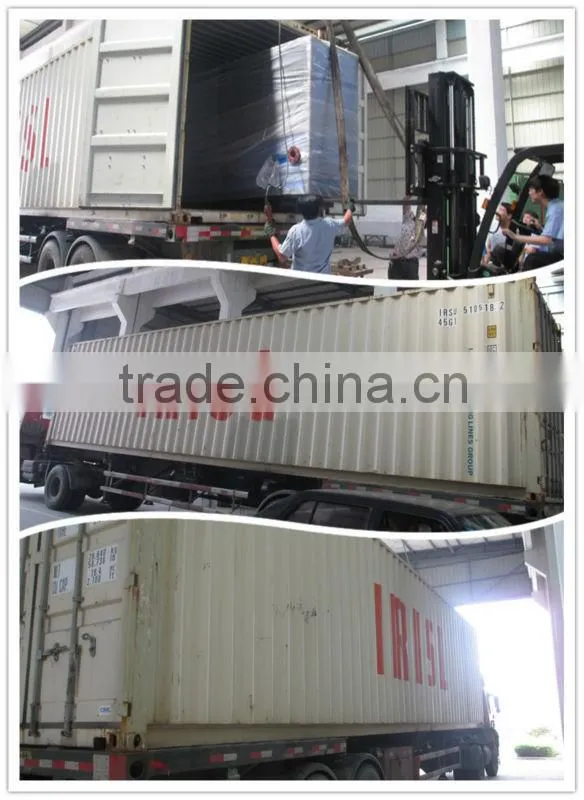

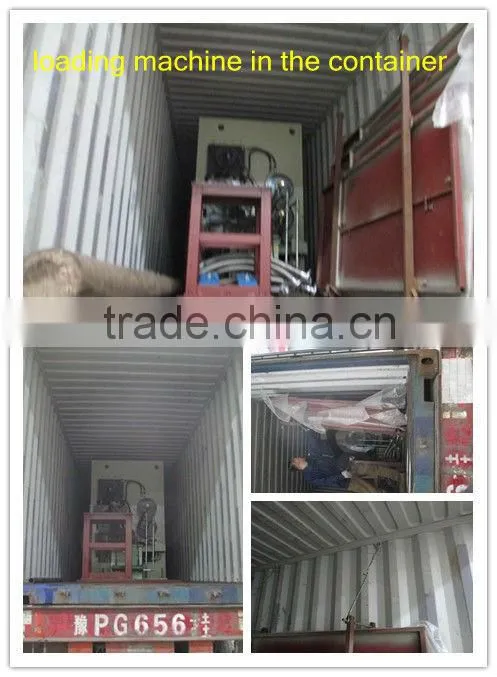

loading machine :

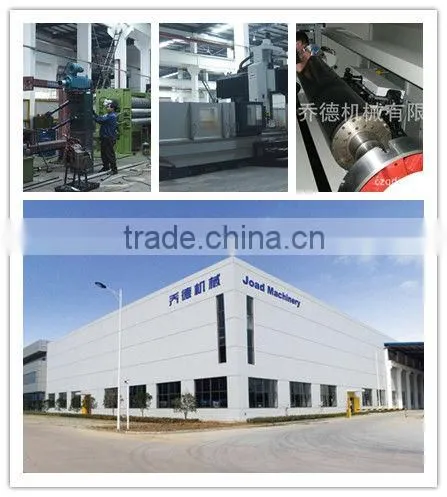

 Our USP (Unique selling point):

   Our factory is specializing in manufacturing and exporting  PP Spunbond Nonwoven Fabrics machines with high quality and pretty competitive price.FREE nonwoven fabric SAMPLE will be sent for your evaluation!

 1)    Own factory and professional manufacturer

 2)    Reasonable price

  3)    Implement strict quality testing and control procedure to make superior quality

  4)    Years of export experience

 5)    Customized color and logo are acceptable

 6)    Best service and punctual delivery
