Home > Metallurgy, Mineral & Energy > Steel & Products > Stainless Steel > Top Quality Din 1.4435 Stainless Steel Round Rod
Top Quality Din 1.4435 Stainless Steel Round Rod
US$ 3.5 - 4.5
MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Standard:
ASTM, AISI, DIN, EN, GB, JIS
Dimensions:
3mm~400mm
Grade:
300 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Top Quality Din 1.4435 Stainless Steel Round BarUS$ 3.5 - 4.5MOQ: 1 Metric Ton -
1.4435 Stainless Steel Round RodUS$ 3.5 - 4.5MOQ: 1 Metric Ton
-
1.4435 Stainless Steel Round BarUS$ 3.5 - 4.5MOQ: 1 Metric Ton
-
China Professional Supplier of 316L Stainless Steel Round RodUS$ 3.5 - 4.5MOQ: 1 Metric Ton
-
China Professional Supplier of 316L Stainless Steel Round RodUS$ 3.5 - 4.5MOQ: 1 Metric Ton
Standard
ASTM, AISI, DIN, EN, GB, JIS
Dimensions
3mm~400mm
Grade
300 Series
Place of Origin
Jiangsu, China
Brand Name
Jiangyin Yuanheng
Model Number
316L
Type
Round
Application
Shipbuilding industry, bolt & nuts, machine-made industry
Shape
Round
Certification
ISO
1) Product feature:
| 1. Product: | 1.4435 stainless steel round rod, 316L stainless steel bright round bars |
| 2. Steel type: | * American name: AISI 316L |
| * Chinese name: 00Cr17Ni14Mo2 | |
| * Germany name: Din 1.4435 | |
| 3. Standard: | ASTM A276, ASTM A484 |
| 4. Diameter: | From Ø1/8'' to Ø16'' ( Diameter: 3mm~400mm ) |
| Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8'' | |
| 5. Length: | 1~ 8meters |
| 6. Surface: | * Bright: cold drawn, peeled, CNC machined, polished, centreless grinding |
| 7. Diameter tolerance: | H9, H11, H13, K9, K11, K13 etc…as per clients’ request |
| 8. Length tolerance: | 0/+50mm |
| 9. Finishing: | Solution treated |
| 10. Feature of 316L: | Addition of Molybdenum prevents specific forms of corrosion. Also known as "marine grade" |
| 11. Mechanical property: | T.S.: ≥485Mpa, Y.S.: ≥170Mpa, EL: ≥40%, Ruduction of area: ≥50% |

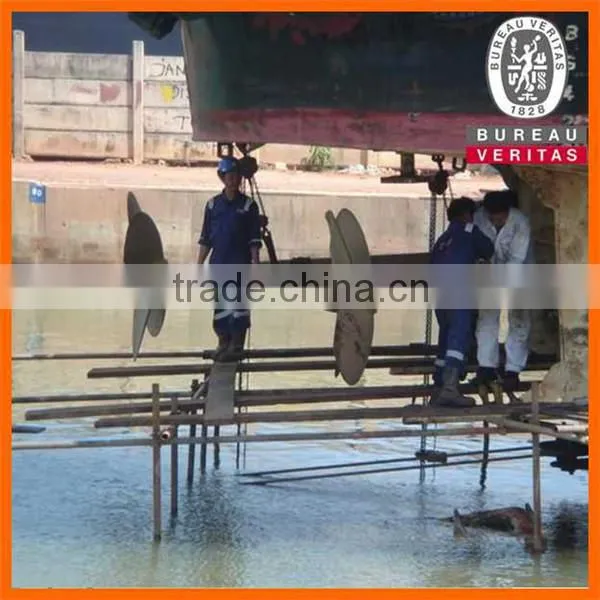

| 12. Application: | Shipbuilding industry, marine shaft, propeller shaft, transmission shaft |
| bolt & nuts, machine-made industry, food industry, paper mill equipment. | |
| 13. Delivery time | Generally within 15~20 days upon receipt the PO, as per the q’ty. |
| 14. Certificate: | ISO, BV, TUV, SGS, mill test certificate |
| 15. Package: | Good quality & fumigated wooden box, which can better protect the bars. ( See pictures below ) |
| 16. Experience:: | * Specialized in producing SS 316L round bar for propeller shaft purpose; |
| * Have a close connection with overseas shipyards , such as Indonesia, Thailand, Philippines, | |
| Singapore, Brazil, Canada etc., so have much experience in this field. | |
| 17. More information: | Contact Vivian Zhu ( Mobile/ WhatsApp/ Viber: 0086-139 21352562 ) skype: vivian.316L |
2) Chemical composition:
| Grade | Standard | C | Si | Mn | P | S | Cr | Ni | Mo |
| 316L | ASTM A276 | ≤0.03 | ≤1.0 | ≤2.00 | ≤0.045 | ≤0.03 | 16.0~18.0 | 10.0~14.0 | 2.0~3.0 |

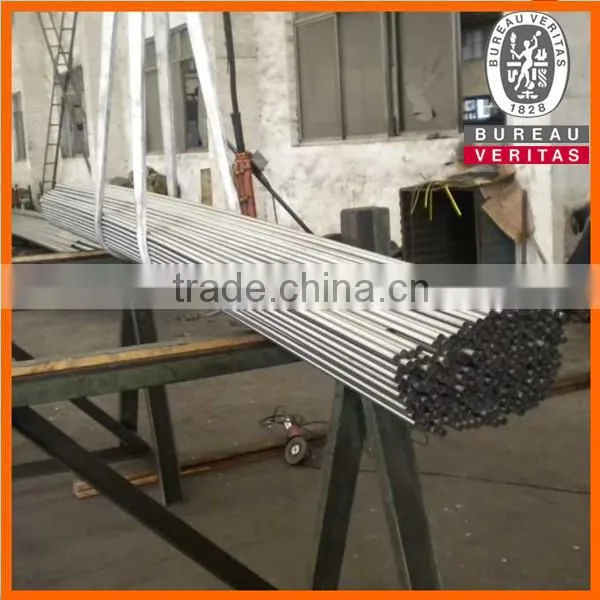

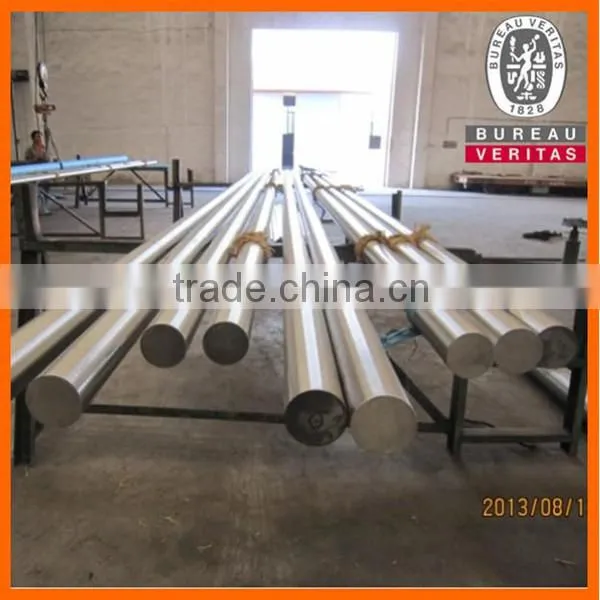

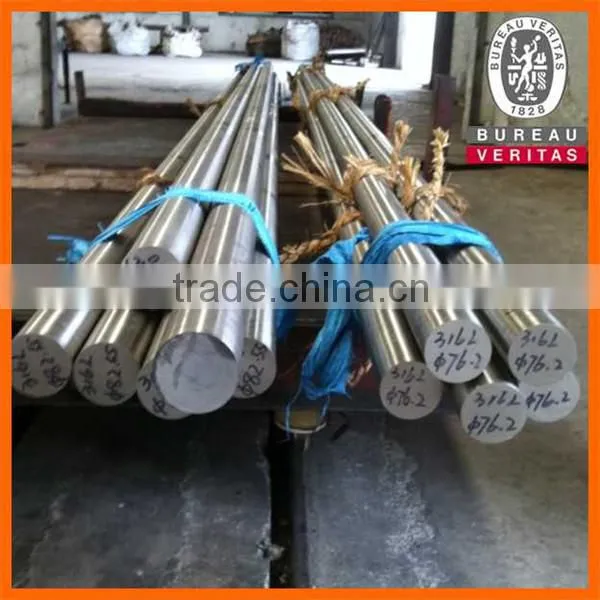

3): Product display:

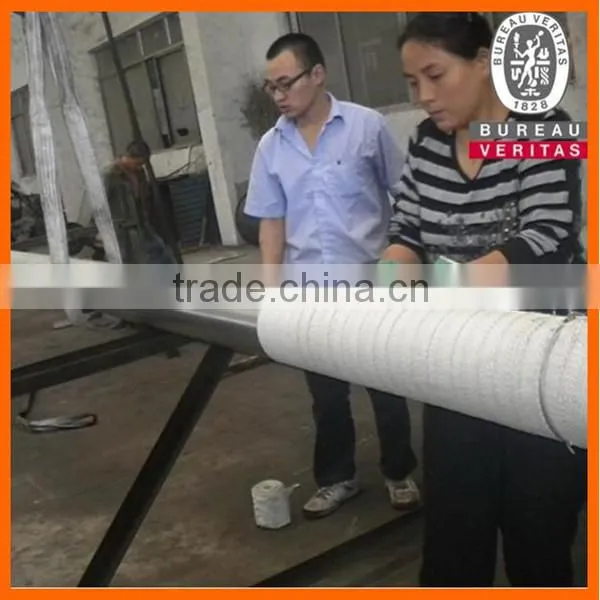

4) Package:

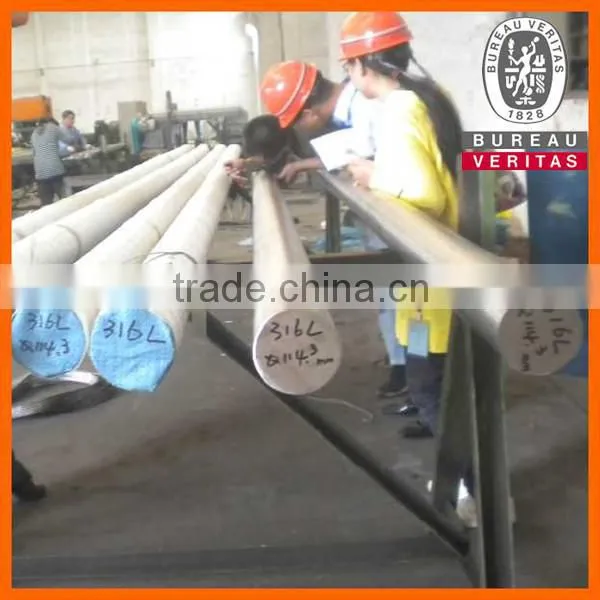

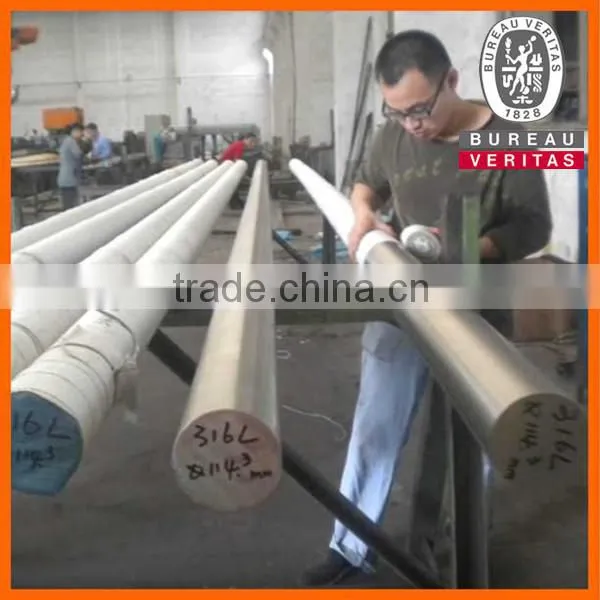

5) Quality control:
6) Factory:
7) Pass BV audit:
8) More information:
Jiangyin Yuanheng Stainless Steel Co., Ltd
Tel: +86-510-8358 1005
Fax: +86-510-8358 1004
Mobile/ WhatsApp/ Viber: 0086-139 2135 2562
Contact: Vivian
Skype: vivian.316L
Website: https://img13.fr-trading.com
Whatever your requirements - large or small - "Jiangyin Yuanheng" is prepared to put its experience to work for you. Challenge us to meet your need...(!!!)
Your success is our business!!!
