Help Center3W SMD5050 LED Injection Modules High Power Modules LED DC 12V With PMMA Lens IP 68 Outdoor for Light Box
Related Products
-
12v 1.2W 1LED 3030 Injection Led Advertising ModuleUS$ 0.2 - 0.52MOQ: 1000 Pieces -
Smd5050 LED Modules High Power Led Modules Dc12vUS$ 0.1 - 1MOQ: 1000 Pieces
-
Super Bright DC12V 1.5W Injection Led Module With Lens SMD 5050 Waterproof IP67US$ 0.2 - 0.55MOQ: 1000 Pieces
-
SMD3030 LED Injection Modules High Power 3W 9w 12 w 15w 15w DC12V CE RoHS UL 5years Warranty Waterproof Warm Cool White LightboxUS$ 0.1 - 0.7MOQ: 1000 Pieces
-
2016 Shenzhen China Hot Sale 1.5W LED Module Dc12V SMD 2835 5050US$ 0.2 - 0.44MOQ: 1000 Pieces
welcome to ODM / OEM!

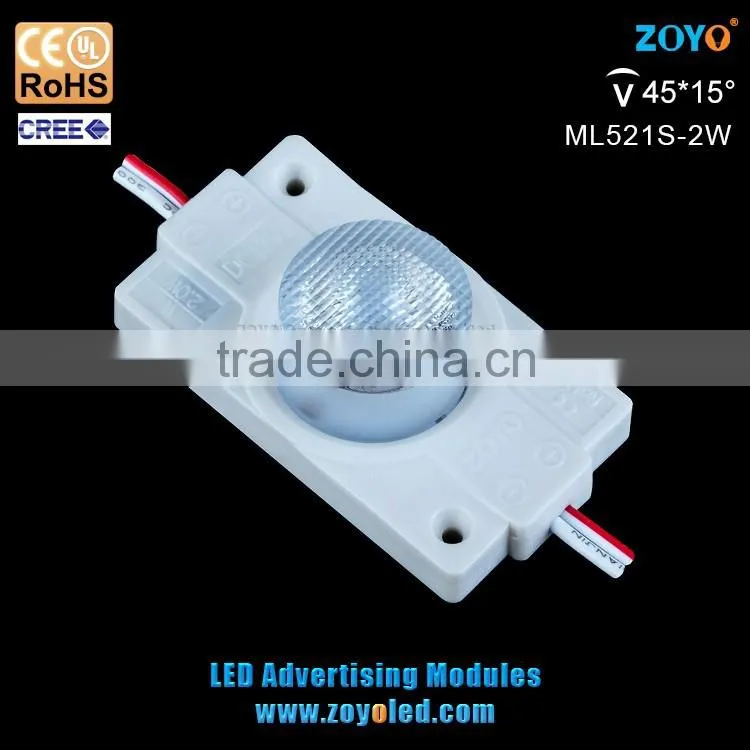

3W SMD5050 LED Injetion Modules High Power Modules LED with PMMA Lens IP 68 outdoor for light box
|
Parameters
| |
Product No. |
ML521S |
Size |
52*30*15mm |
LED |
CREE LED 2W |
Drive type |
Constant current driving IC |
Input voltage |
DC12V |
Input Current |
0.167A |
Power |
2W |
Luminous Flux |
175 lm |
Color Temperature |
6000K/ 3000K |
Beam angle |
45*15 degree |
IP rate |
IP65 |
|
Structure & material
|
Pure Aluminum PCB, ABS process, PMMA optic lens |
Warranty |
5 years warranty |
Quick Delievery |
7-10 days |
Certificate |
CE (EMC+LVD) / ROHS / UL |
Working temperature |
-20~+45°C |
Stock temperature |
-30~+60°C |
Wire distance |
96mm |
QTY. /Square meter |
24pcs |
Application |
advertising signs / channel letters / light boxes, and etc.. |
ODM & ODM |
Both are available |

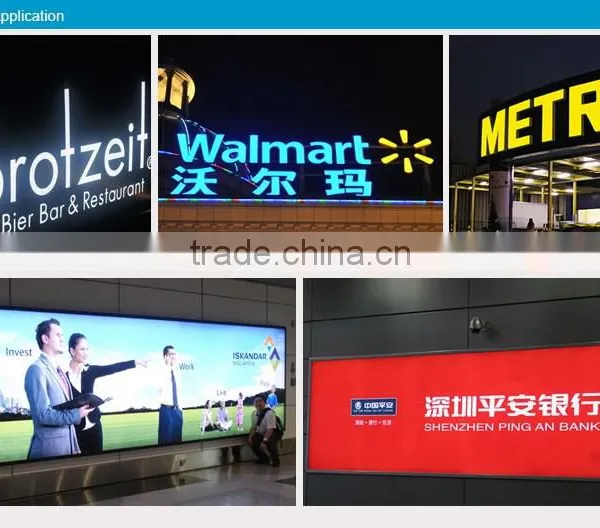

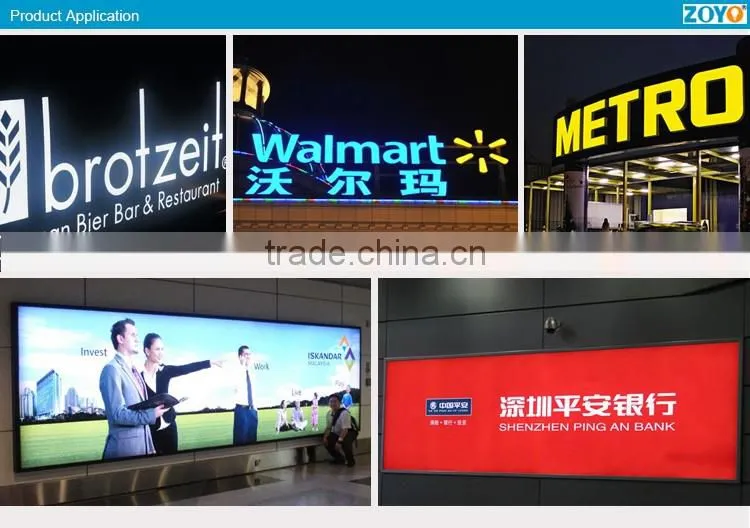

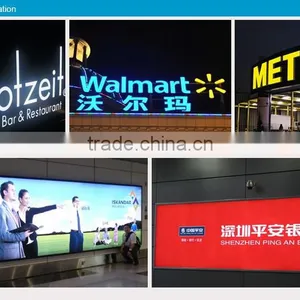

Product Application:
1.Advertising signs, LOGO & Channel Letters backlight.
2.Light source for advertising boxes or cabinets.
3.Ceiling lighting for elevators, conforence rooms, office, builidings.
4.And etc..

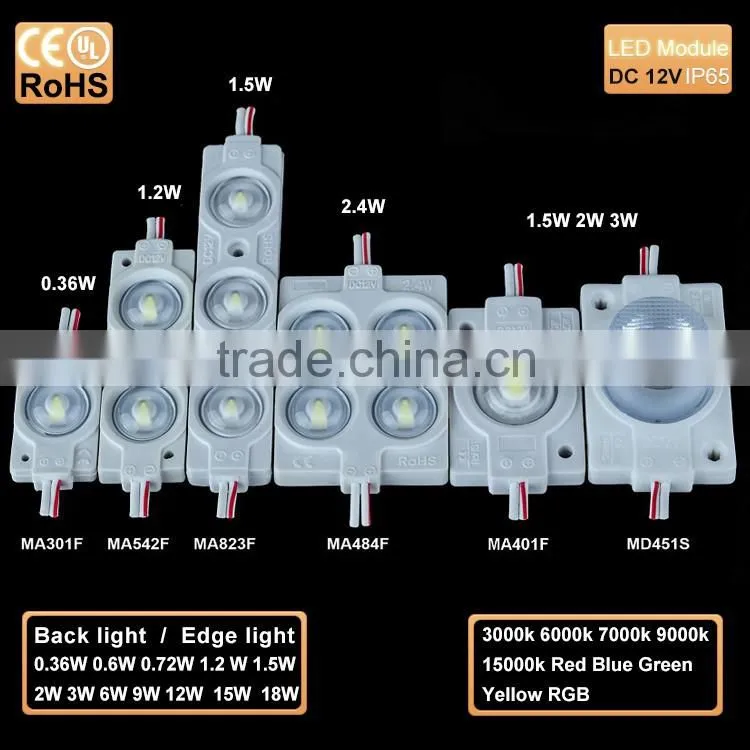

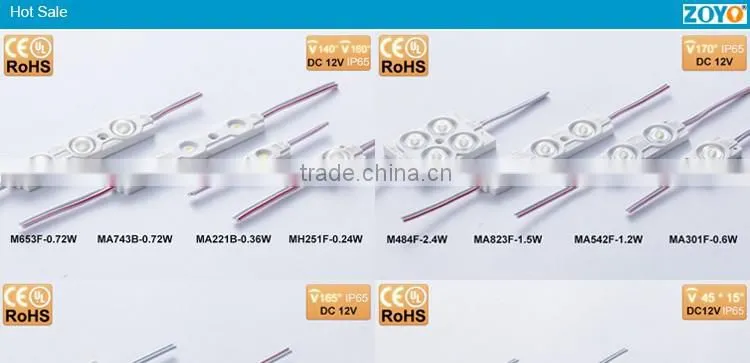

HOT SALES PRODUCTS | |||||
Product Name |
Items |
Power |
Color Tempreture |
Size |
Remark |
Bee Series |
MA221B |
0.36w |
15000K/ 6000K/ 3000K |
22*10*4.8mm |
Backlit |
MA743B |
0.6w |
15000K/ 6000K/ 3000K |
74*12*4.8mm |
Backlit |
|
Tiger Series |
MA301F |
0.6w |
15000K/ 6000K/ 3000K |
30*18*6.4mm |
Backlit |
MA542F |
1.2w |
15000K/ 6000K/ 3000K |
54*18*6.4mm |
Backlit |
|
MA653F |
0.72w |
15000K/ 6000K/ 3000K |
65*14.5*4.8 |
Backlit |
|
MA823F |
1.5w |
15000K/ 6000K/ 3000K |
82*18*7.2mm |
Backlit |
|
MA484F |
2w |
15000K/ 6000K/ 3000K |
48*36*6.4mm |
Backlit |
|
|

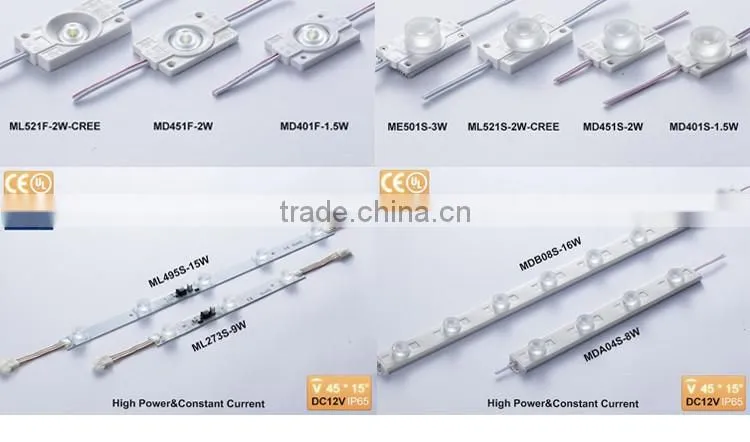

Loong Series
|
MD451F |
2w |
6000K/ 3000K/ 9000K |
45*30*8.8mm |
Backlit |
MH401F/MD401F |
1.5w |
6000K/ 3000K/ 9000K |
40*28*7.4mm |
Backlit |
|
1.2w |
6000K/ 3000K/ 9000K |
||||
CREE XBD LED |
ML521F |
2w/3w |
6000K/ 3000K |
52*28*7.4mm |
Backlit |

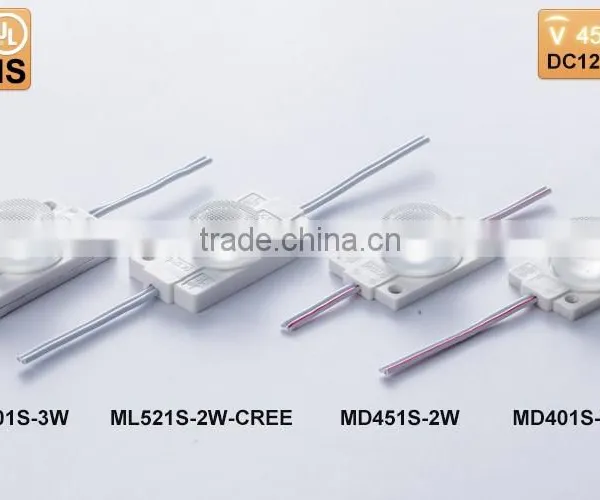

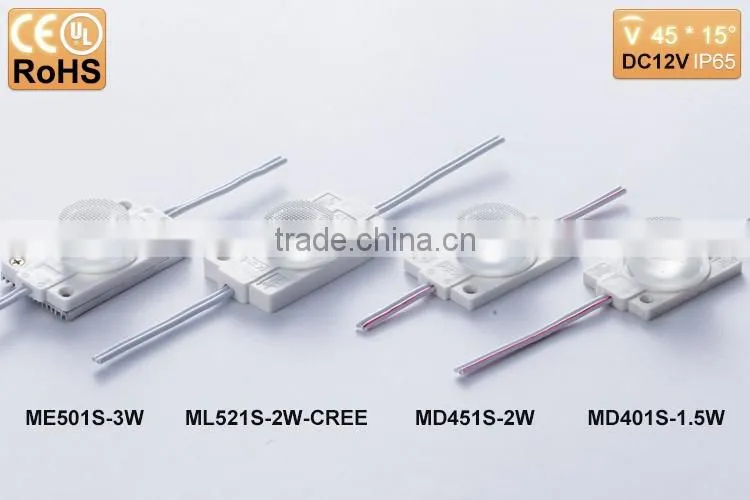

Eagle Series |
MD401S |
1.2w |
6000K/ 3000K |
40*35*15mm |
Edge light |
Eagle Series |
MD451S |
2w |
6000K/ 3000K |
45*35*15mm |
Edge light |
CREE XBD LED |
ML521S |
2w/3w |
6000K/ 3000K |
52*35*15mm |
Edge light |
ML273S |
9w |
6000K/ 3000K |
273*26*15mm |
Edge light |
|
ML495S |
15w |
6000K/ 3000K |
495*26*15mm |
Edge light |
|
ItemCode |
Light box thickness DH(mm) |
Module horizontal distance DX(mm) |
Module vertical distance DY(mm) |
Modules average in 1m2 (pcs/m²) |
Surface illumination (lux) |
ML521S |
180 |
120 |
120 |
20 |
1352 |
|
Remarks: 1.The panel is 3mm acrylic board, 60%transmittance. | |||||
Installation
1.First position the module with double sided tape onto the side of board, then fix with Silicon glue.
2.Silicon glue directly fixing modules, but before installation, cleaning or polishing module surface.
3.Screw mounting the modules on the board.
Shipping method and shipping time
1. Express (DHL, UPS, FEDEX, TNT): around 5-7 working days
2. Transport by air: around 5-8 working days
3. Ocean shipping: around 1-2 month
ZOYO LED is a professional high technology and new technology enterprise, who is specialized in development, production, sales, service of LED signage modules.
The core team of the company compose with the experienced specialists and senior engineers, who have been working in this fields more than 10 years. And a few leaders in the electronic, structural,optical fields form the R & D center. We are honored with our own national patents.
Through persevering efforts, ZOYO LED has passed ISO9001, and all products have been CE, RoHs UL certificated.Products are exported to Western Europe, Mid-East and South-East Asia as well as south America.Our sales net are under built in these regions in order to give our customers best after service.
ZOYO LED always doing its best to focus on LED light innovation, guarantee the products' reliable quality, most competitive price & fast delivery.
1.We are Alibaba Assessed Gold Supplier.
2.We are a factory professional manufacturing Injection molding LED modules with present 16 injection machines, SMT machines,
wire solderings for large production capability of 1million pieces a month, ISO9001:2008 quality control system, instant services.
3.We have our own R&D engineers’ team, strong product innovation capabilities.
4.100% Quality assured before shipment, 0 complain after customers received cargo.
5. factory direct sales, most competitive prices for LED Modules distributors & wholesalers.
6. All your inquires will be replied within 12 hours
7. Well-trained and professional sales consultant who can speak fluent English
8. Offer OEM & ODM services. Can print your logo on product, can customize the retail box packing and other things.
9. Experienced R&D engineers with strong ability to do ODM projects.
Welcome to ODM/OEM design!
