Dc12v Led Modules China Factory Price Led Modules

Dc12v Led Modules China Factory Price Led Modules thumbnail-1
Dc12v Led Modules China Factory Price Led Modules photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
MA823F
Chip Material:
InGaN
Emitting Color:
Cool White
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number MA823F
Chip Material InGaN
Emitting Color Cool White
Luminous Intensity 1820lux
Luminous Flux(lm) 155
Optical Attenuation(%) 0.5
Power 3W
Power Dissipation 1.5W
Color Rendering Index(Ra) 80
Color Temperature 3000k~15000k
Operating Temperature(℃) -20, 45
Storage Temperature(℃) -30, 60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

Specifications

1) 1/2/3/4pcs leds, 3 chips
2) injection molding
2) with patent,constant current
3) beam angle 152~160 degree
4) CE RoHS

Product Characteristics:

1. Adopted with SMD2835 / 5630 / 5730 LED.

2. Constant Current Driving.

3. Special lens design, 160° viewing angle and light evenly.

4. With aluminum PCB for LED heat dissipation.

5. One time injection molding technology, reliable sealed, IP65.

6. CE/Rosh certifications with 3 years warranty.

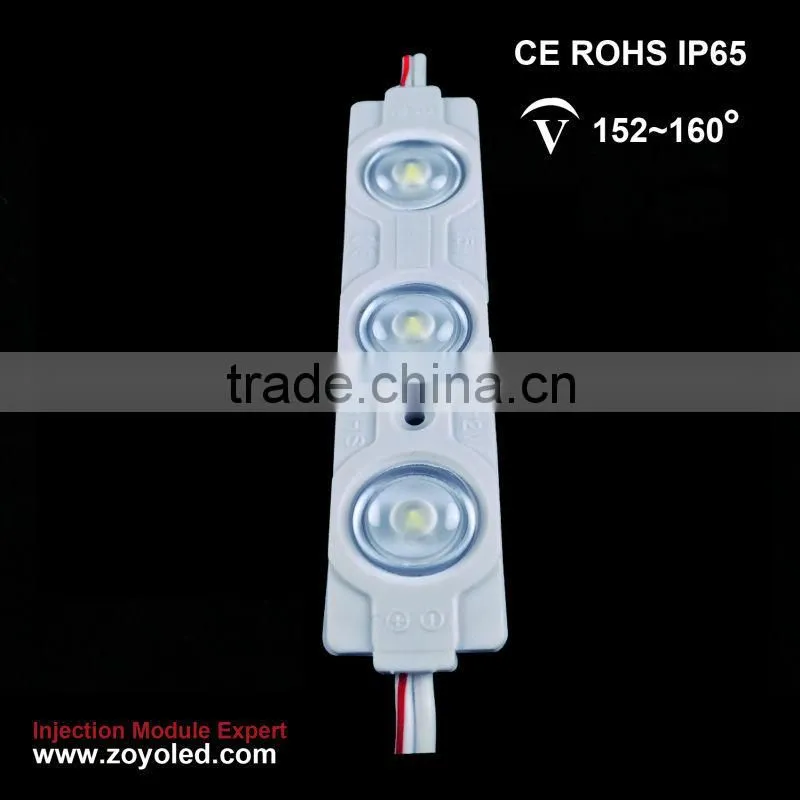

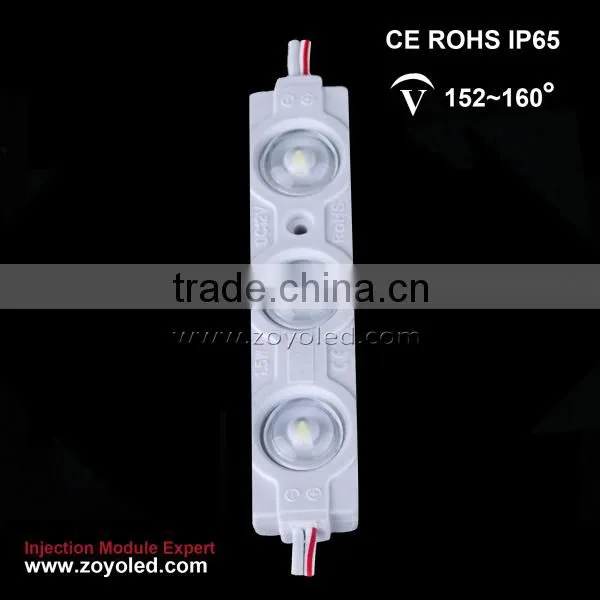

Product Photo:

dc12v led modules china factory price led modulesdc12v led modules china factory price led modules





Product Sketch:

dc12v led modules china factory price led modules





Product Parameters: (Room temperature =25°C)

Items

Parameter

Unit

LED type

SMD2835



LED Quantity

1

PC

Concatenation

20

PCS

Dimension

82*18*7.2

mm

Power

1.6

W

Beam Angle

152~160

°

CCT

15000

K

CRI

80

Ra

Input V.

DC12

V

Input C.

0.125

A

Surface Temp.

< 40

°C

Working Temp.

-20 ~ +45

°C

Storage Temp.

-30 ~ +60

°C

Protect Level

IP65

-



Light Attenuation Graph:

dc12v led modules china factory price led modules



Light Distribution Curve:

   dc12v led modules china factory price led modules



Instructions:

1. Modules Positioning (Vertical and Horizontal)




Item Code

Light box thickness

 DH (mm)

Module horizontal

distance

DX (mm)

Module vertical

distance

DY mm

Modules average

in 1m2

(pcs/m²)

Surface illumination

(lux)

MA823F

150

244

244

48

1820

Remarks: The panel is 3mm acrylic board with transmittance 56%.

dc12v led modules china factory price led modules

2. Installation

-- First position the module with double sided tape onto the back of board, then fix with Silicon glue.

-- Silicon glue directly fixing modules, but before installation, cleaning or polishing module surface.

-- Screw mounting the modules on the board.





Packaging:

Anti-static bag & standard export carton box:

20pcs in a string,5 strings/100pcs in an bag,12bags/1200pcs/G.W.19.5kg/52*46*26cm/carton.

dc12v led modules china factory price led modules



Product Applications:

Applications: channel letter lighting, sign lighting, metro sign, advertising box of commercial centre’s & highway, bus station board, airport light board, back light source.

dc12v led modules china factory price led modules

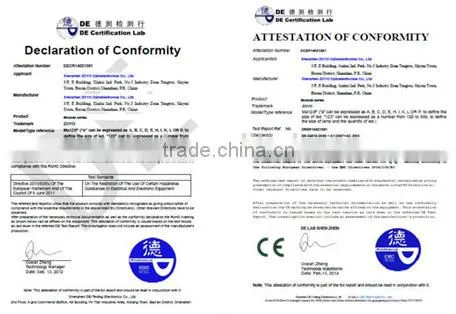

Product Certificates:

dc12v led modules china factory price led modules





Comparing with Old Version with 3LEDs:

dc12v led modules china factory price led modules



Factory View:

Our factory set up in 2006, director of R&D Dept. has nearly 15years experience in LED module design; We focus on injection LED module; with constant current driving for LED stablely working; high power led module max. 3watt/pc with aluminum PCB for heat dispassion, wide beam angle of 160 degree.

dc12v led modules china factory price led modules



Payment Terms:

1. Payment: 30% deposits before production, 70% balance to be paid before delivering.

2. Sample can be delivered in 1day, order around 10days.

3. Discounts are offered based on order quantities.

4.  T/T or irrevocable L/C at sight; accept Western Union, PayPal payment.



Shipping Method and Shipping Time:

1. Express (DHL, UPS, FEDEX, TNT): around 3-6 days.

2. Ocean shipping: around 15days to 1month.



Our Services:

1. For all your inquires of us or our products, we will reply you in details within 12 hours.

2. Own well-trained and professional sales & after- sale services who can speak fluent English language.

3. Offer OEM services. Can print your own logo on product, can customize the retail box packing and other things.

4. Experienced R&D engineers and we have strong ability to do ODM projects.
