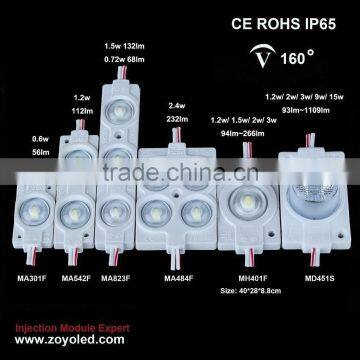

12V IP65 2 chips injection led module led 2835 5050 smd signage modules
- 3000000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- DC12V Samsung or Nichia LEDs waterproof high power led module led light box
- china decorative led smd2525 5050 high power LED modules for light box
- high brightness water proof high power LED module light bar with good heat dissipation
- ABS injection led modules 2835 same Samsung osram High power led Module
- shenzhen led smd 2835 5050 high power LED modules warm wihte cool white
- shenzhen SMD2835 5050 LED Modules High Power LED Modules1.2w 1.5w 2.0w 3.0w ABS material
Product Details
Model Number: | MA542F | Chip Material: | Other, Samsung &Osran | Emitting Color: | Cool White |
Luminous Intensity: | 90lm/w | Luminous Flux(lm): | 110 | Optical Attenuation(%): | 0.1 |
Power: | Other, 1.2w, 1.2W | Power Dissipation: | 1.2w | Color Rendering Index(Ra): | 80 |
Color Temperature: | 15000K | Operating Temperature(℃): | -20, 45 | Storage Temperature(℃): | -40, 60 |
Place of Origin: | Guangdong, China | Brand Name: | zoyo | Certification: | CE |
Product Description
12V IP65 2 chips injection led module led 2835 5050 smd signage modules
High Power Waterproof LED Module SMD2835
-- Constant current driver ensuring full bunch stably working
-- Hi purity aluminum for heat dissipation
-- High light SMD 2835 LEDs =1.2W
-- PMMA optic lens , no lighting dots to eyes
-- High-speed response time
-- Injection molding technology,reliable sealed, IP65 protection level. .
-- Nice structure with patent in china
-- CE / RoHS certifications with 3 years warranties.
-- Long lifespan and low failure rate
Parameters
Parameters (Room temperature =25°C) | |||||||
Items | Parameter | Unit | |||||
LED Type | 2835 |
| |||||
LED Quantity | 2 | PCS | |||||
Dimension | 54*18*7.2 | mm | |||||
Power | 1.2±10% | W | |||||
Optical and Electrical Parameters (Room temperature =25°C) | |||||||
Test Item | Test Condition | Symbol | Parameters | Unit | |||
|
|
| Min. | Typical | Max. |
| |
Color Temperature | DC12V | CCT | 15000 | 18000 | 22000 | K | |
Ra | DC12V | CRI | 70 | 75 | 80 | -- | |
Luminous Flux | DC12V | Φ | - | 110 | - | lm | |
Light Efficiency | DC12V | LPW | - | 80 | - | lm/W | |
Visual Angle | DC12V | Wd | -- | 152 | -- | Deg |
Samsung series smd led modules are very flexible products, you can use them anywhere you can imagine to create fantastic lighting performance, typically for:
1 ,signage lighting
2, channel letter
3 ,reverse channel letter
4 ,lighting box
5, under cabinet lighting
6, shop window decoration
7 ,strip mall decoration8 ,contour marking
The LED message display is the most effective way to advertise your business, attract customers and promote your products and services.
