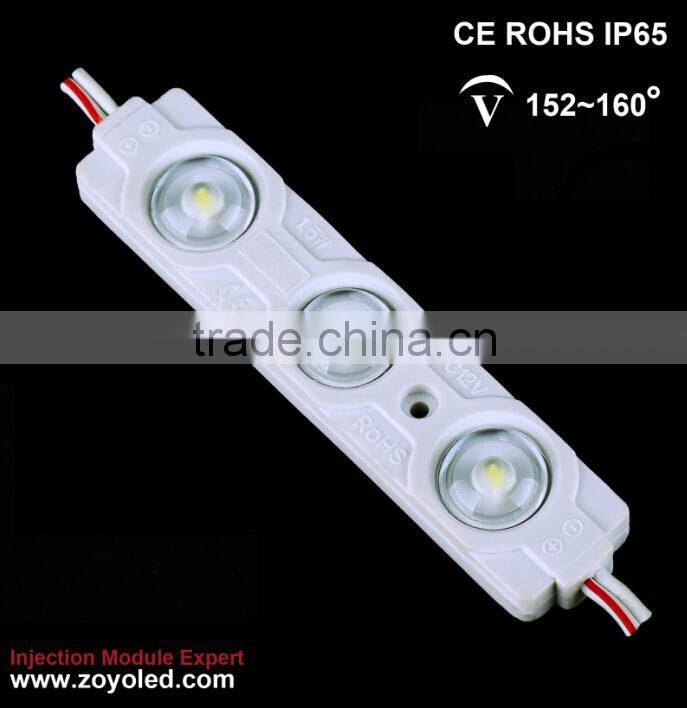

Smd2835 Module Led Lighting ce Rohs Backlight Led Sign Module
- Shenzhen/Hongkong
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High Power Lens Led Module 3leds Smd2835 ce Rohs
-
Best Quality Control Led Injection Module With ce Rohs Certificate
-
Advertising Led Module for Light Box Pvc/abs Injection Module
-
Best Quality Control Led Sign Module Abs/pvc Injection Molding
-
3-LEDs SMD2835/SMD5050 Led Advertising Module
-
CRE E High Power Led Modue With Pmma Lens
Product Details
| Model Number | MA823F | Chip Material | InGaN | |
| Emitting Color | Other, warm white, pure white, cool white | Luminous Flux(lm) | 140lm | |
| Optical Attenuation(%) | 1% | Power | Other, 1.5W | |
| Power Dissipation | 1.5W | Color Rendering Index(Ra) | 80 | |
| Color Temperature | 3000K-15000K | Operating Temperature(℃) | -20, 45 | |
| Storage Temperature(℃) | -30, 60 | Place of Origin | Guangdong, China | |
| Brand Name | ZOYO | Certification | CE |
Product Description
Product Name
High power led injection module with lens smd2835 led module light good price
module led back lighting
Product Advantage
1. Use high brightness high power SMD2835 as light source
2. Al substrate for LED components with well heat transfer
3. 160 degree wide Beam Angle
4. One-time Injection molding with own patent
5. Best sealed, waterproof IP65; 3-year Warranty
6. CE RoHS certified
Product Parameter
Parameters (Room temperature =25℃) | |||||||
Items | Parameter | Unit | |||||
LED type | SMD2835 |
| |||||
LED Quantity | 3 | PCS | |||||
Concatenation | 20 | PCS | |||||
Dimension | 82*18*7.2 | mm | |||||
Power | 1.5±10% | W | |||||
Modules’ Centre Dis. | 224 | mm | |||||
Input V. | DC12 | V | |||||
Input C. | 0.125 | A | |||||
Drive Mode | Constant Current |
| |||||
Surface Temp. | < 40 | ℃ | |||||
Working Temp. | -20 ~ +50 | ℃ | |||||
Storage Temp. | -30 ~ +60 | ℃ | |||||
Protect Level | IP65 | - | |||||
Optical and Electrical Parameters (Room temperature =25℃) | |||||||
Test Item | Test Condition | Symbol | Parameters | Unit | |||
Min. | Typical | Max | |||||
Color Temperature | DC12V | CCT | 12000 | 15000 | 18000 | K | |
CRI | DC12V | CRI | 70 | 80 | 85 | Ra | |
Luminous Flux | DC12V | Φ | 105 | 116 | 128 | lm | |
Light Efficiency | DC12V | LPW | 70 | 77 | 85 | lm/W | |
Visual Angle | DC12V | Wd | 147 | 152 | 157- | Deg | |

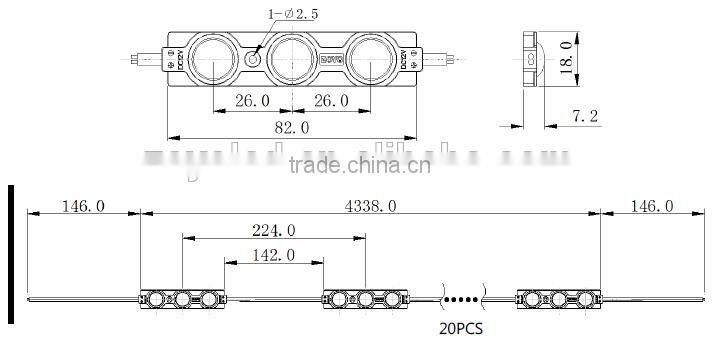

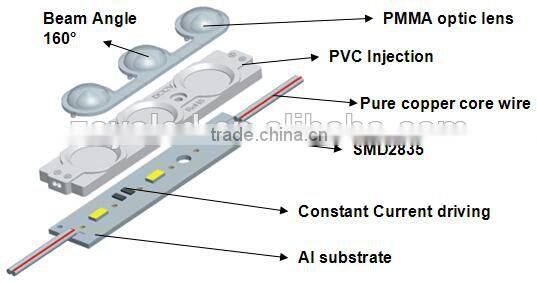

Product Sketch

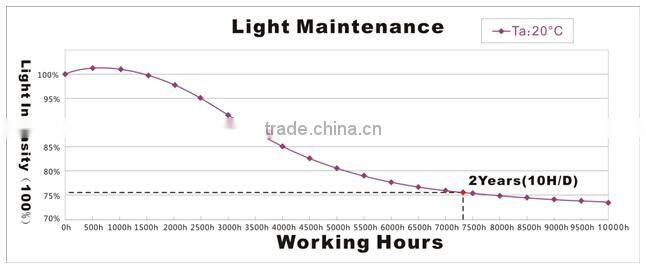

Light Attenuation Graph

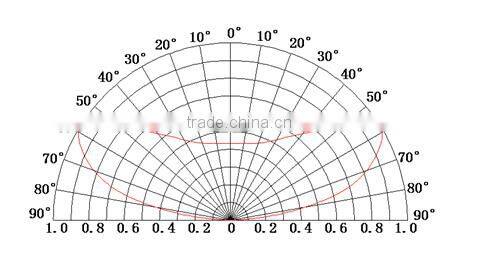

Light Distribution Curve:
Product Package

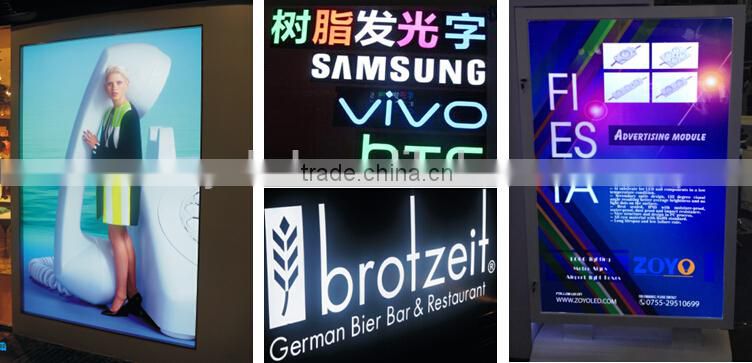

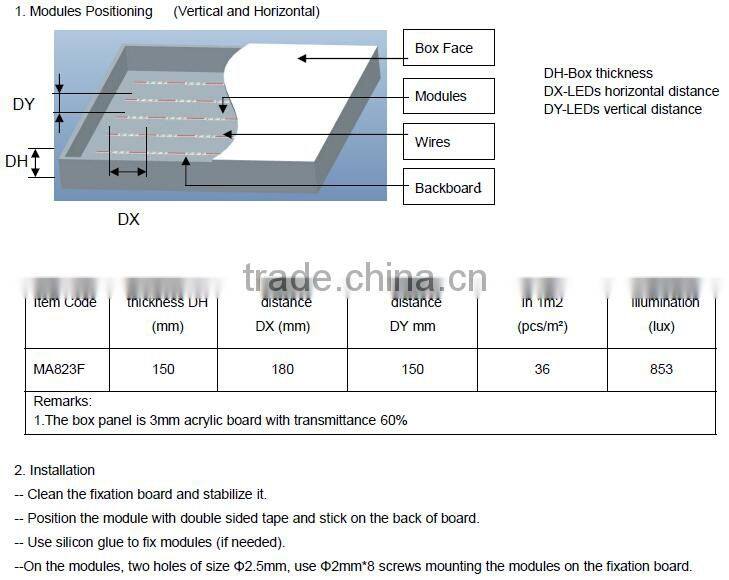

Product Application
Light boxes, Logo lighting, Advertising Signs, Back light source, Channel letters, etc.

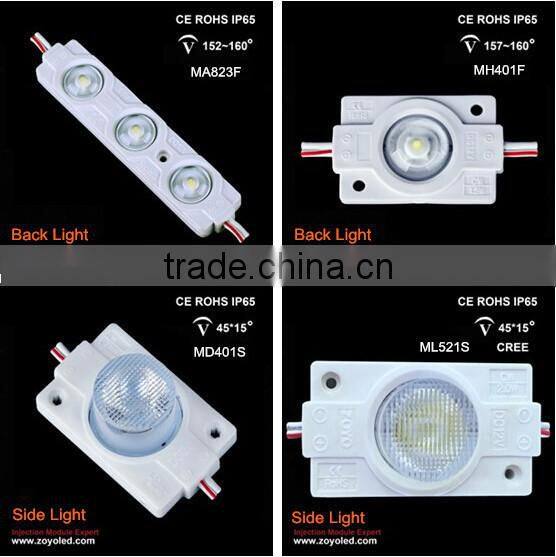

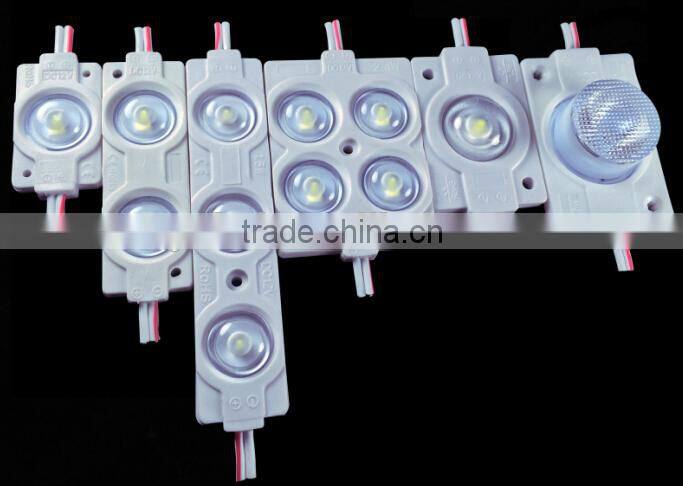

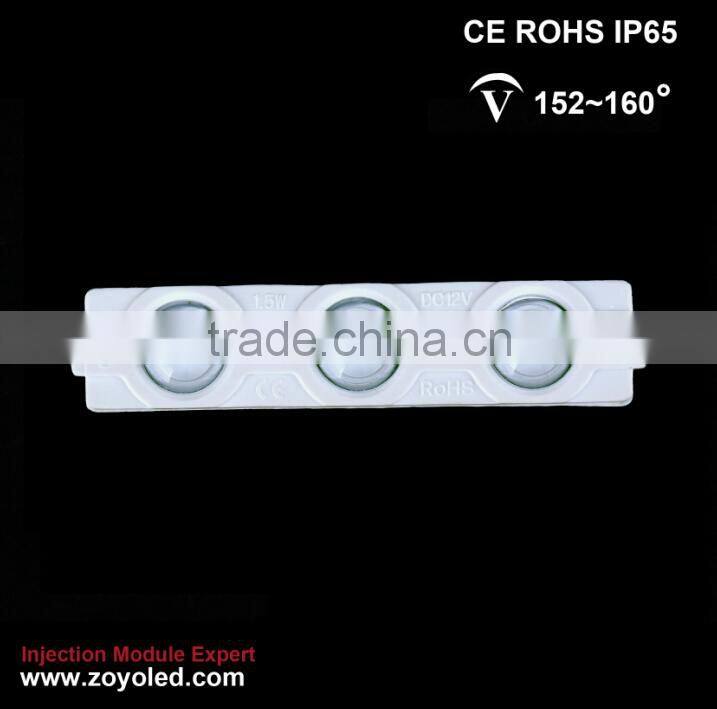

Product Showcase
Factory View
Product Shipping
Our Exhibition
Why choose ZOYO LED?
1> Factory direct pricing
2> Factory customer support and service
3> In-house design and development
4> Experienced engineering
5> Quality assurance
6> Cost control due to vertical integration
7> In-house control of production
8> On time delivery control
Our Service
1. All your inquires will be replied within 12 hours
2. Well-trained and passional sales consultant who can speak fluent English
3. Offer OEM & ODM services. Can print your logo on product, can customize the retail box packing and other things.
4. Experienced R&D engineers with strong ability to do ODM projects.
More information, please feel free to contact us or send e-mail to info4(at). FREE samples are waiting for you. ^_^
Thanks and best regards,
Jacey Wu
Oversea Dept.
Skype: jacey.wu
Mob: +86-15919423655
Shenzhen ZOYO LED
