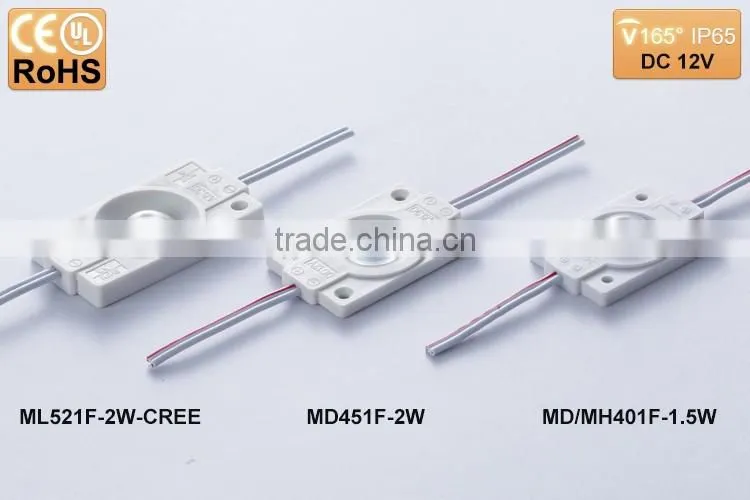

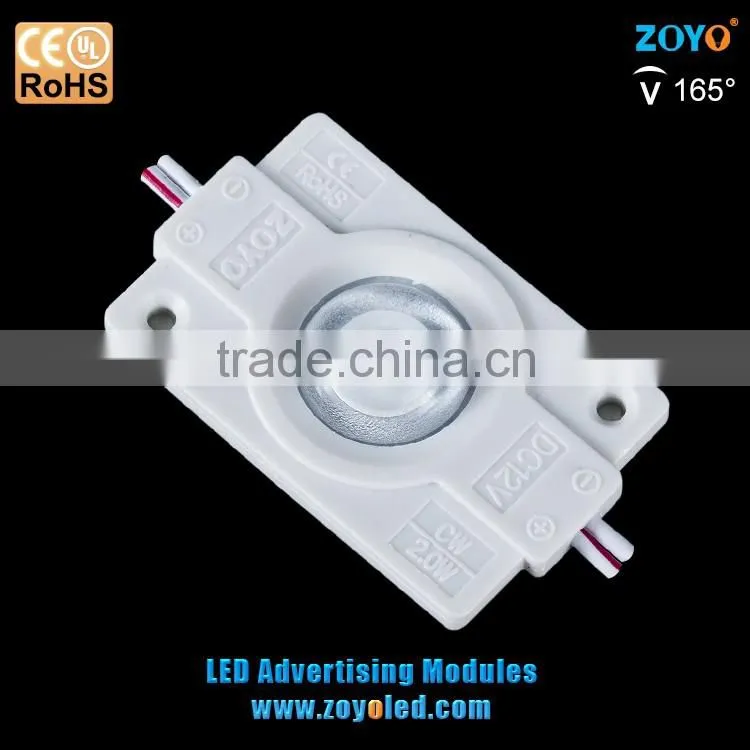

CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED Module / Single LED Module for Advertising Box /channel Letter

CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED Module / Single LED Module for Advertising Box /channel Letter thumbnail-1
CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED Module / Single LED Module for Advertising Box /channel Letter photo-1
US$ 0.46 - 0.52 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
Loong series-MD451F
Chip Material:
InGaN
Emitting Color:
Other, warm white/cold white
Contact Supplier Request Quote Chat Now
Shenzhen ZOYO Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port/HK Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number Loong series-MD451F
Chip Material InGaN
Emitting Color Other, warm white/cold white
Luminous Flux(lm) 165
Optical Attenuation(%) 5%
Power Other, 2W
Color Rendering Index(Ra) 83
Color Temperature 3000K/6500K
Operating Temperature(℃) -20, +45
Storage Temperature(℃) -30, +60
Place of Origin Guangdong, China
Brand Name ZOYO
Certification CE

CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter

 CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letterCE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter

Product Advantage



1. Epistar LED, 5 Year Warranty

2. Constant current driving mode

3. Wide Beam Angle 165 degree

4. PMMA optic lens

5. High lumen & high power

6. Patented unique design

7. OEM/ODM available

8. CE & RoHS certified



CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter



Product Sketch

CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter



Product Parameter

 Parameters                          (Room temperature =25℃)

Items

Parameter

Unit

LED Type

3030



LED Quantity

1

PCS

Concatenation

20

PCS

Dimension

45*30*7.6

mm

Power

2 ±10%

W

Modules’ Centre Dis.

187

mm

Input V.

DC12V

V

Input C.

0.167

A

Drive Mode

Constant Current



Surface Temp.

< 45

℃

Working Temp.

-20 ~ +45

℃

Storage Temp.

-30 ~ +60

℃

Protect Level

IP65

-

 Optical and Electrical Parameters               (Room temperature =25℃)

Test Item

 Test Condition

Symbol

Parameters

Unit

Min.

Typical

Max.

Color Temperature

DC12V

CCT

5800

6500

7300

K

CRI

DC12V

CRI

70

75

80

Ra

Luminous Flux

DC12V

Φ

145

150

155

lm

Light Efficiency

DC12V

LPW

73

75

78

lm/W

Visual Angle

DC12V

Wd

155

160

165

Deg





CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter



Light Attenuation Graph

CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter



Light Distribution Curve:



 CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter





CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter



Instructions



1. Modules Positioning   (Vertical and Horizontal)



Item     Code

Light box thickness

DH(mm)

Module horizontal distance

DX(mm)

Module vertical

distance

DY(mm)

Module Qty.

in 1m2

(pcs/m²)

Surface illumination

(lux)

MD451F

150

170

170

35

780

Remarks:

1.The box panel is 3mm height acrylic board, 60% transmittance.

























CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter



Product Application



CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter



CE RoHS UL Approved Waterproof IP65 White LED Module / 1 LED module / Single LED module for advertising box /channel letter





Packaging & Shipping

Product Package

Shipping

1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

3.Customers specifying freight forwarders or negotiable shipping methods;

4.Delivery Time: 3-5 days for samples; 10-15 days for batch goods.



Payment terms:

1.Payment:T/T, Western Union, PayPal,irrevocable L/C at sight; 30% deposits; 70% balance before delivery

2.MOQ:20 pcs

3.Warranty: 5 years

4.Package informations:1000pcs per carton/The volume of the box is 530mmx330mmx200mm.

Our Services

Why choose us?

1.We are Alibaba Assessed Gold Supplier;

2.We are a factory professional manufacturing Injection molding LED modules,Best production

capability,best quality control,Best service.

3.We have our own R&D engineers team,best product innovation capabilities;

4.100% QC inspection Before Shippment;

5.CE/ROHS listed,factory direct sales,competitive price.
