High power 1.5w 160 degree signage led modules with lens
What is the story of ZOYO LED?
If ask me,what is the most important thing in the life?
Workers will tell you the Turth.
Two men ,one worked in MRSON for 11 years,another one worked in LBY for 10 years.
Innovation,Vaule,Integrity,Gratitude make them work toghter,then ZOYO LED was borned.
Because of that,Zoyo is not only a company,but also the dream of everyone.
Workers work happy everyday in ZOYO, they find the Vaule,Integrity,Gratitude of their life,
and know how to make their dreams to comes truth.
ZOYO LED light brings us Innovation,Vaule,Integrity and Gratitude.
Let me know what is LIFE!!!
What is the details of our led modules?
No. |
Item |
Parameter |
1. |
Part No., |
Loong series-MH401F |
2 |
Size |
L40*W28*H16mm |
3 |
LED |
1 pcs SMD3030/SMD5050 |
4 |
Drive type |
Constant current drivering |
5 |
Input voltage |
DC12V |
6 |
Input Current |
0.125A |
7 |
Power |
1.5W per pcs |
8 |
Luminous Flux |
135 lm |
9 |
Color Temperature |
Cold white 6000k/9000k (Other colors is avaliable) |
10 |
Beam angle |
157-160 degree |
11 |
IP rate |
IP65 |
12 |
Structure & material |
Aluminum substrate,PVC injection |
13 |
Warranty |
3 years warranty |
14 |
Quick delievery |
5-10 days |
15 |
Certificate |
CE/ROHS |
16 |
Working temperature |
-20~+45°C |
17 |
Stock temperature |
-30~+60°C |
18 |
Wire distance |
142mm |
19 |
QTY.(pcs)/square meter |
26-32pcs |
20 |
Application |
Backlit for advertising signs/channel letters/light boxes,etc |
21 |
Other |
ODM/OEM is avaliable |

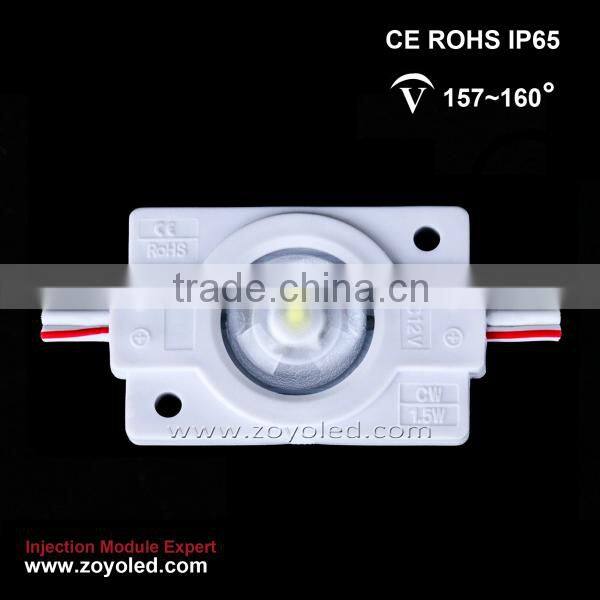

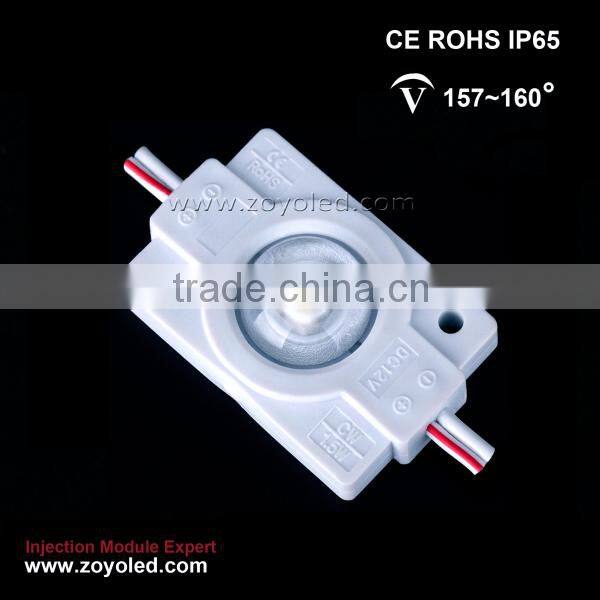

Product Photos

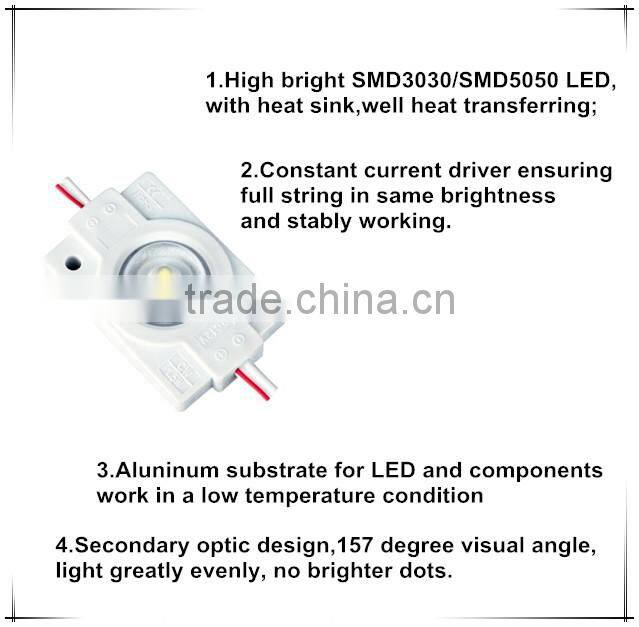

Product Features

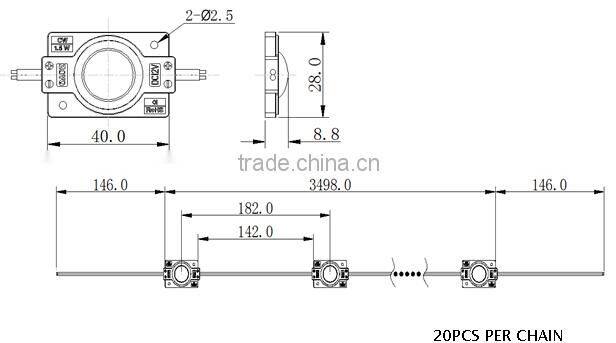

Product Structure

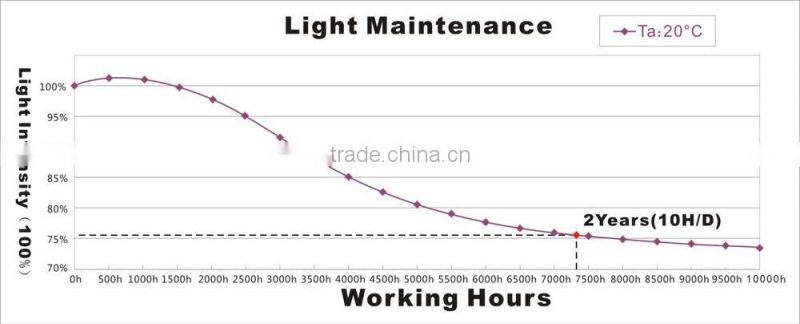

Light Attenuation Graph :

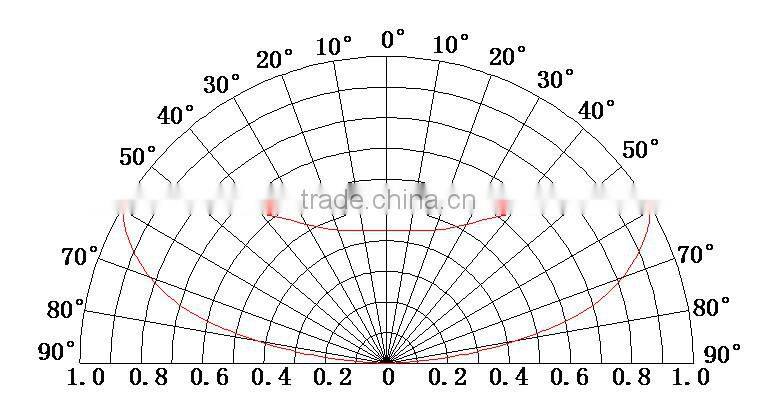

Light Distribution Curve:
What is the specification of our LED modules?
Product Name |
Item No. |
Power |
Color tempreture |
lumens |
Size |
Remark |
Bee Series |
MA221B-CW/W |
0.36w |
12000k |
28lm |
22*10*4.8mm |
Backlit |
Bee Series |
MA743B-CW/W |
0.6w |
12000k |
47lm |
74*12*4.8mm |
Backlit |
Bee Series |
MA743C-CW/W |
1.2w |
15000k |
95lm |
74*12*4.8mm |
Backlit |
Tiger Series |
MA301F-CW |
0.6w |
15000k |
54lm |
30*18*6.4mm |
Backlit |
Tiger Series |
MA542F-CW |
1.2w |
15000k |
102lm |
54*18*6.4mm |
Backlit |
Tiger Series |
MA823F-CW |
1.5w |
15000k |
145lm |
82*18*7.2mm |
Backlit |
Tiger Series |
MA484F-CW |
2w |
15000k |
198lm |
48*36*6.4mm |
Backlit |
Loong Series |
MH401F-CW |
1.5w |
9000k |
145lm |
40*28*7.4mm |
Backlit |
1.2w |
6000k |
125lm |
||||
Loong Series |
ML521F-W/WW |
2w |
6000k/3000k |
175lm |
52*28*7.4mm |
Backlit |
Eagle Series |
MD401S-W |
1.2w |
6000k |
115lm |
40*35*15mm |
Edge light |
Eagle Series |
MD451S-W |
2w |
6000k |
185lm |
45*35*15mm |
Edge light |
Eagle Series |
ML521S-W/WW |
2w |
6000k/3000k |
200lm |
52*35*15mm |
Edge light |
Eagle Series |
ML273S-W/WW |
9w |
6000k/3000k |
810lm |
275*26*15mm |
Edge light |
Eagle Series |
ML495S-W/WW |
15w |
6000k/3000k |
1300lm |
475*26*15mm |
Edge light |
What is the Application of our led modules?
1.Advertisiment signs backlighting,
2.LOGO & Channel letters backlighting,
3.Advertisiment light boxes and billboards backlighting,
4.Landscape,commercial,home and stage decoration,etc

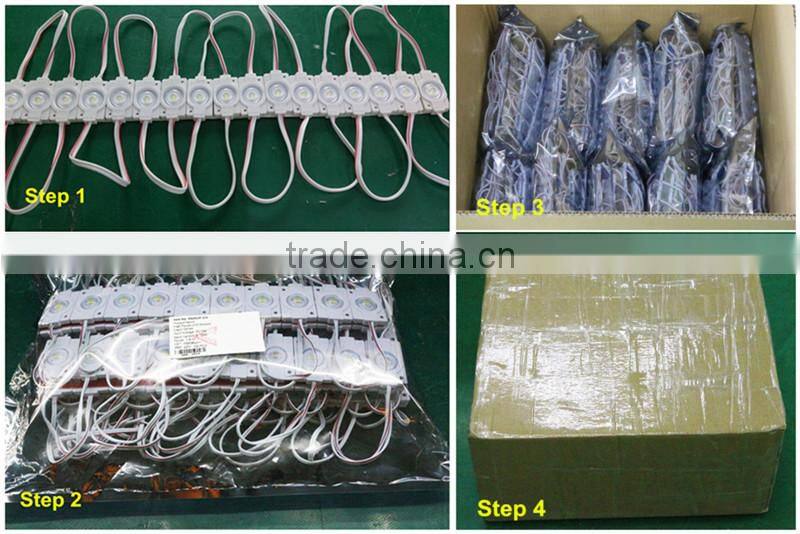

Packaging & Shipping,Trade Terms:
Shipping
1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods;
4.Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Payment terms:
1. Payment: T/T, Western Union, PayPal,irrevocable L/C at sight; 30% deposits; 70% balance before delivery
2.MOQ:20 pcs
3.Warranty:3 years
4.Package informations:1000pcs per carton/The volume of the box is 530mmx330mmx200mm.
Why choose us?
1.We are Alibaba Assessed Gold Supplier;
2.We are a factory professional manufacturing Injection molding LED modules,Best production
capability,best quality control,Best service.
3.We have our own R&D engineers team,best product innovation capabilities;
4.100% QC inspection Before Shippment;
5.CE/ROHS listed,factory direct sales,competitive price.

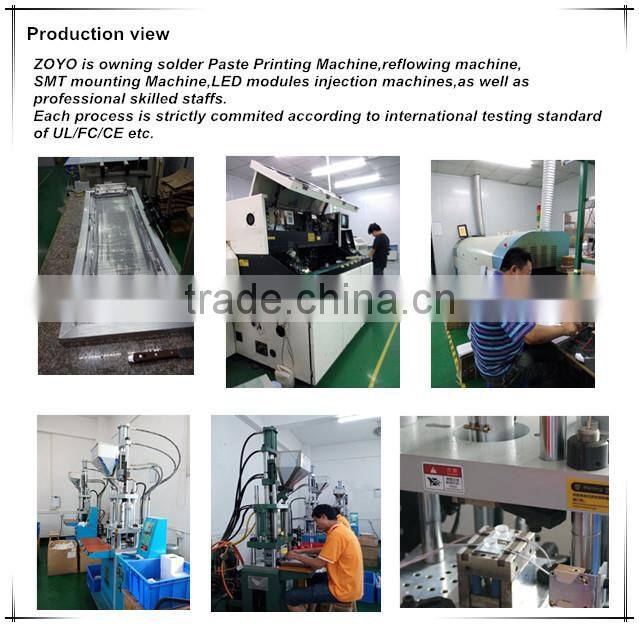

Company View
Our certifications:CE/ROHS
Our Exhibitions
FAQ
Q1:Can I have samples to test?
A1:Yes,we are pleased to supply samples to test and check quality,free samples within 10 pcs,
buyer pay for shipping cost.
Q2:What is the Warranty for the modules?
A2:For the modules,we have 3 years warranty for epistar/sanan LED,5 years warranty for Cree/Osram LED.If any quality problems on our side occured in this period,we will take on
the shipping cost and replacement.
Q3 What is the advantage of constant current drivering?
A3:Constant current drivering ensuring full string in same brightness and stably working,can
greatly reduce the fluctuating power efficiency and maintain longer lifespan of LEDs.
Q4:Can you also supply the power supply for the modules?
A4:It is avaliable.Please take care that power supply should be 20%~30% more than
the exact LEDs power,and wires should be a little bigger than the current which is needed.
Q5:What is the max quantity for one string?
A5:Max 20pcs in one string, better not more than this as it will cause lower brightness or danger.
If need over 20pcs modules, suggesting connection first in series then parallels.
Q6:Will your led modules have dimmable function?
A6:This type of led modules are not for dimmable function.
Please contact us for further discussion if you need dimmable ones.
Q7:Can I use the modules in outdoor or directly opening conditions?
A7:Modules’ IP rate is IP65,are only used for lights box,advertising signs,channel letters
which have cover to protect modules.Suggest not used in outdoor or directly opening conditions.
Q8:Do you accept OEM/ODM?
A8:Yes,it is avaliable.
Q9:Is there cheap shipping cost to import to our country?
A9:For small order, express will be best. And for bulk order, sea ship way is best but take much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q10:Can we get support if we have our own market position?
A10: Please inform us your detailed mind on your market demand, we will discuss and propose
helpful suggestion for you, to find the best solution for you.
