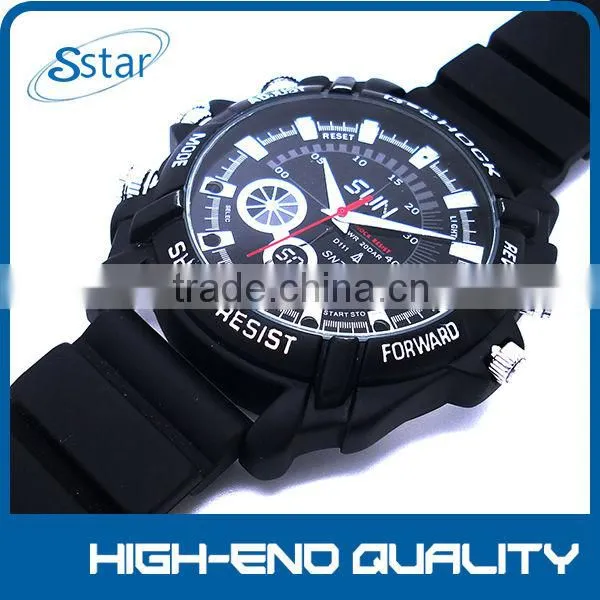

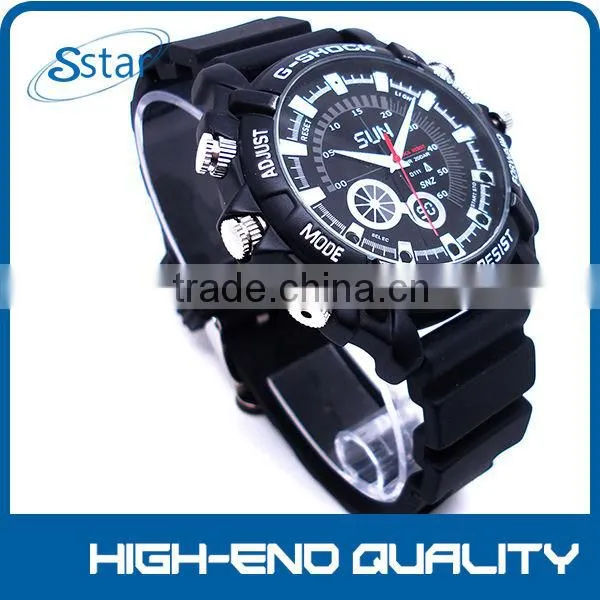

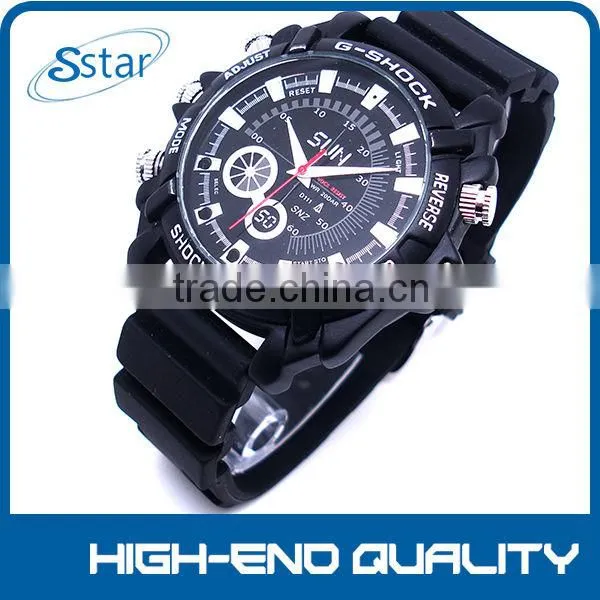

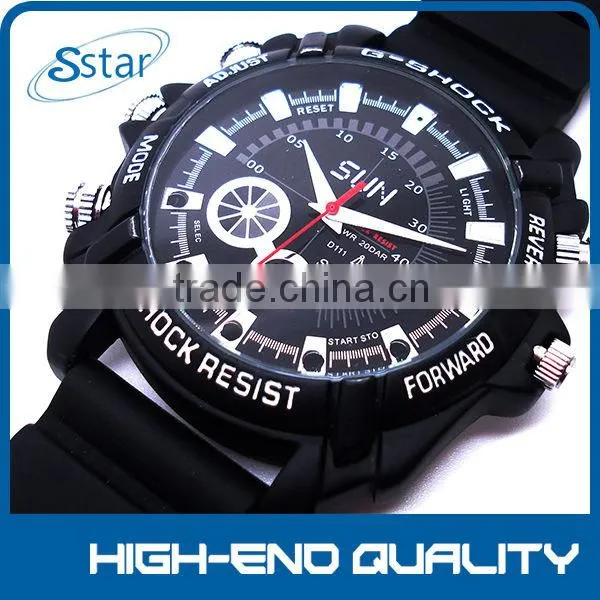

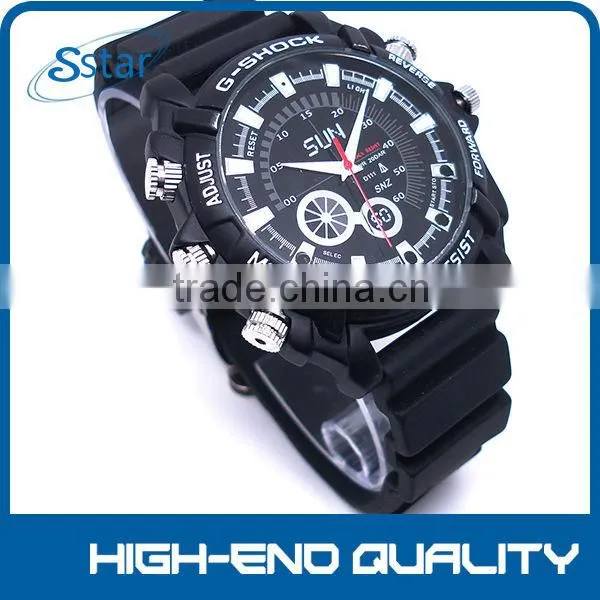

HD watch hidden camera 1080P 2014 best seller

Specifications

1.pixels high
2.high-end grade atmosphere
3.Exquisite wokemanship
4.all these are new models
forable, Noble symbol



Function parameters

Infrared night vision camera

Automatic induction infrared night vision

36 hours LED lighting

Hd video/resolution of 1920 * 1080

Video frame rate of 30 frames

Photo 4032 * 3024 pixels

PC web camera function

Support recording

Support 1GB-32GB

Outdoor sports must be prepared to good things

3. Photo: In standard mode, short press the photo key, Red light flash one time shows a photo saved successfully. After photo the red light on back to standard mode.

4.Motion Detection: In standard mode, long press the photo key get into motion detection mode. two indicateor light flash 3 times then shut down. Under motion detection, the device begin record when something move inside recording area. After object move outside, device stop recording. Motion detection mode can save more memory capacity. marks: The device with circle record function, pls save the video file to PC as needed.



Special Marks:

A. In record & voice record mode, screw the mic cap for a clear sound.

B. The device can not get the sound under waterproof function.

5:Mobile disk

       Use the USB cord to connect the machine to your computer USB socketà computer shows the disk, you can also go to “my computer” to find the diskà when your computer is successfully connected to the disk, the machine starts functioning as a mobile drive already, you can read, convey, copy or delete files from the drive.

       File saving path of the machine is: Drive_ DCIM100DSCIM.

       To unload the drive from your computer: find the drive on your computer by clicking the drive sign on RHF of the screenà pull out the USB cord and disconnect it when your computer says it is safe to remove the drive.

NOTICE: Due to difference of computer configuration, the time for a computer to read the machine may differ, please take a little patience not to operate the machine when the computer is trying to read the drive. If the machine can not be detected by the computer after a suspicious long time, pull out the cord and reconnect it. If it still fails to be detected, please check and confirm if your operation system, drive program, USB socket, connecting cord are functioning well.

To avoid causing damage to the machine or computer, please connect and unload the machine strictly according to the instruction: Connecting the machine with USB cord, then plug it in the computer USB socket. When unloading, remove the USB cord from the computer only when the computer says “it is safe to remove the drive now”, then remove the cord from the machine.



6. Internet camera function

First of all, you need to install the camera drive program on your computer: Put the CD disk drive (packed with the machine) in your computer CD driverà run the file STK02N 2.4.exe to install the camera drive programà when installing finishes, power on the machine, and link it to computer with a USB cordà press the CAMERA button, the machine goes to PC CAMERA modeà you can video chat with your friends, or take pictures, etc.

       How to use webcam: double click “my computer” driveà click “turn on webcam (NOTE: only when the machine is powered on before it’s connected to computer, can the webcam function be activated)”.

       To avoid causing damage to the machine or computer, please connect and unload the machine strictly according to the instruction: Connecting the machine with USB cord, then plug it in the computer USB socket. When unloading, remove the USB cord from the computer only when the computer says “it is safe to remove the drive now”, then remove the cord from the machine.



7. Charging

       Just connect the machine with a USB cord to the computer or charger. When it’s on charging mode, the red light blinks until the battery is fully charged, and then the red light goes off. TIP: this machine is built with a high capacity Polymer Lithium Ion Battery, which is not memory effecting, therefore technically it can be charged at any time. However, it is recommended to drain the power before charging it for the first 5 times, as to achieve the maximum power storage. It is also recommended to continue charging for 30 to 60 minutes when the red light indicates charging is finished.

       To avoid causing damage to the machine or computer, please connect and unload the machine strictly according to the instruction: Connecting the machine with USB cord, then plug it in the computer USB socket. When unloading, remove the USB cord from the computer only when the computer says “it is safe to remove the drive now”, then remove the cord from the machine.



8. Time adjusting

       The camera has a build-in clock, so it shows time when photographing/recording, you may need to adjust the time setting. The time format of the machine clock is: year/month/date/hour/minute/second. How to adjust time: link the machine to computerà find the machine drive on computer and move the cursor on the drive signà click the right key of the mouseà move the cursor to “create” on the right key menuà then select “document/file”à name the document/file as “time (lowercase)”à make the doc extension as “.txt”. (Or you can create a file following above method on your computer, then copy/move it to the machine drive.)à open the doc, set time format as: 2000.01.01 00:00:00, the date and time is separated by space.à save and close the docà exit the machine drive, finishà When time is adjusted, the pic/recording time is on the same pace with your time. (Note: when time is adjusted on time.txt, it won’t effect until the machine is repowered on.)

Exceptional handling

1. When the camera storage is not sufficient to continue the current work, the blue and red lights will blink simultaneously around 3 seconds, then save the current picture/video automatically and shut off. If you want to continue to use the camera, please back up the video files to computer, then delete those files from the machine storage so as to make space for further storage.

2. When the battery is running very low, the red light quickly flashes 3 times and the machine will save current picture/video automatically and shut off. If you want to continue to use the machine, you have to charge the battery.

3. If the camera stopped responding due to improper operation or other accidents, please press RESET button to shut off machine, and repower on.

4. If the machine can not be turned on, please check: if the battery is low, please charge; or press RESET to turn off power, then powered on.

5. If the machine can not make recording, please check, if there are too many damaged docs in the storage, please format the disk, then try it again.

6. Cannot link to computer: Pleaser check and confirm your operation system, drive program, USB socket, connecting cord is functional.

Considerations

Application scenario: please use this product in line with national laws and rules. If it is applied for any illegal proposes, the user shall bear the consequences.



Battery: The battery working time may shrink as it gets older. If not used in a long term, make sure to charge it before usage.



It’s normal that the practical capacity is slightly smaller than indicated capacity.



File safety: This product is not professional storage equipment, the safety and completeness of stored files shall not be guaranteed, please back up the important files on your computer or other storage disks.



Recording quality: This product is not professional recording equipment, thus a high ideal expectation of recorded files is not guaranteed.



Working temperature: 0-40°C



Working Dampness: 20%-80%. This product is not water-proof, please don’t put the product in a very damp working environment.



Paragraphing Light Intensity: Please use the machine under a sufficient light condition, don’t point the camera directly to the Sun and other strong light source, otherwise the optical spare parts may be damaged.



Cleaning: Do not use the machine under any heavy dust conditions, to avoid dusting the lens or other sensitive spare parts which effects the photographing quality. Clean the lens with glasses cleaning cloth; Keep the lens clean.



Other considerations: this product is dedicated electronics, please protect it from strong crush or shock; Do not use it in any strong magnetic, electronic environment.



Discard: Please don’t discard this product without considering the environment. Forbid this product into fire, otherwise may cause explosion.



Other: If you have any questions, please contact local distributer or seller
