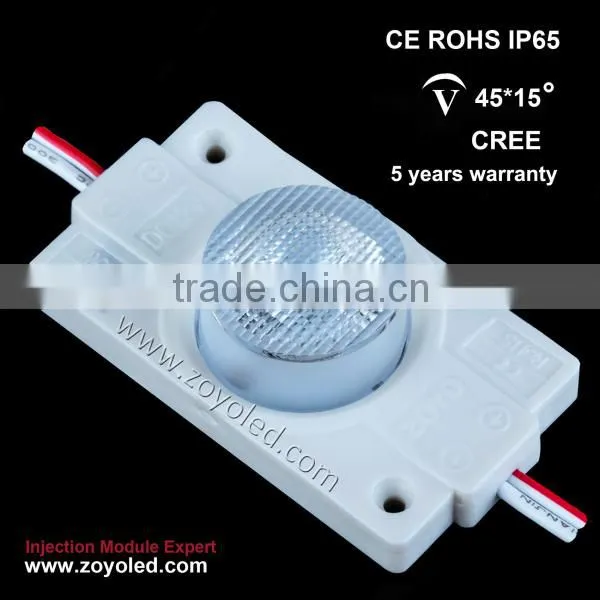

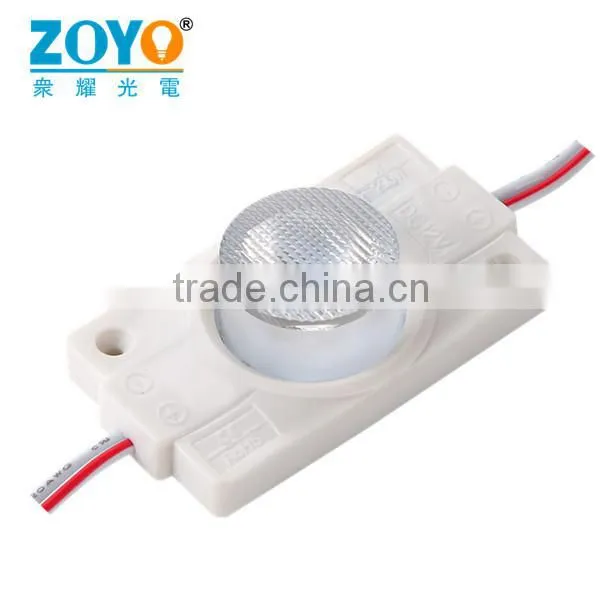

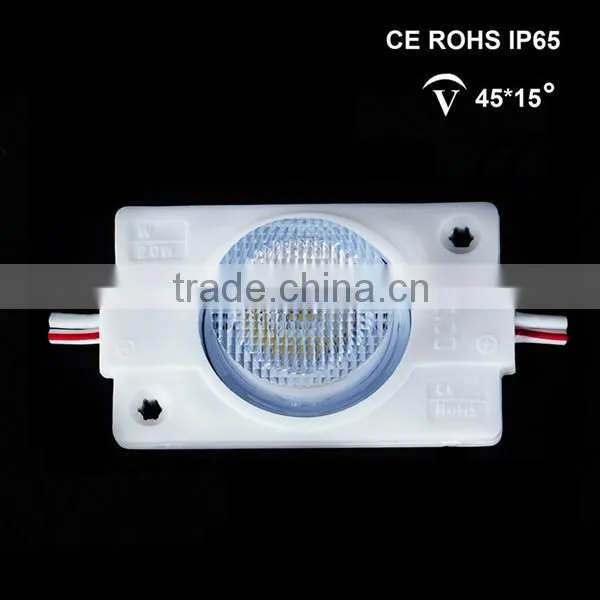

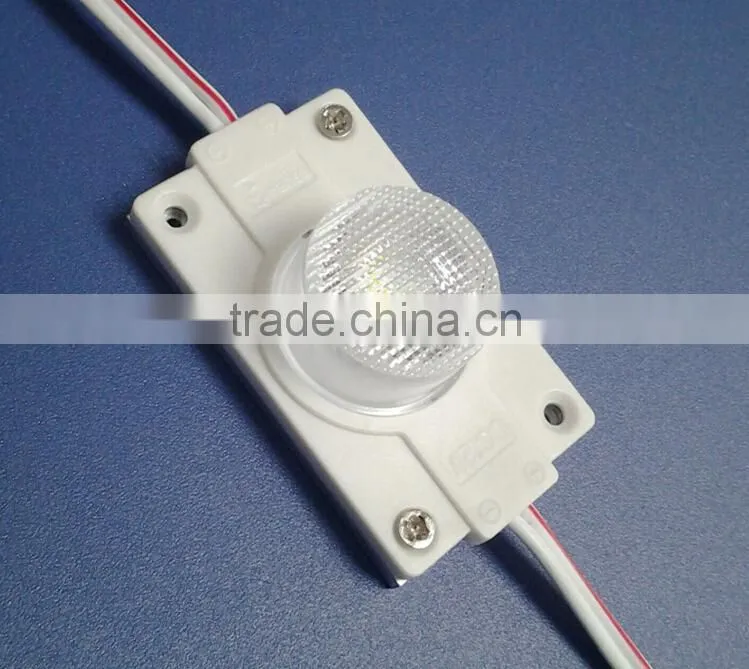

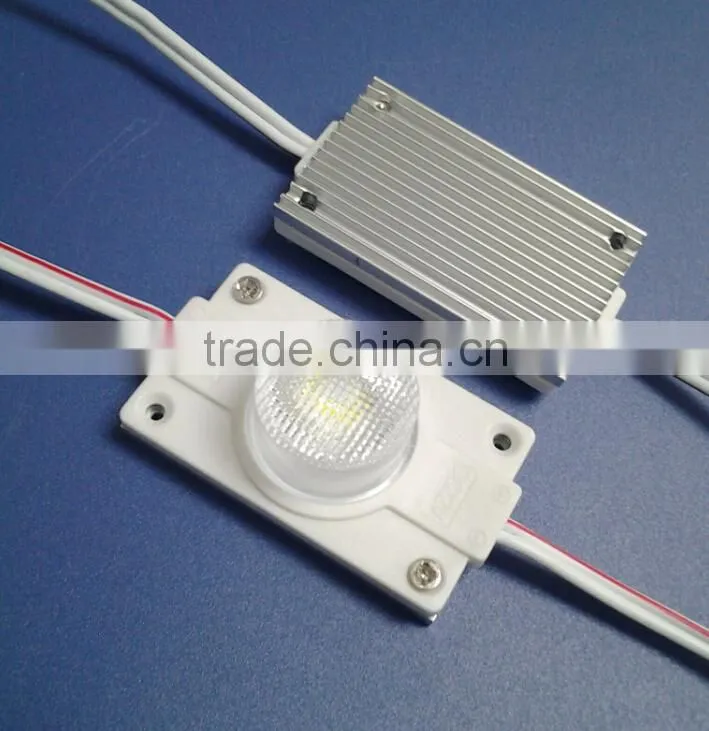

High power led module 3W advertising module radiator waterproof led module led edge lit ABS injection module for light box
Product Structure
High power led module 3W advertising module led sign module led edge lit ABS injection module for light box
High power led module 3W advertising module led sign module led edge lit ABS injection module for light box
Specification of our LED modules
Product Name |
Item No. |
Power |
Color tempreture |
lumens |
Remark |
Bee Series |
MA221B |
0.36w |
15000k/6000k/ 3000k |
28lm |
1.Backlit 2.Smd2835 3.152-160 degree beam angle |
MA743B |
0.6w |
15000k/6000k/ 3000k |
47lm |
||
MA743C |
1.2w |
15000k/6000k/ 3000k |
95lm |
||
Tiger Series |
MA301F |
0.6w |
15000k/6000k/ 3000k |
54lm |
|
MA542F |
1.2w |
15000k/6000k/ 3000k |
102lm |
||
MA823F |
1.5w |
15000k/6000k/ 3000k |
145lm |
||
MA484F |
2.4w |
15000k/6000k/ 3000k |
198lm |
||
Loong Series |
MD401F |
1.2w |
6000k/3000k |
110lm |
1.Backlit 2.Smd3030/smd5050 ,Cree led. 3.157degree beam angle
|
MH401F |
1.5w |
9000k/6000k |
140lm |
||
ML521F |
2w |
6000k/3000k |
175lm |
||
Eagle Series |
MD401S |
1.2w |
9000k/6000k/3000k |
115lm |
1.Edge light 2.Smd3030 led 3.45*15 degree |
MD451S |
2w |
6000k/3000k |
185lm |
||

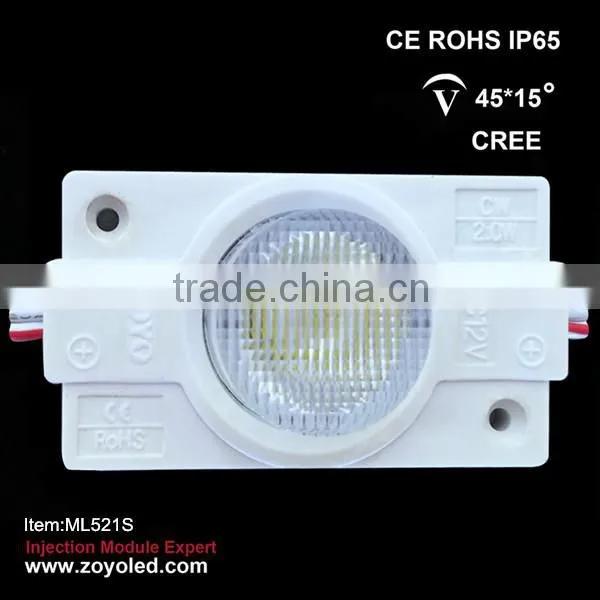

ML521S |
2w |
6000k/3000k |
185lm |
1.Edge light 2.CREE LED 3.45*15 degree |
|
ML273S |
9w |
6000k/3000k |
810lm |
||
ML495S |
15w |
6000k/3000k |
1300lm |
High power led module 3W advertising module led sign module led edge lit ABS injection module for light box
High power led module 3W advertising module led sign module led edge lit ABS injection module for light box
Installation Instruction:
1. Modules Positioning (Vertical and Horizontal)
Item Code |
Light box thickness DH(mm) |
Module horizontal distance DX(mm) |
Module vertical distance DY(mm) |
Module Qty. in 1m2 (pcs/m²) |
Surface illumination (lux) |
MD451F |
200 |
80 |
2500 |
30 |
630 |
|
Remarks: 1.The box panel is 3mm height acrylic board, 60% transmittance. | |||||
2.Installation
-- First position the module with double sided tape onto the side of board, then fix with Silicon glue.
-- Silicon glue directly fixing modules, but before installation, cleaning or polishing module surface.
-- Screw mounting the modules on the board.
Other Led Module Series:
Application of our led modules
1.Advertisiment signs backlighting,
2.LOGO & Channel letters backlighting,
3.Advertisiment light boxes and billboards backlighting,
4.Landscape,commercial,home and stage decoration,etc
Packaging & Shipping,Trade Terms:
Shipping
1.FedEx/DHL/UPS/Russian express/ARAMEX for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods;
4.Delivery Time: 3-5 days for samples; 10-15 days for batch goods.
Payment terms:
1. Payment: T/T, Western Union, PayPal,irrevocable L/C at sight; 30% deposits; 70% balance before delivery
2.MOQ:20 pcs
3.Warranty:5 years
4.Package informations:1000pcs per carton/The volume of the box is 530mmx330mmx200mm.
Why choose us?
1.We are Alibaba Assessed Gold Supplier;
2.We are a factory professional manufacturing Injection molding LED modules,Best production
capability,best quality control,Best service.
3.We have our own R&D engineers team,best product innovation capabilities;
4.100% QC inspection Before Shippment;
5.CE/ROHS listed,factory direct sales,competitive price.
Company View
Our certifications:CE/ROHS
Our Exhibitions
FAQ
Q1:Can I have samples to test?
A1:Yes,we are pleased to supply samples to test and check quality,free samples within 10 pcs,
buyer pay for shipping cost.
Q2:What is the Warranty for the modules?
A2:For the modules,we have 3 years warranty for epistar/sanan LED,5 years warranty for Cree/Osram LED.If any quality problems on our side occured in this period,we will take on
the shipping cost and replacement.
Q3 What is the advantage of constant current drivering?
A3:Constant current drivering ensuring full string in same brightness and stably working,can
greatly reduce the fluctuating power efficiency and maintain longer lifespan of LEDs.
Q4:Can you also supply the power supply for the modules?
A4:It is avaliable.Please take care that power supply should be 20%~30% more than
the exact LEDs power,and wires should be a little bigger than the current which is needed.
Q5:What is the max quantity for one string?
A5:Max 20pcs in one string, better not more than this as it will cause lower brightness or danger.
If need over 20pcs modules, suggesting connection first in series then parallels.
Q6:Will your led modules have dimmable function?
A6:This type of led modules are not for dimmable function.
Please contact us for further discussion if you need dimmable ones.
Q7:Can I use the modules in outdoor or directly opening conditions?
A7:Modules’ IP rate is IP65,are only used for lights box,advertising signs,channel letters
which have cover to protect modules.Suggest not used in outdoor or directly opening conditions.
Q8:Do you accept OEM/ODM?
A8:Yes,it is avaliable.
Q9:Is there cheap shipping cost to import to our country?
A9:For small order, express will be best. And for bulk order, sea ship way is best but take much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q10:Can we get support if we have our own market position?
A10: Please inform us your detailed mind on your market demand, we will discuss and propose
helpful suggestion for you, to find the best solution for you.
