Specifications
1.MOQ:10PCS2.Video Resolution:720p/1080p
3.higt-end-qualty
4.very small,Low illumination
5.very hidden,night singht

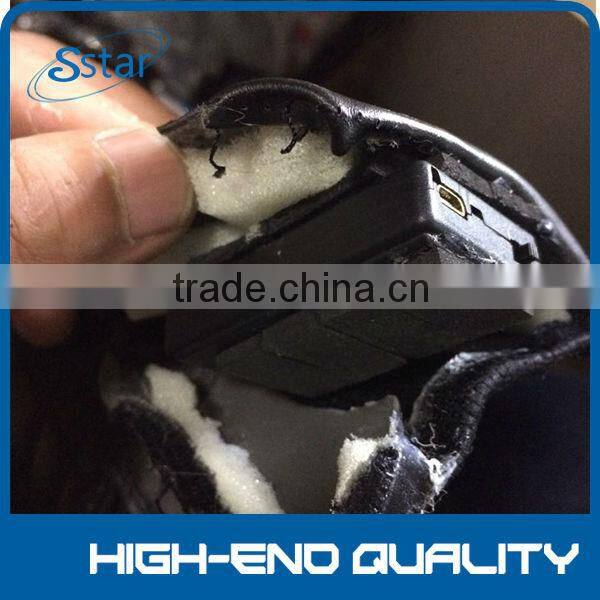

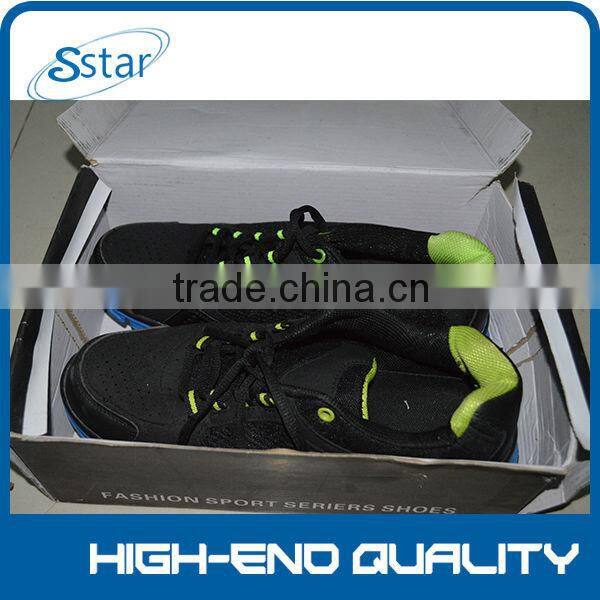

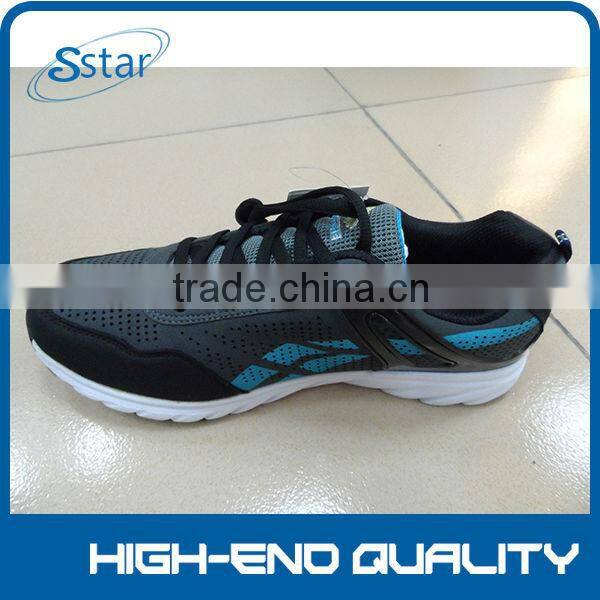

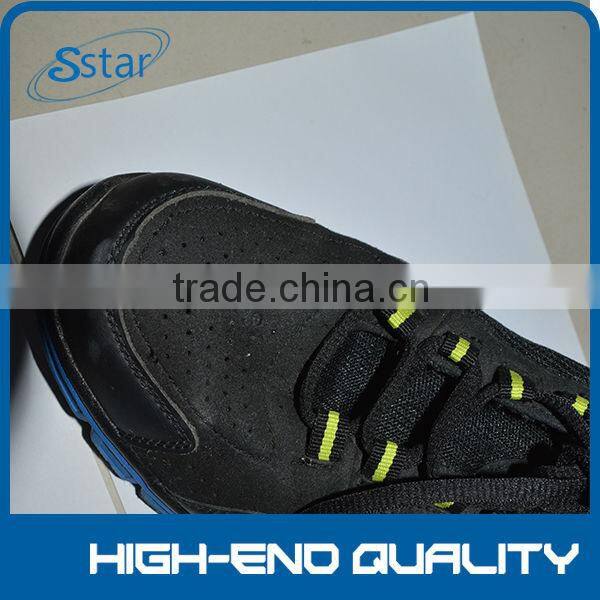

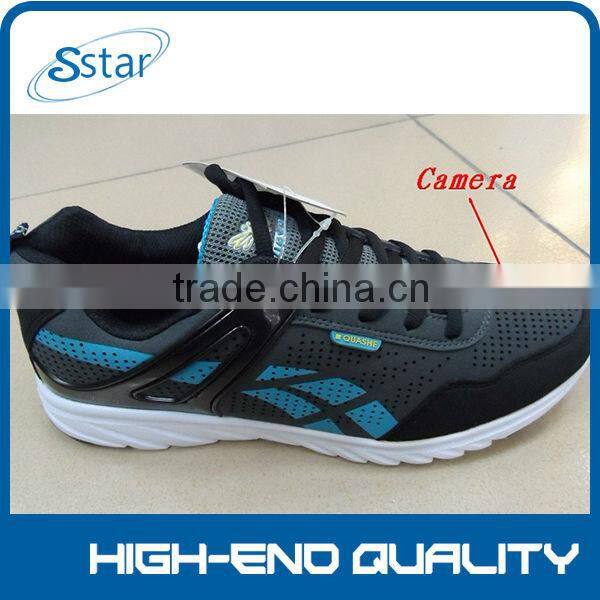

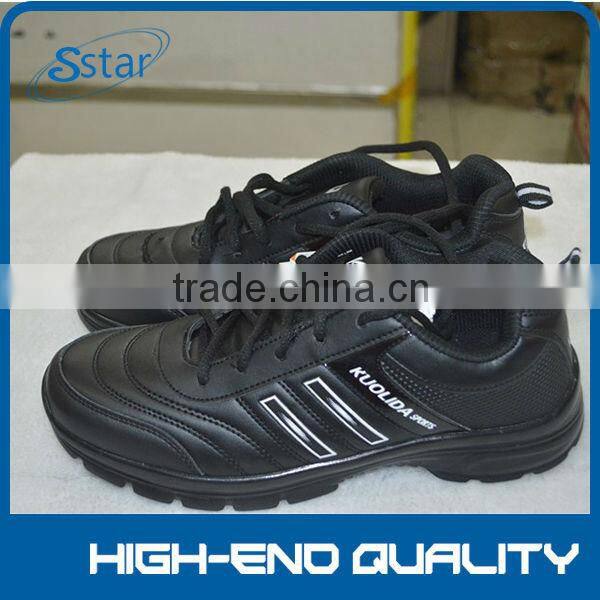

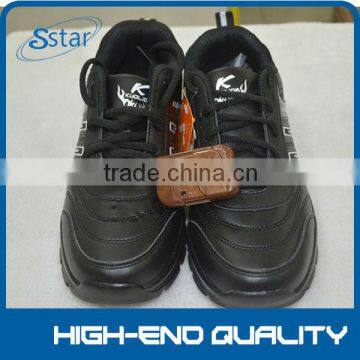

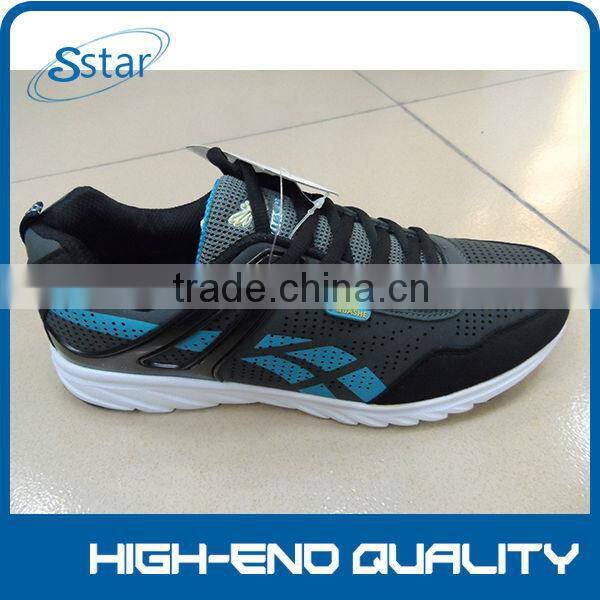

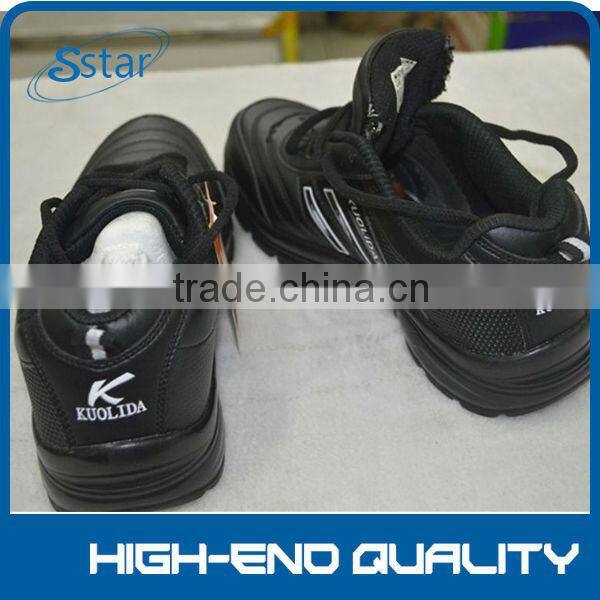

Introducing the high resolution 720*480/640x480/720p/1080p 4GB~32GB hidden shoe camera. The Ideal tool for "body worn" instant covert video recording. "One Touch" record button activates the camcorder for up to two hours recording on a single charge. Recordings can be later downloaded via high speed USB 2.0 to your PC for viewing and storing. Includes RF remote control for operating the unit without detection.
| Main Function: | shoe DVR Video and Audio Recorder with Remote Control |
| DVR - High Grade ABS | |
| Power | Built in rechargeable polymer Li-battery 500mA |
| Flash Memory | 2GB-32GB |
| Color | Blue - with White & light Blue Squares |
| Record format: | AVI (Motion JPEG) |
| Frames Per Second | 30FPS |
| Video Capture Resolution | 1280*720p at 30FPS |
| Audio Codec | PCM Audio, 8000Hz 64 kb/s (1 chnl) |
| Buttons | Power ON/OFF |
| Indicators | LED status indicator |
| Working Time | Up to 3 hrs, standby up to 2 days depending on use |
| Remote | Power: 27A, 12V |
| Interface | USB Por |
| Power Adapter | USB Wall Adapter - AC 100 - 250V, DC5V, 200 - 400mA |
| Supported OS | Windows 98/ ME/ 2000/ XP/ 2003/ VISTA / MACOS / linux. |
*
Accessories: TV host USB wireless remote control data line USB charger and record the TV line specification.
This product is a real HD MOV h. 264 720 p compression formats, HD 720 p video general environment can video about 20 minutes, 1 gb memory card (special complex colorful environment 17 minutes) maximum support 32 gb, 32 gb video at about 10.5 hours in a row, basic can do video monitoring throughout the day.
Article 2 USB line: 1:3.5 m USB TV line, filling while recording, TV video output, no data transmission function, mainly is the USB DC 5 v power supply used for real-time monitoring of TV.
2: 8 0 cm, USB TV cable support filling while recording function, TV video output, real-time monitoring, computer time to adjust the camera documents show docking watermark, video clips to delete, cable and charging, use more than one.
Operational details
Power open, open the power after the machine without any prompt, supporting the use of wireless remote control, need to press A button to boot, boot without card, built-in motor long one, red and blue lights flash 10 seconds, double built-in motor vibration one automatic shutdown, card startup, built-in motor long shock (according to the size of the memory card length will have vibration points) of red light Chang Liang, 1 minute after the red light does not perform any function built-in motor vibration one automatic shutdown, not closing dial, press A button and start up again.
Hint: enter the camera state after 1 minute, need to stop, need long press the remote control for 3 seconds or so.
1:720 p video: power open, have A card, and according to the remote control to A boot after (Chang Liang motor long one, A red light, said on standby, standby mode, click on the button 1 B (motor vibration one) under the red light flashing 3, 1280 x720p 30 FPS video, video in 5 minutes for A video automatic packing. Stop video press B button 1 (2) motor vibration red Chang Liang back to stop video recording standby mode
2: : motion detecting video: power open, have card, remote control by A boot (motor length 1 times), after the red light Chang Liang standby mode, click C button once (2) motor vibration with red and blue lights flashing out for motion detecting video mode under the 2, 1280 x720p 30, detect the moving object automatic video, no mobile standby all the time, every three minutes A video, video down automatic packaging. Click any button (motor vibration under 3) return to stop moving video, the red light on standby mode. (did not detect the moving object, always keep a standby motion detecting, at the same time there is no light hint)
3: photo: power supply, A card, press A boot (motor length 1 times), after the red light Chang Liang standby mode, click an D buttons (1 motor vibration), blue light slow flash A picture for the three (5200 x3900 size 20 million pixels), finished back to red light standby mode (motor vibration), by taking pictures without shake function, camera when you take A photo please remain relatively fixed, photo effect is good
4: filling record: open the power switch to insert the USB line, built-in motor 1, long (matching with 2 USB cable works on any root) has a card under the red light flash 3 out for filling and record (real charge while recording, not internal power consumption at the same time also inside the battery). Unplug the USB line 2 seconds motor vibration under 3 save video files automatically after power off.
5: charging: only charge (remove the TF card) to open the power switch insert any USB thread, to charge, (insert USB motor vibration, unplug the USB motor and shook one) dial didn't turn it on, insert the USB line at a red light also Chang Liang, but can't charge, charging status under red light Chang Liang, after full of red and blue lights on charge.
Note:
: strike did not open the card, an external USB line charging case, motor long one, the red light flashing, under 3 to video mode, (false charge while record) using the DC charger electricity, and not to the internal battery.
B: without a toggle open a card, an external USB line charging case, red and blue lights have been Chang Liang (full of red light) can't give the internal battery. (false charge mode)
C: the formatting T card, dial A open, press A button after startup, long press D key 3 seconds, the motor stopped long after the earthquake, finished format T card. (long use T card will lead to slow, with the native format T card, after the T card faster, format T card with the computer and is not recommended because the machine is not a platform of the system with computer, computer format after this machine use, will be more impact speed).
D: the super small volume, but the built-in battery is 420 ma, full of 4-5 hours or so.
E: it isn't easy to use USB DC charger, and will work long time video monitoring, you can use a common mobile power (mobile), from 2000 ma and 2000 ma when the mobile power supply, any all can satisfy the using demand.
6: T card full, without electricity, or card with low when using electric motor vibration 5 consecutive red light Chang Liang (, according to the remote control does not have any function, please clean up the T card, without electricity, boot remote control to open the machine, open the automatic shutdown after a few seconds or minutes, please promptly to the charge of the unit.
Additional information:
A: video condition encountered low electricity recorded A video file there is interference noise, noise is big, please give the machine charge as soon as possible.
B: don't use the machine, please switch to OFF closed, because of long time to open, there will be a power consumption, long time no, electricity will run out.
Time to change the setting on its own
Computer seat surface state, click the mouse right button once, choose - new - text documents, Here face to create a document, as shown in figure after open a text document, compile what you need time, format after 20140208182568 minutes when the Japanese) (Y save text files, and the new text document name changed to (TIMERSET), pattern ,Through the USB cable to connect to the machine plugged in to a computer, a U disk mode to save a good text files are copied to the U disk mode under the root directory of as shown in figure, ()Then unplug the USB cable, press A button to open A DV, RTC of watermark is written to the machine to save time, (read U disk inserted into the computer again, TTMERSET file disappeared. Don't need time watermark is also operating mode, mainly is the tail of Y and N distinction. Content format is as follows:
Reference style:
1:20140208182568 Y (Have the time watermark)
2:20140208182568 N (No time watermark)
* Accessories: 1* shoe hidden camera, 1* USB Power Adapter, 1* USB Cable , 1* User Manual - English
Package Content:
Sample (s), product warranty for 12 months (not vandalism)
Guaranteed 99% yield when the ship reaches the hands of the buyer.
1 . Any inquiries will be replied within 24 hours
2. professnional manufacture.welcome to visit for our website :
3.OME/OMD available :
1)silk print togo on the camera :
2)customized camera housing:
3)customized color box
4)any your ideal on camera we can help you to desgin and put it into production
4.High quality .fashion desgins.reasonable &competitive price.fast lead time
5.After-sale service :
1)All prodects will have been strictiy quality checked in house before packing
2)All products will be well packed before shipping
3)All our products have 2 yesrs warrantry,And we sure the product will be free from maintenance
within warranty period
6.Fasrer delivery :
Sample order in stock ,and 3-7days for bulk production
7.payment :
we have srrong cooperation with DHL.TNT.UPS.FEDEX.EMS.china Air Post.
you also can choose you own shipping forwarder
ulk production
7.payment :
we have srrong cooperation with DHL.TNT.UPS.FEDEX.EMS.china Air Post.
you also can choose you own shipping forwarder
Waterproof products that can not be rude to use
