Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 720p Hidden Camera With Car Key New Style

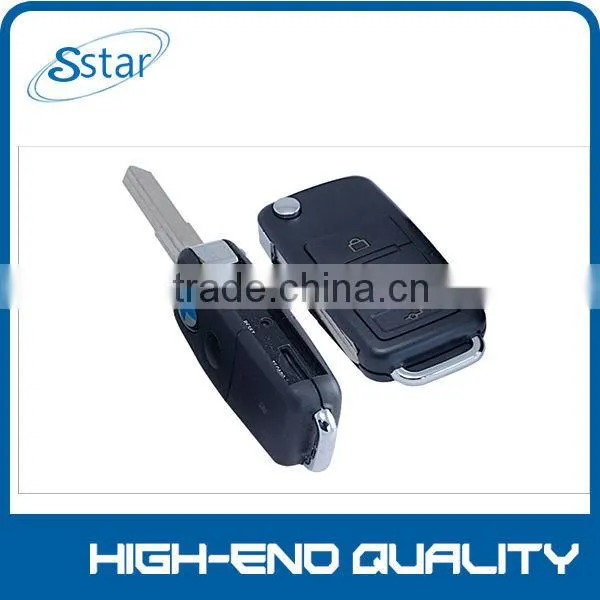

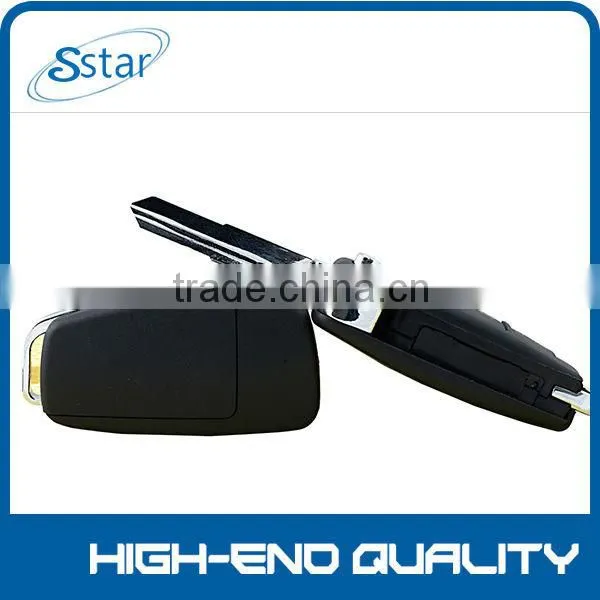

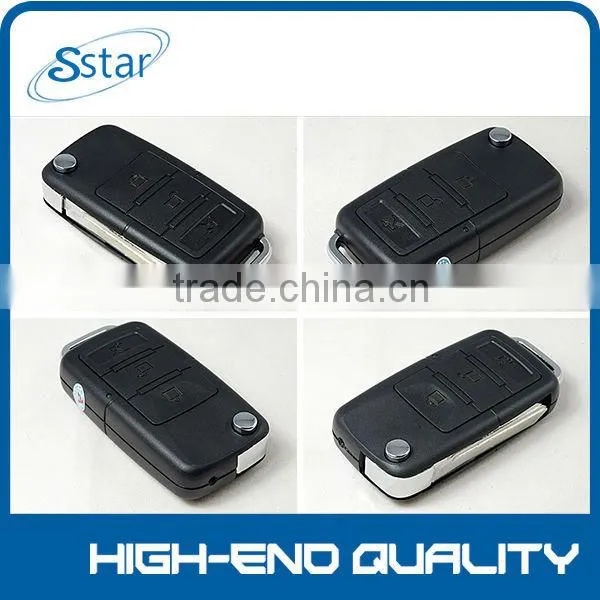

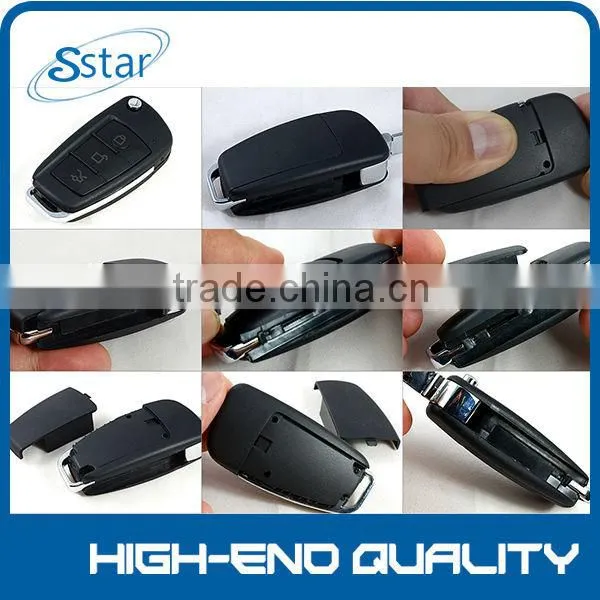

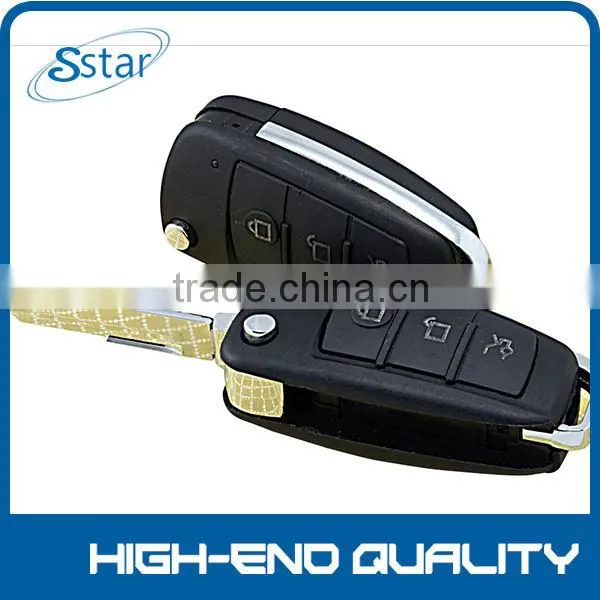

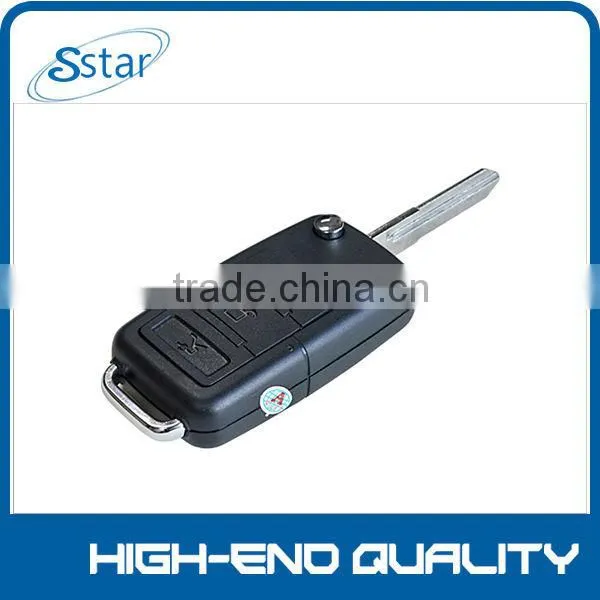

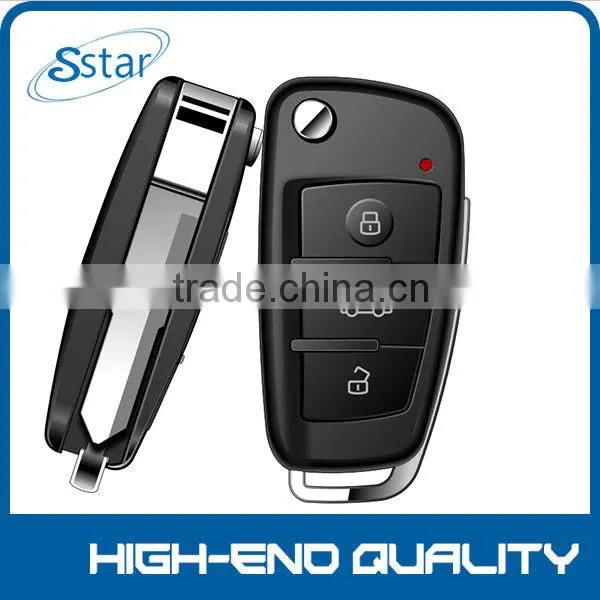

720p Hidden Camera With Car Key New Style

Name: 720p Hidden Camera With Car Key New Style
Brand: hidden camera
SKU: 109718399

720p Hidden Camera With Car Key New Style thumbnail-1

720p Hidden Camera With Car Key New Style photo-1

US$ 35 - 65 MOQ: 30 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

hidden camera

Model Number:

820 car key hidden camera

Contact Supplier Request Quote Chat Now

Shenzhen S-Star Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen and HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name hidden camera

Model Number 820 car key hidden camera

Type Analog Camera

Style Hidden Camera

Sensor CMOS

Technology Other, 720p hidden camera

Special Features Vandal-proof

Specifications

1.MOQ:10PCS
2.Video Resolution:720p/1080p
3.higt-end-qualty
4.very small,Low illumination
5.very hidden,night singht

Product Description

Introducing the high resolution 720*480/640x480/720p/1080p 4GB~32GB hidden camera. The Ideal tool for "body worn" instant covert video recording. "One Touch" record button activates the camcorder for up to two hours recording on a single charge. Recordings can be later downloaded via high speed USB 2.0 to your PC for viewing and storing. Includes RF remote control for operating the unit without detection.

Project	Relevant Parameters
Video format	H.264
Video encoding	MOV
Video resolution	1280720P HD 19201080 HD
Video frame rate	60fps
Play software	The operating system is provided with the mainstream video play software.
Picture format	JPG
Image proportion	4:3
Support system	Windows me/2000/xp/2003/vista; Mac os; Linux;
Battery capacity	420mAh
Working time	About 80min
Charging voltage	DC-5V
Interface type	Mini 8Pin USB
Storage support	TF card
Battery type	High capacity polymer lithium battery

Product features

l High-quality image shooting and high definition H.264 HD

l Small appearance design and portable hand-hold DV DC

l Support the network camera lens and have the network chart function.

l The recording of high definition image can be performed at low illumination.

l 1200M high definition shooting for each (4032*3024)

l Video format 1: 1280*720P 30 frames for each second

l Video format 2: 1920*1080P 30 frames for each second

l USB2.0 interface of high speed transmission

l T-flash card for supporting 64G at most

l The built-in lithium battery can shoot for 80min continuously.

Operating instruction

Charging:

The rechargeable lithium battery can be built in the machine. Please charge the machine first while using the machine for the first in the following modes:

1) Connect to the computer for charging, wherein USB is connected with the computer for charging.

2) The charger is used for charging, the USB data wire is inserted and connected with the charger base, and then the charger shall be inserted onto the electrical socket, the charging can be performed (capable of recording while charging). When the red indication lamp is turned on, it shows that the charging is completed.

Attention: When the battery electricity is not enough and the T card is recorded completely, DV red and blue lamps will enter into the protection state directly after quick flashing (the document is protected and the machine is shut down automatically), the recording document has been recorded. Please charge the machine at this moment.

One wire with three purposes:

USB with TV wire: 1. Insert the wire into the computer to charge the computer and transmit the data.

2. Insert the wire into the TV OUT screen to display.

3. Insert the wire into the DV 5V externally for recording while charging.

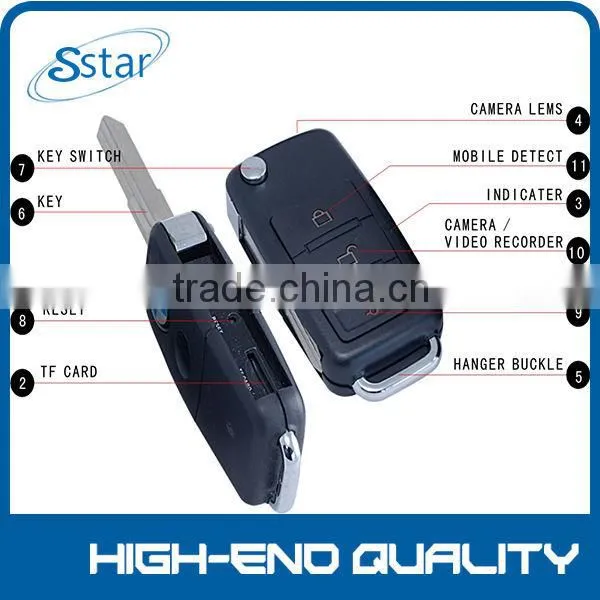

Definitions of button function:

Pleasure confirm that the T-F card has been inserted into the product (if the machine is started up without the T card, the machine will be shut down automatically after the red and blue lamps flash for 10s; if the machine is started up for standby without any function, the machine will be shut down automatically within 1min for storage; if the TF card is recorded completely, or the battery is out of electricity, the red and blue lamps will flash for 5s in double, the document will be stored automatically, and the machine will be shut down).

Infrared opening/closing of ON/OFF button

Click and press the lowest button (button of vehicle end tank), which is the power button. After starting up, press the power button for one time, the red indication lamp is turned on normally and the blue indication lamp flashes for two times, it is deemed as that the infrared night light is turned on. Click and press the ON/OFF button for one time, the red indication lamp is turned on normally and the blue indication lamp flashes for four times, it is deemed as that the mode of the infrared night light shall be closed.

H.264 720P video recording and 1080P video recording

In the starting state, click and press the BMW identification mark for one time, the red indication lamp is turned off after flashing for three times, it is the 720P video. Click and press any button to stop recording, and return to the standby mode. Press the recording button for 2s, and the blue indication lamp is turned off after flashing for three times. Enter into the 1080P recording mode. Click and press any button to stop recording, and return to the standby mode.

Shooting and motion detection

Start up, click and press the upmost button for one time, the blue indication lamp will flash for one time, and the shooting mode is 12 million pixels. Press the button for 2s, and the red indication lamp will be turned off after flashing for three times. Enter into the motion detection mode. The automatic recording will be performed with the motion, and the motion detection standby will be kept always without the motion. Press any button to stop recording and return to the standby mode.

Recording while charging: Insert the USB wire, connect the 5V USB power supply externally, and make the machine enter into 720P shooting mode for recording directly (adjust any other mode by oneself), perform recording till the card is recorded completely or there is not the electricity without manual stop.

TV OUT mode: Connect the USB TV wire, start up, connect the TV video, watch the image by the TV screen, perform shooting, video recording and monitoring at this moment.

Shutdown: Perform shutdown in the function mode of stopping recording and shooting, press the ON/OFF button for about 3s, the red and blue indication lamps are turned off, and the shutdown is performed. Or under the condition of not using any function in the standby mode, automatic shutdown will be performed after being standby for 1min.

Reset: If the machine is crashed, the button is invalid and cannot be used normally, the needle can be inserted by aiming at the reset port to reset the machine, and the machine can be started up for use normally after being reset.

Attention:

Please confirm that the T-flash (Micro SD) card has been inserted into the product. If not, double flash of the red and blue indication lamps of the product cannot be used normally.
Please make the camera lens aim at the shooting object in the environment with enough illumination, keep the camera lens at a distance of 50cm and above from the shooting object, thus, the right image with natural color, clear scenery and stable picture can be obtained.

Connect to the computer

Connect to the computer in the starting state and the shutdown state. Be able to be used as the U disk after being connected to the computer, copy, paste and cancel the document, and format the U disk.

The machine shall be inserted into the USB interface of the computer, the computer will pop up the identification of the removable disk after several seconds, the blue indication lamp is turned on, and the USB identification device can transmit the data. The red indication lamp is turned on, which shows that the charging is performed, and the red indication lamp is turned off, which shows that the charging is completed.

Prompt:

a. When the machine is connected to the computer, if the computer cannot perform recognition or still does not pop up the identification of the removable disk after 30s, please reset, insert and plug for one time again.

b. The T card reader shall be used for reading the video document directly for playing by suggestion. However, as the data amount is too large and the transmission cannot be kept up, it may be not smooth to play the video document stored in the built-in memory of the video tape recorder by USB connection directly.

Function of computer camera lens:

Function of PC camera lens (optional)

After being provided with the optical disk DRIVER, the product can be used as the PC camera lens. In the shutdown state, press K3 always, insert the USB device and make the same connected with the computer for some seconds approximately, leg go at this moment, and the product can be used as the camera lens.
