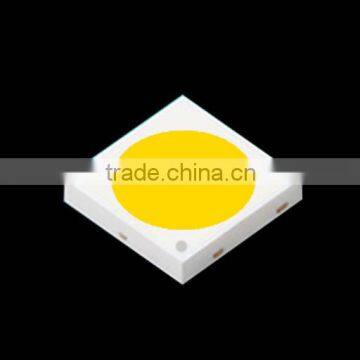

Pure white warm white 120-130lm 3030 1w SMD led
USD $0.03 - $0.04
/ Piece
4000 Pieces(Min.Order)
- 100000000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
| Model Number | FD-3030W-3V/6V | Chip Material | InGaN | |
| Emitting Color | Other, White | Luminous Intensity | 110-130lm | |
| Luminous Flux(lm) | 110-130lm | Optical Attenuation(%) | 0.001% | |
| Power | Other, 1w | Power Dissipation | 700 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 1800-25000k | |
| Operating Temperature(℃) | -40, 85 | Storage Temperature(℃) | -40, 85 | |
| Place of Origin | China | Brand Name | FEDY | |
| Certification | CE |
Product Description
Company Information
1. FEDY is a professional manufacturer of Power led, led diode since 2000
2. Class A quality with 3 years warrany for all items.
3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.
5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
Product Description
Pure white warm white 120-130lm 3030 1w SMD led
| Part No. | Color | Voltage | Current | Intensity | Emitting angle |
| FD-3030W-3v | White Cool white Warm white | 3v | 350mA | 110-130lm | 120degree |
| FD-3030W-6v | 6v | 150mA | 110-130lm | 120degree | |
| FD-3030W-9v | 9v | 100mA | 110-130lm | 120degree | |
| FD-3030W-18v | 18v | 60mA | 110-130lm | 120degree | |
| FD-3030W-24v | 24v | 40mA | 110-130lm | 120degree | |
| FD-3030W-27v | 27v | 30mA | 110-130lm | 120degree | |
| FD-3030R-3V | Red 620-625nm | 3v | 350mA | 40lm | 120degree |
| FD-3030G-3V | Green 520-525nm | 3v | 350mA | 100lm | 120degree |
| FD-3030Y-3V | Yellow 588-595nm | 3v | 350mA | 40lm | 120degree |
| FD-3030B-3V | Blue 460-470nm | 3v | 350mA | 25lm | 120degree |
| FD-3030UV-3V | UV 400-410nm | 3v | 350mA | 10lm | 120degree |
| Part No. | Color | Wavelength | Intensity | Emitting angle | Voltage |
| FD-3535W-1 | White | Full range from 2500K up to 20000K | 100-120lm | 125degree | 3.0-3.4v |
| FD-3535R-1 | Red | Full range from 620nm up to 700nm | 50lm | 125degree | 2.0-2.4v |
| FD-3535Y-1 | Yellow | Full range from 580 to 610nm | 50lm | 125degree | 2.0-2.4v |
| FD-3535G-1 | Green | Full range from 490 to 530nm | 80-90lm | 125degree | 3.0-3.4v |
| FD-3535B-1 | Blue | Full range from 440nm to 470nm | 30lm | 125degree | 3.0-3.4v |
| FD-3535UV-1 | UV | Full range from 265nm up to 440nm | / | 125degree | 3.0-3.4v |
| FD-3535IR-1 | IR | Full range from 730nm up to 990nm | / | 125degree | 3.4-3.6v |
| Part No. | Color | Wavelength | Intensity | Emitting angle | Voltage |
| FD-3535W-3 | White | Full range from 2500K up to 20000K | 220LM | 125degree | 3.0-3.4v |
| FD-3535R-3 | Red | Full range from 620nm up to 700nm | 80LM | 125degree | 2.0-2.4v |
| FD-3535Y-3 | Yellow | Full range from 580 to 610nm | 80LM | 125degree | 2.0-2.4v |
| FD-3535G-3 | Green | Full range from 490 to 530nm | 180LM | 125degree | 3.0-3.4v |
| FD-3535B-3 | Blue | Full range from 440nm to 470nm | 60LM | 125degree | 3.0-3.4v |
| FD-3535UV-3 | UV | Full range from 265nm up to 440nm | / | 125degree | 3.0-3.4v |
| FD-3535IR-3 | IR | Full range from 730nm up to 990nm | / | 125degree | 3.4-3.6v |
| 1w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1W90-Y | 80-90lm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-1W110-Y | 100-110lm | 350mA | 3.0-3.6V | |
| FD-1W120-Y | 110-120lm | 350mA | 3.0-3.6V | |
| FD-1W130-Y | 130-140lm | 350mA | 3.0-3.6V | |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1B-Y | 460-470nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12B-Y | 440-450nm | 350mA | 3.0-3.6V | |
| FD-13B-Y | 450-455nm | 350mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1G-Y | 520-525nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12G-Y | 500-505nm | 350mA | 3.0-3.6V | |
| FD-13G-Y | 490-495nm | 350mA | 3.0-3.6V | |
| FD-14G-Y | 495-500nm | 350mA | 3.0-3.6V | |
| FD-15G-Y | 515-520nm | 350mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1Y-Y | 588-595nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1A-Y | 600-610nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1R-Y | 620-630nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-12R-Y | 640-650nm | 350mA | 1.9-2.3V | |
| FD-13R-Y | 660nm | 350mA | 1.9-2.3V | |
| FD-132R-Y | 660-670nm | 350mA | 1.9-2.3V | |
| FD-142R-Y | 670-680nm | 350mA | 1.9-2.3V | |
| FD-14R-Y | 680-690nm | 350mA | 1.9-2.3V | |
| FD-15R-Y | 700nm | 350mA | 1.9-2.3V | |
| FD-16R-Y | 730nm | 350mA | 1.9-2.3V | |
| FD-17R-Y | 760-770nm | 350mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1UV-Y | 400-410nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12UV-Y | 390-400nm | 350mA | 3.0-3.6V | |
| FD-13UV-Y | 410-420nm | 350mA | 3.0-3.6V | |
| FD-14UV-Y | 430-440nm | 350mA | 3.0-3.6V | |
| FD-15UV-Y | 365nm | 350mA | 3.0-3.6V | |
| FD-16IV-Y | 380-385nm | 350mA | 3.0-3.6V | |
| FD-17UV-Y | 370-375nm | 350mA | 3.0-3.6V | |
| FD-18UV-Y | 375-380nm | 350mA | 3.0-3.6V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1IR-Y | 940nm | 350mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-12IR-Y | 850nm | 350mA | 1.6-1.9V | |
| FD-13IR-Y | 880nm | 350mA | 1.6-1.9V | |
| FD-14R-Y | 770-780nm | 350mA | 1.5-2.0V | |
| FD-15IR-Y | 800-810nm | 350mA | 1.3-1.7V | |
| FD-16IR-Y | 810-820nm | 350mA | 1.3-1.7V | |
| FD-17R-Y | 870nm | 350mA | 1.3-1.7V | |
| FD-18IR-Y | 890nm | 350mA | 1.3-1.7V | |
| FD-19IR-Y | 900-910nm | 350mA | 1.3-1.7V | |
| FD-1I0R-Y | 970-980nm | 350mA | 1.6-1.9V | |
| FD-111IR-Y | 980-990nm | 350mA | 1.1-1.3V | |
| FD-112IR-Y | 1000-1050nm | 350mA | 1.0-1.2V | |
| 3w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3W220-Y | 200-220lm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3B-Y | 460-470nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32B-Y | 440-450nm | 700mA | 3.0-3.6V | |
| FD-33B-Y | 450-455nm | 700mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3G-Y | 520-525nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32G-Y | 500-505nm | 700mA | 3.0-3.6V | |
| FD-33G-Y | 490-495nm | 700mA | 3.0-3.6V | |
| FD-34G-Y | 495-500nm | 700mA | 3.0-3.6V | |
| FD-35G-Y | 515-520nm | 700mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3Y-Y | 588-595nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3A-Y | 600-610nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3R-Y | 620-630nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-32R-Y | 640-650nm | 700mA | 1.9-2.3V | |
| FD-33R-Y | 660nm | 700mA | 1.9-2.3V | |
| FD-332R-Y | 660-670nm | 700mA | 1.9-2.3V | |
| FD-342R-Y | 670-680nm | 700mA | 1.9-2.3V | |
| FD-34R-Y | 680-690nm | 700mA | 1.9-2.3V | |
| FD-35R-Y | 700nm | 700mA | 1.9-2.3V | |
| FD-36R-Y | 730nm | 700mA | 1.9-2.3V | |
| FD-37R-Y | 760-770nm | 700mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3UV-Y | 400-410nm | 700mA | Voltage (v) | 60deg 90deg 120deg 140deg |
| FD-32UV-Y | 390-400nm | 700mA | 1.9-2.3V | |
| FD-33UV-Y | 410-420nm | 700mA | 1.9-2.3V | |
| FD-34UV-Y | 430-440nm | 700mA | 1.9-2.3V | |
| FD-35UV-Y | 365nm | 700mA | 1.9-2.3V | |
| FD-36UV-Y | 380-385nm | 700mA | 1.9-2.3V | |
| FD-37UV-Y | 370-375nm | 700mA | 1.9-2.3V | |
| FD-38UV-Y | 375-380nm | 700mA | 1.9-2.3V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3IR-Y | 940nm | 700mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-32IR-Y | 850nm | 700mA | 1.6-1.9V | |
| FD-33IR-Y | 880nm | 700mA | 1.6-1.9V | |
| FD-34R-Y | 770-780nm | 700mA | 1.5-2.0V | |
| FD-35IR-Y | 800-810nm | 700mA | 1.3-1.7V | |
| FD-36IR-Y | 810-820nm | 700mA | 1.3-1.7V | |
| FD-37R-Y | 870nm | 700mA | 1.3-1.7V | |
| FD-38IR-Y | 890nm | 700mA | 1.3-1.7V | |
| FD-39IR-Y | 900-910nm | 700mA | 1.3-1.7V | |
| FD-3I0R-Y | 970-980nm | 700mA | 1.6-1.9V | |
| FD-311IR-Y | 980-990nm | 700mA | 1.1-1.3V | |
| FD-312IR-Y | 1000-1050nm | 700mA | 1.0-1.2V | |
| 5w high power led A type | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-5W500-Y | White | 700mA | 6--7v | 60deg 90deg 120deg 140deg |
| FD-5R-Y | Red | 700mA | 4-5V | |
| FD-5B-Y | Blue | 700mA | 6-7v | |
| FD-5G-Y | Green | 700mA | 6-7v | |
| FD-5A-Y | Amber | 700mA | 4-5v | |
| FD-5Y-Y | Yellow | 700mA | 4-5v | |
| FD-5IR-Y | IR 940nm | 1400mA | 1.6-1.9v | |
| FD-52IR-Y | IR 850nm | 1400mA | 1.6-1.9v | |
| 10W high power led A type | ||||
| White color | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-10W1100-A | White | 1000mA | 10-12V | 160deg |
| FD-10R-A | Red | 1000mA | 6-7V | |
| FD-10B-A | Blue | 1000mA | 10-12V | |
| FD-10G-A | Green | 1000mA | 10-12V | |
| FD-10A-A | Amber | 1000mA | 6-7V | |
| FD-10Y-A | Yellow | 1000mA | 6-7V | |
| 12W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-12W1320 | 1320lm | 160deg |
| FD-12W1200 | 1200lm | |
| FD-12W960 | 960lm | |
| 15W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-15W1650 | 1650lm | 160deg |
| FD-15W1500 | 1500lm | |
| FD-15W1200 | 1200lm | |
Our Services
1. Highest quality
2. Bst price
3.Fast delivery
4. Class A service
Packaging & Shipping
| Dip LED: ESD bag, Reel& Tape |
| High power led : ESD box .ESD bag, Tube |
| Super flux led : ESD bag. Tube |
| SMD LED : Reel |
CE ROHS SVHC Certificate
Contact Us
- Shenzhen Fedy Technology Co., Limited
- Contact nameAva Qiu Chat Now
- Phone86-755-89505458
- Address2nd F, No.219 NiuELin Industrical Park, Xiantian, Guanlan , Shenzhen, Guangdong
Product Categories
New Products
-
1w white 3V 6V 3030 SMD LED
-
High lumen 120-130lm 1w 3030 SMD led
-
Epistar chip 22-24lm White 5050 SMD LED
-
Epistar white surface mounted plcc-6 5050 RGB smd led
-
CE & ROHS 4 color 5050 RRGB SMD LED
-
Best price 110-130lm 6V white EMC 3030 SMD LED
-
CE & ROHS Full color 5050 RGB SMD LED
-
High quality 0.5w 2016 Green SMD LED
-
Epistar chips ultra brightn 5050 RGB SMD LED
-
CE ROHS super brightness 5050 RGBW SMD LED
-
Epistar chips 4color in 1 5050 RGBW SMD LED
-
High quality 0.5w Red 2016 SMD LED
Popular Searches
- Led Lamp Bead
- Led Diode
- Light Emitting Diode
- Smd Led Diode
- high power led
- ir led
- Smd Led
- Chip Led
- 3w led diode
- Led Chip Diode
- Rgb Led Diode
- White Led Diode
- Uv Led Diode
- epileds chip led
- high power led chip
- Uv Led
- Smd Led Chip
- Led Diode Chip
- flashlight led
- high light smd led
- blue led
- smd 5630
- Led Chip
- led beauty
- led supply
- led items
- ceramic smd
- led uv
- led infrared
- led product
Recommended Products
- 395-400nm UV SMD LED 2835
- PC Blue 3535 SMD LED
- Traffic Light Dip LED 5mm
- 40W 60W CCT Tunable 1919 COB LED
- gold wire 8pin WS2811 LED Chip 5050 RGB individual pixel LC8806B LED Chip
- New 5050SMD 0.2W intelligent external control WS2811 LED 12V RGB LC8806C LED
- NEW 2021 high-quality Digital LED chips SMD5050 RGB LC8806B LED
- gold wire 8pin WS2811 LED Chip 5050 RGB individual pixel LC8806B LED Chip
- Factory 5050 3535 4020 Chip Led Light Chip 5Mm 8Mm 10Mm Wide Bridgelux 12V 10W Led Chip Led Flood Light Chipp 5050 Rgb Led Diode 3D Light Diode ChipsLed 4 In 1 Rgbw
- Factory 5050 3535 4020 Chip Cob Led 4 In 1 Rgbw Led Chip 5050 Rgb Led Diode 3D Light Diode Chips
- Multi Color Argb Rgbcct Led Chip Smd Bulb Chip Cold Led Chip For Endoscopy
- Multi Color Rgb Ic Argb Led Chip 3535 5050 5V 12V Smd Led Pixel Chips for Endoscopy
Find Similar Products By Category
- Lights & Lighting > LED Encapsulation Series > SMD LED
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Shenzhen Fedy Technology Co., Limited
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
Ava Qiu
Welcome to my shop, I'm glad to serve you. Please feel free to send me any questions you may have.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
