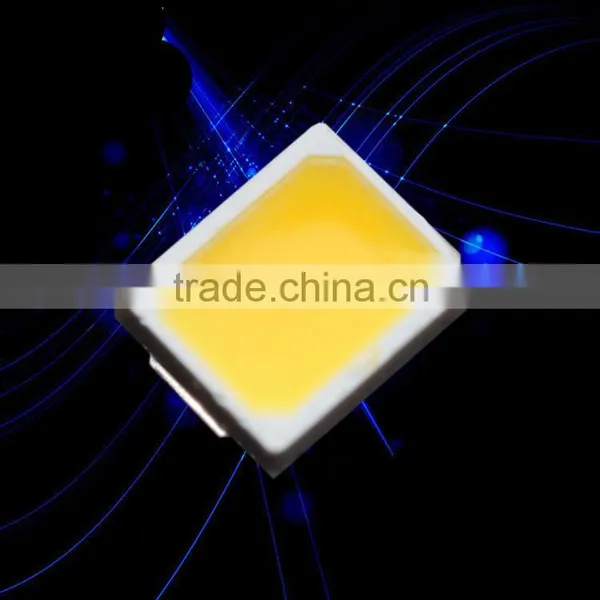

Ultra Bright 1 Watt Led Smd 2835 5630 Chip 6V 3V 5730 Smd Led Datasheet
US$ 15 - 20
MOQ: 4000 Sets
Key Specifications
Get Latest Price
Model Number:
Super bright led diode 2835 UV 395-400nm 400-405nm
Chip Material:
AlGaInP
Emitting Color:
Other, Super bright led diode 2835 UV 395-400nm 400-405nm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2835 3030 1W High Power Smd Led DiodesUS$ 12 - 16MOQ: 1000 Sets -
High Quality Ultra Bright Red 0603 SMD Led RedUS$ 5 - 15MOQ: 4000 Bags
-
High Quality Ultra Bright White 0603 SMD Led WhiteUS$ 5 - 15MOQ: 4000 Bags
-
130lm High Power 1w 3030 SMD LEDUS$ 0.03 - 0.04MOQ: 4000 Pieces
-
1w Warm White 2000-2200k 3030 SMD LedUS$ 0.03 - 0.04MOQ: 4000 Pieces
Model Number
Super bright led diode 2835 UV 395-400nm 400-405nm
Chip Material
AlGaInP
Emitting Color
Other, Super bright led diode 2835 UV 395-400nm 400-405nm
Luminous Intensity
28
Luminous Flux(lm)
28
Optical Attenuation(%)
0.001%
Power
Other, 0.1 0.2
Color Rendering Index(Ra)
85
Color Temperature
6000-6500K
Operating Temperature(℃)
-40, +80
Storage Temperature(℃)
-40, +80
Place of Origin
Guangdong, China
Brand Name
FEDY
Certification
CE
Ultra Bright 1 watt led smd 2835 5630 chip 6V 3V 5730 smd led datasheet
Product Description
Super bright led diode 2835 UV 395-400nm 400-405nm
| Item | Power | Current |
CCT
|
CRI | Intensity | Voltage |
| FD-H2835WW-1 | 1W | 350mA |
(WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K |
Ra>70 | 110-130LM | 3.0-3.6V |
| FD-H2835WW-1 | 1W | 350mA |
(WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K |
Ra>80 | 100-130LM | 3.0-3.6V |
| FD-H2835WW-1 | 1W | 150mA |
(WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K |
Ra>70 | 110-130LM | 6.0-7.0V |
| FD-T2835WW-0.5 | 0.5W | 150mA | (WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K |
Ra>70 | 50-55-60-70LM | 3.0-3.6V |
| FD-T2835WW-0.5 | 0.5W | 150mA | WR) : 3000-3300K (WL): 4000-4500K (WW): 6000-6500K |
Ra>80 | 50-55LM | 3.0-3.6V |
| Part No. | Color | Wavelength/ CCT | Intensity | Voltage |
| FD-3014W-A | White | 2500K up to 20000K | 9-16lm | 3.0-3.2V |
| FD-3014B | Blue | 460-470nm | 300-600mcd | 3.0-3.2V |
| FD-3014G | Green | 520-525nm | 1600-2000mcd | 3.0-3.2V |
| FD-3014R | Red | 620-630nm | 200-500mcd | 1.9-2.3V |
| FD-3014Y | Yellow | 588-595nm | 300-500mcd | 1.9-2.3V |
| FD-3014A | Amber | 600-610nm | 300-500mcd | 1.9-2.3V |
| FD-3014IR | Infrared | 940nm | 3.2-3.4V | |
| FD-3014IR2 | Infrared | 850nm | 3.2-3.4V | |
| Part No. | Color | Wavelength/ CCT | Intensity | Watt available |
| FD-2835W-0.1 | White | 2500K up to 20000K | 12-14lm | 0.1W |
| FD-2835W-0.2 | White | 21-28lm | 0.2W | |
| FD-2835W-0.5 | White | 50-65lm | 0.5w | |
| FD-2835B | Blue | 460-470nm | / | 0.1w 0.2w 0.5w |
| FD-2835G | Green | 520-525nm | / | |
| FD-2835R | Red | 620-630nm | / | |
| FD-2835Y | Yellow | 588-595nm | / | |
| FD-2835A | Amber | 600-610nm | / | |
| FD-2835IR | Infrared | 940nm | ||
| FD-2835IR2 | Infrared | 850nm | ||
| Part No. | Color | Wavelength/ CCT | Intensity | Watt avaialble |
| FD-5630W-A | White | 2500K up to 20000K | 40-45lm | 0.5w |
| FD-5630W-B | White | 45-50lm | ||
| FD-5630W-C | White | 50-55lm | ||
| FD-5630W-D | White | 55-60lm | ||
| FD-5630W-E | White | 60-65lm | ||
| FD-5630B | Blue | 460-470nm | / | 0.2w 0.5w |
| FD-5630G | Green | 520-525nm | / | |
| FD-5630R | Red | 620-630nm | / | |
| FD-5630Y | Yellow | 588-595nm | / | |
| FD-5630A | Amber | 600-610nm | / | |
| FD-5630IR | Infrared | 940nm | ||
| FD-5630IR2 | Infrared | 850nm | ||
| Part No. | Color | Wavelength/ CCT | Intensity | Watt avaialble |
| FD-5730W-A | White | 2500K up to 20000K | 40-45lm | 0.5w |
| FD-5730W-B | White | 45-50lm | ||
| FD-5730W-C | White | 50-55lm | ||
| FD-5730W-D | White | 55-60lm | ||
| FD-5730W-E | White | 60-65lm | ||
| FD-5730B | Blue | 460-470nm | / | 0.2w 0.5w |
| FD-5730G | Green | 520-525nm | / | |
| FD-5730R | Red | 620-630nm | / | |
| FD-5730Y | Yellow | 588-595nm | / | |
| FD-5730A | Amber | 600-610nm | / | |
| FD-5730IR | Infrared | 940nm | ||
| FD-5730IR2 | Infrared | 850nm |
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD5050 white | FD-5050W-1 | 5500-6000k | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050W-2 | 6000-6500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-3 | 6500-7000k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-4 | 7000-7500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-5 | 7500-8000k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 reddish white | FD-5050RW-1 | 2000-2400K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050RW-2 | 2400-2700k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 Yellowish white | FD-5050YW-1 | 2800-3200K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050YW-2 | 3200-3500K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 cool white | FD-5050CW-1 | 8000-9000K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050CW-2 | 9000-10000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-3 | 10000-12000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-4 | 12000-15000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-5 | 20000-25000K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 blue | FD-5050B | 460-470nm | 1000-3500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Amber | FD-5050A | 600-610nm | 1000-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Green | FD-5050G | 520-525nm | 2500-5500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Yellow | FD-5050Y | 588-595nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Red | FD-5050R | 620-625nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 RGB | FD-5050RGB | R:350-450MCD B:250-300MCD G:900-1100MCD |
|||
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD3528 white | FD-3528W-1 | 5500-6000k | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528W-2 | 6000-6500k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-3 | 6500-7000k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-4 | 7000-7500k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-5 | 7500-8000k | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 reddish white | FD-3528RW-1 | 2000-2400K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528RW-2 | 2400-2700k | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 Yellowish white | FD-3528YW-1 | 2800-3200K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528YW-2 | 3200-3500K | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 cool white | FD-3528CW-1 | 8000-9000K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528CW-2 | 9000-10000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-3 | 10000-12000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-4 | 12000-15000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-5 | 20000-25000K | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 blue | FD-3528B | 460-470nm | 300-600mcd | 3.0-3.5v | 0.06W |
| SMD3528 Amber | FD-3528A | 600-610nm | 300-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 Green | FD-3528G | 520-525nm | 400-2000mcd | 3.0-3.5v | 0.06W |
| SMD3528 Yellow | FD-3528Y | 588-595nm | 300-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 Red | FD-3528R | 620-625nm | 200-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 RGB | FD-3528RGB | R:350-450MCD B:250-300MCD G:900-1100MCD |
| Part No. | Color |
Wavelength/ CCT |
Intensity | Voltage |
| FD-3014W-A | 4000-5000-6000-7000K | 9-11lm | 3.0-3.2V | |
| FD-3014W-B | 11-12lm | 3.0-3.2V | ||
| FD-3014W-C | 12-14lm | 3.0-3.2V | ||
| FD-2835W-A | 4000-5000-6000-7000K | 12-14lm | 0.1W | |
| FD-2835W-B | 21-23lm | 0.2W | ||
| FD-5630/5730W-A | 4000-5000-6000-7000K | 40-45lm | 3.0-3.2V | |
| FD-5630/5730W-B | 45-50lm | 3.0-3.2V | ||
| FD-5630/5730W-C | 50-55lm | 3.0-3.2V | ||
| FD-5630/5730W-D | 55-60lm | 3.0-3.2V | ||
| SMD3528 | ||||
| Part No. | Color |
Wavelength/ CCT |
Intensity | Voltage |
| FD-3528W-A |
Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K |
3-5lm | 3.0-3.2V | |
| FD-3528W-B | 5-6lm | 3.0-3.2V | ||
| FD-3528W-C | 6-7lm | 3.0-3.2V | ||
| FD-3528W-D | 7-8lm | 3.0-3.2V | ||
| FD-3528B | Blue | 460-470nm | 300-600mcd | 3.0-3.2V |
| FD-3528G | Green | 520-525nm | 400-2000mcd | 3.0-3.2V |
| FD-3528R | Red | 620-630nm | 200-500mcd | 1.9-2.3V |
| FD-3528Y | Yellow | 588-595nm | 300-500mcd | 1.9-2.3V |
| FD-3528A | Amber | 600-610nm | 300-500mcd | 1.9-2.3V |
| FD-3528IR | Infrared | 850nm | 3.2-3.4V | |
| SMD5050 | ||||
| Part No. | Color |
Wavelength/ CCT |
Intensity | Voltage |
| FD-5050W-A |
Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K |
10-12lm | 3.0-3.4V | |
| FD-5050W-B | 14-16lm | 3.0-3.4V | ||
| FD-5050W-C | 16-18lm | 3.0-3.4V | ||
| FD-5050W-D | 18-21lm | 3.0-3.4V | ||
| FD-5050B | Blue | 460-470nm | 1000-3500mcd | 3.0-3.2V |
| FD-5050G | Green | 520-525nm | 2500-5500mcd | 3.0-3.2V |
| FD-5050R | Red | 620-630nm | 1200-3500mcd | 1.9-2.3V |
| FD-5050Y | Yellow | 588-595nm | 1200-3500mcd | 1.9-2.3V |
| FD-5050A | Amber | 600-610nm | 1000-3500mcd | 1.9-2.3V |
| FD-5050IR | Infrared | 850nm | 3.2-3.4V | |
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD5050 white | FD-5050W-1 | 5500-6000k | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050W-2 | 6000-6500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-3 | 6500-7000k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-4 | 7000-7500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-5 | 7500-8000k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 reddish white | FD-5050RW-1 | 2000-2400K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050RW-2 | 2400-2700k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 Yellowish white | FD-5050YW-1 | 2800-3200K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050YW-2 | 3200-3500K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 cool white | FD-5050CW-1 | 8000-9000K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050CW-2 | 9000-10000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-3 | 10000-12000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-4 | 12000-15000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-5 | 20000-25000K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 blue | FD-5050B | 460-470nm | 1000-3500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Amber | FD-5050A | 600-610nm | 1000-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Green | FD-5050G | 520-525nm | 2500-5500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Yellow | FD-5050Y | 588-595nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Red | FD-5050R | 620-625nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 RGB | FD-5050RGB | R:350-450MCD | |||
| B:250-300MCD | |||||
| G:900-1100MCD | |||||
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD3528 white | FD-3528W-1 | 5500-6000k | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528W-2 | 6000-6500k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-3 | 6500-7000k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-4 | 7000-7500k | 4-7LM | 3.0-3.5v | 0.06W |
Main advantages:
1. Have our own packaging technology,can control all details,with good quality and high brightness.
2. Low lighting attenuation,Conversion factor can reach 90%
3. Good glare control.
4. Special design good for heating output.
5. Long lifespan of up to 50,000 hours
6. We are professional manufacturuer with 12 years experience in leds . Quality Is 100% guaranteed.
7. Leds with TW original Epistar chips . Class A quality
8. With ROHS. With 2years warranty
9. Fast delivery .
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2011
Factory Size
1,000-3,000 square meters
Total Employees
201 - 300 People
You May Also Like
-
Factory Direct Surface Mount Package Type Sk6812-WWA 5050 SMD LED With IC InsideUS$ 0.09 - 1MOQ: 1000 Pieces
-
Programmable Rgb APA102 2020 Smart Led LC8822 SMD2020 Rgb Smd LED Chip 0.2w/pcs 4000pcs/reelUS$ 0.0736 - 0.0752MOQ: 1 Piece
-
395-400nm UV SMD LED 2835NegotiableMOQ: 10 Pieces
-
3W Ceramic Infrared Laser 808nm High-Power Lamp Bead Night Vision Supplementary Light VCSELNegotiableMOQ: 1 Roll
-
Factory 5050 3535 4020 Chip Led Light Chip 5Mm 8Mm 10Mm Wide Bridgelux 12V 10W Led Chip Led Flood Light Chipp 5050 Rgb Led Diode 3D Light Diode ChipsLed 4 In 1 RgbwUS$ 0.053 - 0.054MOQ: 1000 Pieces
-
0.2W Digital Sk6812/LC8812C RGBW 4 In1 Addressable 5050 Smd ChipsUS$ 0.062 - 0.065MOQ: 1000 Pieces
-
SMD 0603 Series LedNegotiableMOQ: 4000 Pieces
-
150080RS75000 Wurth Elektronik Standard LEDs - SMD WL-SMCW SMDMono TpVw Waterclr 0805 RedUS$ 0.13 - 0.18MOQ: 10 Pieces
-
3W White Light High Powe LedHigh Power Pure White 1 Watt LEDUS$ 3.45 - 129MOQ: 5000 Pairs
-
5050RGB Colourful Lights-yingyueNegotiableMOQ: 500 Pieces
