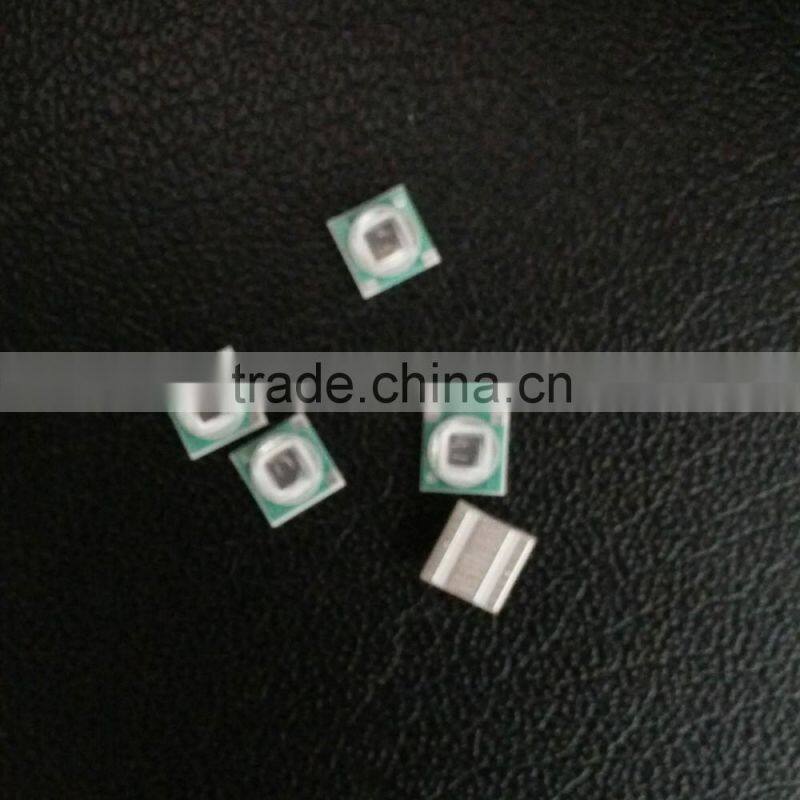

High quality 3w IR led 850nm 3535 high power LED diode
Negotiable
/ Piece
50 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
Discrete Traics (Isolated) BTA41-200 BTA41-400 BTA41-600 BTA41-800 BTA41-1000 BTA41-1200
-
Three-terminal positive voltage regulator 78L12 transistors
-
Bipolar Transistors TO-92 BC546 BC547 BC548 (NPN)
-
Bipolar Transistors 40V D882 SOT89
-
Bipolar Transistors 60V 200mA 2N3904
-
Bipolar Transistors 40V 200mA 2N3906
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | FEDY | Model Number: | FD-3535UV850 |
| Type: | Other, LED, High quality 3w IR led 850nm 3535 high power LED diode | Package Type: | Surface Mount | Max. Forward Voltage: | 3.0-3.4V |
| Max. Reverse Voltage: | 5.0V | Max. Forward Current: | 350-700mA | Max. Reverse Current: | 20uA |
Product Description
Company Information
1. FEDY is a professional manufacturer of Power led, led diode since 2000
2. Class A quality with 3 years warrany for all items.
3. Orignal Epistar/Bridgelux chips with 100% Class A grade.
4. All leds 100% QA passed before shipped.
5. Fully automatic production machine and quality checking machines insure great quality of goods , and fast delivery .
Product Description
High quality 3w IR led 850nm 3535 high power LED diode
| Part No. | Color | Wavelength | Intensity | Emitting angle | Voltage |
| FD-3535W-1 | White | Full range from 2500K up to 20000K | 100-120lm 140lm 150-160lm | 125degree | 3.0-3.4v |
| FD-3535R-1 | Red | Full range from 620nm up to 700nm | 50lm | 125degree | 2.0-2.4v |
| FD-3535Y-1 | Yellow | Full range from 580 to 610nm | 50lm | 125degree | 2.0-2.4v |
| FD-3535G-1 | Green | Full range from 490 to 530nm | 80-90lm | 125degree | 3.0-3.4v |
| FD-3535B-1 | Blue | Full range from 440nm to 470nm | 30lm | 125degree | 3.0-3.4v |
| FD-3535UV-1 | UV | Full range from 265nm up to 440nm | / | 125degree | 3.0-3.4v |
| FD-3535IR-1 | IR | Full range from 730nm up to 990nm | / | 125degree | 3.4-3.6v |
| Part No. | Color | Wavelength | Intensity | Emitting angle | Voltage |
| FD-3535W-3 | White | Full range from 2500K up to 20000K | 220-260lm | 125degree | 3.0-3.4v |
| FD-3535R-3 | Red | Full range from 620nm up to 700nm | 80LM | 125degree | 2.0-2.4v |
| FD-3535Y-3 | Yellow | Full range from 580 to 610nm | 80LM | 125degree | 2.0-2.4v |
| FD-3535G-3 | Green | Full range from 490 to 530nm | 180LM | 125degree | 3.0-3.4v |
| FD-3535B-3 | Blue | Full range from 440nm to 470nm | 60LM | 125degree | 3.0-3.4v |
| FD-3535UV-3 | UV | Full range from 265nm up to 440nm | / | 125degree | 3.0-3.4v |
| FD-3535IR-3 | IR | Full range from 730nm up to 990nm | / | 125degree | 3.4-3.6v |
| 1w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1W90-Y | 80-90lm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-1W110-Y | 100-110lm | 350mA | 3.0-3.6V | |
| FD-1W120-Y | 110-120lm | 350mA | 3.0-3.6V | |
| FD-1W130-Y | 130-140lm | 350mA | 3.0-3.6V | |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1B-Y | 460-470nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12B-Y | 440-450nm | 350mA | 3.0-3.6V | |
| FD-13B-Y | 450-455nm | 350mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1G-Y | 520-525nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12G-Y | 500-505nm | 350mA | 3.0-3.6V | |
| FD-13G-Y | 490-495nm | 350mA | 3.0-3.6V | |
| FD-14G-Y | 495-500nm | 350mA | 3.0-3.6V | |
| FD-15G-Y | 515-520nm | 350mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1Y-Y | 588-595nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1A-Y | 600-610nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1R-Y | 620-630nm | 350mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-12R-Y | 640-650nm | 350mA | 1.9-2.3V | |
| FD-13R-Y | 660nm | 350mA | 1.9-2.3V | |
| FD-132R-Y | 660-670nm | 350mA | 1.9-2.3V | |
| FD-142R-Y | 670-680nm | 350mA | 1.9-2.3V | |
| FD-14R-Y | 680-690nm | 350mA | 1.9-2.3V | |
| FD-15R-Y | 700nm | 350mA | 1.9-2.3V | |
| FD-16R-Y | 730nm | 350mA | 1.9-2.3V | |
| FD-17R-Y | 760-770nm | 350mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1UV-Y | 400-410nm | 350mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-12UV-Y | 390-400nm | 350mA | 3.0-3.6V | |
| FD-13UV-Y | 410-420nm | 350mA | 3.0-3.6V | |
| FD-14UV-Y | 430-440nm | 350mA | 3.0-3.6V | |
| FD-15UV-Y | 365nm | 350mA | 3.0-3.6V | |
| FD-16IV-Y | 380-385nm | 350mA | 3.0-3.6V | |
| FD-17UV-Y | 370-375nm | 350mA | 3.0-3.6V | |
| FD-18UV-Y | 375-380nm | 350mA | 3.0-3.6V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-1IR-Y | 940nm | 350mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-12IR-Y | 850nm | 350mA | 1.6-1.9V | |
| FD-13IR-Y | 880nm | 350mA | 1.6-1.9V | |
| FD-14R-Y | 770-780nm | 350mA | 1.5-2.0V | |
| FD-15IR-Y | 800-810nm | 350mA | 1.3-1.7V | |
| FD-16IR-Y | 810-820nm | 350mA | 1.3-1.7V | |
| FD-17R-Y | 870nm | 350mA | 1.3-1.7V | |
| FD-18IR-Y | 890nm | 350mA | 1.3-1.7V | |
| FD-19IR-Y | 900-910nm | 350mA | 1.3-1.7V | |
| FD-1I0R-Y | 970-980nm | 350mA | 1.6-1.9V | |
| FD-111IR-Y | 980-990nm | 350mA | 1.1-1.3V | |
| FD-112IR-Y | 1000-1050nm | 350mA | 1.0-1.2V | |
| 3w high power led | ||||
| White color | ||||
| Part No. | Intensity (lm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3W220-Y | 200-220lm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| Blue color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3B-Y | 460-470nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32B-Y | 440-450nm | 700mA | 3.0-3.6V | |
| FD-33B-Y | 450-455nm | 700mA | 3.0-3.6V | |
| Green color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3G-Y | 520-525nm | 700mA | 3.0-3.6V | 60deg 90deg 120deg 140deg |
| FD-32G-Y | 500-505nm | 700mA | 3.0-3.6V | |
| FD-33G-Y | 490-495nm | 700mA | 3.0-3.6V | |
| FD-34G-Y | 495-500nm | 700mA | 3.0-3.6V | |
| FD-35G-Y | 515-520nm | 700mA | 3.0-3.6V | |
| Yellow color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3Y-Y | 588-595nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Amber color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3A-Y | 600-610nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| Red color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3R-Y | 620-630nm | 700mA | 1.9-2.3V | 60deg 90deg 120deg 140deg |
| FD-32R-Y | 640-650nm | 700mA | 1.9-2.3V | |
| FD-33R-Y | 660nm | 700mA | 1.9-2.3V | |
| FD-332R-Y | 660-670nm | 700mA | 1.9-2.3V | |
| FD-342R-Y | 670-680nm | 700mA | 1.9-2.3V | |
| FD-34R-Y | 680-690nm | 700mA | 1.9-2.3V | |
| FD-35R-Y | 700nm | 700mA | 1.9-2.3V | |
| FD-36R-Y | 730nm | 700mA | 1.9-2.3V | |
| FD-37R-Y | 760-770nm | 700mA | 1.9-2.3V | |
| UV color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3UV-Y | 400-410nm | 700mA | Voltage (v) | 60deg 90deg 120deg 140deg |
| FD-32UV-Y | 390-400nm | 700mA | 1.9-2.3V | |
| FD-33UV-Y | 410-420nm | 700mA | 1.9-2.3V | |
| FD-34UV-Y | 430-440nm | 700mA | 1.9-2.3V | |
| FD-35UV-Y | 365nm | 700mA | 1.9-2.3V | |
| FD-36UV-Y | 380-385nm | 700mA | 1.9-2.3V | |
| FD-37UV-Y | 370-375nm | 700mA | 1.9-2.3V | |
| FD-38UV-Y | 375-380nm | 700mA | 1.9-2.3V | |
| Infrared ( IR ) color | ||||
| Part No. | Wavelength ( nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-3IR-Y | 940nm | 700mA | 1.6-1.9V | 60deg 90deg 120deg 140deg |
| FD-32IR-Y | 850nm | 700mA | 1.6-1.9V | |
| FD-33IR-Y | 880nm | 700mA | 1.6-1.9V | |
| FD-34R-Y | 770-780nm | 700mA | 1.5-2.0V | |
| FD-35IR-Y | 800-810nm | 700mA | 1.3-1.7V | |
| FD-36IR-Y | 810-820nm | 700mA | 1.3-1.7V | |
| FD-37R-Y | 870nm | 700mA | 1.3-1.7V | |
| FD-38IR-Y | 890nm | 700mA | 1.3-1.7V | |
| FD-39IR-Y | 900-910nm | 700mA | 1.3-1.7V | |
| FD-3I0R-Y | 970-980nm | 700mA | 1.6-1.9V | |
| FD-311IR-Y | 980-990nm | 700mA | 1.1-1.3V | |
| FD-312IR-Y | 1000-1050nm | 700mA | 1.0-1.2V | |
| 5w high power led A type | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-5W500-Y | White | 700mA | 6--7v | 60deg 90deg 120deg 140deg |
| FD-5R-Y | Red | 700mA | 4-5V | |
| FD-5B-Y | Blue | 700mA | 6-7v | |
| FD-5G-Y | Green | 700mA | 6-7v | |
| FD-5A-Y | Amber | 700mA | 4-5v | |
| FD-5Y-Y | Yellow | 700mA | 4-5v | |
| FD-5IR-Y | IR 940nm | 1400mA | 1.6-1.9v | |
| FD-52IR-Y | IR 850nm | 1400mA | 1.6-1.9v | |
| 10W high power led A type | ||||
| White color | ||||
| Part No. | Intensity (lm) Wavelength(nm) | Current (mA) | Voltage (v) | Emitting angle (Degree) |
| FD-10W1100-A | White | 1000mA | 10-12V | 160deg |
| FD-10R-A | Red | 1000mA | 6-7V | |
| FD-10B-A | Blue | 1000mA | 10-12V | |
| FD-10G-A | Green | 1000mA | 10-12V | |
| FD-10A-A | Amber | 1000mA | 6-7V | |
| FD-10Y-A | Yellow | 1000mA | 6-7V | |
| 12W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-12W1320 | 1320lm | 160deg |
| FD-12W1200 | 1200lm | |
| FD-12W960 | 960lm | |
| 15W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-15W1650 | 1650lm | 160deg |
| FD-15W1500 | 1500lm | |
| FD-15W1200 | 1200lm | |
| 20W high power led | ||
| White color | ||
| Part No. | Intensity (lm) | Emitting angle (Degree) |
| FD-20W2200 | 2200lm | 160deg |
| FD-20W2000 | 2000lm | |
| FD-20W1600 | 1600lm | |
| 3W RGB led | ||
| Part No. | Type | Emitting angle (Degree) |
| FD-3RGB-Y1 | 4 legs | 140deg |
| FD-3RGB-Y3 | 6 legs | 140deg |
| FD-3RGB-Y6 | SMD | 160deg |
| FD03RGB-D | Dip | 160deg |
Packaging & Shipping
| Dip LED: ESD bag, Reel& Tape |
| High power led : ESD box .ESD bag, Tube |
| Super flux led : ESD bag. Tube |
| SMD LED : Reel |
CE ROHS SVHC Certificate
Contact Us
- Shenzhen Fedy Technology Co., Limited
- Contact nameAva Qiu
- Phone86-755-89505458
- Address2nd F, No.219 NiuELin Industrical Park, Xiantian, Guanlan Shenzhen,Guangdong
Product Categories
New Products
-
(Small Signal Diodes) MMBD914 General Purpose, Power, Switching SOT23,1N914
-
New Electronic IC MM1Z30 in stock (Active Components) MM1Z30
-
Best quality MM1Z18 (Zener Diodes) MM1Z18 Silicon Planar Zener Diodes
-
ESD5Z3.3T1G onsemi ESD Suppressors / TVS Diodes SOD523 ESD DIODE
-
SK34AFL-TP Micro Commercial Components (MCC）Schottky Diodes & Rectifiers 3A 40V Schottky Rectifier
-
BZW06-33B STMicroelectronics ESD Suppressors / TVS Diodes 600W 33V Bidirect
-
1N5374BRLG onsemi Zener Diodes 75V 5W
-
1.5KE300CA-E3 Vishay Semiconductors ESD Suppressors / TVS Diodes 1.5KW,300V 5%,BIDIR,AXIAL TVS
-
1.5KE200A-E3/54 Vishay General Semiconductor ESD Suppressors / TVS Diodes 1500W 200V Unidirect
-
1.5KE180CA-E3/73 Vishay General Semiconductor ESD Suppressors / TVS Diodes 1500W 180V Bidirect
-
1.5KE18A-E3/51 Vishay Semiconductors ESD Suppressors / TVS Diodes 1500W 18V Unidirect
-
PMEG6002EJ,115 Nexperia Schottky Diodes & Rectifiers PMEG6002EJ/SOD323F/SOD323F
-
P6KE200A-E3/54 Vishay General Semiconductor ESD Suppressors / TVS Diodes 600W 200V Unidirect
-
1.5KE300CA Littelfuse ESD Suppressors / TVS Diodes 1500W 256V Bi-Directional
-
BAW156-7-F Diodes Incorporated Diodes - General Purpose, Power, Switching 85V 250mW
-
1.5KE9.1A-E3/54 Vishay General Semiconductor ESD Suppressors / TVS Diodes 1500W 9.1V Unidirect
-
1N5343BRLG onsemi Zener Diodes 7.5V 5W
-
P6KE15CA-E3/54 Vishay General Semiconductor ESD Suppressors / TVS Diodes 600W 15V Bidirect
-
IP4220CZ6,125 ESD Nexperia Suppressors / TVS Diodes IP4220CZ6/SOT457/SC-74
-
2.5Gbps 1550nm DFB Laser Diode TO-Can for Optical Fiber PON
-
USBLC6-2SC6 STMicroelectronics ESD Suppressors / TVS Diodes ESD Protection Low CaP
-
SS34F-HF Comchip Technology Schottky Diodes & Rectifiers DIODE SCHOTTKY 3A 40V SMAF
-
SML4747A-E3/61 Vishay Semiconductors Zener Diodes 20 Volt 1.0W 5%
-
SML4745A-E3/5A Vishay Semiconductors Zener Diodes RECOMMENDED ALT 78-SML4745A/5A
Popular Searches
Recommended Products
- ABB IEMMU11 Bailey Infi 90 Module Mounting Unit
- supply IGBT snubber capacitor of C31(CBB94) series
- New guide vane position potentiometer 025-32570-000, maintenance of chlorine liquefaction unit slide valve malfunction
- New slider displacement sensor 534C1478H01, SGC York FRICK propane compressor repair accessory
- New liquid level switch 913A0086H01, maintenance of York SGC2813 natural gas propane compressor
- Brand new slide displacement sensor 534C1552H01, York XJS compressor slide displacement transmitter 534C1552H02
- New slider displacement sensor 534C1478H02, a maintenance accessory for York SGC compressor
- New slide valve displacement sensor 534D1251H03, maintenance of refrigeration system malfunction for York SGC compressor
- 14pcs Servos Robotic Arm Driver Control Board
- Fire Alarm Circuit Board PCBA
- What Is The Difference Between AOI And SPI In SMT Process
- Servo Driver Board
Find Similar Products By Category
- Electronic Components & Supplies > Active Components > Diodes
- Buy on GoldSupplier.com
- How to Buy
- Browse by Catagories
- Browse by Hot Regoins
- Private Sourcing Events
- Sell on GoldSupplier.com
- How to Sell
- Post Products
- Manage Products
- Manage Groups
- Services
- Latest Sourcing Requests
- Product Update
- Companies of Today
- GoldSupplier.com Mobile Site
- B2B Articles
- About
- About Us
- Link to Us
- Contact Us
- Sitemap
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now-
Ava Qiu
Welcome to my shop! Glad to serve you!Please send your question!
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
-
Your inquiry content must be between 20 to 5000 characters.Send Now.
-
Please input the mailbox.
-
