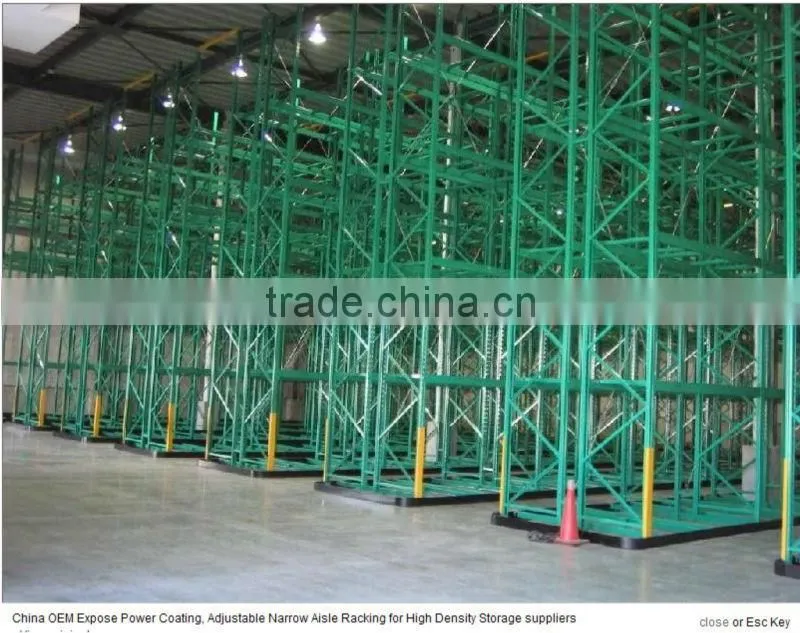

OEM Expose Power Coating, Adjustable Narrow Aisle Racking for High Density StorageUS$ 75 - 300MOQ: 10 Sets -
China Dongguan Metal Rack VNA Racking / Pallet Racking /Long Span Racking With Low PriceUS$ 65 - 205MOQ: 10 Sets
-
China Designed Galvanized Steel VNA RackingUS$ 65 - 205MOQ: 10 Sets
-
Heavy Duty Very Narrow Aisle RackingUS$ 65 - 205MOQ: 10 Sets
-
CHINA DESIGN Very Narrow Aisle RackingUS$ 65 - 205MOQ: 10 Sets
Specifications
1.The highest density storage2.Good loading capacity
3.Powder coated
4.Excellent quality,Competitive price.
Three-dimensional Stacker Warehouse Metal Narrow Aisle Racking, 1800-12000mm Height
Material |
Q235B
|
|
Use
|
Warehouse Store |
Depth |
800-1800mm
|
Length |
1500-3900mm
|
Height |
1800-12000mm
|
Thickness |
1.0-2.5mm
|
|
Level
|
2-12 levels |
Loading capacity |
500-5000kg/level |
Description

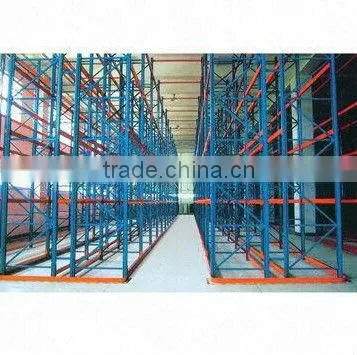

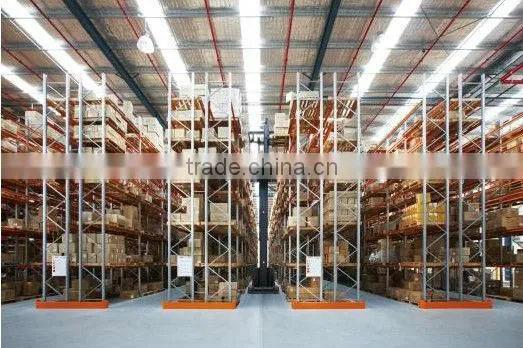

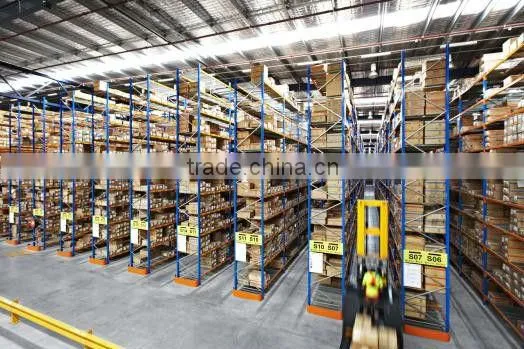

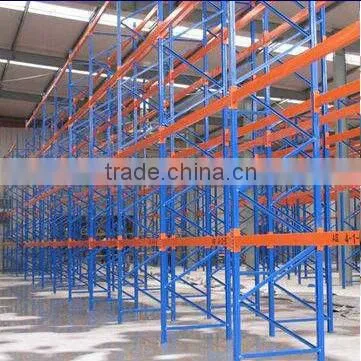

About Very narrow aisle racking
Very narrow providing high density storage, served by three-dimensional stacker, saves space.
VNA pallet racking advantages
1.In a Very Narrow Aisle (VNA) system, pallet racks can be placed closer together than other solutions because they are loaded and unloaded using a side loading fork truck.
2.This enables aisles to be extremely narrow and ensures that space is used efficiently.
3.With VNA racking, the rotation of and access to stock is uncompromised and the amount of product stored in the warehouse is maximized. Typically, with "very narrow aisles", 45% more floor space can be made available than with a wide aisle solution.
4.Further, not only does VNA racking increase pallet storage by leveraging vertical space, but it maintains the advantages of selective racking by ensuring 100% selectivity.
Features:
1. Beam adjustment: The beam levels are adjustable by 75mm
2. Loading capacity: 1-4tons (design according your requirements)
3. Thickness: 1.3-2.5MM
4. Length, Width and Height can free design according to you warehouse
5. Finishing: Expose Power Coating
6. Racking color: You can choose any color as you like, such as dark blue, orange red and grey.
Length(mm) |
1200 1500 1800 2000 2200 2300 2500 3000 |
|
Width(mm) |
400 450 500 600 800 |
|
Height(mm) |
1200-5000 |
|
Capacity of each layer (kg) |
200-800 |
|
Size of upright(mm) |
55×58×1.5 Pitch=50 |
Height 1.0m-3.0m |
Upright and beams connected / baseplate
Safty lock keep protect the beam from getting out from the upright holes.
SPECIFICATIONS:
Upright and beam specifications: we choose the right size of uprights and beams according to your loading capacity.
<
| Other Useful information : | ||||||
| 1.Material : Q 235 B | ||||||
| 2.Features: Easy assemble and disassemble; Layer Distance: 50/75 mm can be freely adjusted; Apprance: Electro Static Dusting Spray | ||||||
| 3.Quality Guarantee : 3 Years from the delievery date | ||||||
| 4.Origin: Dongguan,China | ||||||
| 5.Lead Time : Usually 15 Work Days | ||||||
| 6.Payment: 40% T/T in advance and balance before shipment | ||||||
| 7.Packing: All the component is packed by Bubble Film at each end of part | ||||||
| 8.Factory Audit (Acceptable or Not): Acceptable | ||||||
| 9.Validity: 10 days |
Company Vision:
CE Certifecation
