Very Narrow Aisle Rack

Very Narrow Aisle Rack thumbnail-1
Very Narrow Aisle Rack photo-1
US$ 1,100 - 1,300 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
smaco
Model Number:
SM00-0150
Contact Supplier Request Quote Chat Now
Guangdong Smaco Automation Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name smaco
Model Number SM00-0150
Type Drive-Through Pallet Rack
Material Steel
Feature Corrosion Protection
Use Warehouse Rack
Certification Other, CE, ISO9001
Depth 0.8m-1.8m
Weight Capacity 500-2500kg/shelf
Width 0.8m-1.8m
Height 2.5m-18m or customized

Specifications

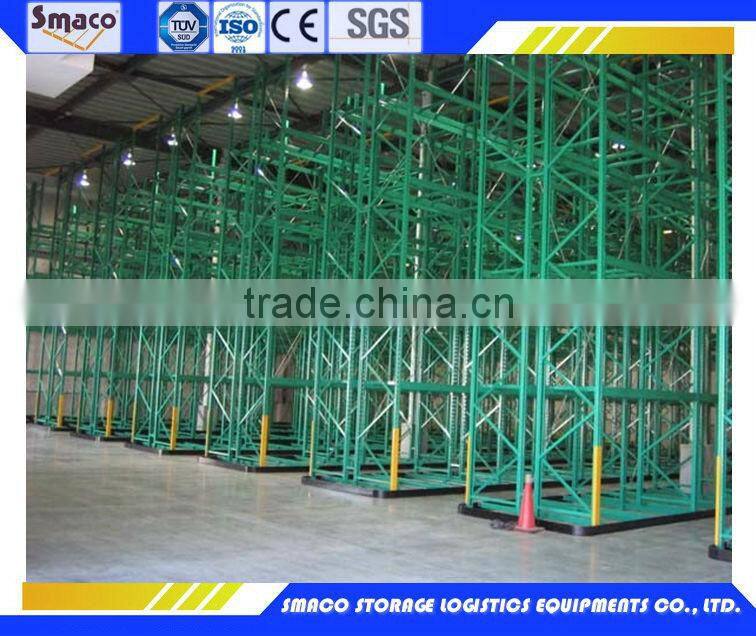

Very narrow aisle rack can provide high density storage, served by three-dimensional stacker, saves space.

Very narrow aisle rack



Very narrow aisle rack



Very narrow aisle rack



Very narrow aisle rack


Product Description



1.With highest density storage, Smaco   narrow aisle rack has good loading capacity.
2.Smaco can design a selective rack  to tailor to your specific space an budgetary requirements.







1. Features:
  • Rigid-structure, durable, versatile and economical  narrow aisle rack , most widely used for storage of different items.
  • Available in wide range of steel rack  height, depth & length and loading capacities to clients' storage needs.
  • Fully adjustable shelf height.
  • Very easy to install and dismantle.
  • Rapid handling and direct access of almost all types of goods.
  • Maximizes space use in any storeroom configuration while retaining optimum product accessibility.
  • Strength and rigidity prevents compression damage to goods.

2. Load Capacity & Dimension:
  • Loading capacity: 800-3000 kg /layer, bigger capacity available to special needs.
  • Height: 1,000-1,200mm
  • Depth: 400-1,500mm
  • Length: 1,500-2,700mm
  • Special sizes also available to specific storage needs.

3. Main Parts Specs:
  • Upright section: 55*47*1.5, 55*47*2.0, 80*60*1.5, 80*60*2.0mm, etc.
  • Step beams section: 50*30*1.5-2.0, 60*40*1.5-2.0, 80*50*1.5-2.0, 110*50*2.0-2.5mm, etc.,
  • Steel panels thickness: 0.7mm, 0.8mm, 1.0mm, 1.2mm, etc.
  • Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.

4. Material:
  • Q235B STEEL

5. Surface treatment
  • High-quality Powder Coating.

7. Certificate.
  • SGS,CE ,ISO9001




Our Services

For making a quick quotation, please inform us the listed information in your inquiry.

 1) AUTO CAD drawings(If not available, we can provide). We can design your narrow aisle rack according to your requirements as well.
2) Size of your steel rack.
3) Width, depth and Height of narrow aisle rack.
4)How many bays and layers do you want.
5) Loading capacity of each layers.
6) RAL color you want.


Company Information

Dongguan Smaco Storage Logistic Equipment Co., Ltd. is a modern industrial company, specialized in the R&D, production and sale of various kinds of steel structure shelves, racks, trays and material boxes. Our company was founded in 2001 with an approximately registered capital of RMB 100 million.

Our company is located in Pearl River Commercial Area, Dongguan City, Guangdong Province, with a modern office building, more than 10,000 square meters of factory area.
