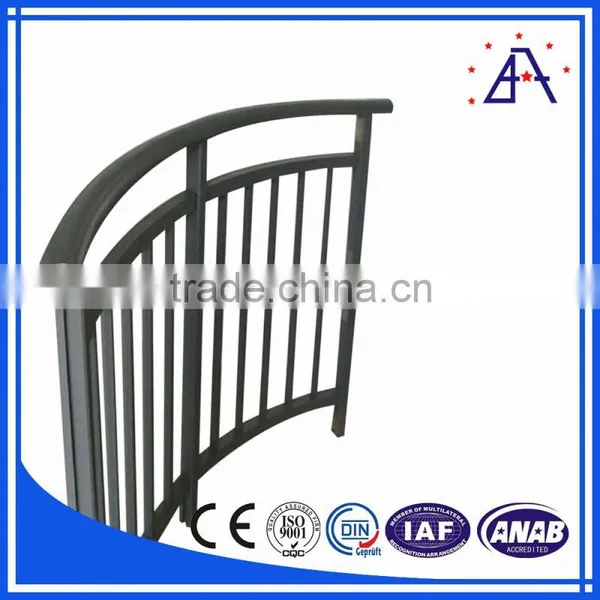

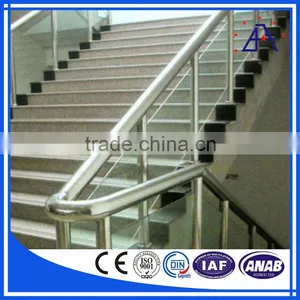

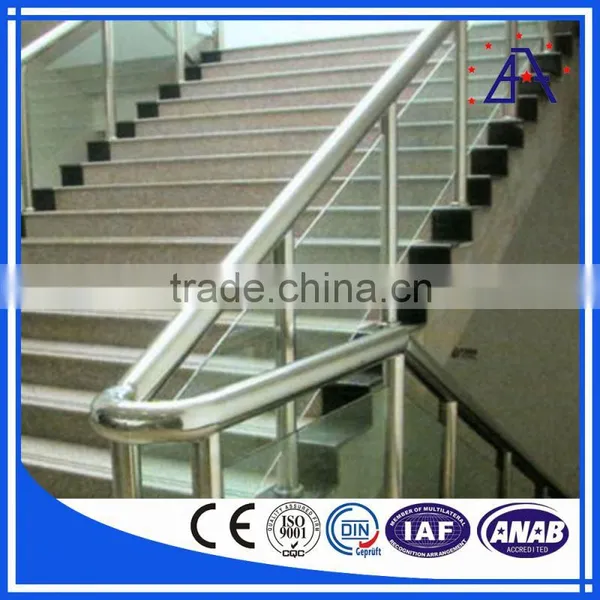

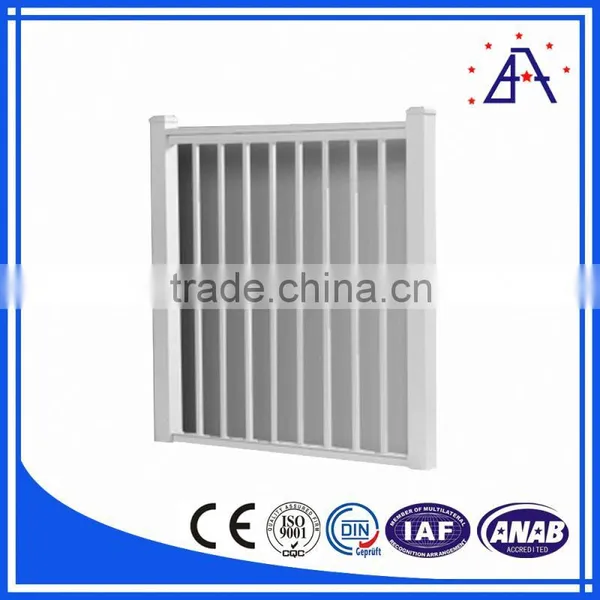

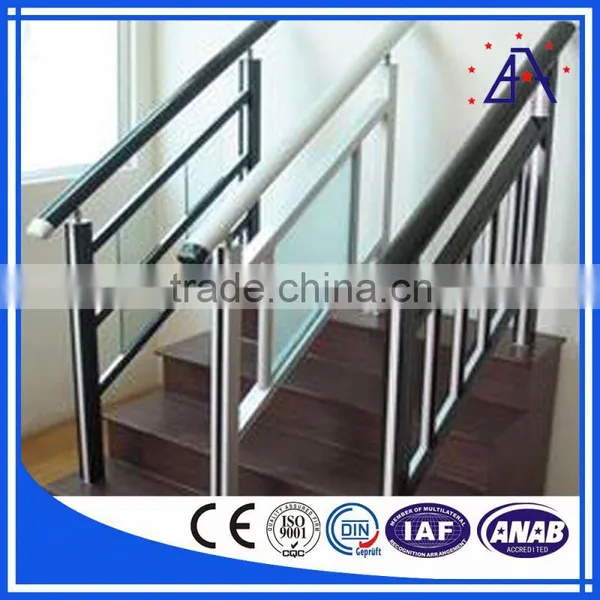

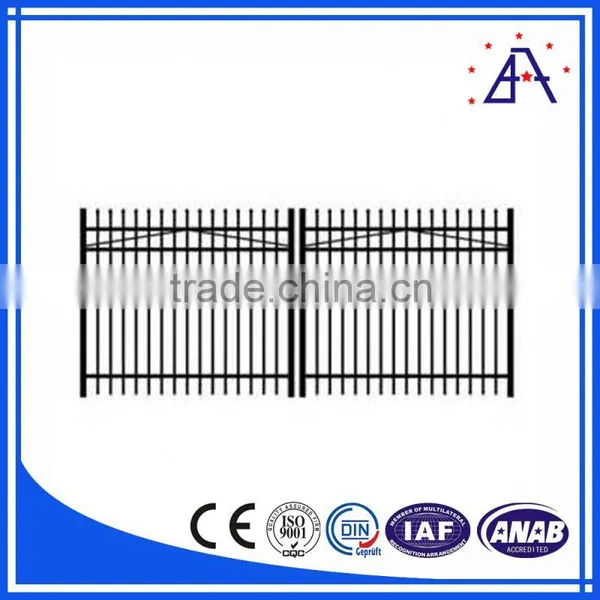

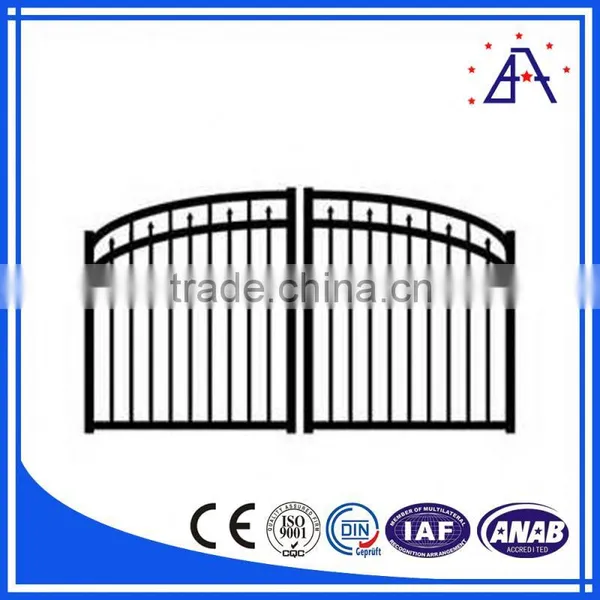

Brilliance Professional Supplier Barandas de Aluminio Para Balcones

Name: Brilliance Professional Supplier Barandas de Aluminio Para Balcones
Brand: BRILLIANCE ALU
SKU: 109693231
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Ton

Key Specifications

Place of Origin:

Shanghai, China

Grade:

6000 Series

Temper:

T3-T8

Brilliance General Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shanghai, China

Grade 6000 Series

Temper T3-T8

Application Decorations

Shape Square

Alloy Or Not Is Alloy

Model Number BA003

Brand Name BRILLIANCE ALU

Brilliance professional supplier barandas de aluminio para balcones

TABLE OF CHEMICAL COMPOSITION OF ALUMINUM ALLOY
Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti	Impurity		Al
Alloy	Si	Mg	Fe	Cu	Mn	Zn	Cr	Ti	Unit	Total	Al
6063	0.2-0.6	0.45-0.9	<0.35	<0.1	<0.1	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.8-1.2	<0.7	0.15-0.4	<0.15	<0.25	0.04-0.35	<0.15	<0.05	<0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	≤0.1	≤0.1	≤0.15	≤0.05	<0.1	<0.05	<0.15	Surplus

TABLE OF AMBIENT TEMPERATURE MECHANICAL FUNCTION OF SECTIONS
Alloy	Temper	Thickness	tensile test			hardness test
			Lntensity of stret ching resitance b Mpa	specified non-propertional stretching stress Mpa	Streatching rate %	Parterr thickness mm	HV	HW
			≥
6063	T5	ALL	160	110	8	0.8	58	8
6063	T6	ALL	205	180	8
6063A	T5	≤10	200	160	5	0.8	65	10
	T5	>10	190	150	5
	T6	≤10	230	190	5
	T6	>10	220	180	4

ADODIZINMG QUALITY
Grade	corrosion resistance			abrasive resistance
	CASS test		alkaline dropping test	sandtrial Abrasion coefficient f,g/um
	hours	grade	alkaline dropping test	sandtrial Abrasion coefficient f,g/um
AA10	16	≥9	≥50	≥300
AA15	32	≥9	≥75	≥300
AA20	56	≥9	≥100	≥300
AA25	72	≥9	≥125	≥300

Power coating quality
Gloss values	Thickness(um)		color variation	indentation resistance	adhesion	impact resistance	cupping test	presentation quality
	Max Thickness	Min Thickness
60	≤120	≥40	Color should be consistent with the sample color	≥80	0	No cracking and shedding phenomenon after the front impact test,small fine lines around the concave is allowed	No cracking and shedding phenomenon after the cupping test(6mm indentation depth )	The surface of the decorative profiles should be smooth and uniform. wrinkle,clamminess is not allowed.
