US$ 20 - 33 MOQ: 50 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Sanna led
Warranty(Years):
2
Input Voltage(V):
85-265v
Contact Supplier Request Quote Chat Now
Sichuan Festalight Photoelectric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo/ShangHai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Sanna led
Warranty(Years) 2
Input Voltage(V) 85-265v
Lamp Power(W) 36
Lamp Luminous Flux(lm) 2400
Lamp Luminous Efficiency(lm/w) 67
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, 50
Working Lifetime(Hour) 36000
Lamp Body Material Aluminum
IP Rating Other, IP40
Certification CE, EMC, GS, LVD
Place of Origin China
Brand Name Festalight
Model Number FL-PBD-6060

600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier



Specifiction:



Item no:

FL-PBD-6060

Color

Warm color:2700~3500k,White:5000~7000K

Enclosure material

Alumium alloy+silver oxide,

Size:

600x600x9mm(actually size: 595x595x9mm)

Beam angel

110 Degree

Saving energy

50%

Lifespan

more than 36000 Hrs

IP code

IP40

Working voltage

DC85-265V

LED Source

SMD2835 Chips

LED QTY

180pcs led in side

lm

2400lm

In put

AC85-265V

Power

36W/48W

Standard warranty

2 years

Safety standard

SAA, RoHS, CE, UL pending



1. Surface Treatment: Very smooth surface achieved by advanced powder coating technology, this makes alum inium body with an excellent anti fading effect;



2. Guide & Diffuser Plate: High quality light guide plate gets the light transmission rate up to 95%, Superior diffuser plate ensure 100% no dark spot, also make the light even and light;



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier

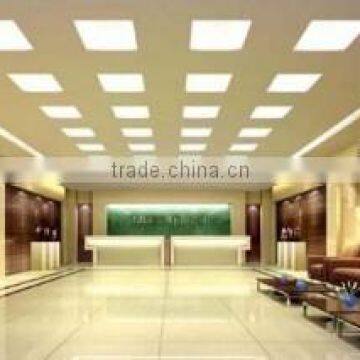

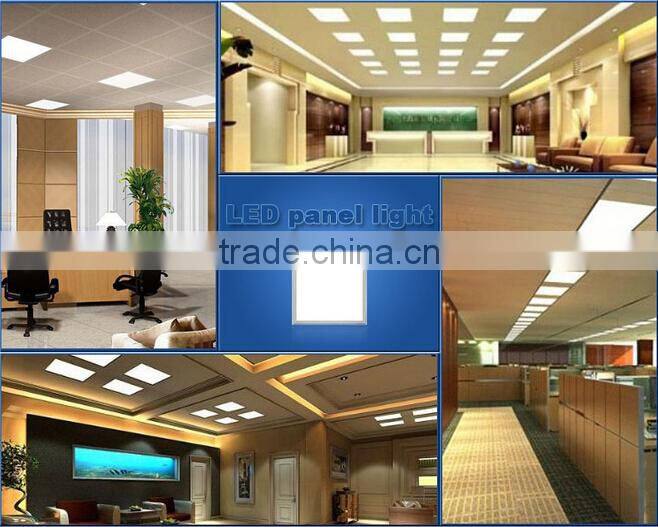

Application:



  Hotels, conference/meeting room, factories & offices, Commercial Purpose, Residential / institution building, School, college, hospital, places where energy saving and high color rendering index lighting are need.



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier

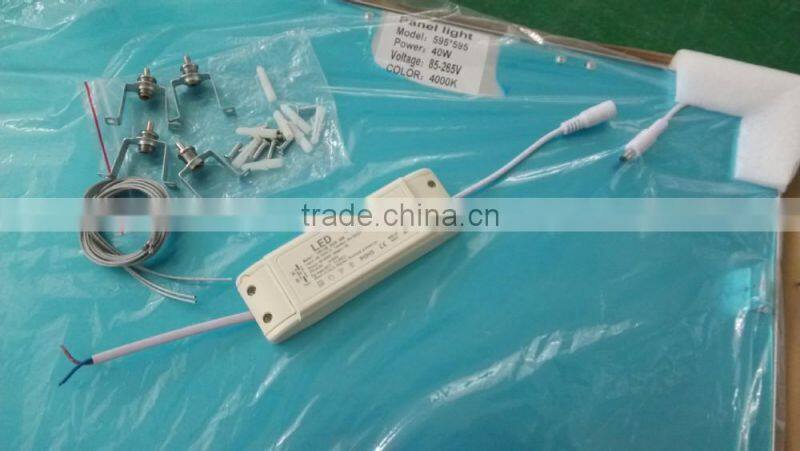

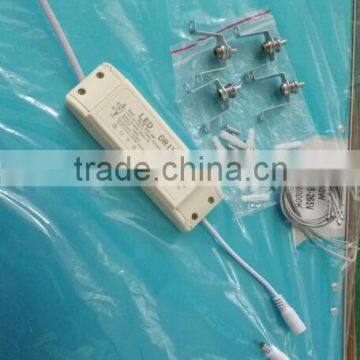

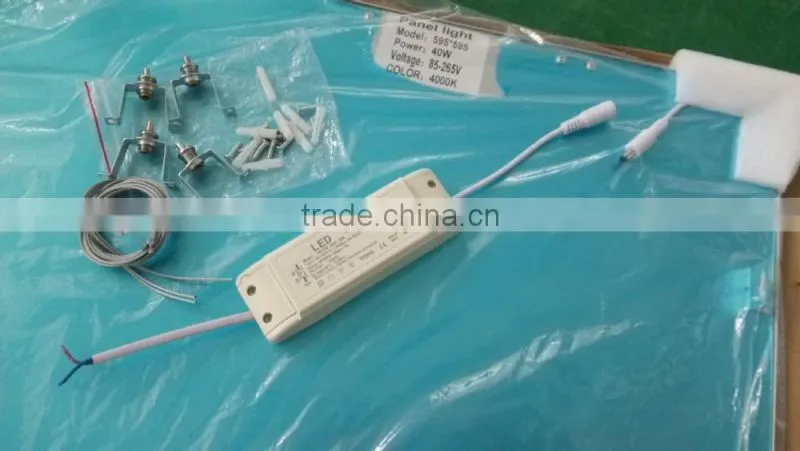

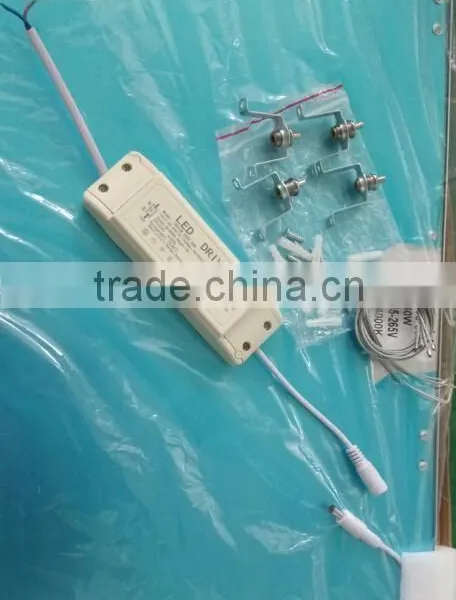

Accessories:



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier

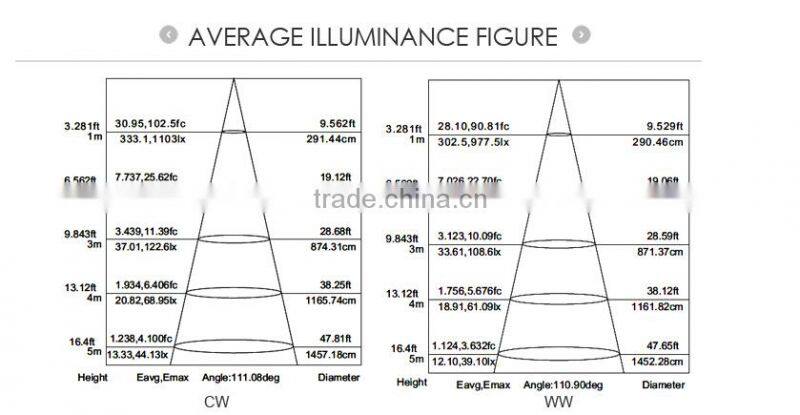

Average Illuminance figure



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier

600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier

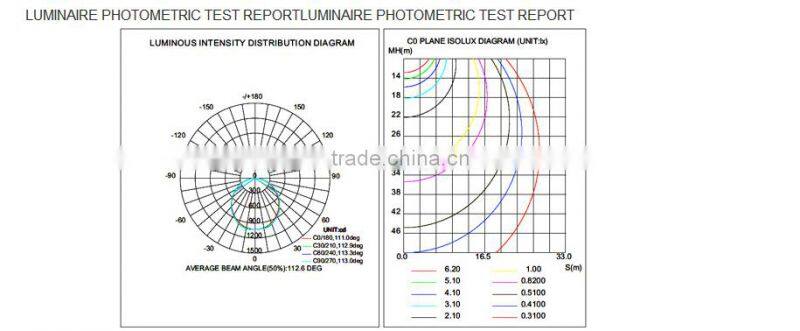

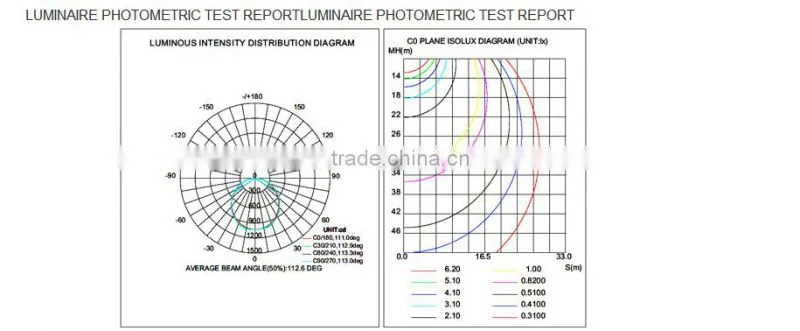

LUMINAIRE PHOTOMETRIC TEST REPORTLUMINAIRE PHOTOMETRIC TEST REPORT

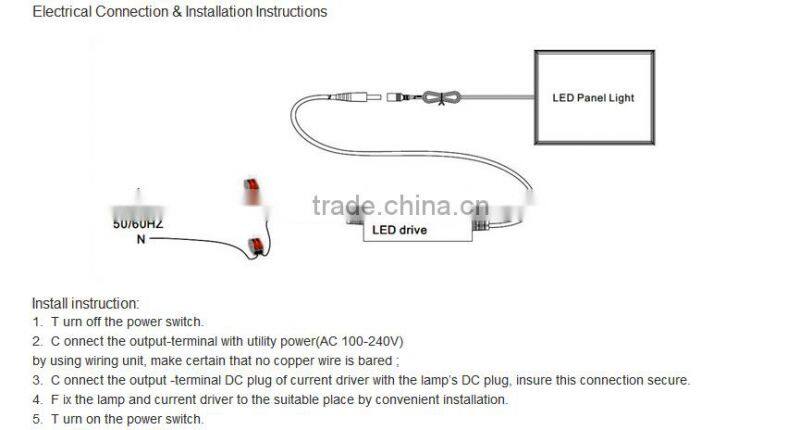

Electrical Connection & Installation Instructions

600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier






Install instruction:



1.  T urn off the power switch.

2.  C onnect the output-terminal with utility power(AC 100-240V)  by using wiring unit, make certain that no copper wire is bared ;

3.  C onnect the output -terminal DC plug of current driver with the lamp’s DC plug, insure this connection secure.

4.  F ix the lamp and current driver to the suitable place by convenient installation.

5.  T urn on the power switch.

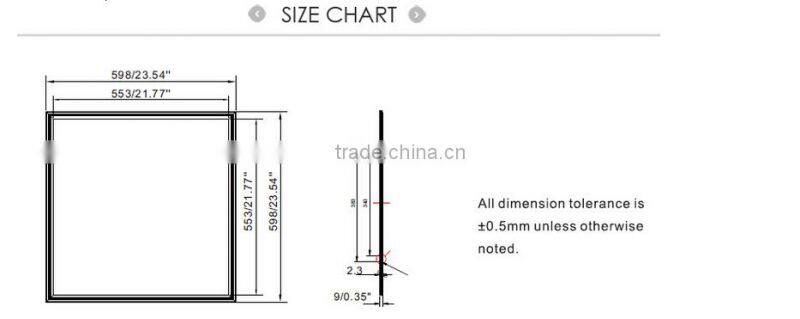

Size chart



600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier





Packing



1.   All dimension units are millimeter.

2.   5pcs inner boxes in one carton.(Carton size: 64x24x68cm) G.W:  20KG/CTN





600*600 LED panel light 36W/48W, CE,ROSH,Approved led panel light 600 600 supplier
