We have over 10 years of experience in production, standard and customized machines for your products, please click contact us.
View more models
Silk screen printing, is all-purpose printing ways. Screen printer is very easy to operate, and the cost is also very low compare with the other printing machines.It is widely use on Metals, Plastics, Woods, Leather, Non-woven fabrics, T-Shirts, Glass, Paper, Ceramics materials, such as Electronic membrane switch, Silicone keypad, Display glass, Touch screen, Building decoration materials, Handicrafts, Trademark stickers, Outdoor advertising, Nonwovens, Textile printing, Household appliances, Garment and Footwear
1.Each function is controled by Microprocessor to have high automation and easy operation.
2. Equipped LED digital counter
3.Printing available on curve, cylindrical and conical surface.
4.Both printing stroke and speed are adjustable to meet different printing requirements.
5.Squeegee/flood bar depth, pressure,speed,stroke and screen frame are all adjustable for various printing needs.
6.Auto balanced scraper ensures even pressuer.
7.Reliable control system and FESTO pneumatic components.

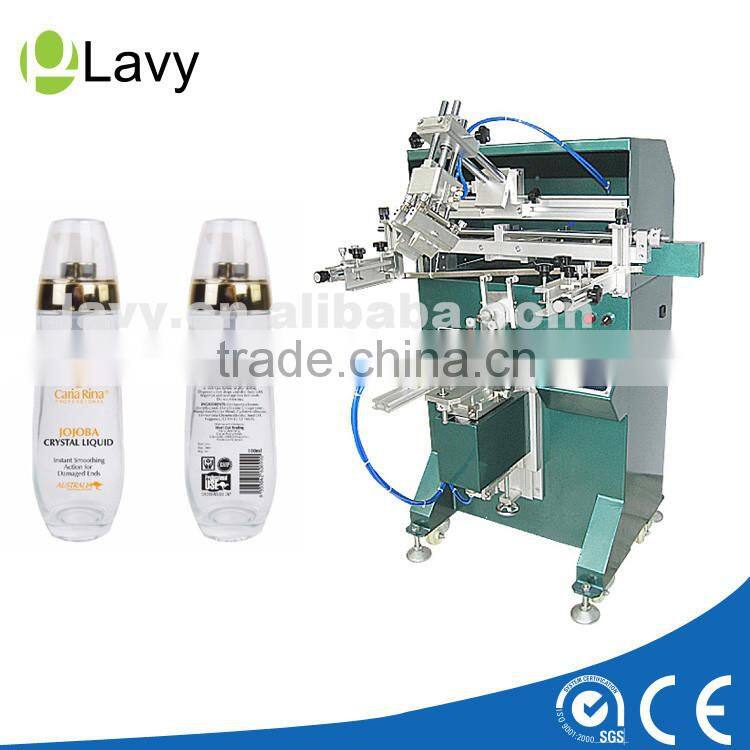

| Pneumatic screen printing machine | ||||
| Model | LV-250E(flat &cylindrical) | LV-300E(flat &cylindrical) | LV-400E(flat &cylindrical) | LV-500E(flat &cylindrical) |
| Max. printing diameter | 70mm | 90mm | 110mm | 150mm |
| Max. printing speed | 1400pcs/hr | 1200pcs/hr | 1000pcs/hr | 1000pcs/hr |
| Air consumption | 90litre/min(6bar) | 90litre/min(6bar) | 110litre/min(6bar) | 110litre/min(6bar) |
| Voltage | 110/220V 60/50Hz | 110/220V 60/50Hz | 110/220V 60/50Hz | 110/220V 60/50Hz |
| Dimensions(L×W×H) | 750×750×1200mm | 850×800×1300mm | 700×1000×1310mm | 800×1100×1400mm |
| Weight | 75kg | 95kg | 140kg | 155Kg |
| Pneumatic screen printing machine | ||||
| Model | LV-600E(cylindrical) | LV-700E(cylindrical) | LV-800E(cylindrical) | LV-1200E(cylindrical) |
| Max. printing diameter | 180mm | 220mm | 250mm | 310mm |
| Max. printing speed | 800pcs/hr | 800pcs/hr | 800pcs/hr | 500pcs/hr |
| Air consumption | 110litre/min(6bar) | 110litre/min(6bar) | 110litre/min(6bar) | 110litre/min(6bar) |
| Voltage | 110/220V 60/50Hz | 110/220V 60/50Hz | 110/220V 60/50Hz | 110/220V 60/50Hz |
| Dimensions(L×W×H) | 950×1200×1450mm | 970×1600×1550mm | 1020×1650×1550mm | 1650×1500×1550mm |
| Weight | 180kg | 210kg | 230kg | 260kg |
1 Year after customer receive the machine
Q: I am the new hand for the creen printer,can you show me how to operate?
A: Certainly. There are many customers to buy the machine the first time.
1- We will send the testing videos for your reference. Most of the customers can operate the machine by following the videos.
2- The notes during operate the machine will be offered.
3- If there is any problem, you can contact with us any time, we will answer in 24 hours
4- For the big machine with complex testing and operation, engineer is available for the overseas service
Q: Do you offer free charge of the designs?
A: If you purchase the other screen accessories from our company, we will offer free charge of the artwork according to your information.
Q: Can I put some designs into one screen plate?
A: Yes, on this way the first design is free charge. From the second designs, if the design is the same, only with different sizes, we will not charge for the designs. But we do not suggest the new hand to put many designs onto one plate, the operation will be affected.
Q: How can I offer the designs?
A: Please offer the file with CDR, AI, PSD, PDF, DOC, JPG, or DWG format.
Q: Do you also supply inks, UV dryer,Screen Printing Exposure Unit Vacuum machine
A: Yes, we offer the accessories with good price.
Q: How do I pay for my order?
A: We accept T/T,Western Union,MoneyGram. Paypal is acceptable for less than $1000.
