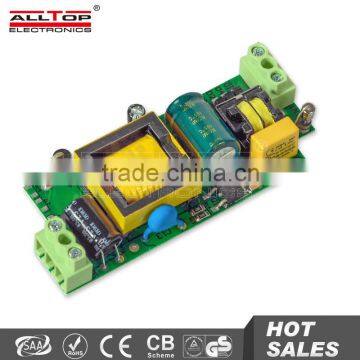

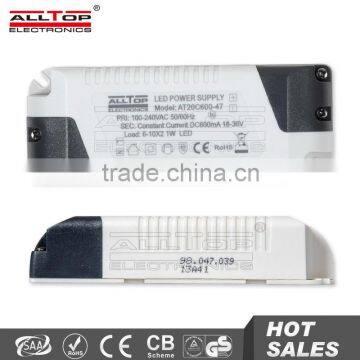

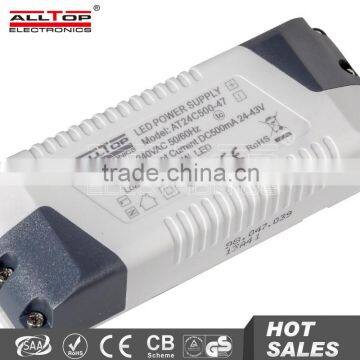

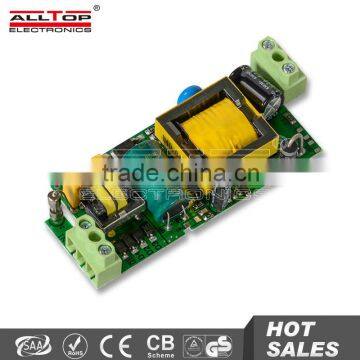

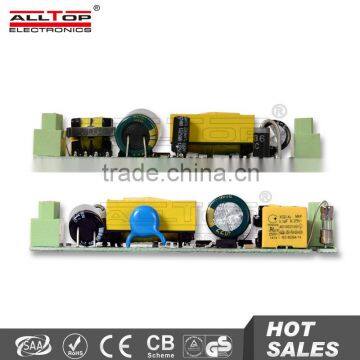

Constant current 500ma 24W led driver power supply
PRODUCT ATTRIBUTE
Item No. |
AT18C300-47 |
AT18C300-47P |
AT18C300-47P |
AT24C500-47P |
Rated Load |
18W |
18W |
36W |
24W |
Output Voltage |
22-42V DC |
22-43V DC |
22-42V DC |
22-42V DC |
Output Current |
300-330mA |
280-330mA |
300-330mA |
450-500mA |
Input Voltage |
100-240VAC 50/60Hz |
|||
Conversion Efficiency |
≥92% |
|||
Power factor |
PF≥0.96 |
|||
Dimension |
L110xW42xH24mm |
|||
Working temperature |
-30~+50°C |
|||
Temperature Rise |
≤30°C |
|||
Storage temperature |
-30~+100°C |
|||
IP code |
IP20 |
|||
Brand |
ALLTOP & Customized |
|||
Warranty |
3 years |
|||
Certificate |
CE, ROHS, TUV, SAA, EMC, LVD |
|||
Application |
LED ceiling light,LED down light,led panel light, Indoor etc. |
|||
Packing |
Standard export packing/ according requirement. |
|||
Pieces per carton |
100pcs/ctn |
|||
Deliver |
Samples :1-3 days.Orders more than 10000unit in 7-15days |
|||
Payment terms |
By T.T, Western Union, L/C, etc |
|||
Small size,High efficiency,High reliability,Long lifetime;
IP44 rating;
Working temperature -25~+50°C
Protection:Overload,Short-circuit pratection,Over-temperature;
Typical efficiency:85%
Low standby power,min to 0.5W;
Start delay design,which can reduce the starting current when multiple simulatance start;
CE,EMC,IP20 certifide,ROHS compliant;
Low output ripple moises.
Trade term: EXW, FOB, CIF
MOQ: 1pcs
Port: Shenzhen, Zhongshan, Guangzhou
Sample availability: Yes
Supply capability: 1000 pcs/day
Payment: T/T, Western Union, L/C, Paypal.
Shipment: ocean or air transportation, international express
Normal lead time: 7days for sample order;15 days for production order
Payment condition: 30% before production, 70%before delivery
Packing: carton box
