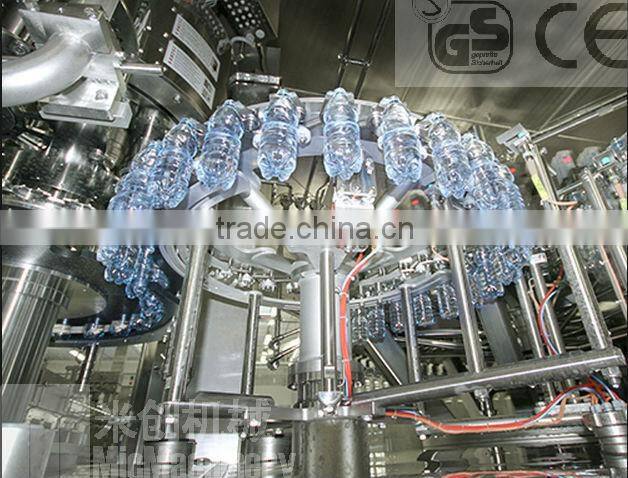

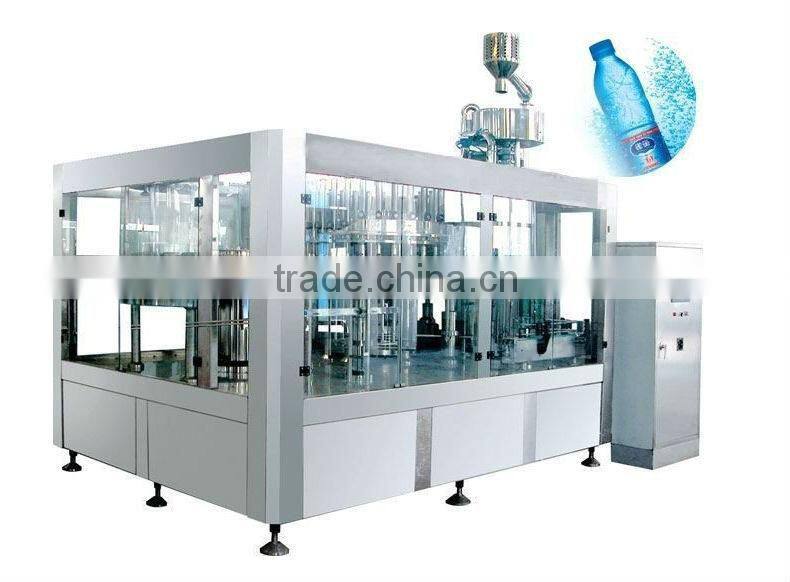

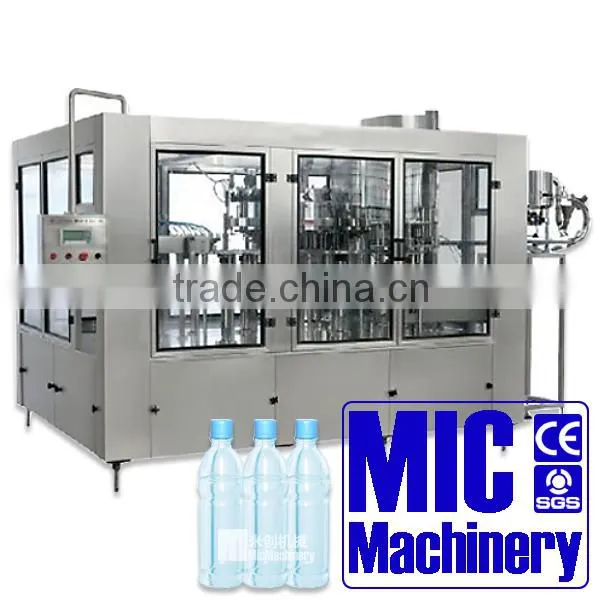

10000BPH automatic pure water filling machine 3-in-1(500 ml)
Full automatic from bottle conveyed into filling machine, turn over the bottle and washing bottle inside and outside to dry bottle out of machine. Use easily, rarely maintenance.
Unique sprayer design,good sprayer ability, save flushing liquid,setup stainless steel device collecting flushing liquid.
Rotary washing device include 16 robots and sprayer and water drain valve.

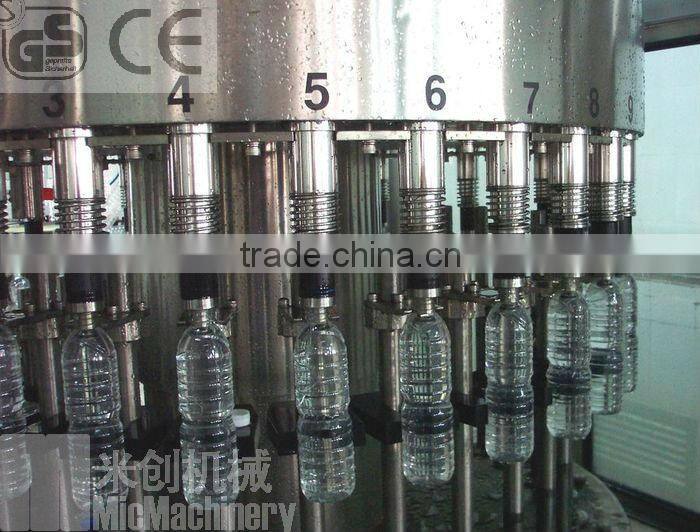

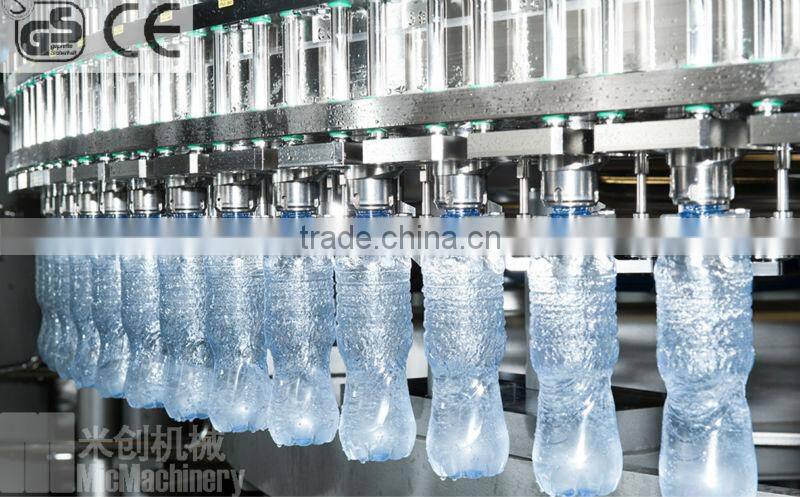

Filling device
Consist of filling tank, center tube, main turntable, filling valve, lifting mechanism, cam mechanism. The whole filling rotary system is supported by a big slewing bearing, running stable; filling tank ,center tube are fixed in the slewing bearing.
Filling valves are opened when bottles available, when liquid filled in bottles, other material in bottle will be pushed out to return tank. And don't contact with liquid in filling tank, ensure liquid purity. When bottled is full, a little liquid will be collected into return tank by a exhausted tube for washing bottle. Special filling valve design,Good filling device can keep no bubble in final products.
Capping device
Capping device include capping head, send cap device ,fetch cap device...Using photo electricity testing machine to realize automatic feeding cap and sending cap and stop capping when no bottle ,auto alarm when over load. This equipment adopts bottle handing technology, Good ability for permanent magnetic capping ,capping torque can accurately adjust setup, ensure good sealing ability.
Auto cap sender
This machine adopts special stainless steel tube can offer caps to capping tank continuously. Use easily, maintenance conveniently. The greatest advantage is no air pollution in factory.
This machine include cap tank, delivery pipe, air blower, gearing and electricity controlling. Cap sender is controlled by electronic testing device in capping tank.
We will offer our technician for oversea 10000BPH Automatic Bottle Washing, Filling & Capping 3-in-1 MIC Machine for mineral water installation and training service.
We can also provide our Sales as translator to your site help the installation and Training. Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
Thank you for choosing MIC Machinery Company.
Automatic Plastic Bottle Mineral Water Filling Machine is packed with export wooden case.
For 10000BPH automatic plastic bottle mineral water filling machin 3-in-1:
First of all, before we operate Automatic Plastic Bottle Mineral Water Filling Machine, to clearly understand the instructions clearly Automatic Plastic Bottle Mineral Water Filling Machine, first read through the instructions again, adjust and use the familiar Automatic Plastic Bottle Mineral Water Filling Machine , the operating time must be in strict accordance with the instructions to Automatic Plastic Bottle Mineral Water Filling Machine instructions , pay attention to details of the problem , certainly the details determine success or failure
Secondly, in accordance with the instructions on the machine for regular repair and maintenance of the Automatic Plastic Bottle Mineral Water Filling Machine fuselage Oil it , so Automatic Plastic Bottle Mineral Water Filling Machine body as far as possible to protect the reservoir , so that the air can be isolated to avoid Automatic Plastic Bottle Mineral Water Filling Machine rusty , well protected Automatic Plastic Bottle Mineral Water Filling Machine body, and this is a way to extend the life of the 3 in1 filling machine .
Once again, we have to pay attention to hot stand -sealing cloth for cleaning, not retained foreign body in the above , to ensure clean Automatic Plastic Bottle Mineral Water Filling Machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .
Fourth, we should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm.
Fifth, if found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated lift cover, and then close the voltage , check the reason , and troubleshooting.
