Brightway BWZCQ series Vacuum Degasser Advantages
Brightway vacuum degasser has a more efficient vertical tank design than traditional horizontal degasser, offering more surface area by accelerating fluid through a submerged pump impeller and impinging the fluid on a stationary baffles. The additional capacity results in no increase in vessel size, tank space requirements, unit weight, or reconfiguration of pit arrangements. A 5 HP vacuum pump, capable of pulling 29” Hg, draws mud into the degassing chamber where decreased pressure causes gas bubbles to surface from the fluid more rapidly. A stacked, corrugated fiberglass leaf arrangement and multiple feed ports provide higher fluid impact, thinner layers of mud dispersion, and greater turbulence for more efficient gas removal. Brightway degasser offer convenient access to the leaf assembly and float mechanisms (without having to remove the vessel lid) through an oversized access door. This feature significantly reduces downtime and maintenance costs compared to other units. The Brightway vacuum Degasser has a leaf capacity of 14,528 square inches. Suitable for all kinds of support, for the restoration of the proportion of mud performance and stability of the slurry viscosity and reduce the drilling cost, there is a very important role. Meanwhile, it can also be used as a powerful blender.
1. Structure: Compressed structure and degassing efficiency of more than 95%.
2. Motor: Explosion-proof Motor.
3. Electrical control system: Explosion proof electrical system.
4. Electrical components: ABB, Siemens, Schneider.
5. Excellent operation characteristics ensure the excellent efficiency.
Brightway BWZCQ series Vacuum Degasser Parameters
Model |
BWZCQ240 |
BWZCQ270 |
BWZCQ360 |
Main diameter |
700mm |
800mm |
1000mm |
Capacity |
≤240m³/h |
≤270m³/h |
≤360m³/h |
Vacuum |
0.030~0.050Mpa |
0.030~0.050Mpa |
0.040~0.065Mpa |
Ratio |
1.68 |
1.68 |
1.72 |
Efficiency |
≥95% |
≥95% |
≥95% |
Motor Power |
15kw |
22kw |
37kw |
Vacuum Power |
2.2 kw |
3kw |
7.5kw |
Rotary Speed |
870r/min |
870r/min |
880r/min |
Dimension |
1820x1025x1500mm |
2000×1000×1670mm |
2400×1500×1850mm |
Weight |
1000Kg |
1350Kg |
1800Kg |

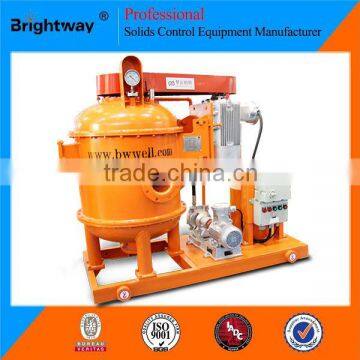

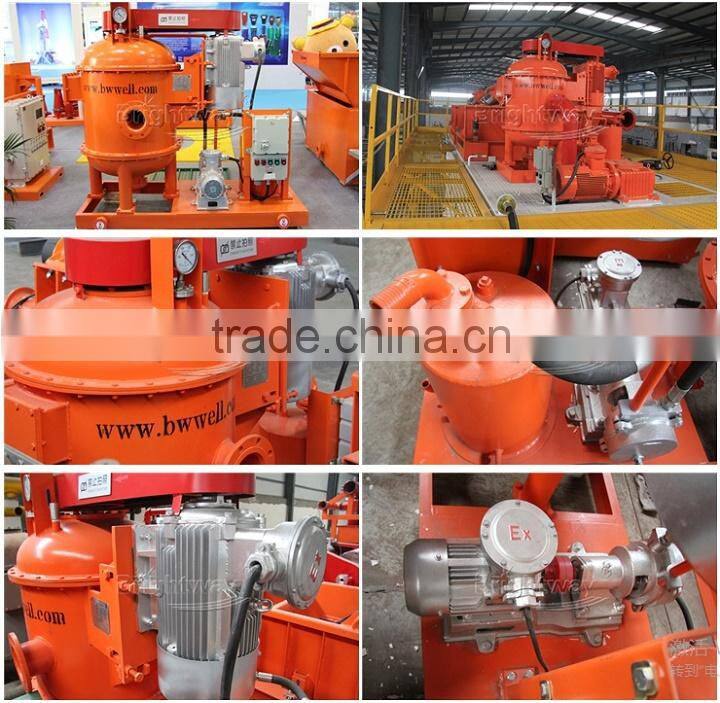

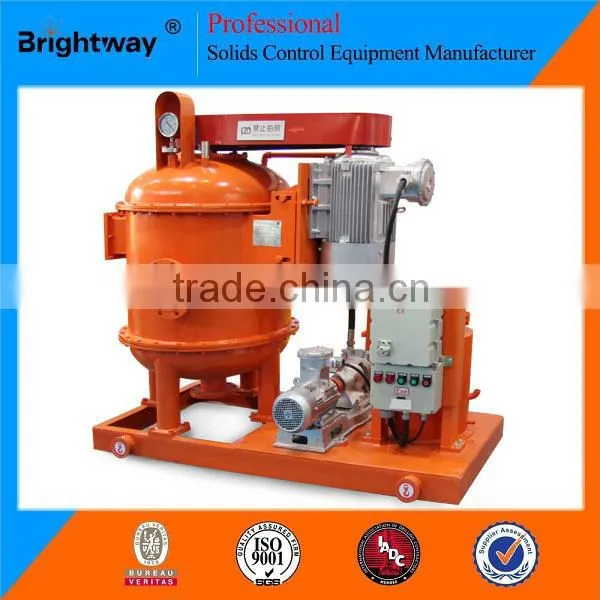

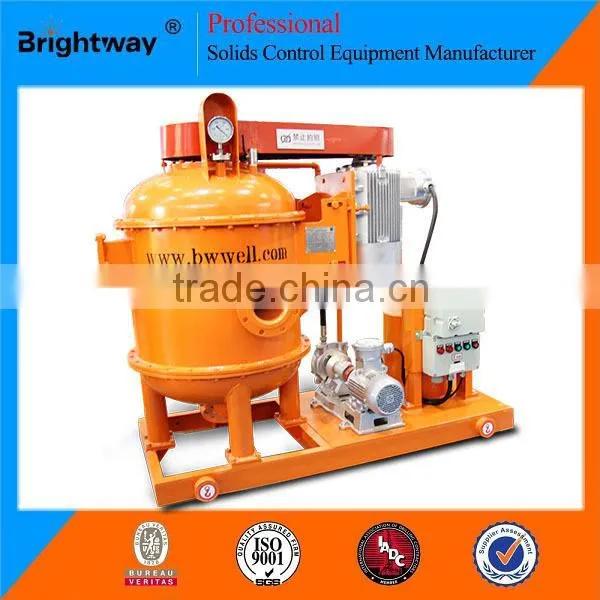

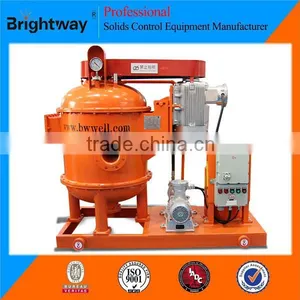

Brightway BWZCQ series Vacuum Degasser Display
