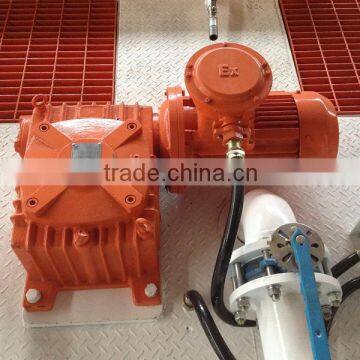

Brightway BWJBQ series drilling mud agitator
Mud Agitator is widely used in the mud solids control system.Mud Agitator is used in mud systems to suspend solids and maintain homogeneous mixture throughout the system. A mechanical agitator is driven by an explosion-proof motor, coupled to a gear box that drives the impeller shaft. The impellers (turbines) transform mechanical power into fluid circulation or agitation. The objective is to obtain a uniform suspension of all solids. Brightway mud agitator features a “C” face motor couple to a rugged oilfield gearbox, which eliminates misalignment and troublesome couplings. This configuration promotes long motor and gearbox bearing life. Please contact with Brightway representative with your tank dimension and your detail requirement. We will recommend the right model with specification about the horsepower, impeller (size, type& quality), and shaft length etc to meet your requirement.
Brightway Mud Agitator Features and Benefits
1. Structure: Small footprint and compact structure.
2. Reduction gearbox: Helical-bevel design or worm design according to customer requirement.
3. Motor: Explosion-proof electrical motor, and can be the style of horizontal or vertical.
4. Shaft and impeller: Galvanizing treatment brings the excellent anti-rust performance much better than the painting process
5. High efficiency, low noise, low operating temperature.
Brightway BWJBQ series mud agitator Parameters
Model |
BWJBQ5.5 |
BWJBQ7.5 |
BWJBQ11 |
BWJBQ15 |
Power |
5.5Kw |
7.5Kw |
11Kw |
15Kw |
Impeller Speed |
60/72RPM |
|||
Impeller Dia |
600mm |
750/850mm |
750/850mm |
750/850mm |
Ration |
25:01:00 |
|||
Dimension |
870×600×560mm |
906×600×560mm |
1075×650×630mm |
1170×720×685mm |
Electric specs |
380V/50Hz or 460V/60Hz |
|||
Shaft Length |
According to tank inside depth |
|||
Remark |
Explosion Proof Motor |
|||

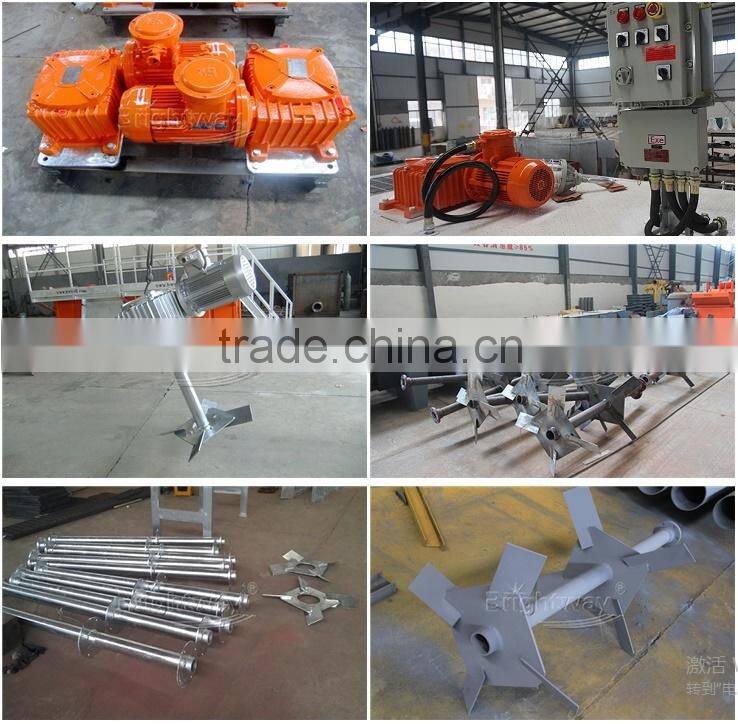

Brightway BWJBQ series mud agitator Display
