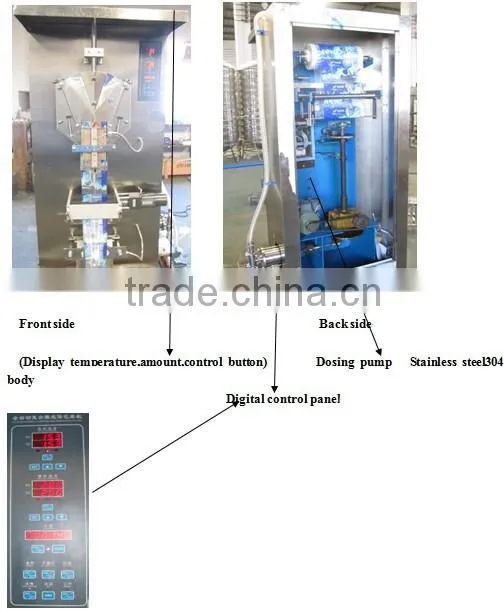

MIC-pouch liquid filling machine
Main Functions and Technical Specifications
This machine is high precision packing machine and the most advanced liquid compound packing machine in china, which is standing, three side sealing and intermittent.
It is widely used to pack all kinds of liquid without gas, especially soy, wine, vinegar, juice, soybean milk, peanut oil, vegetable oil, plant oil, mineral water and liquid chemical products.
Main Technological Data:
MODEL | MIC-2000P |
Production Capacity | 1500-2200BAGS/H |
Filing Range | 200-1000ML |
Voltage | AC220V/50HZ AC380 |
Paper-offering Motor | 250W/220V |
Power of Hot Sealing vertical sealing | 300W |
Power of Hot Sealing horizontal sealing | 500W |
Main Motor Power | 370W/380V/220V |
Overall Dimension | 1050×870×2100MM |
Weight | 500KG |
Power of whole machine | 220v/380v 1.6kw |
Function of water pouch packing machine
1,sack molding
2,UV sterilize
3,Vertical cutting hot seal
4,Date composed
5,beeline tows sack
6,ration filling
7,Horizonal cutting hot seal
8,Cutting sack
9,Count automatically
10, With optical sensor for accurate cut flim and packing flim.
Product Description:
The machine is widely used in packing milk, soybean milk, beverage, sauce. Vinegar and millet wine etc with all kinds of film. the complete packing process such as ultraviolet sterilization. Bag-forming, date printing, dosing, sealing, cutting and counting can be accomplished automatically. The heat-sealing temperature is automatically controlled, machine is made of stainless iron and guarantees sanitation.
Electrical appliances components list
Num. | Sign | Qty. | Item | model | Memo |
1 | FD | 2 | screw fuse | 10A |
|
2 | XWK | 2 | Process switch | 441 |
|
3 | K | 4 | switch | MK211B/n81 |
|
4 | ZZ | 1 | UV lamp tube | ZWS series 15W/220V |
|
5 | JC | 1 | AC Contactor | 0910 | 10A/220V |
6 | JJ | 1 | electromagnetic counter | 5 AC220V | AC220V |
7 | TE | 2 | temperature controller | CH702 |
|
8 | RE | 2 | thermocouple | EA2 | (a set) |
9 | SRM3 | 1 | Tubiform Electro-heating element | Φ20 stainless steel shell | 300W(vertical seal) |
10 | SRM5 | 1 | Tubiform Electro-heating element | Φ20 stainless steel shell | 500W(horizonal seal) |
11 | D |
| motor | 220V/0.75KW |
|
12 | Q | 1 | Electricity-leakage protector | 32 |
|
13 | Stainless Steel Frame | SS304 | |||

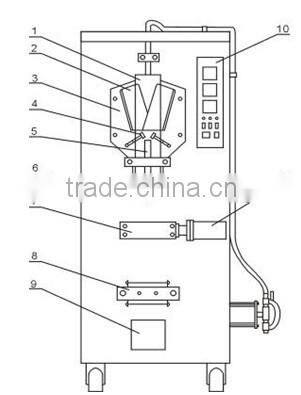

1. | shaper mid board | 7. | bag drawing device |
2. | shaper foldout | 8. | hot sealing and cutting device |
3. | shaper under board | 9. | production exit |
4. | bag pressing wheel | 10. | instrument plate |
5. | hot sealing | 11. | electric motor |
6. | filling tube |
|
|

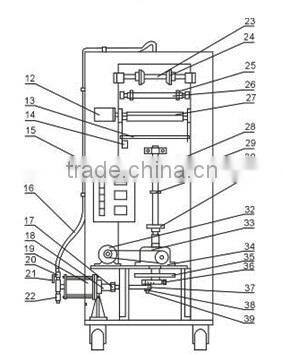

12. | electric motor | 26. | rolling shaft1 |
13. | control column | 27. | rolling shaft2 |
14. | proximity switch | 28. | sealing cam |
15. | electric switchboard | 29. | dispensatory shaft |
16. | filling tube | 30. | signal cam |
17. | fixed nut | 31. | pulling cam |
18. | bar cover | 32. | main electric motor |
19. | metering pump | 33. | a type 864 strap |
20. | T-Cock 1 | 34. | reduction box |
21. | T-Cock 2 | 35. | transverse sealing cam |
22. | hand shank | 36. | adjective nut |
23. | support shaft | 37. | bar |
24. | adjustable stand | 38. | fixed nut |
25. | retaining ring | 39. | drive rod |
Terms & Conditions:
Payment: T/T 30% in advance, balance paid before shipment, video inspection or person inspection before shipment
Delivery: 25-30 days after receiving the deposit.
Packing: wooden case
Validity: 1year
Sales After Service:
Guaranty: One Year
One set of consumable accessories will be provided with the machine.
Before delivery, we will adjust the machine to fit for your product.
Any question, you can mail/call us at any time. And our most experienced engineers is assigned to give consulting service, and always available for dispatching abroad.
All spare parts are always available for delivery.
Manual is in English.
Installation/ Training:
The installation can be provided by the MIC Company. It must be after shipment and machine has arrived and factory must be ready equipped with all necessary requirements before booking installation with MIC Company. Our engineers will come to the site for the complete and final installation. During the installation session, a one day training course will be provided to the customer to the customer for operation and maintenance procedure. The purchase at US$70/person/day plus all local transportation, accommodation, air tickets (round trip). Day charges include travel day.
Thank you for attention.
Our factory is located in Changzhou near Tai Lake. 500 meters away from Wuxi, the location is beautiful and transportation convenient. We are specialized in designing and manufacturing of art equipments for pharmaceutical medicine, food, biology, chemical and petroleum industries.
Focused on technology and quality, we always dedicate ourselves to providing reliable high efficient products to our clients. Machines such as emulsification machines, paste machines, mixers, capsule filling machines, pressing machines, the grinder, the sealing machines etc., all have an attractive appearance and innovative technology.
We promise to serve the best as we can.
