Embedded Pole Units for Vacuum Circuit Breaker
US$ 500.00 - 500.00
MOQ: 6 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Model Number:
GFZ03-12
Type:
Vacuum
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12kV ZN63-12(VSM) Vacuum Interrupter Embedded Poles for VCBUS$ 300 - 500MOQ: 10 Pieces -
GFZ02-12 Vacuum Interrupter Housing of 1250-1600AUS$ 300 - 500MOQ: 10 Pieces
-
GFZ03-12 Vacuum Interrupter Cover of 2000AUS$ 300 - 500MOQ: 10 Pieces
-
12kV 275mm Poles Distance Vacuum Interrupter Embedded PolesUS$ 350 - 600MOQ: 3 Pieces
-
Capacitive Voltage IndicatorNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Model Number
GFZ03-12
Type
Vacuum
Poles Number
2
Model No.: GFZ03-12;
Rated Voltage: 12kV;
Rated Current: 2000A;
Rated Short-time Withstand Current: 40kA;
Lighting Impulse Withstand Voltage:75kV;
Power Frequency Withstand Voltage: 42kV/1min;
Pole Distance: 310mm;
Arc Extinction Method: Vacuum;
Partial Discharge Value: less than 5 pc;
Material: Vacuum Interrupters Casted by Epoxy Resin;

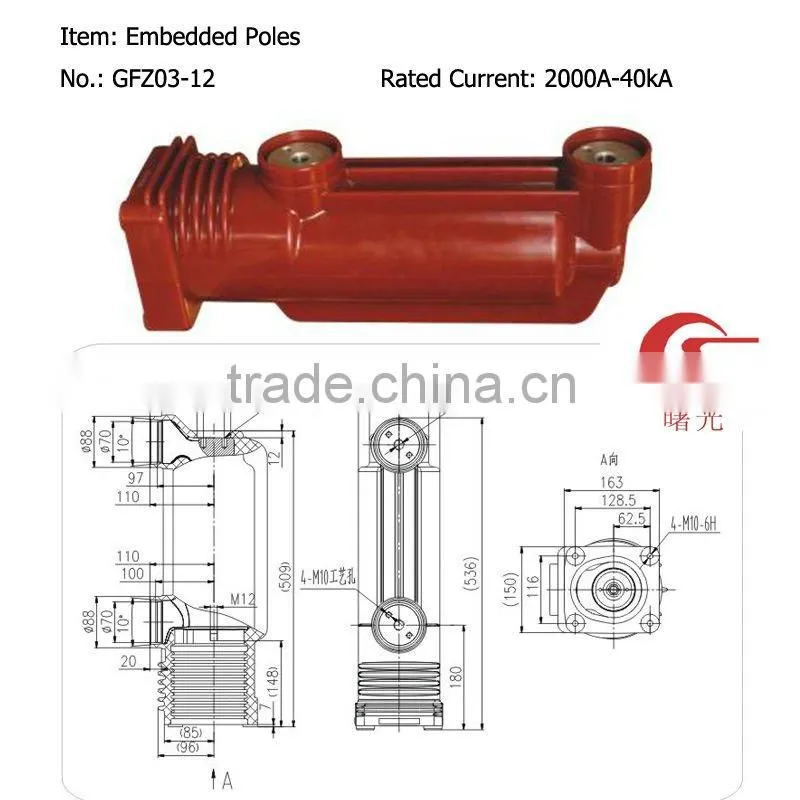

Product Drawing is shown as below:
Note:
The products shown on this website are not complete, and if you require products of other specification, please contact for more choice.
