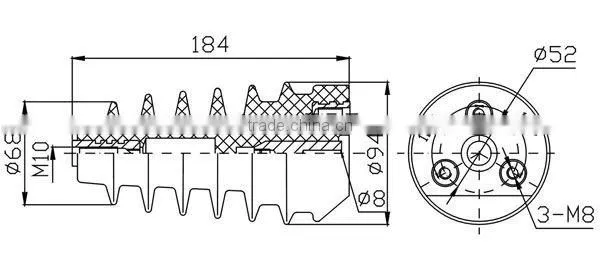

Help CenterVoltage Divider Post Insulators for Schneider Switchgear
Related Products
-
12kV Voltage Divider Post InsulatorsNegotiableMOQ: 3 Pieces -
CG10-131 Epoxy Insulator for Middle Voltage SwitchgearUS$ 1 - 100MOQ: 100 Pieces
-
CG10-105 Capacitive Cast Epoxy Insulator for Middle Voltage SwitchgearUS$ 1 - 100MOQ: 100 Pieces
-
24kV Voltage Divider Post InsulatorsNegotiableMOQ: 3 Pieces
-
Capacitive InsulatorUS$ 5 - 10MOQ: 500 Pieces
Specifications
Designed for testing capacitive voltage testing systems from 6.6kV to 33kV.Application
Indoor voltage divider post insulators are used as the high voltage capacitance for the voltage divider of capacitance-coupled voltage indicating systems. The connection dimensions and heights of the indoor voltage divider post insulators are the same as those for standard post insulators. They are suitable for temperatures from -25°c to +90°c
Construction
Indoor voltage divider post insulators are cast of epoxy resin. The main dimensions and mechanical requirements are in accordance with DIN 48136.
Tests
In addition to the tests applied to the standard post insulators according to VDE 0441 part 3 resp. (1984), IEC 60660 - 1999, following routine tests are performed:
1.Test with rated power frequency withstand voltage (dry)
2.Partial discharge extinction voltage test
3.Capacitance test.
