Specifications
1. Material: PVC2. Chips: EM4100
3. card type:thin card,blank card
4. smart thin card with good price
Product Name: 125khz low frequency smart key cards for RFID access control(EM4100)
Product Model: EM4100
Product Group: RFID Smart card
Proximity Card, 125kHz RFID card, PVC contactless smart thin card, 16 years experience
We could supply blank RFID cards and pre-printed RFID cards, according to customers' needs.
Functional Description General The EM4100 is supplied by means of an electromagnetic field induced on the attached coil. The AC voltage is rectified in order to provide a DC internal supply voltage. When the last bit is sent, the chip will continue with the first bit until the power goes off. Full Wave Rectifier The AC input induced in the external coil by an incident magnetic field is rectified by a Graetz bridge. The bridge will limit the internal DC voltage to avoid malfunction in strong fields. Clock Extractor One of the coil terminals (COIL1) is used to generate the master clock for the logic function. The output of the clock extractor drives a sequencer. Sequencer The sequencer provides all necessary signals to address the memory array and to encode the serial data out. Three mask programmed encoding versions of logic are available. These three encoding types are Manchester, biphase and PSK. The bit rate for the first and the second type can be 64 or 32 periods of the field frequency. For the PSK version, the bit rate is 16. The sequencer receives its clock from the COIL1 clock extractor and generates every internal signal controlling the memory and the data encoder logic.
Features
64 bit memory array laser programmable
Several options of data rate and coding available
On chip resonance capacitor
On chip supply buffer capacitor
On chip voltage limiter
Full wave rectifier on chip
Large modulation depth due to a low impedance
modulation device
Operating frequency 100 - 150 kHz
Very small chip size convenient for implantation
Very low power consumption
Applications
Logistics automation
Anticounterfeiting
Access control
Industrial transponder
Key Features of RFI Contactless Smart Thin Cards:
Dimensions: CR80 85.60 X 53.98mm
Thickness:0.8mm, customization
Material:PVC/PET/PETG/ABS/Paper
Card Surface:Matt/ glossy finish
Housing:Lamination
Working Frequency:125kHz, 13.56MHz, 868-915MHz
Chips Option:125kHz EM4100/EM4305, TK4100, T5577, Hitag, etc
13.56MHz Mifare 1K/Mifare 4K/Mifare Ultralight/Mifare Desfire, I CODE SLI, Ti2048, etc
Reading Distance:6cm-10cm; UHF 5m-8m
Data storage time:10 years
EM4100 125khz rfid card :

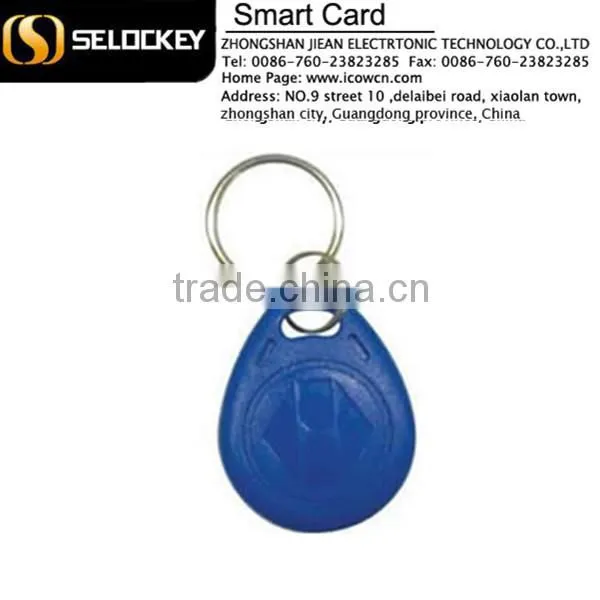

125khz rfid card key:
Package:neutral packing,100pcs/bag,5000pcs/ctn,25kg.
Delivery: 1-7 working days
ZHONGSHAN JIEAN ELECTRONIC TECHNOLOGY CO.,LTD (SELOCKEY®)
was set up in 2000 in Guangdong province. From now on, SELOCKEY® has gained a vast development with its powerful technology and business trade. With its humanistic management, SELOCKEY® is trying to create a comfortable working environment, which provides a platform for every staff to develop themselves and grow up together. Due to its humanism, our company tries to make sure that our product can meet customers' need and be more satisfied with our service. Our tenet is "The Best Quality, The Best Process".
SELOCKEY® is a R&D MANUFACTURER, specializing in TM/IC/ID card (such as contact card, electronic keys, and touch memory keys) EM4100,T5577,T5567,T5557 smart cards, and electronic cabinet locks, electronic door locks, magnetic locks, access control system and related products. Major products gained high reputation in Russia, South America, and Western Europe. And we are devoted ourselves to offering high-quality product and best service for you.
Welcome to send us an inquiry, We will reply to you within three working hours!
