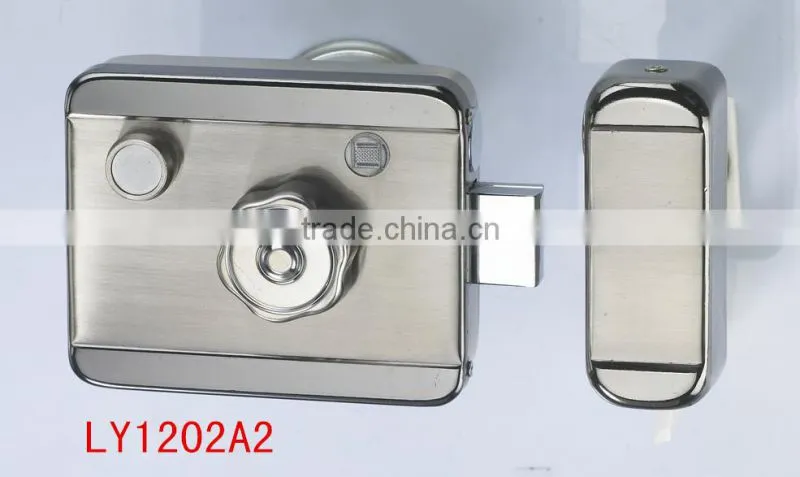

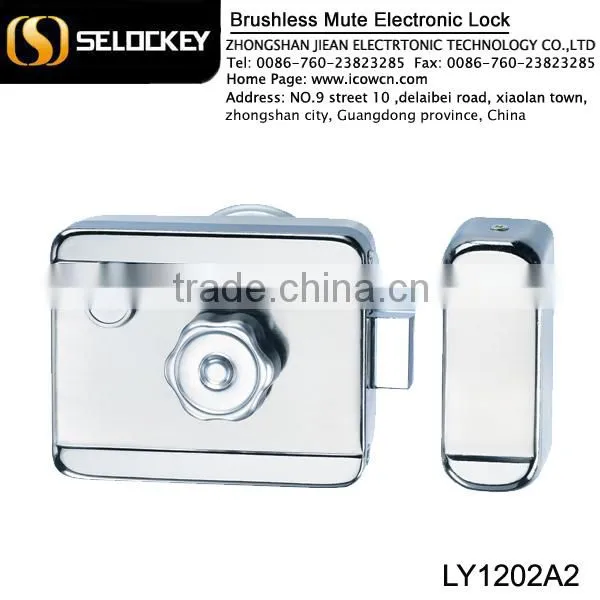

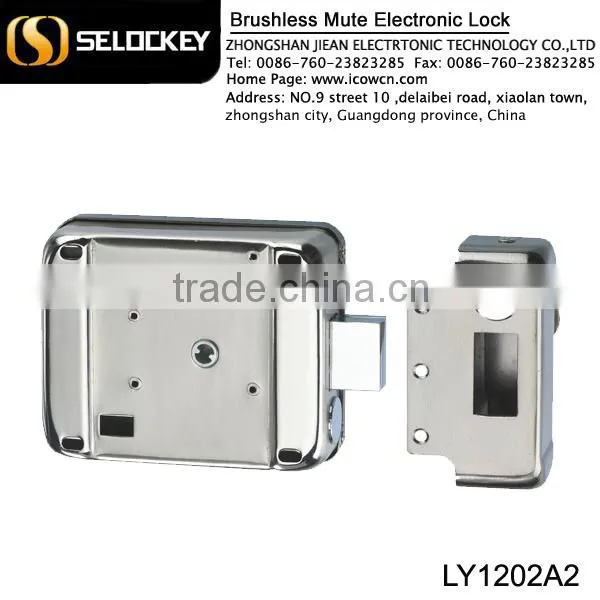

LY1202A2 is a new generation product from ZHONGSHAN JIEAN ELECTRONIC TECHNOLOGY CO.LTD, which has induction system and lock automatically. It would also work with entrance guard system.
| PRODUCT DATA |
| Name | Silent Electric Lock |
| Model | LY1202A2 |
| Material | Iron With Electroplate |
| Lock Body Size | 130*106*39mm |
| Lock Latch Size | 30*15*22mm |
| Latch Type | Square Latch 20mm Thickness |
| Door Thickness | <90mm |
| Workind Voltage | DC12V |
| Battery Voltage | 6V |
| Lock Resistance | <6Ω |
| Working Temperature | -40℃~70℃ |
| Weight | 1.4KG/Set |
| Unlock Mode | Mechanical Key(Outside), Knob(Inside) |
| Applications | Outside Door, Iron Door, Stainless Steel Door, Normal Door. |
| Warranty Period | 1 Year |
Product Features :
* Automatic locking,the closing process with the lock bolt no contact, no impact, no noise;
* locks work of the state to be automatic sound and light hint, warning; Lock or unlock no
mistake after turnover, 5 seconds back door will automatically lock, ensure safety;
* Built-in backup power supply, power without external power supply is normal, automatic transfer pulse, until the door lock locks prison so far;
* Lock body material: stainless steel wire drawing, thickness 2.0 mm, metal gear, durable and beautiful;
* Lock out tongue length is equal to or greater than 20 mm, accord with the ministry of public security of GA/T73-94-5.1.6 grade B standard.
Installation Intrutions:
* Note : The lock couldn't be welded, or install in fire door.

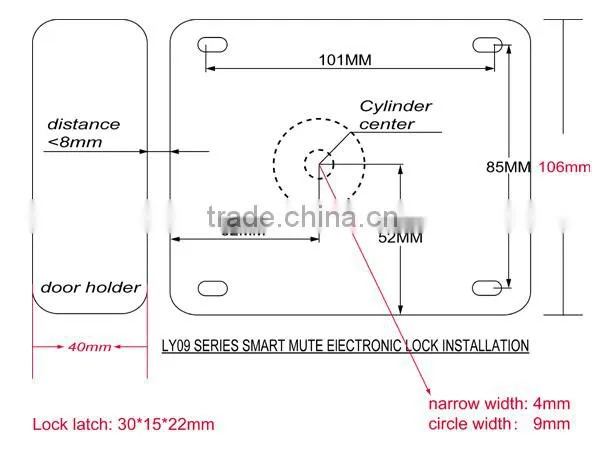

1. Punch hole :
* About 1m height from floor, 52mm to the edge of door frame,punch a diameter 28.5 +0.6 hole for lock cylinder.

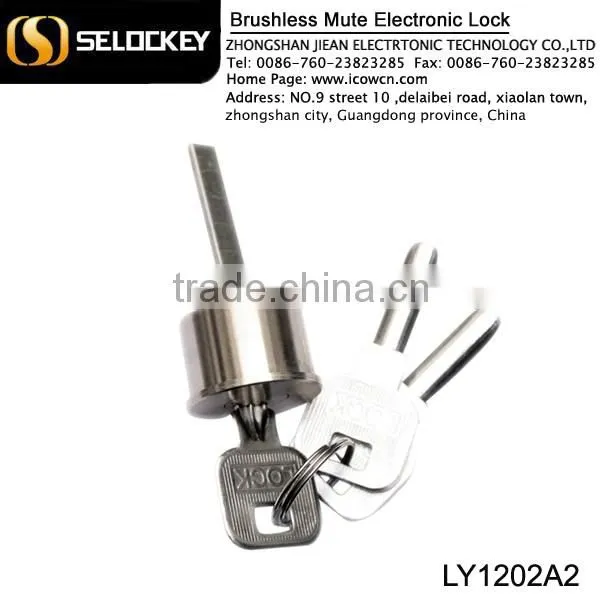

2. Install lock cylinder :
* Imitate to plug the cylinder with master ring into the door,and make suer keep cylinder tail horizontal while insertinginto the lock hole. Make sure the door thickness is no less than 30mm.
* Pay attention to the length of cylinder tail,if it is more than 10-15mm measured from the door, should be cut to meet the right size.
* If the above a,b steps are OK,screwed,and the screw depth to the cylinder is 8~14mm.
3. Install lock body :
* Unfold the back cover of lock body (screws are on the side of the latch).
* The power and unlock line into the the line hole about 10CM.
* The locks simulation on bit lock shaft hole trying position, alignment lock plug tail, insert the appropriate bit.
* Screw on the main lock body 4 fastening screws that screw into the side of the appropriate turn key, flexible premise fastening screws rotating in the key.
* Test the key to unlocking the the tongue should telescopic flexible (latch key in any position can be inserted into the lock hole and rotating flexible reset normal set aside)
4.Connect the power wire :
* Refer to the below diagram of circuit board, connect the positive and negative wire.
* If connected with a external unlock signal,connect the external door signal + and external door signal.
5. Install lock cover :
* Cover and lock body slightly tilted the cover positioning embedded in the main lock body first, relatively tank rotation proper position, so that the the fork long-hole sets Rod Pin, adjustment cover parallel bit fitted cover fixed screws.
* Rotary knob should be flexible.
6. mount lock catch :
* Imitate to install the lock catch,make sure the space between the lock latch and lock catch hole is OK,and draw the outline of lock catch.
* Unscrewed the support and install on the door according to the draw and centering;then screw the lock catch.
Packaging Parts :
* Electronic swipe key lock keys :
Packaging :
* Neutral packing or color box packing ;
* Carton box with tape, 12PCS/CNTS ;
* GW: 19KG, 350*260*240MM, 0.022CBM.
Delivery :
* Sample : 1~3days
* Order: : 3~10days
Cooperation Company:
Zhongshan JIEAN Electronic Technology Co., Limited was set up in 2000. We mainly produce TM1990A (such as information card, electronic keys, and touch memory keys) EM4100,T5577,T5567,T5557 smart cards, and electronic cabinet locks, electronic door locks,magnetic locks,access control system and related products.
Thanks for your view, need more information about electronic swipe key card door lock,please send us an inquiry.
