Specifications
nnect with RS485 line.2.only need one front panel keypad,can control up to 90 lock bodies.
3.greatly cut down cost!
Product Name: electronic group cabinet lock network solution for menorial park etc.

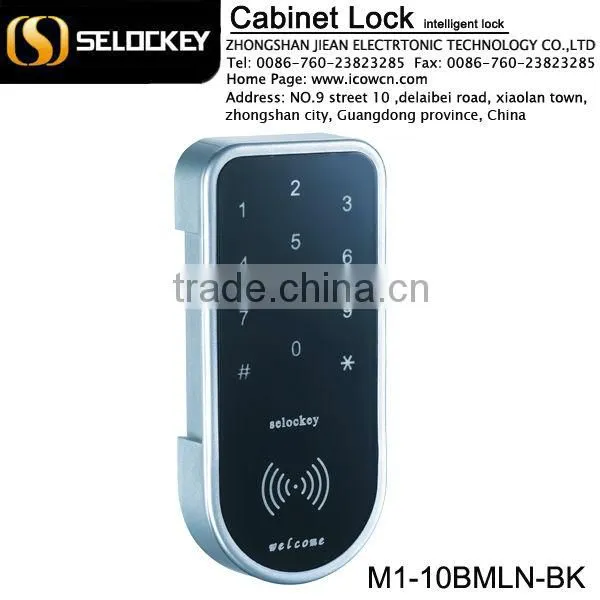

Product Model: M1-10BMLN-BK
Product Group: cabinet lock network system solution
Video to show about the software : /programs/view/TISqu6HavOQ/
II. choose working way(press the black button in the back of back lock body)
1. First working mode: press the button,buzzer rings one sound means single card unlock and auto-lock.
(After initialize the lock,it is the default working mode.)
2. Second working mode: press the button again,,buzzer rings two sounds means single card unlock & lock,and you
must swipe the guest card to lock.
3. Third working mode: press the button again,buzzer rings three sounds means double cards unlock and auto-lock.
4. Forth working mode: press the button again,buzzer rings four sounds means double cards unlock & lock.you must swipe the service card and guest card to unlock and swipe service card or guest card to lock.
5. Fifth working mode : press the button again ,buzzer rings five sounds means enter use the one time card model , the card let the lock recognize ,and the card can open the door one time . Other card can’t open about it . Must use the recognize card to open it .
Features:
1. The RS485 communications method: Management computer to the controller use RS485 protocol, and the controller to the electronic lock adopted RS485 communications method
2. Real-time communicated with the management computer, the cabinet 's open time and the close time can be record in the computer.
3. Any abnormal condition (unlocking, break in, etc) happed, the management company can received the warning info immediately, and the Securities Custody Clerk or staffs can take the quick action.
4. Most of the working can been operated by the management software or keypad. For example: Authorize or log-out the card, inquiry the switch status and the unlocking record, remote control unlock or locking the doors or cabinet. The operation is simple and easy.
5. Once the fault or communication outage happened, the management computer will received the warning information message immediately, so that the Hotel Engineer Department can send the staff to check and settle the problems in time. It help the hotel find the problem before guest use/find it. It will remind which kind of the broken way it is: Like card invade, key broken, physical disruption.
6. The door lock can been supply power by battery or 6V DC(canbinet lock body) and LY09 series 12VDC.
7. Greatly reduce workload. Decrease the staffs and cost. (just use one keypad or software can control so many cabinets in the same time. Not need to buy some many keypads. )
8. The management computer can initialize /setting the door locks directly
9. Three kind types normal open door method: Unlock the door by RF card, unlock the door by remote-control(computer network ), password.
10. Emergency unlocking method: By mechanical key, By the management computer
11. Distinctive quadrate tongue can effectively prevent mechanical collision.
Work mode:
The password mode and card mode could work independently.
Password mode: each cabinet lock can set 90 user passwords;
Card mode: total stroe 1010 M1 cards,can assign to any locks as you like.
Parameter
1. Working voltage: DC6V (4 *AA alkaline batteries or centralized power supply).
2. Working current: 200 MA-PP
3. Low voltage alarm: <4.8 V
4. Static power: 30 uA ;
5. Working temperature:-40 °C to+85 °C, humidity≤ 98%
6.Antistatic: + 15 KV
Application:
electronic group cabinet lock system solution can greatly cut down cost,and suitable for places where users are relatively fixed,such as school,mine office,hospital, memorial park,government unit,factory workshop etc.
Packing:
Neutral packing with tape.2pcs/box,80pcs/ctn, carton size 570*340*320mm,0.062CBM; GW:12kg.
Delivery:
Sample:1-3 days
Order:3-10 days
delivery by DHL,UPS,FEDEX,or by air,or by sea.
