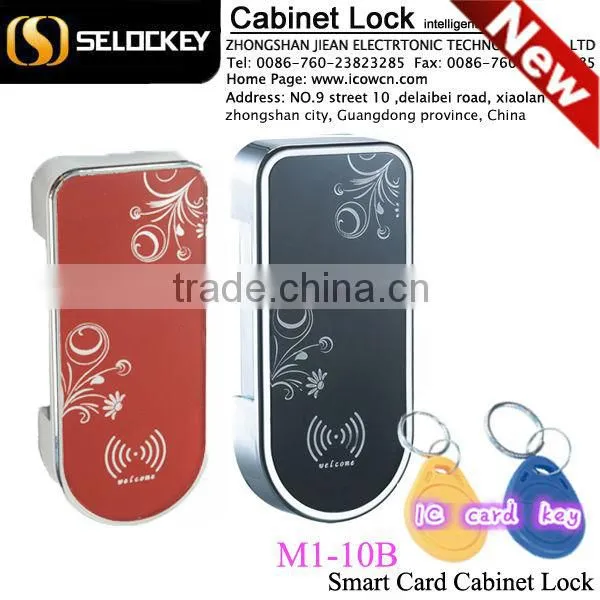

Electronic cabinet lock,swipe card and code cabinet locks (M1-10BL):
Welcome to use our digital cabinet lock! Our cabinet locks are adopted imported chips,PCB with watchdog,and manage with multi-level smart cards and passwords.The locks are suitable for places with multi-management,besides it can be managed with network system(need software),which can manage smart cards,passwords,upload data, view door-unlock records etc. in network system.
Electronic intelligent cabinet lock description:
Features:
1.easy to connet by RS485 line.
uld operate by computer in real-time and read records; can initialize/setting locks directly .
3.Most of the working can been operated by the management software or keypad. For example: Authorize or log-out the card, inquiry the switch status and the unlocking record, remote control unlock or locking the doors or cabinet. The operation is simple and easy.
4. Greatly reduce workload,staffs and cost. (just use one keypad or software can control so many cabinets in the same time)
5. Two ways to unlock: M1 card ,remote-control(computer network )
6. Emergency opening:external battery supply,management computer
Material:
lock tongue: wide and thick.
front panel: toughened safety glass,ABS plastic,alloy ,
back lock body : plastic + spraying environmental paint
Size: front panel 117 * 53 * 20mm; the lock body 125 * 65 * 25mm
Weight: 220g
Operating voltage: 6V, we can offer electricity power supply
A set: front panel + lock body with bolt + 1 pc card key + nails+instructions
Card key's functions:
1. Card type: RFID (MF1) smart card,duarable and sensitive touching.
2. Unlock ways: swipe single card or double cards or code to work.
swipe card and input code at the same time to work.
3. Set card method: users can set different cards according to needs, use System card add, delete and change Management card, Waiter card and Guest card
4. Card class: four classes - System card, Management card, Waiter card, Guest card, easy to understand and operate.
......more details in our instruction
Electronic intelligent cabinet lock technical parameters:
Operating voltage: 6 V (or 4 piece AA batteries)
Sensing distance :> 2.5 cm
Static power consumption: <4 μA
Operating: <300 mA
Alarm Voltage: <4.6 V
Emergency unlocking: linked external power supply to made it works when run out of batteries.
For agencies, businesses, schools, hotels, supermarkets, filing cabinets, lockers, sauna cabinets, bath cabinets, bank loan, safe.
Thanks for your view, need cabinet lock network solution or price please send us an inquiry.
k
other choice:
Thanks for your view, need cabinet lock network solution or price please send us an inquiry.
Operate instruction video,link (copy in your browser to see):
1.data wire go through the biggest hole,
2.install front panel.
3.install bolt holder inside the cabinet,
4.install the back lock body.
Payment:
If the total amount is less than 500USD,we prefer to accept PayPal or Western Union;for big amount we accept bank transfer.
Shipment:
Normally we will use UPS,DHL,FEDEX or EMS express.It usually takes 3-7 working
days depending on the countries deliver to. We can also arrange other shipment way
per your requirement and instrution ,such as sea shipment,air shipment ,etc.
Warranty:
Warranty for one year,maintenance forever,change within 3 months because of productquality.
