Remote Control Type Network Lock,cabinet Lock ,door Lock,filing Cabinet Lock (RS485 Type)

Specifications

 Electronic cabinet lock,swipe card and code cabinet locks (M1-10BM):

Welcome to use our digital cabinet lock! Our cabinet locks are adopted imported chips,PCB with watchdog,and manage with multi-level smart cards and passwords.The locks are suitable for places with multi-management,besides it can be managed with network system(need software),which can manage smart cards,passwords,upload data, view door-unlock records etc. in network system.

Electronic intelligent cabinet lock description:

Features:

1.easy to connet by RS485 line.

uld operate by computer in real-time and read records; can initialize/setting locks directly .
3.Most of the working can been operated by the management software or keypad. For example: Authorize or log-out the card, inquiry the switch status and the unlocking record, remote control unlock or locking the doors or cabinet. The operation is simple and easy.
4. Greatly reduce workload,staffs and cost. (just use one keypad or software can control so many cabinets in the same time)
5. Three ways to unlock: M1 card, password,remote-control(computer network )
6. Emergency opening:external battery supply,management computer

II. choose working way(press the black button in the back of back lock body)

1. First working mode: press the button,buzzer rings one sound means single card unlock and auto-lock.

  (After initialize the lock,it is the default working mode.)

2. Second working mode: press the button again,,buzzer rings two sounds means single card unlock & lock,and you must swipe the guest card to lock.

3. Third working mode: press the button again,buzzer rings three sounds means double cards unlock and auto-lock.

4. Forth working mode: press the button again,buzzer rings four sounds means double cards unlock & lock.you must swipe the service card and guest card to unlock and swipe service card or guest card to lock.

5. Fifth working mode : press the button again ,buzzer rings five sounds means enter use the one time card model , the card let the lock recognize ,and the card can open the door one time . Other card can’t open about it . Must use the recognize card to open it .

Material:

lock tongue: wide and thick.

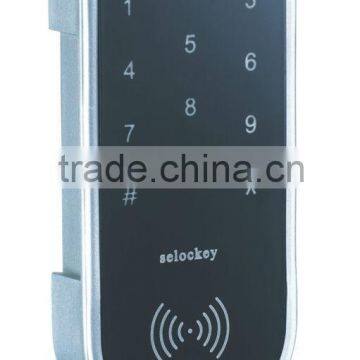

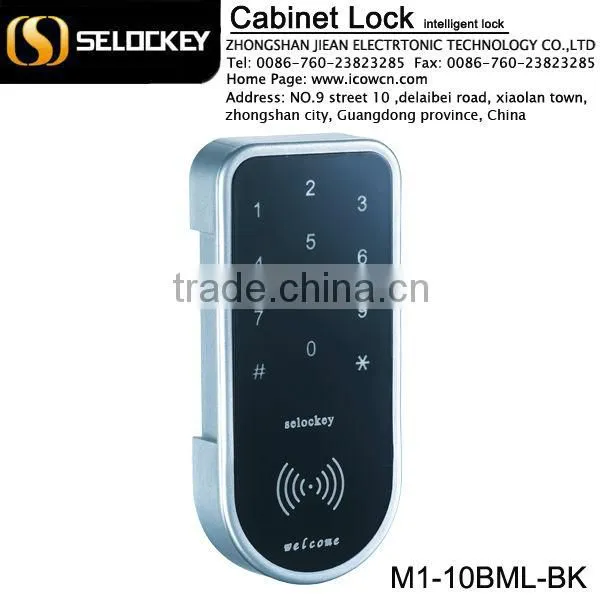

front panel: steel glass and ABS ,

silver border and steel made of glass silver diagram+Zinc alloy

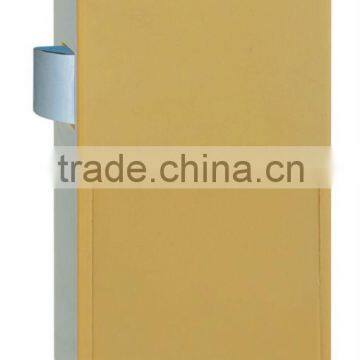

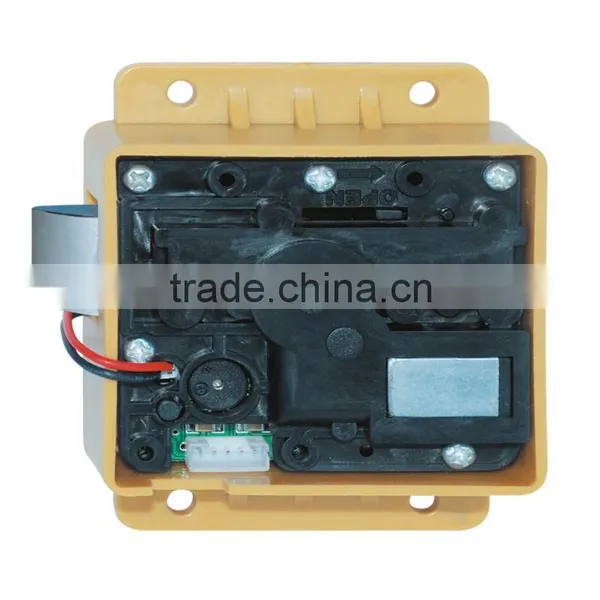

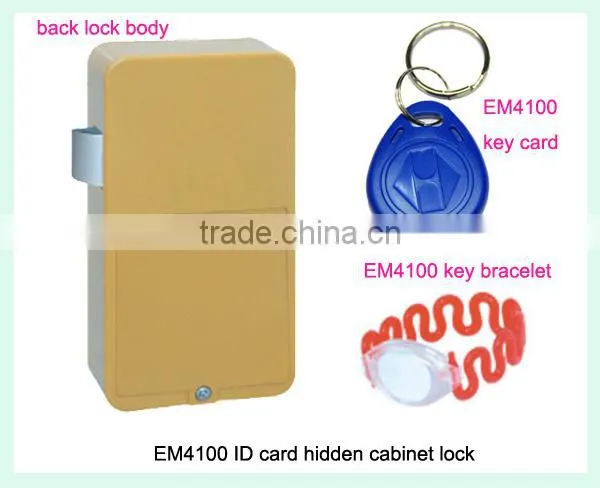

back lock body : plastic + spraying environmental paint

Size: front panel 115 * 52 * 20mm; the lock body 125 * 65 * 25mm

Weight: 220g

Operating voltage: 6V

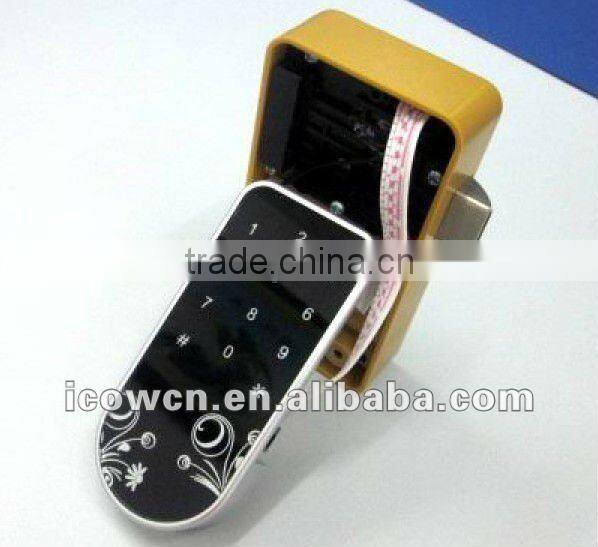

A set: front panel + lock body with bolt + 1 pc card key + nails+instructions

Card key's functions:

1. Card type: RFID (EM4100/ MF1) smart card,duarable and sensitive touching.

2. Unlock ways: swipe single card or double cards or code to work.

                         swipe card and input code at the same time to work.

3. Set card method: users can set different cards according to needs, use System card add, delete and change Management card, Waiter card and Guest card

4. Card class: four classes - System card, Management card, Waiter card, Guest card, easy to understand and operate.

 Electronic intelligent cabinet lock  technical parameters:

Operating voltage: 6 V (or 4 piece AA batteries)

Sensing distance :> 2.5 cm

Static power consumption: <4 μA

Operating: <300 mA

Alarm Voltage: <4.6 V

Emergency unlocking: linked external power supply to made it works when run out of batteries.

For agencies, businesses, schools, hotels, supermarkets, filing cabinets, lockers, sauna cabinets, bath cabinets, bank loan, safe.
Thanks for your view, need cabinet lock network solution or price please send us an inquiry.
