Home > Computer Products > Computer > Gaming Computer > 9 Inch All-in-one Open Frame Touch Pc, All in One Lcd Pc, All in One

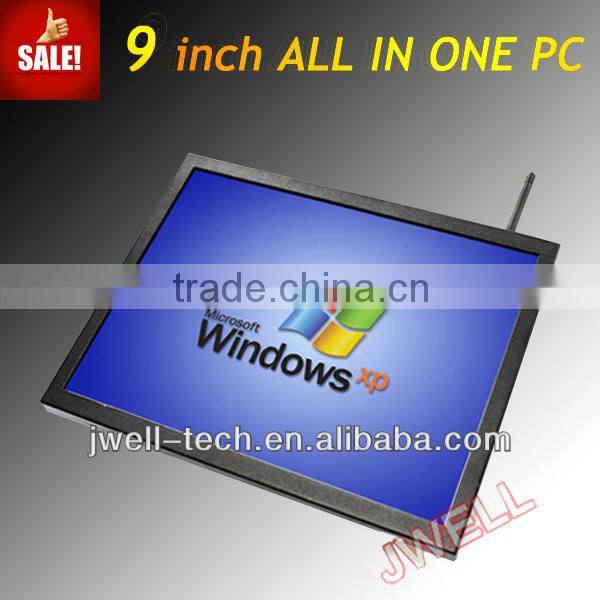

9 Inch All-in-one Open Frame Touch Pc, All in One Lcd Pc, All in One

9 Inch All-in-one Open Frame Touch Pc, All in One Lcd Pc, All in One thumbnail-1
9 Inch All-in-one Open Frame Touch Pc, All in One Lcd Pc, All in One photo-1
US$ 699 - 850 MOQ: 500 Sets
Key Specifications
Get Latest Price
Products Status:
Stock
Type:
All-In-One
Screen Size:
Other, 9 inch
Contact Supplier Request Quote Chat Now
Shenzhen J-Well Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Type All-In-One
Screen Size Other, 9 inch
Processor Brand Intel
Memory Capacity Other, ≥ 4GB
Hard Drive Capacity 500GB
Graphics Card Type Integrated Card
Display Type LCD
Widescreen No
Optical Drive Type Other
Processor Main Frequency D525 1.8GHz dual core
Brand Name Jwell
Model Number JW-988PC
Place of Origin Guangdong, China

Specifications

9 inch all-in-one open frame touch pc
1.OEM available
2.CE FCC RoHS
3.18 months warranty



Product Description





Quick Details

  • Products Status: Stock
  • Type: All-In-One
  • Screen Size: 9"
  • Processor Brand: Intel
  • Memory Capacity: 4G
  • Hard Drive Capacity: 500GB
  • Graphics Card Type: Integrated Card
  • Display Type: LCD
  • Widescreen: No
  • Processor Main Frequency: D525 1.8GHz dual core
  • Brand Name: JWELL
  • Model Number: JW-988PC
  • Place of Origin: Guangdong, China (Mainland)
  • Screen size: 9"
  • Resolution: 1280X800 ( 1920 x 1200 optional )
  • Brightness: 400cd/m2
  • Contrast: 700:1
  • Built-in W-Lan Antenna: 802.11b/g/n ( optioal )
  • Independent graphics: NVIDIA ION2
  • Photo quality: Support 1080P
  • View angle: Full view angle
  • Color: Black, Silver

Packaging & Delivery

Packaging Details:1pc/ctn
Delivery Detail:3days

Specifications



9 inch china all in one pc wholesaler
1280*800/1920*1200 700:1 400cd/m2
Inter D525 Dual core NVIDIA ION2 1080P

9 inch china all in one pc wholesaler, industrial pc

Iron/Aluminum All In One PC with LCD screen

Super slim Tablet fashion design

High quality industrial grade

Support DVI/VGA,HDMI,S/PDIF,double-channel LVDS interface,

Double-groove DDR3 memory

Maximum memory capacity support 4GB

9 inch all-in-one open frame touch pc, all in one lcd pc, all in one9 inch all-in-one open frame touch pc, all in one lcd pc, all in one



Model:

JW-988PC

Name:

9 Inch Fanless Ultra slim all-in-one open frame touch pc

Description

Fanless Ultra slim Panel PC

Monitor size

9"   LED 4:3

Touch typ

4 –wires resistive touch

Surface hardness

3H

Transmittance

≥80%

Sensitive

< 10ms

Resolution

1280× 800 ( 1920X1200 optional )

Brightness

400cd/m2(Typ)

Contrast

  700:1

LCD color

16.7M colors

Pixel Pitch

0.264 x 0.264

Life time

Single-point 10000,000 times , Draw lines 100,000 times

Operating temperature

-20°C~60°C

Storage temperature

-30°C~80°C

Working Humidity

5%—95%,40°C,Non –condensing

Vibration

5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

SBC Model

ALL IN ONE special & professional SBC

CPU

On board Intel® Atom D525 1.8GHz dual core

BIOS

Award BIOS 4/8Mbit SPI Flash ROM

Chipset

Intel NM10 Express Chipset

Memory

2×204-pin DDR3 DIMM up to 4GB

Graphics

Independent Graphics NVIDIA ION2 and support 1080p HD photo quality

Audio Card

Realtek ALC662 high Definition audio codec

Network

2×Realtek RTL 8111E Gigabit Ethernet controller,(Wireless Wifi)

I/O

4×USB 2×COM 1×VGA/LAN/HDMI/Audio OUT/MIC IN/S/PDIF/POWER DC

Hardisk interface

2.5”SATA (SSD optional )

Watchdog

Support system reset grade   0~255

Power supply

DC 12V input

Operating temperature

-20°C~60°C

Storage temperature

-30°C~80°C

Working Humidity

5%—95%,40°C,Non –condensing

Vibration

5-100Hz,Sine wave,11.76m/S2,1minute X,Y,Z directions,10 times / direction

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case

Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways

Rackmount , Embeded , wall mount ,VESA bracket

Shock

294m/S2 11ms ,half-sine wave,±X,±Y,±Z directions,3times /direction

Case

Metalcase , shockproof , anti-interference , metal shell(paint))

Installation ways

Rackmount , Embeded , wall mount ,VESA bracket

















Features

a.  Standard with Intel® AtomTM   Dual-core processor.

b.  High brightness ,Full view angle IPS TFT panel .

c. Multi-directional heat- releasing structure .

d  Built-in W-Lan Antenna(802.11b/g/n) .

e. Ultra slim metal design , beautiful ,durable and rugged.

f.  Independent graphics NVIDIA ION2 and support 1080p HD photo quality .



Connector port:

1 X VGA

1 X HDMI

1 X Gigabit LAN

4 X USB

1 X Audio Out

1 X MIC IN

1 X S/PDIF

1 X COM

1 X POWER DC IN



Compatible Operating System :

Windows XP Embedded

Windows CE

Linux



Optional Display size:

7 inch, 8inch, 9 inch, 10 inch, 12.1 inch,  15 inch, 17 inch, 22 inch



***Simialr Models for touch screen monitor



Please click here to link in TOUCH SCREEN MONTOR





Our Services

1. Quick and accurate reply with best service attidue to our business

2. Pofessional advise

3. Quick PI confimation

4. Close production follow up and production process feedback

5. Safe package

6. Get feekback from your side when items arrived,

7. 12 months warranty for items

9 inch all-in-one open frame touch pc, all in one lcd pc, all in one





FAQ

Q: What kind of inspection you can provide?

A: JWELL has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representatives, to guarantee all foldable monitor are in perfect condition before shipment. We also accept the inspection by the third party you appointed.



Q: What is your guarantee period?

A: JWELL provides 12 months' quality guarantee for foldable monitor from your purchase date, except the human damaged and force majeure factor. For a better maintenance, be sure that foldable monitor are using under normal circumstances (not more than 16 hours daily). Beyond the guarantee period machine, JWELL will provide maintenance service and technical support (Hardware and other possible charges, JWELL will not bear the responsibility)



Q: How can I pay for the order?

A: Our payment terms: T/T, Western Union, Paypal, Escrow, Credit card

1) For sample order: 100% T/T or Western Union in advance, Paypal or Escrow is also acceptable.

2) For bulk order: 30%deposit T/T in advance, balance clear before pick up or shipment.
