MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling Capping Labeling Machine

MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling Capping Labeling Machine photo-1
MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling Capping Labeling Machine photo-2

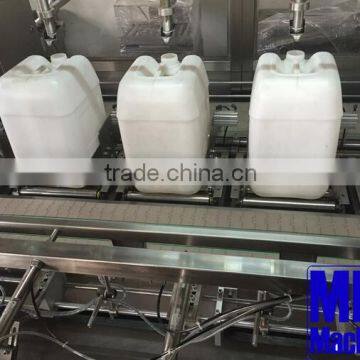

MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling Capping Labeling Machine photo-3
MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling Capping Labeling Machine photo-4
MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling Capping Labeling Machine photo-5
US$ 11,000 - 19,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Barrel, Bottles, Cans
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Chemical, Commodity, Food, Other, Medical, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Barrel, Bottles, Cans
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 380V
Power 3KW
Place of Origin Jiangsu, China
Brand Name MIC
Model Number MIC-ZF4, MIC- ZF4
Dimension(L*W*H) 2500mm * 1600mm* 2500mm
Weight 800kg
Certification CE Certificate
After-sales Service Provided Engineers available to service machinery overseas
Product Description

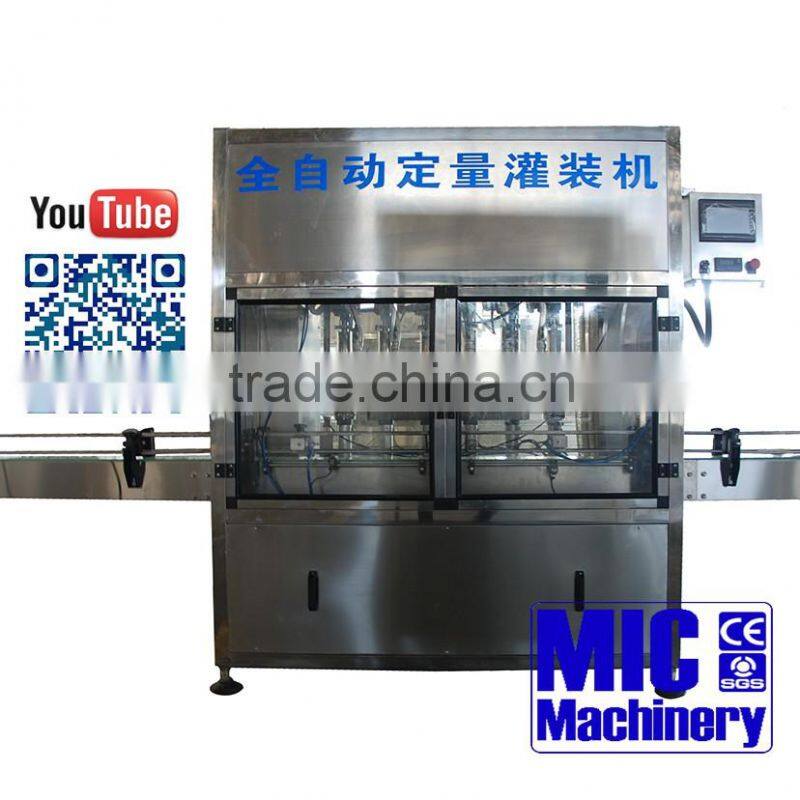

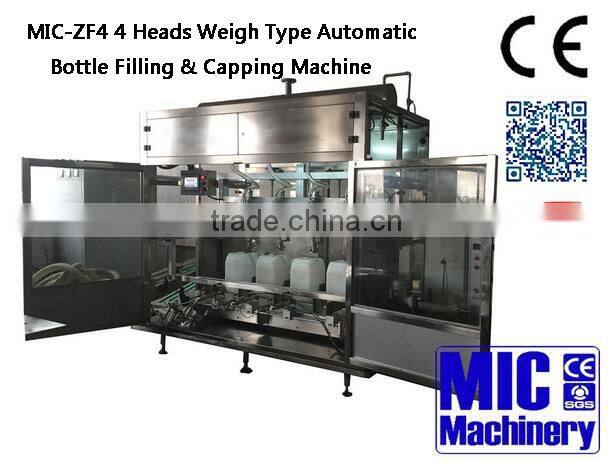

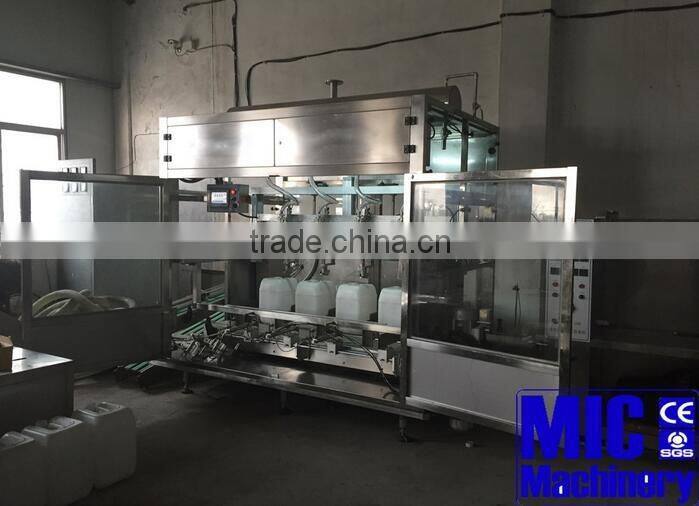

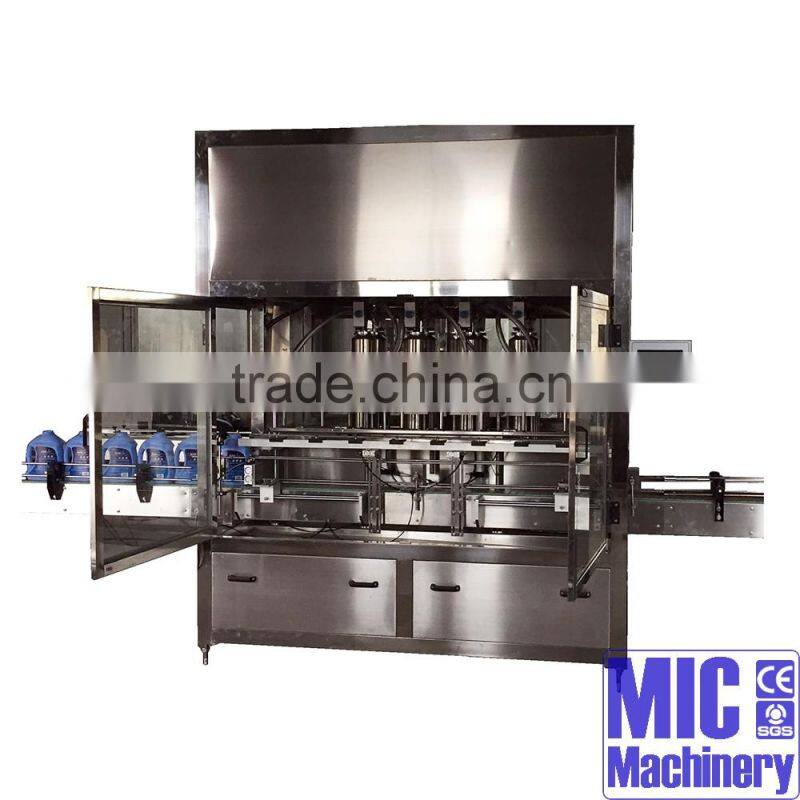

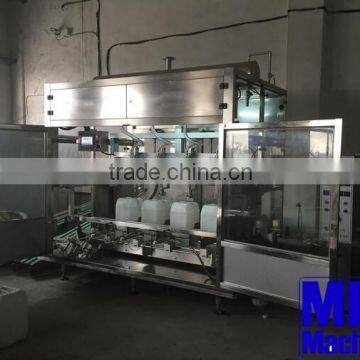

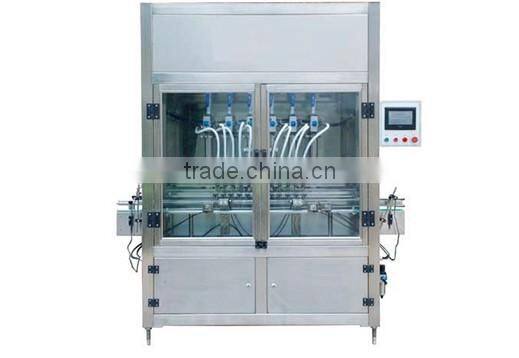

MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling & Capping Machine

This MIC-ZF4 Weighing Type Automatic Bottle Filling Machine has 4 filling nozzles. Materials such as oil, shampoo, lotion, purified water and beverage, etc., are all applicable. And the Automatic Capping Machine belongs to this linear electromechanical integration of machinery. It is widely used in beverage, food, medical, machinery & hardware industry. This linear machine has been exported up to 20 countries.

Main Features

1) Simple structure in linear type ,easy in installation and maintation

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts

3) Running in a high automatization and intellectualization,no pollution

4) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine

5) PLC control combine with weight system
6) Adopt large flow quality to control to reach approaching numerical

7) Small flow remaining quality, don't waste material

8) Filling volume range adjust between 5L-25L

9) Meet GMP standard

SPECIFICATIONS FOR MIC-ZF4 4 Heads Weighing Type Automatic Bottle Filling Machine
Filling Head
4 Heads
Dimension
2500*2450*2500mm
Filling Volume
5-25L
Conveyor Height
750±20mm
Filling Type
Plug filling type
Conveyor Length
3.5m
Filling Speed
≤220 barrels/h (base on 25L barrel)
Belt
3m steel chain, (steel piece)
Filling Accuracy
±1%
Suitable Dia. of the Barrel
120-250mm
Weight
800KG
Suitable Height of the Barrel
280-450mm
Air Pressure
0.5-0.8Mpa
Suitable Length of the Barrel
80-300mm
Certifications
Detailed Images

Machine Parts

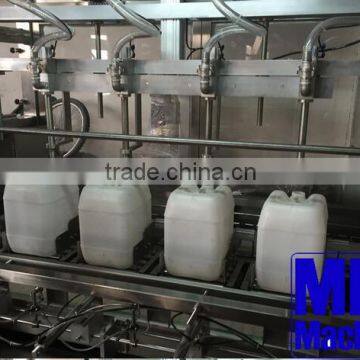

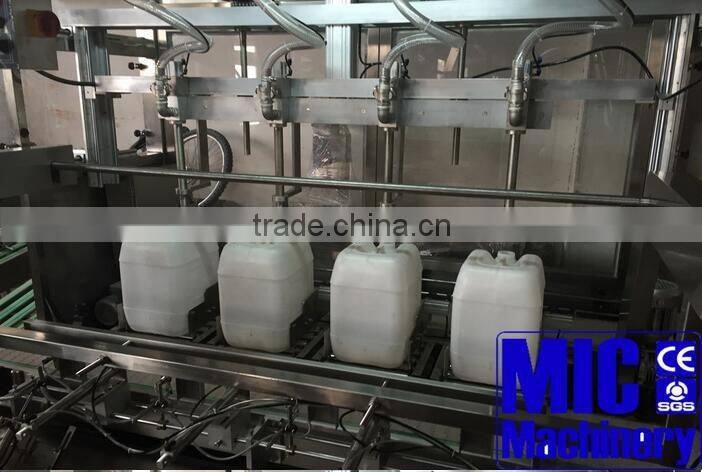

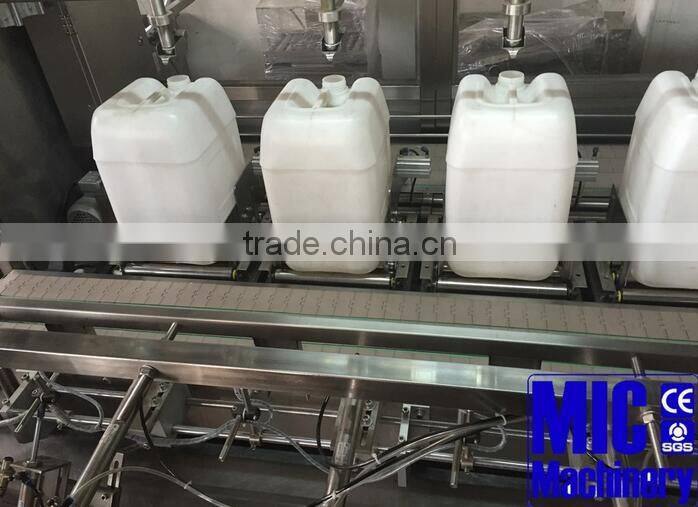

Name: Filling Head

Brand: Micmachinery

Original: China

Every filling head has anti-drip design to promise not to waste the material.

Diameter of filling head is based on the diameter of customer’s barrel’s mouth.

Machine Parts

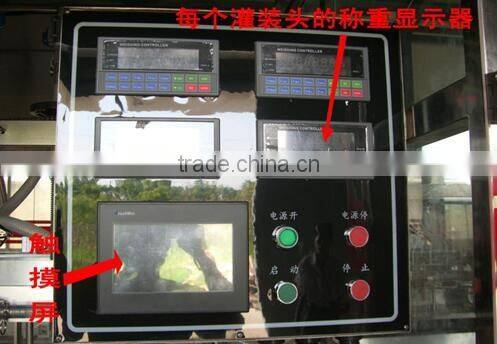

Name: Weighing Monitor and Touch Screen
Brand: Siemens
Original: Japan
There are have four weighing monitors. Every filling head filling volume number will show in the weighting monitors. And worker can count and set the filling volume in the PLC control panel directly.

More Pictures

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2500*2450*2500mm
Weight
800KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
