Specifications
1.99.9% pure Aluminum Foil2. Reflect 97% of heat radiation
3.Non-toxic&Non-carcinogenic
4.Durable and lightweight
Taiyue Single Bubble Reflective Foil Insulation Material Supplier
Description:
Bubble Reflective Insulation Material consists of one or two layers of polyethylene bubbles that are sandwiched between layers of 99.9% pure aluminum radiant barrier foil. The bubble layers creates maximum R-value and vapor barrier. The reflective foil on both sides allow it to reflect 97% of radiant heat.
Benefits:
1.99.9% pure aluminum foil
2.High reflectivity
3.Low emissivity
4.Highly durable, hail resistant with anti-tear surface
5.Fiber-free, clean and safe, non irritant insulation
6.Insulation that acts as a water barrier, 100% water proof
7.Safe to handle with no special clothing
8.Quick and easy to install, lightweight and flexible
9.Anti-fungal and anti-bacterial
10. Resist rodent and insect nesting
11.Easily stapled, nailed or glued into place
Working Principle:
Application:
1.Roof, Wall, and Floor
2.Shells of air conditioner and water heater
3.Protective coatings of water pipe and ventilating pipe
4.Metal and Steel Buildings
5.Cathedral ceilings
6.Basement walls
7.Crawl spaces
8. Floor carpets
Technical Data:
Material Structure |
AL + Bubble + AL |
Bubble Diameter |
6mm, 9mm(Common),10mm(Common),12mm,15mm, 20mm,25mm,30mm |
Bubble Height |
3mm, 4mm, 6mm, 8mm, 10mm |
Size/Roll |
Normal size: 1.2m*40m. Max width is 2m,length can be customized |
Reflectivity |
95%-97% of radiant heat |
|
Water Vapor Transmission |
0.012G/M2KPA |
Thermal Conductivity |
0.03 or 0.05 |
Apparent Density |
54.8KG/M2 |
Weight |
230G/M2 |
Tensile Strength(MD) |
13.43Mpa |
Tensile Strength(TD) |
14.58Mpa |
Corrosion |
Doesn’t generate |

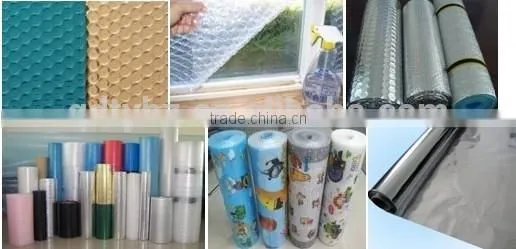

Other Material Structures from Taiyue:
Foil/ Bubble/ Bubble/ Foil
Foil/ EPE/ Foil
Foil/ EPE/ Bubble/ Foil
Foil/ XPE/ Foil
Foil/ XPE/ Peel &Stick
Foil/Woven/Bubble/Foil
Coating/ Woven/ Foil/ Bubble/ Foil
Single bubble, multiple bubble and fire retardant bubble are available.
Surface treatment can be pure aluminum or aluminum metallic film.
An anti-glare, anti-oxidant and anti-corrosion protective coating membrane is available.
Contact Us
If you are interested in our products, please feel free to contact us:
Mobile: (86)139-5321-5207
Skype: qdtaiyue02
Website: https://img13.fr-trading.com
