Home > Products > 2G11 Plug Type LED Tube Light > 2016 New High Lumens 4 Pin PLL 2G11 Tube

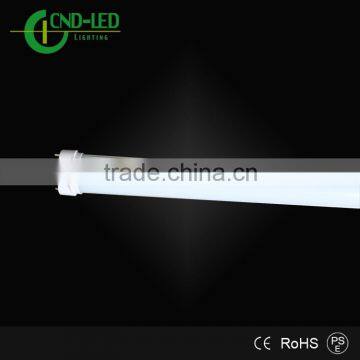

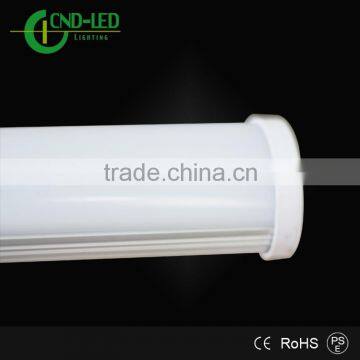

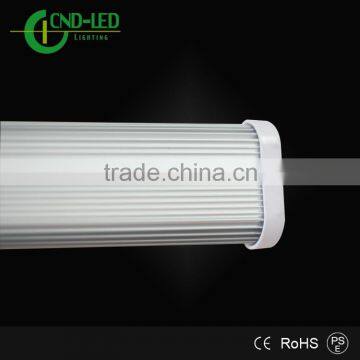

2016 New High Lumens 4 Pin PLL 2G11 Tube

FOB Price

US$ 4.00 - 4.40 / Piece

25 Pieces(Min. Order)

Port Guangzhou Zhongshan
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD2835	Warranty(Years)	3
Input Voltage(V)	AC85-265V	Lamp Power(W)	18
Lamp Luminous Flux(lm)	1800	Lamp Luminous Efficiency(lm/w)	100
Color Temperature(CCT)	Other, 3000/4000/6000K	Working Temperature(℃)	-45, 65
Working Lifetime(Hour)	100000	Lamp Body Material	Aluminum
IP Rating	IP44	Certification	CE, EMC, LVD
Place of Origin	Guangdong, China	Brand Name	OEM
Model Number	T12

Product Description

Specification

2g11 led tube
Item number	CNDHC1804
Input voltage	85-265Vac, 50/60Hz
Power	18W
Light color	3000/4000/6000K
Base	2G11 4pins plug
Isolated driver	Y/N for options
Power factor	0.98
Warranty	3 years

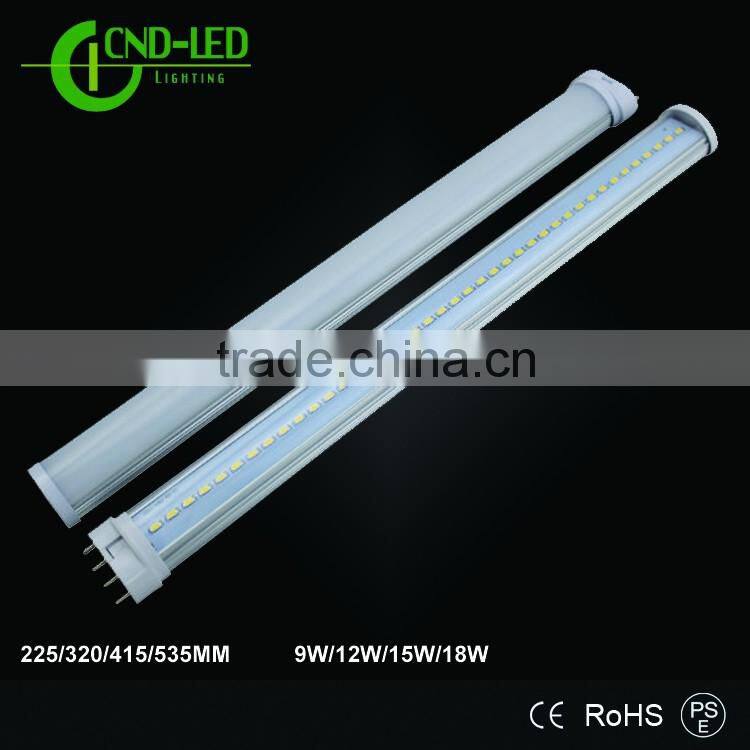

Power	9W	12W	15W	18W
Voltage(V)	85-265V AC 50-60Hz
Lumen	750-870lm	970-1050lm	1530-1650lm	1870-1990lm
Dimension	L227*D38mm	L322*D38mm	L417*D38mm	L542*D38mm
CRI	80-85Ra
LED Source	Samsung G2/Edision/Epistar 2835SMD
Base Optional	2G11 4 pins plug
Power Factor	≥0.95
CCT	Warm White/Natural White/Cool White 3000/4000/6000K
IP Rating	IP44
View angle	180°
Housing Material	Aluminium+PC
Cover	Clear or Frosted
Lifespan	50,000 hours
Dimmable	Dimmable available
Certificate	CE RoHS

Product Description

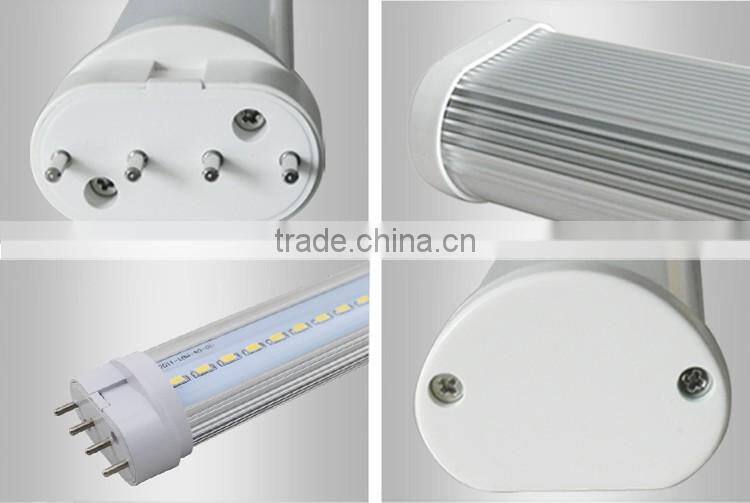

2016 New High lumens 4 pin PLL 2G11 tube

Advantages
1).Top quality drivers:PFC>0.91, Harmonic wave<9%
2).Higher lumen compared to similar models of others
3).Driver box:drivers are seperated from heat sink, remarkably increasing lifespan
4).View angle:120 °
5). High end Lumenmaxchips
6). High quality LED driver, isolated driver
7).Testing reports: LM79, LM80 available
8).CE ROHS listed

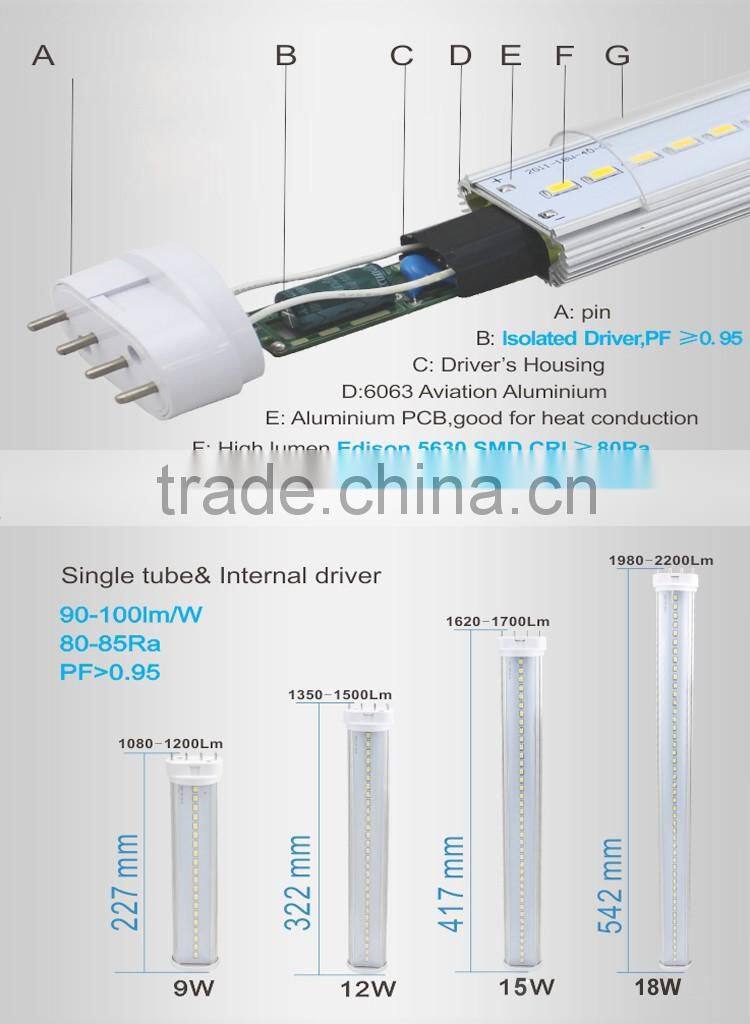

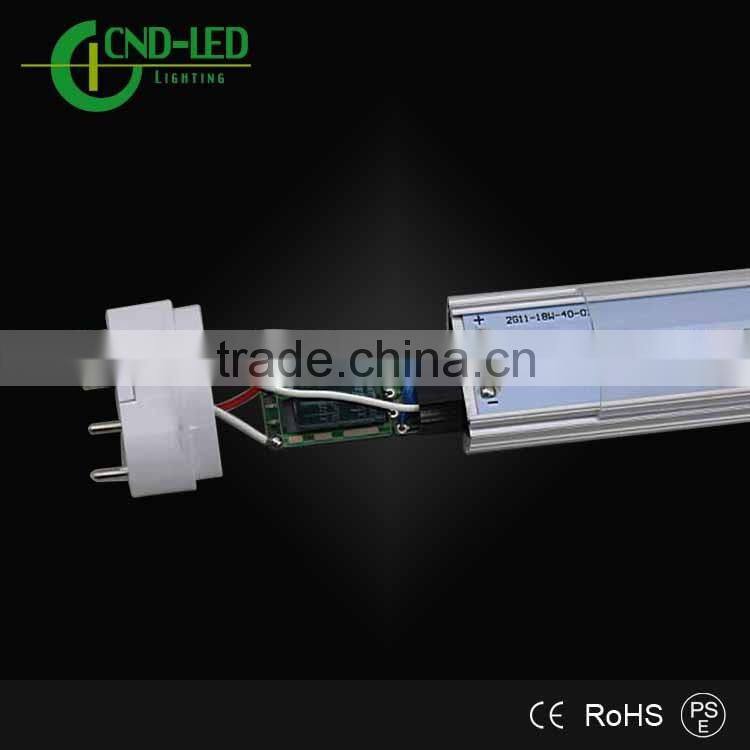

Product Details

What's the difference between isolated and non-isolated driver?
The isolated driver transfer the voltage from AC220V into lower voltage by transformer, then using electron component turn the lower AC into DC to supply LED
The Non-isolated driver turn the AC220V into DC through the electron component to supply LED directely.
Isolated driver is more safe then non-isolated driver,and isolated quality is stable then non-isolated,but the price for isolatedis higher than non-isolated

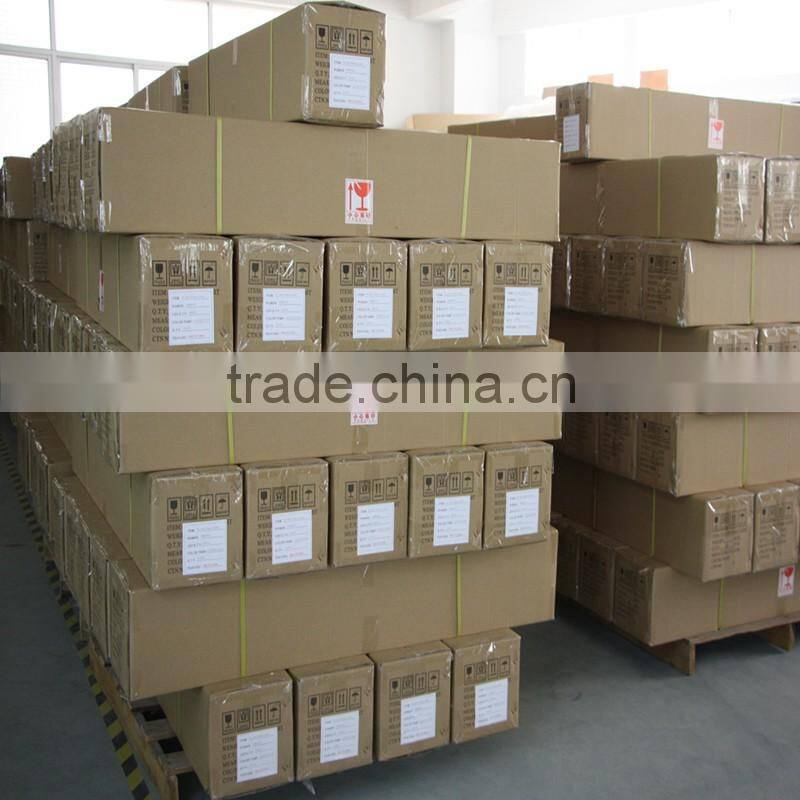

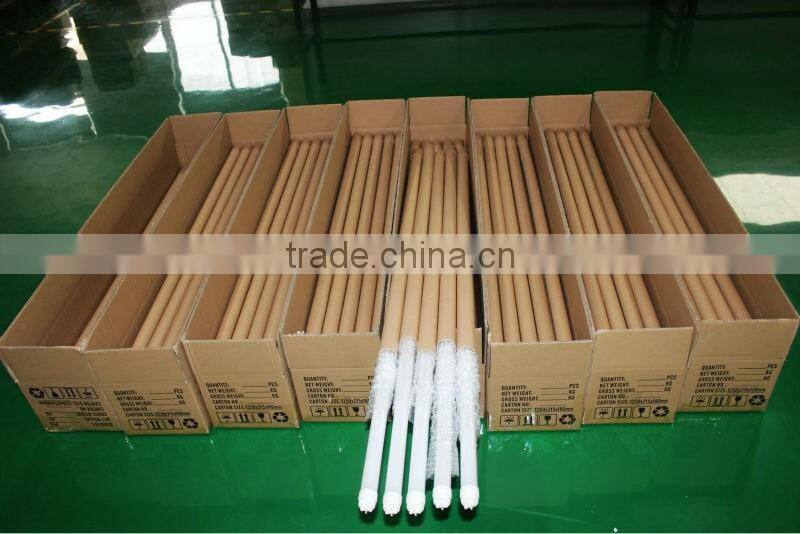

Packing Details

1pc/pc bag/box 30-60boxes/export carton, can be customised

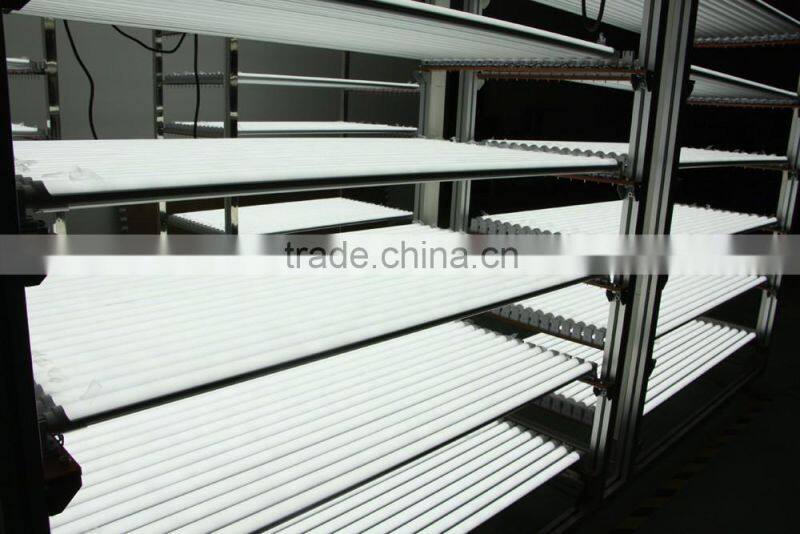

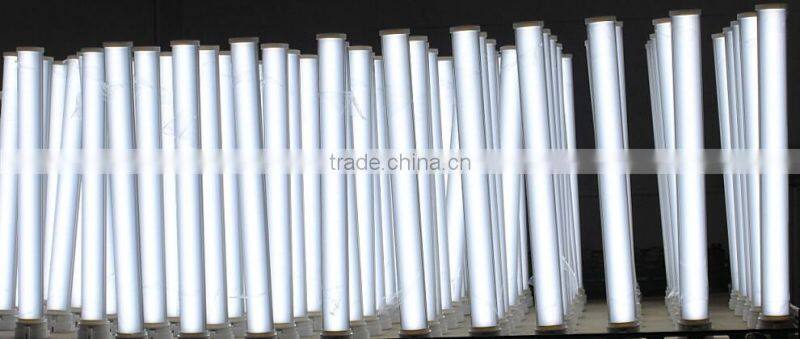

Aging test

2016 New High lumens 4 pin PLL 2G11 tube

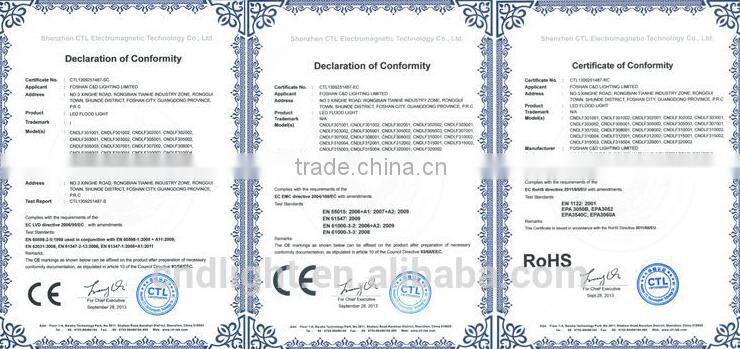

Certifications

2016 New High lumens 4 pin PLL 2G11 tube

Application

2016 New High lumens 4 pin PLL 2G11 tube

Company Information

2016 New High lumens 4 pin PLL 2G11 tube

FAQ

2016 New High lumens 4 pin PLL 2G11 tube

01.Do you have different led tubes
Yes,we have normal led tubes, led tubes which Compatible with ballast,dimmable led tubes,led tubes with sensor......

02. Can I put my company Logo on the lamp body?
Yes, we can put your company logo by Laser in free cost.

03. What's my payment options?
Sample: Via T/T , Paypal ETC
Bulk order: 30% by T/T for deposit, 70% balance payment is available L/C ( depends on order QTY and total Value)

04.What's your MOQ for samples?
You can buy 1 piece for sample testing, Dont have specific MOQ .

05. What is the Warranty for the lamps?
For the lamps, we have 3 years warranty. If any quality problems on our side occured in this period , we will take on the shipping cost and replacement.

06.How about the delivery time?
Usually,3-5days for the sample,4-10days under 500-2000pcs. Depends in qty.

07.Offer samples or not?
Yes.

08.Can i put my company Logo on the lamp body?
Yes. We can put your company logo by laser in free cost.

09.What’s my panyment options?
Sample:Via T/T , Paypal ETC
Bulk order:30% by T/T for deposit,70% balance payment is available L/C(depends on order QTY and total value)

10.What is color temperature?
CND LED Lighting offer lamps in warm,natural,pure and cool white color temperatures measured in Kelvin(k). The lower the color temperature is,the warmer the light given by the LED:
Warm white: 2700K-3200K
Natural white: 4000K-4500K
Pure white: 6000-6500K
Cold white:8000-8500K
